Berket El Sabaa WTP

Equipment List:
Siemens PLC System
Industrial Ethernet Switches
Central Control Room Hardware

Item PLC DI DO AI AO QTY Module Type Description

16 PLC SWPS 96 16 8 0 1 CPU 315-2 DP Main memory 128 KB, 24 V DC Power Supply
1 MMC 4 MB Micro Memory Card
1 CP 343-1 Lean Comm. Processor For the connection of S7-300 to Industrial Ethernet
1 KTP1000 Basic Color PN Operator Terminal with Touch Screen 10"
3 SM 321 Digital Input Module 32 inputs, 24 V DC
1 SM 322 Digital Output Module 16 outputs, 24 V DC, 0.5 A
1 SM 331 Analog Input Module 8 inputs, resolution 9/12/14 bits

Item PLC DI DO AI AO QTY Module Type Description

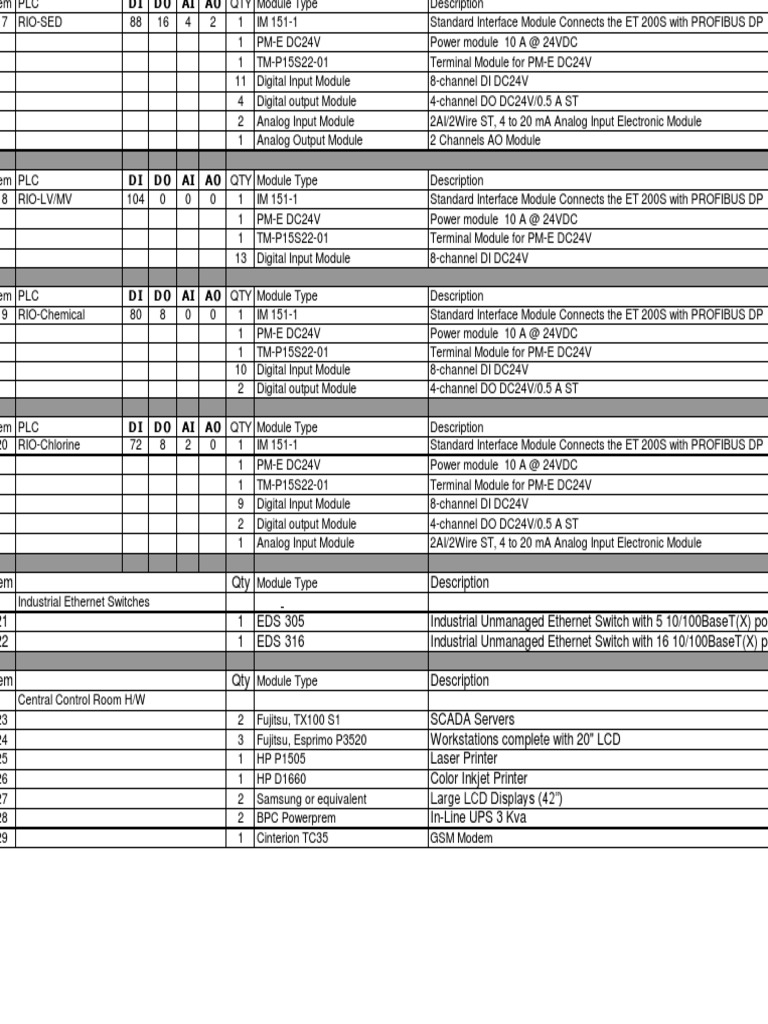

17 RIO-SED 88 16 4 2 1 IM 151-1 Standard Interface Module Connects the ET 200S with PROFIBUS DP
1 PM-E DC24V Power module 10 A @ 24VDC
1 TM-P15S22-01 Terminal Module for PM-E DC24V
11 Digital Input Module 8-channel DI DC24V
4 Digital output Module 4-channel DO DC24V/0.5 A ST
2 Analog Input Module 2AI/2Wire ST, 4 to 20 mA Analog Input Electronic Module
1 Analog Output Module 2 Channels AO Module

Item PLC DI DO AI AO QTY Module Type Description

18 RIO-LV/MV 104 0 0 0 1 IM 151-1 Standard Interface Module Connects the ET 200S with PROFIBUS DP
1 PM-E DC24V Power module 10 A @ 24VDC
1 TM-P15S22-01 Terminal Module for PM-E DC24V
13 Digital Input Module 8-channel DI DC24V

Item PLC DI DO AI AO QTY Module Type Description

19 RIO-Chemical 80 8 0 0 1 IM 151-1 Standard Interface Module Connects the ET 200S with PROFIBUS DP
1 PM-E DC24V Power module 10 A @ 24VDC
1 TM-P15S22-01 Terminal Module for PM-E DC24V
10 Digital Input Module 8-channel DI DC24V
2 Digital output Module 4-channel DO DC24V/0.5 A ST

Item PLC DI DO AI AO QTY Module Type Description

20 RIO-Chlorine 72 8 2 0 1 IM 151-1 Standard Interface Module Connects the ET 200S with PROFIBUS DP
1 PM-E DC24V Power module 10 A @ 24VDC
1 TM-P15S22-01 Terminal Module for PM-E DC24V
9 Digital Input Module 8-channel DI DC24V
2 Digital output Module 4-channel DO DC24V/0.5 A ST
1 Analog Input Module 2AI/2Wire ST, 4 to 20 mA Analog Input Electronic Module

Item Qty Module

‐ Type Description
Industrial Ethernet Switches ‐
21 1 EDS 305 Industrial Unmanaged Ethernet Switch with 5 10/100BaseT(X) ports, 0 to 60°C
22 1 EDS 316 Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, 0 to 60°C

Item Qty Module Type Description

Central Control Room H/W
23 2 Fujitsu, TX100 S1 SCADA Servers
24 3 Fujitsu, Esprimo P3520 Workstations complete with 20" LCD
25 1 HP P1505 Laser Printer
26 1 HP D1660 Color Inkjet Printer
27 2 Samsung or equivalent Large LCD Displays (42”)
28 2 BPC Powerprem In-Line UPS 3 Kva
29 1 Cinterion TC35 GSM Modem

Page 2 of 2
