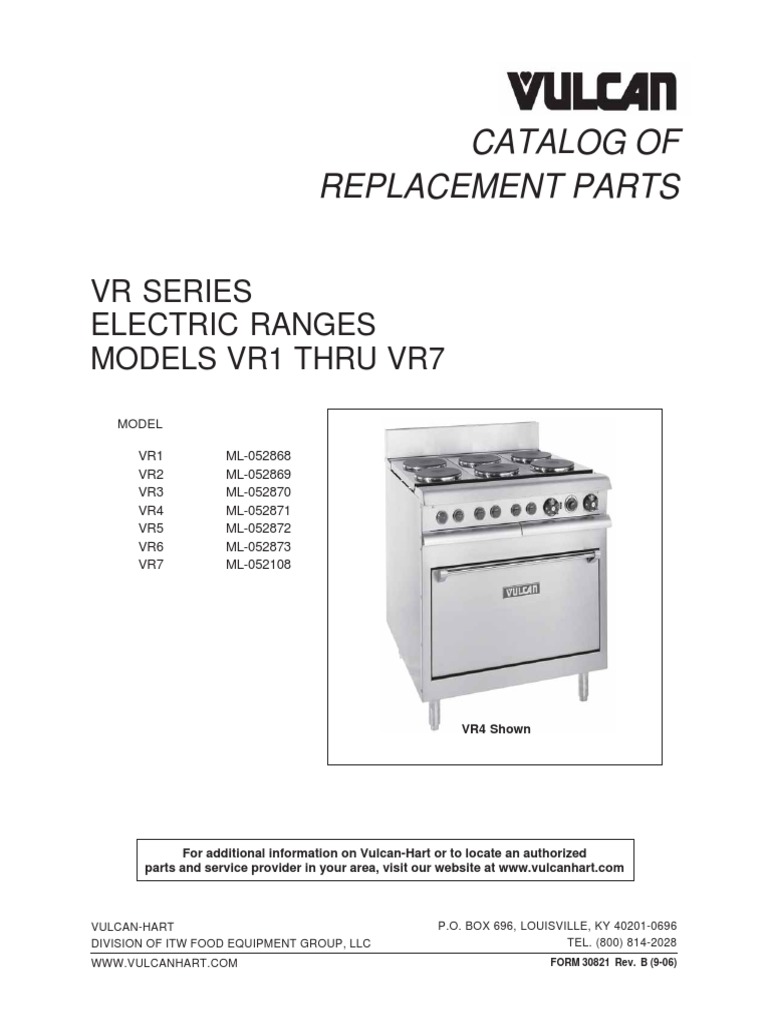

CATALOG OF

REPLACEMENT PARTS

VR SERIES
ELECTRIC RANGES
MODELS VR1 THRU VR7
MODEL

VR1 ML-052868
VR2 ML-052869
VR3 ML-052870
VR4 ML-052871
VR5 ML-052872
VR6 ML-052873
VR7 ML-052108

VR4 Shown

For additional information on Vulcan-Hart or to locate an authorized

parts and service provider in your area, visit our website at www.vulcanhart.com

VULCAN-HART P.O. BOX 696, LOUISVILLE, KY 40201-0696

DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC TEL. (800) 814-2028
WWW.VULCANHART.COM FORM 30821 Rev. B (9-06)
VR SERIES REPLACEMENT PARTS

VR SERIES

–2–
 REPLACEMENT PARTS VR SERIES

VR SERIES

ILLUS. PART
PL-22158A NO. NAME OF PART AMT.

1 00-412585-00G10 Plate Assy. Hot Top (208 V.)(Complete) ...................................................................................... AR

2 00-412585-00G11 Plate Assy. Hot Top (240 V.)(Complete) ...................................................................................... AR
3 00-412585-00G12 Plate Assy. Hot Top (480 V.)(Complete) ........................................................................................ 1
4 00-410105-000G2 Top - Front ..................................................................................................................................... 1
5 00-413516-000G1 Panel - Control ............................................................................................................................... 1
6 00-420098-00021 Handle - Drip Tray (R.H.) ............................................................................................................... 1
7 00-404549-00003 Post - Door (R.H.) .......................................................................................................................... 1
8 00-401847-00002 Handle - Door ................................................................................................................................. 1
9 00-413876-000G1 Door Assy. (Incls.items 7, 8 & 10) .................................................................................................. 1
10 00-404549-00004 Post - Door (L.H.) ........................................................................................................................... 1
11 00-420098-00020 Handle - Drip Tray (L.H.) ................................................................................................................ 1
12 00-410107-000G2 Back - Top ...................................................................................................................................... 1
13 00-411319-000G1 Back Splash Assy. ......................................................................................................................... 1
14 00-420118-00020 Triple Tie Bar ................................................................................................................................. 1
00-412895-00002 Tray - Drip (R.H.) ............................................................................................................................ 1
00-412896-000G1 Tray - Drip (L.H.) ............................................................................................................................ 1
00-409840-00006 Leg SST ......................................................................................................................................... 4
00-412672-000G1 Side - Body (R.H.) .......................................................................................................................... 1
00-412672-000G2 Side - Body (L.H.) ........................................................................................................................... 1

* NOTE: VR1 is shown in photo.

–3–
VR SERIES REPLACEMENT PARTS

VR SERIES OVEN CAVITY

ILLUS. PART
PL-22162A NO. NAME OF PART AMT.

1 00-420065-020G1 Side Assy. - Oven R.H. .................................................................................................................. 1

2 00-406708-000G1 Door - Breaker Panel ...................................................................................................................... 1
3 00-413876-000G1 Door Assy. - Oven .......................................................................................................................... 1
4 00-420103-000G1 Deck - Oven ................................................................................................................................... 1
5 00-417807-00001 Rack - Oven ................................................................................................................................... 1
6 00-420059-020G1 Side Assy. - Oven L.H. ................................................................................................................... 1
7 00-420068-020G1 Back - Oven ................................................................................................................................... 1
8 00-420071-020G1 Top & Bottom - Oven ..................................................................................................................... 1

–4–
 REPLACEMENT PARTS VR SERIES

FRENCH PLATE ASSEMBLY

ILLUS. PART
PL-22159 NO. NAME OF PART AMT.

1 00-421240-00001 Plate - French (208 V.) ................................................................................................................. AR

2 00-421240-00002 Plate - French (240 V.) ................................................................................................................. AR
3 00-421240-00003 Plate - French (480 V.) ................................................................................................................. AR
4 00-415048-00001 Clamp .......................................................................................................................................... AR
5 00-415050-0000N Nut ............................................................................................................................................... AR
6 00-420473-000G3 Top - Cooking .............................................................................................................................. AR
00-415049-00001 Strap Jumper (480 V. Only) .......................................................................................................... AR

–5–
VR SERIES REPLACEMENT PARTS

ALL PURPOSE PLATE

(VR2, VM2, VEX2, VMX2, VR6, VM6)

ILLUS. PART
PL-22161 NO. NAME OF PART AMT.

1 00-413513-00001 Thermostat Clamp ......................................................................................................................... 1

2 00-414449-00002 Cover - Insulating ........................................................................................................................... 2
3 00-417852-00002 Stud (1/4-20 x 11/4 Lg.) .................................................................................................................... 14
4 00-417852-00003 Stud (1/4-20 x 21/2 Lg.) ..................................................................................................................... 4
5 00-412585-000G4 Plate Assy. All Purpose (With Trough 208 V.) (Complete) ........................................................... AR
6 00-412585-000G5 Plate Assy. All Purpose (With Trough 240 V.) (Complete) ........................................................... AR
7 00-412585-000G6 Plate Assy. All Purpose (With Trough 480 V.) (Complete) ........................................................... AR
8 00-412585-000G7 Plate Assy. All Purpose (W/O Trough 208 V.) (Complete) ........................................................... AR
9 00-412585-000G8 Plate Assy. All Purpose (W/O Trough 240 V.)(Complete) ............................................................ AR
10 00-412585-000G9 Plate Assy. All Purpose (W/O Trough 480 V.) (Complete) ........................................................... AR
11 00-414452-00001 Clamp - Element Plate ................................................................................................................... 2
12 00-413452-00001 Element - Electric Heat (208 V.) ..................................................................................................... 2
13 00-413452-00002 Element - Electric Heat (240 V.) ..................................................................................................... 2
14 00-413452-00003 Element - Electric Heat (480 V.) ..................................................................................................... 2
NS-044-14 Nut - 1/4-20 Hex “Keps” .................................................................................................................. 22
00-414450-00001 Plate - Hot Top (With Trough) ........................................................................................................ 1
00-408581-00001 Insulation ........................................................................................................................................ 1
00-414450-00002 Plate - Hot Top (W/O Trough) ........................................................................................................ 1

* Quantites are per assembly.

–6–
 REPLACEMENT PARTS VR SERIES

HOT TOPS
(VR1, VR3, VM1, VM3, VEX1, VMX1)

ILLUS. PART
PL-22160 NO. NAME OF PART AMT.

1 00-414452-00001 Clamp - Element Plate ................................................................................................................... 2

2 00-412585-00G10 Plate Assy. Hot Top (208 V.)(Complete) ...................................................................................... AR
3 00-412585-00G11 Plate Assy. Hot Top (240 V.)(Complete) ...................................................................................... AR
4 00-412585-00G12 Plate Assy. Hot Top (480 V.)(Complete) ...................................................................................... AR
5 00-417852-00003 Stud (1/4-20 x 21/2 Lg.) ..................................................................................................................... 4
6 00-417852-00002 Stud (1/4-20 x 11/4 Lg.) .................................................................................................................... 14
7 00-414449-00001 Insulating Pan Cover ...................................................................................................................... 2
8 00-410780-00002 Inner Element (208 V.) ................................................................................................................... 2
9 00-410780-00003 Inner Element (240 V.) ................................................................................................................... 2
10 00-410780-00001 Inner Element (480 V.) ................................................................................................................... 2
11 00-410778-00002 Outer Element (208 V.) .................................................................................................................. 2
12 00-410778-00003 Outer Element (240 V.) .................................................................................................................. 2
13 00-410778-00001 Outer Element (480 V.) .................................................................................................................. 2
00-408581-00001 Insulation ........................................................................................................................................ 1
00-420514-00002 Strap - Jumper (VR 1 & 3) .............................................................................................................. 3
NS-044-14 Nut - 1/4-20 Hex “Keps” .................................................................................................................. 11
00-414450-00002 Plate - Hot Top (W/O Trough)(VR 1, 2 & 3) .................................................................................... 1

* Quantities all are per assembly.

–7–
VR SERIES REPLACEMENT PARTS

VR1 208/240 VOLT

CONTROL PANEL

ILLUS. PART
PL-22163 NO. NAME OF PART AMT.

1 00-415119-000G2 Thermostat - Oven (Incls.items 4 & 5) ............................................................................................ 1

2 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 8
3 00-413516-000G1 Panel - Control ............................................................................................................................... 1
4 00-415119-00006 Bezel .............................................................................................................................................. 1
5 00-415119-00004 Dial - Thermostat ........................................................................................................................... 1
6 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
7 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 8
8 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 8
9 00-419605-00001 Spacer ............................................................................................................................................ 8
10 00-413518-000G1 Stiffener .......................................................................................................................................... 1

–8–
 REPLACEMENT PARTS VR SERIES

VR1/VR3 480 VOLT

CONTROL PANEL

ILLUS. PART
PL-22164 NO. NAME OF PART AMT.

1 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 8

2 00-415119-000G2 Thermostat - Oven (Incls.items 8 & 9) ............................................................................................ 1
3 00-413518-000G1 Stiffener .......................................................................................................................................... 1
4 00-413516-000G1 Panel - Control ............................................................................................................................... 1
5 00-419605-00001 Spacer ............................................................................................................................................ 8
6 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 8
7 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 8
8 00-415119-00004 Dial - Thermostat ........................................................................................................................... 1
9 00-415119-00006 Bezel .............................................................................................................................................. 1
10 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
11 00-417876-00001 Resistor - 300K .............................................................................................................................. 1

–9–
VR SERIES REPLACEMENT PARTS

VR2 208/240 VOLT

CONTROL PANEL

ILLUS. PART
PL-22165A NO. NAME OF PART AMT.

1 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 2

2 00-415119-000G2 Thermostat - Oven (Incls.items 7 & 9) ............................................................................................ 1
3 00-413516-000G1 Panel - Control ............................................................................................................................... 1
4 00-419605-00001 Spacer ............................................................................................................................................ 2
5 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 2
6 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 2
7 00-415119-00004 Dial - Thermostat ........................................................................................................................... 1
8 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
9 00-415119-00006 Bezel .............................................................................................................................................. 4
10 00-411496-000E4 Light - Hot Top ............................................................................................................................... 3
11 00-413518-000G1 Stiffener .......................................................................................................................................... 1
12 00-411506-00001 Thermostat - Hot Top ..................................................................................................................... 3
13 00-418061-00001 Thermostat Knob- Hot Top ............................................................................................................ 1

– 10 –
 REPLACEMENT PARTS VR SERIES

VR2 480 VOLT

CONTROL PANEL

ILLUS. PART
PL-22166A NO. NAME OF PART AMT.

1 00-411506-00001 Thermostat - Hot Top ..................................................................................................................... 3

2 00-415119-000G2 Thermostat - Oven (Incls.items 6 & 11) .......................................................................................... 1
3 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 2
4 00-419605-00001 Spacer ............................................................................................................................................ 2
5 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 2
6 00-415119-00004 Dial - Thermostat ........................................................................................................................... 1
7 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
8 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 2
9 00-411496-000E4 Light - Hot Top ............................................................................................................................... 3
10 00-417876-00001 Resistor - 300K .............................................................................................................................. 4
11 00-415119-00006 Bezel .............................................................................................................................................. 4
12 00-413516-000G1 Panel - Control ............................................................................................................................... 1
13 00-413518-000G1 Stiffener .......................................................................................................................................... 1
14 00-418061-00001 Thermostat Knob - Hot Top ............................................................................................................ 1

– 11 –
VR SERIES REPLACEMENT PARTS

VR3 208/240 VOLT

CONTROL PANEL

ILLUS. PART
PL-22167 NO. NAME OF PART AMT.

1 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 6

2 00-415119-000G2 Thermostat - Oven (Incls.items 5 & 6) ............................................................................................ 1
3 00-413518-000G1 Stiffener .......................................................................................................................................... 1
4 00-413516-000G1 Panel - Control ............................................................................................................................... 1
5 00-415119-00006 Bezel .............................................................................................................................................. 1
6 00-415119-00004 Dial - Thermostat ........................................................................................................................... 1
7 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
8 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 6
9 00-419605-00001 Spacer ............................................................................................................................................ 6
10 00-412251-00001 Knob - Infinite Switch ..................................................................................................................... 2
11 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 8
12 00-411503-00004 Switch - Infinite (208/240 V.) .......................................................................................................... 2

– 12 –
 REPLACEMENT PARTS VR SERIES

GRIDDLE PLATE ASSEMBLY

VR5

ILLUS. PART
PL-22176 NO. NAME OF PART AMT.

1 00-412693-00001 Cover - Griddle Base ...................................................................................................................... 1

2 00-412694-00001 Plate - Closure ............................................................................................................................... 3
3 00-420467-00020 Clamp - Element ............................................................................................................................ 6
4 00-420385-00001 Cover - Thermostat Bulb ................................................................................................................ 3
5 00-411967-00004 Element - Electric Heat (208 V.) ..................................................................................................... 3
6 00-411967-00005 Element - Electric Heat (240 V.) ..................................................................................................... 3
7 00-411967-00003 Element - Electric Heat (480 V.) ..................................................................................................... 3
8 00-412691-000G1 Retainer Assy. - Inner Element ...................................................................................................... 6
9 00-412690-00001 Retainer - Outer Element ............................................................................................................... 6
00-412692-000G1 Plate Assy. - Griddle (Complete)(208 V.) ....................................................................................... 1
00-412692-000G2 Plate Assy. - Griddle (Complete)(240 V.) ....................................................................................... 1
00-412692-000G3 Plate Assy. - Griddle (Complete)(480 V.) ....................................................................................... 1

– 13 –
VR SERIES REPLACEMENT PARTS

VR4 208/240 VOLT

CONTROL PANEL

ILLUS. PART
PL-22168 NO. NAME OF PART AMT.

1 00-412251-00001 Knob - Infinite Switch ..................................................................................................................... 6

2 00-411503-00004 Switch - Infinite (208/240 V.) .......................................................................................................... 6
3 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 2
4 00-415119-000G2 Thermostat - Oven (Incls.items 8 & 10) .......................................................................................... 1
5 00-413518-000G1 Stiffener .......................................................................................................................................... 1
6 00-413516-000G1 Panel - Control ............................................................................................................................... 1
7 00-419605-00001 Spacer ............................................................................................................................................ 2
8 00-415119-00006 Bezel .............................................................................................................................................. 1
9 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 8
10 00-415119-00004 Dial - Thermostat ........................................................................................................................... 1
11 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
12 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 2

– 14 –
 REPLACEMENT PARTS VR SERIES

VR4 480 VOLT

CONTROL PANEL

ILLUS. PART
PL-22169 NO. NAME OF PART AMT.

1 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 8

2 00-415119-000G2 Thermostat - Oven (Incls.items 8 & 10) .......................................................................................... 1
3 00-413518-000G1 Stiffener .......................................................................................................................................... 1
4 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
5 00-417876-00001 Resistor - 300K .............................................................................................................................. 1
6 00-413516-000G1 Panel - Control ............................................................................................................................... 1
7 00-419605-00001 Spacer ............................................................................................................................................ 2
8 00-415119-00006 Bezel .............................................................................................................................................. 1
9 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 8
10 00-415119-00004 Dial - Thermostat ........................................................................................................................... 1
11 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 8

– 15 –
VR SERIES REPLACEMENT PARTS

VR5 208/240 VOLT

CONTROL PANEL

ILLUS. PART
PL-22170A NO. NAME OF PART AMT.

1 00-415119-000G2 Thermostat - Oven (Incls.items 8 & 9) ............................................................................................ 1

2 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 2
3 00-413518-000G1 Stiffener .......................................................................................................................................... 1
4 00-413516-000G1 Panel - Control ............................................................................................................................... 1
5 00-419605-00001 Spacer ............................................................................................................................................ 2
6 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 2
7 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 2
8 00-415119-00006 Bezel .............................................................................................................................................. 4
9 00-415119-00004 Dial - Oven Thermostat .................................................................................................................. 1
10 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
11 00-411496-000E4 Light - Hot Top ............................................................................................................................... 3
12 00-411506-00002 Thermostat Griddle ........................................................................................................................ 3
13 00-415119-00004 Griddle Thermostat Dial ................................................................................................................. 1

– 16 –
 REPLACEMENT PARTS VR SERIES

VR5 480 VOLT

CONTROL PANEL

ILLUS. PART
PL-22171A NO. NAME OF PART AMT.

1 00-411506-00002 Thermostat Griddle ........................................................................................................................ 3

2 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 2
3 00-415119-000G2 Thermostat - Oven (Incls.items 9 & 12) .......................................................................................... 1
4 00-413518-000G1 Stiffener .......................................................................................................................................... 1
5 00-413516-000G1 Panel - Control ............................................................................................................................... 1
6 00-419605-00001 Spacer ............................................................................................................................................ 2
7 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 2
8 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 2
9 00-415119-00004 Dial - Oven Thermostat .................................................................................................................. 1
10 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
11 00-417876-00001 Resistor - 300K .............................................................................................................................. 4
12 00-415119-00006 Bezel .............................................................................................................................................. 4
13 00-411496-000E4 Light - Hot Top ............................................................................................................................... 3
14 00-415119-00004 Griddle Thermostat Dial ................................................................................................................. 1

– 17 –
VR SERIES REPLACEMENT PARTS

VR6 208/240 VOLT

CONTROL PANEL

ILLUS. PART
PL-22174A NO. NAME OF PART AMT.

1 00-412251-00001 Knob - Infinite Switch ..................................................................................................................... 2

2 00-411503-00003 Switch - Infinite (208/240 V.) .......................................................................................................... 2
3 00-411506-00001 Thermostat - Hot Top ..................................................................................................................... 2
4 00-415119-000G2 Thermostat - Oven (Incls.items 10 & 11) ........................................................................................ 1
5 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 2
6 00-413518-000G1 Stiffener .......................................................................................................................................... 1
7 00-413516-000G1 Panel - Control ............................................................................................................................... 1
8 00-419605-00001 Spacer ............................................................................................................................................ 4
9 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 4
10 00-415119-00006 Bezel .............................................................................................................................................. 3
11 00-415119-00004 Dial - Thermostat ........................................................................................................................... 1
12 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
13 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 2
14 00-411496-000E4 Light - Hot Top ............................................................................................................................... 2
15 00-418061-00001 Hot Top Thermostat Knob ............................................................................................................. 1

– 18 –
 REPLACEMENT PARTS VR SERIES

VR6 480 VOLT

CONTROL PANEL

ILLUS. PART
PL-22175A NO. NAME OF PART AMT.

1 00-411506-00001 Thermostat - Hot Top ..................................................................................................................... 2

2 00-415119-000G2 Thermostat - Oven (Incls.items 8 & 9) ............................................................................................ 1
3 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 4
4 00-413518-000G1 Stiffener .......................................................................................................................................... 1
5 00-413516-000G1 Panel - Control ............................................................................................................................... 1
6 00-419605-00001 Spacer ............................................................................................................................................ 4
7 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 4
8 00-415119-00006 Bezel .............................................................................................................................................. 3
9 00-415119-00004 Dial - Thermostat ........................................................................................................................... 1
10 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
11 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 4
12 00-411496-000E4 Light - Hot Top ............................................................................................................................... 2
13 00-417876-00001 Resistor - 300K .............................................................................................................................. 3
14 00-418061-00001 Hot Top Thermostat Knob .............................................................................................................. 1

– 19 –
VR SERIES REPLACEMENT PARTS

VR7 208/240 VOLT

CONTROL PANEL

ILLUS. PART
PL-22172A NO. NAME OF PART AMT.

1 00-412251-00001 Knob - Infinite Switch ..................................................................................................................... 2

2 00-411503-00004 Switch - Infinite (208/240 V.) .......................................................................................................... 2
3 00-411506-00002 Thermostat Griddle W/Knob ........................................................................................................... 2
4 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 2
5 00-415119-000G2 Thermostat - Oven (Incls.items 11 & 12) ........................................................................................ 1
6 00-419901-000G1 Stiffener .......................................................................................................................................... 1
7 00-419990-000G1 Panel Control ................................................................................................................................. 1
8 00-419605-00001 Spacer ............................................................................................................................................ 2
9 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 4
10 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 2
11 00-415119-00006 Bezel .............................................................................................................................................. 3
12 00-415119-00004 Dial - Oven Thermostat .................................................................................................................. 1
13 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
14 00-411496-000E4 Light - Hot Top ............................................................................................................................... 2
15 00-415119-00004 Griddle Thermostat Dial ................................................................................................................. 1

– 20 –
 REPLACEMENT PARTS VR SERIES

VR7 480 VOLT

CONTROL PANEL

ILLUS. PART
PL-22173A NO. NAME OF PART AMT.

1 00-411506-00002 Thermostat Griddle ........................................................................................................................ 2

2 00-415119-000G2 Thermostat - Oven (Incls.items 9 & 11) .......................................................................................... 1
3 00-355798-00001 Switch - 3 Heat Selector ................................................................................................................. 2
4 00-413518-000G1 Stiffener .......................................................................................................................................... 1
5 00-413516-000G1 Panel - Control ............................................................................................................................... 1
6 00-419605-00001 Spacer ............................................................................................................................................ 2
7 NS-047-80 Locknut 3/8-24 Special Palnut ......................................................................................................... 4
8 00-407727-00002 Knob - Three Heat Switch .............................................................................................................. 2
9 00-415119-00004 Dial - Oven Thermostat .................................................................................................................. 1
10 00-411496-000E5 Indicator Light - Oven ..................................................................................................................... 1
11 00-415119-00006 Bezel .............................................................................................................................................. 3
12 00-411496-000E4 Light - Hot Top ............................................................................................................................... 2
13 00-415119-00004 Griddle Thermostat Dial ................................................................................................................. 1
00-417876-00001 Resistor - 300K .............................................................................................................................. 3

– 21 –
VR SERIES REPLACEMENT PARTS

VR OVEN DOOR MECHANISM PARTS

– 22 –
 REPLACEMENT PARTS VR SERIES

VR OVEN DOOR MECHANISM PARTS

ILLUS. PART
PL-22177 NO. NAME OF PART AMT.

1 00-408895-000G1 Crank Support Assy. ...................................................................................................................... 1

2 00-409240-00002 Spacer - 3/4 Pipe x 7/16 Lg. ............................................................................................................... 1
3 00-410111-00001 Crank - Bell .................................................................................................................................... 1
4 00-404629-00001 Bearing - Hinge Pin ........................................................................................................................ 1
5 00-408896-00001 Support - Crank .............................................................................................................................. 1
6 SC-090-01 Bolt - Shoulder 1/2-13 x 2 Hex Hd. ................................................................................................... 1
7 00-406363-00001 Spring - Door (Long) ....................................................................................................................... 1
8 00-410089-00001 Arm - Door Control ......................................................................................................................... 1
9 00-417860-00001 Bolt - Shoulder 3/8-16 x 3/4 Hex Hd. ................................................................................................. 1
10 WS-004-33 Washer ........................................................................................................................................... 1
11 SC-090-01 Bolt - Shoulder 1/2-13 x 2 Hex Hd. ................................................................................................... 1
12 00-408896-00001 Support - Crank .............................................................................................................................. 1
13 00-404629-00001 Bearing - Hinge Pin ........................................................................................................................ 1
14 00-410090-000G1 Radius Bar Assy. ........................................................................................................................... 1
15 00-409240-00001 Spacer - 3/4 x 5/16 Lg. ....................................................................................................................... 1
16 00-408895-000G1 Crank Support Assy. ...................................................................................................................... 1
17 00-412858-000G1 Division Assy. ................................................................................................................................ 1
18 00-410110-00001 Anchor - Spring .............................................................................................................................. 1
19 00-417874-00001 Buckle - Turn .................................................................................................................................. 1
20 00-405618-00001 Hook - Oven Door .......................................................................................................................... 1
00-412887-000G1 Door Frame Assy. .......................................................................................................................... 1
00-417862-00001 Pin - Door Hinge ............................................................................................................................. 2

– 23 –
VR SERIES REPLACEMENT PARTS

OVEN ELEMENT ASSEMBLY

208/240 V. & 480 V.

– 24 –
 REPLACEMENT PARTS VR SERIES

OVEN ELEMENT ASSEMBLY

208/240 V. & 480 V.

ILLUS. PART
PL-22178 NO. NAME OF PART AMT.

1 00-410113-00001 Cover - Terminal ............................................................................................................................ 1

2 00-412707-00002 Spacer - Oven Side ........................................................................................................................ 2
3 00-417820-00001 Element Assy. - Inner Top 208 V. .................................................................................................. 1
4 00-417820-00002 Element Assy. - Inner Top 240 V. .................................................................................................. 1
5 00-417820-00003 Element Assy. - Inner Top 480 V. .................................................................................................. 1
6 00-417823-00001 Element Assy. - Outer Top 208 V. .................................................................................................. 1
7 00-417823-00002 Element Assy. - Outer Top 240 V. .................................................................................................. 1
8 00-417823-00003 Element Assy. - Outer Top 480 V. .................................................................................................. 1
9 00-417823-00005 Element - Outer Bottom (208 V.) .................................................................................................... 1
10 00-417823-00006 Element - Outer Bottom (240 V.) .................................................................................................... 1
11 00-417823-00007 Element - Outer Bottom (480 V.) .................................................................................................... 1
12 00-417820-00005 Element - Inner Bottom (208 V.) ..................................................................................................... 1
13 00-417820-00006 Element - Inner Bottom (240 V.) ..................................................................................................... 1
14 00-417820-00007 Element - Inner Bottom (480 V.) ..................................................................................................... 1
15 00-412708-00001 Spacer - Division Side .................................................................................................................... 2
16 00-410114-00001 Cover - Bottom Terminal ................................................................................................................ 1
17 00-420358-000G4 Element Assy. Bottom (208 V) (Incls.items 9 & 12) ....................................................................... 1
18 00-420358-000G5 Element Assy. Bottom (240 V) (Incls.items 10 & 13) ..................................................................... 1
19 00-420358-000G6 Element Assy. Bottom (480 V.) (Incls.items 11 & 14) .................................................................... 1
20 00-420358-000G1 Element Assy. Top (208 V.)(Incls. items 3 & 6) .............................................................................. 1
21 00-420358-000G2 Element Assy. Top (240 V.)(Incls. items 4 & 7) .............................................................................. 1
22 00-420358-000G3 Element Assy. Top (480 V.)(Incls items 5 & 8) ............................................................................... 1

– 25 –
VR SERIES REPLACEMENT PARTS

CONNECTION BLOCK ASSEMBLY

VR SERIES 208/240 V.

ILLUS. PART
PL-22179 NO. NAME OF PART AMT.

1 00-412577-00001 Box - Breaker ................................................................................................................................. 1

2 00-411501-00014 Circuit Breaker ............................................................................................................................... 2
3 00-410472-00011 Terminal Block (3 Pole) .................................................................................................................. 1
4 00-412578-00001 Closure ........................................................................................................................................... 1
00-406708-000G1 Breaker Cover Door Assy. .............................................................................................................. 1

– 26 –
 REPLACEMENT PARTS VR SERIES

CONNECTION BLOCK ASSEMBLY

VR SERIES 480 V.

ILLUS. PART
PL-22180 NO. NAME OF PART AMT.

1 00-412577-00001 Box - Breaker ................................................................................................................................. 1

2 00-410472-00011 Terminal Block (3 Pole) .................................................................................................................. 1
3 00-412578-00002 Closure ........................................................................................................................................... 1

– 27 –
VR SERIES REPLACEMENT PARTS

RECOMMENDED SPARE PARTS

STANDARD OVEN

PART
NO. NAME OF PART AMT.

00-420098-00021 Drip Tray Handle (RH) ............................................................................................................... 1

00-420098-00020 Drip Tray Handle (LH) ................................................................................................................ 1
00-404549-00003 Door Post (RH) .......................................................................................................................... 1
00-404549-00004 Door Post (LH) ........................................................................................................................... 1
00-413876-000G1 Door Assy. ................................................................................................................................. 1
00-401847-00002 Door Handle ............................................................................................................................... 1
00-420103-000G1 Oven Deck ................................................................................................................................. 1
00-417807-00001 Oven Rack ................................................................................................................................. 1
00-410111-00001 Bell Crank Oven ......................................................................................................................... 1
00-404629-00001 Hinge Pin Bearing ...................................................................................................................... 1
00-406363-00001 Long Door Spring ....................................................................................................................... 1
00-410110-00001 Anchor Spring ............................................................................................................................ 1
00-417874-00001 Turn Buckle ................................................................................................................................ 1
00-405618-00001 Oven Door Hook ........................................................................................................................ 1
00-417862-00001 Door Hinge Pin ........................................................................................................................... 1
00-417820-00001 Oven Element Inner Top (208V) ................................................................................................ 1
00-417820-00002 Oven Element Inner Top (240V) ................................................................................................ 1
00-417820-00003 Oven Element Inner Top (480V) ................................................................................................ 1
00-417823-00001 Outer Top Element (208V) ......................................................................................................... 1
00-417823-00002 Outer Top Element (240V) ......................................................................................................... 1
00-417823-00003 Outer Top Element (480V) ......................................................................................................... 1
00-417820-00005 Inner Bottom Element (208V) ..................................................................................................... 1
00-417820-00006 Inner Bottom Element (240V) ..................................................................................................... 1
00-417820-00007 Inner Bottom Element (480V) ..................................................................................................... 1
00-417823-00005 Outer Bottom Element (208V) .................................................................................................... 1
00-417823-00006 Outer Bottom Element (240V) .................................................................................................... 1
00-417823-00007 Outer Bottom Element (480V) .................................................................................................... 1
00-410472-00011 Terminal Block (3-pole) .............................................................................................................. 1
00-411501-00014 Circuit Breaker ........................................................................................................................... 1

VR1/VM1/VS1 208V/240V/480V
COOK TOP

00-415119-000G2 Oven Thermostat ....................................................................................................................... 1

00-355798-00001 3-heat Switch ............................................................................................................................. 1
00-415119-00004 Thermostat Dial ......................................................................................................................... 1
00-415119-00006 Thermostat Bezel ....................................................................................................................... 1
00-411496-000E5 Oven Indicator Light ................................................................................................................... 1
00-407727-00002 3-heat Switch Knob .................................................................................................................... 1
00-417876-00001 Resistor (300K) (480V Only) ...................................................................................................... 1
00-414450-00002 Hot Top Plate (No Trough) ......................................................................................................... 1
00-410778-00002 Outer Element (208V) ................................................................................................................ 1
00-410780-00002 Inner Element (208V) ................................................................................................................. 1
00-410778-00003 Outer Element (240V) ................................................................................................................ 1
00-410780-00003 Inner Element (240V) ................................................................................................................. 1
00-410778-00001 Outer Element (480V) ................................................................................................................ 1
00-410780-00001 Inner Element (480V) ................................................................................................................. 1

– 28 –
 REPLACEMENT PARTS VR SERIES

RECOMMENDED SPARE PARTS

VR2/VM2/VS2 208V/240V/480V
COOK TOP

00-411506-00001 Hot Top Thermostat ................................................................................................................... 1

00-355798-00001 3-heat Switch ............................................................................................................................. 1
00-415119-00004 Thermostat Dial ......................................................................................................................... 1
00-415119-00006 Thermostat Bezel ....................................................................................................................... 1
00-411496-000E4 Hot Top Indicator Light ............................................................................................................... 1
00-407727-00002 3-heat Switch Knob .................................................................................................................... 1
00-417876-00001 Resistor (300K) (480V Only) ...................................................................................................... 1
00-413452-00001 Element (All Purpose Plate) (208V) ........................................................................................... 1
00-413452-00002 Element (All Purpose Plate) (240V) ........................................................................................... 1
00-413452-00003 Element (All Purpose Plate) (480V) ........................................................................................... 1

VR3/VM3/VS3 208V/240V/480V
COOK TOP

00-411503-00004 Infinite Switch 208V/240V .......................................................................................................... 1

00-412251-00001 Infinite Switch Knob ................................................................................................................... 1
00-415119-000G2 Oven Thermostat ....................................................................................................................... 1
00-355798-00001 3-heat Switch ............................................................................................................................. 1
00-415119-00004 Thermostat Dial ........................................................................................................................ 1
00-415119-00006 Thermostat Bezel ....................................................................................................................... 1
00-411496-000E5 Oven Indicator Light ................................................................................................................... 1
00-407727-00002 3-heat Switch Knob .................................................................................................................... 1
00-417876-00001 Resistor (300K) (480V Only) ...................................................................................................... 1
00-414450-00002 Hot Top Plate (No Trough) ......................................................................................................... 1
00-410778-00002 Outer Element (208V) ................................................................................................................ 1
00-410780-00002 Inner Element (208V) ................................................................................................................. 1
00-410778-00003 Outer Element (240V) ................................................................................................................ 1
00-410780-00003 Inner Element (240V) ................................................................................................................. 1
00-410778-00001 Outer Element (480V) ................................................................................................................ 1
00-410780-00001 Inner Element (480V) ................................................................................................................. 1
00-421240-00001 Round French Plate (208V) ........................................................................................................ 1
00-421240-00002 Round French Plate (240V) ........................................................................................................ 1
00-421240-00003 Round French Plate (480V) ........................................................................................................ 1

VR4/VM4/VS4 208V/240V/480V
COOK TOP

00-411503-00004 Infinite Switch 208V/240V .......................................................................................................... 1

00-412251-00001 Infinite Switch Knob ................................................................................................................... 1
00-415119-000G2 Oven Thermostat ....................................................................................................................... 1
00-355798-00001 3-heat Switch ............................................................................................................................. 1
00-415119-00004 Thermostat Dial ........................................................................................................................ 1
00-415119-00006 Thermostat Bezel ....................................................................................................................... 1
00-411496-000E5 Oven Indicator Light ................................................................................................................... 1
00-407727-00002 3-heat Switch Knob .................................................................................................................... 1
00-417876-00001 Resistor (300K) (480V Only) ...................................................................................................... 1
00-421240-00001 Round French Plate (208V) ........................................................................................................ 1
00-421240-00002 Round French Plate (240V) ........................................................................................................ 1
00-421240-00003 Round French Plate (480V) ........................................................................................................ 1

– 29 –
VR SERIES REPLACEMENT PARTS

RECOMMENDED SPARE PARTS

VR5/VM5/VS5 208V/240V/480V
COOK TOP

00-411503-00004 Infinite Switch 208V/240V .......................................................................................................... 1

00-412251-00001 Infinite Switch Knob ................................................................................................................... 1
00-415119-000G2 Oven Thermostat ....................................................................................................................... 1
00-355798-00001 3-heat Switch ............................................................................................................................. 1
00-415119-00004 Thermostat Dial ........................................................................................................................ 1
00-415119-00006 Thermostat Bezel ....................................................................................................................... 1
00-411496-000E4 Griddle Light ............................................................................................................................... 1
00-411496-000E5 Oven Indicator Light ................................................................................................................... 1
00-407727-00002 3-heat Switch Knob .................................................................................................................... 1
00-417876-00001 Resistor (300K) (480V Only) ...................................................................................................... 1
00-411506-00002 Griddle Thermostat W/Knob ....................................................................................................... 1
00-411967-00004 Griddle Element (208V) .............................................................................................................. 1
00-411967-00005 Griddle Element (240V) .............................................................................................................. 1
00-411967-00003 Griddle Element (480V) .............................................................................................................. 1

VR6/VM6/VS6 208V/240V/480V
COOK TOP

00-411503-00004 Infinite Switch 208V/240V .......................................................................................................... 1

00-412251-00001 Infinite Switch Knob ................................................................................................................... 1
00-415119-000G2 Oven Thermostat ....................................................................................................................... 1
00-355798-00001 3-heat Switch ............................................................................................................................. 1
00-415119-00004 Thermostat Dial ........................................................................................................................ 1
00-415119-00006 Thermostat Bezel ....................................................................................................................... 1
00-411496-000E4 Griddle Light ............................................................................................................................... 1
00-411496-000E5 Oven Indicator Light ................................................................................................................... 1
00-407727-00002 3-heat Switch Knob .................................................................................................................... 1
00-417876-00001 Resistor (300K) (480V Only) ...................................................................................................... 1
00-411506-00001 Hot Top Thermostat ................................................................................................................... 1
00-421240-00001 Round French Plate (208V) ........................................................................................................ 1
00-421240-00002 Round French Plate (240V) ........................................................................................................ 1
00-421240-00003 Round French Plate (480V) ........................................................................................................ 1
00-413452-00001 Element (All Purpose Plate) (208V) ........................................................................................... 1
00-413452-00002 Element (All Purpose Plate) (240V) ........................................................................................... 1
00-413452-00003 Element (All Purpose Plate) (480V) ........................................................................................... 1

VR7/VM7/VS7 208V/240V/480V
COOK TOP

00-411503-00004 Infinite Switch 208V/240V .......................................................................................................... 1

00-412251-00001 Infinite Switch Knob ................................................................................................................... 1
00-415119-000G2 Oven Thermostat ....................................................................................................................... 1
00-355798-00001 3-heat Switch ............................................................................................................................. 1
00-415119-00004 Thermostat Dial ........................................................................................................................ 1
00-415119-00006 Thermostat Bezel ....................................................................................................................... 1
00-411496-000E4 Griddle Light ............................................................................................................................... 1
00-411496-000E5 Oven Indicator Light ................................................................................................................... 1
00-407727-00002 3-heat Switch Knob .................................................................................................................... 1
00-417876-00001 Resistor (300K) (480V Only) ...................................................................................................... 1
00-411506-00002 Griddle Thermostat W/Knob ....................................................................................................... 1
00-411967-00004 Griddle Element (208V) .............................................................................................................. 1
00-411967-00005 Griddle Element (240V) .............................................................................................................. 1
00-411967-00003 Griddle Element (480V) .............................................................................................................. 1
00-421240-00001 Round French Plate (208V) ........................................................................................................ 1
00-421240-00002 Round French Plate (240V) ........................................................................................................ 1
00-421240-00003 Round French Plate (480V) ........................................................................................................ 1

– 30 –
