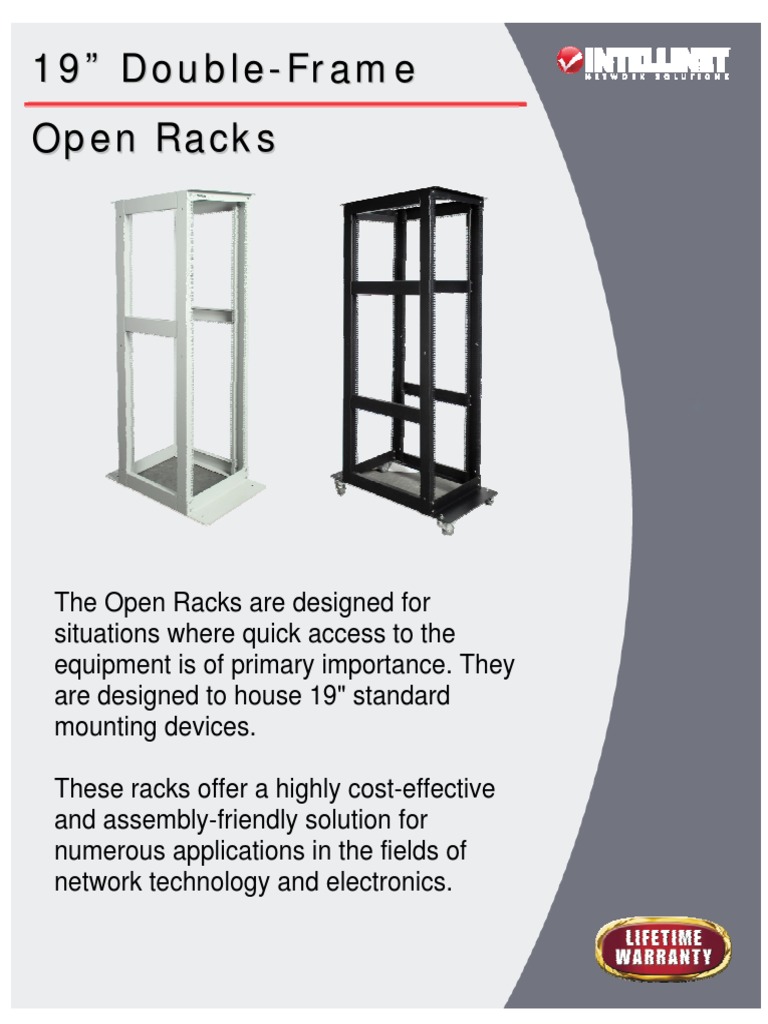

19” Double-Frame

Open Racks

The Open Racks are designed for

situations where quick access to the
equipment is of primary importance. They
are designed to house 19" standard
mounting devices.

These racks offer a highly cost-effective

and assembly-friendly solution for
numerous applications in the fields of
network technology and electronics.
19” Double-Frame Open Racks

Features
• L-shaped rail
• Universal square hole pattern
• Includes adjustable angle bracket
• 4-vertical-rack structure accommodates industry
standard 19" panel widths
• The removable vertical rails can be adjusted
backward or forward
• Powder-coated for protection against rust,
oxidization, scratches, lacquer peeling, and strong
acid and alkali erosion
• Complies with ANSI/EIA RS-310-C, D, E, F
rackmounting standards

General Specifications
• 19"
• 18U - 47U
• Black and Grey
• Steel
• Open rack
19” Double-Frame Open Racks
Technical Drawings

Part Part
Number Number
(Black) (Grey) Height Dimensions Accessories
204156 206150 47U 550 x 600 4 Supporting Feet, 40-piece Screw Set
204163 206167 42U 550 x 600 4 Supporting Feet, 40-piece Screw Set
204170 206174 37U 550 x 600 4 Supporting Feet, 40-piece Screw Set
204187 206181 32U 550 x 600 4 Supporting Feet, 40-piece Screw Set
204194 206198 27U 550 x 600 4 Supporting Feet, 40-piece Screw Set
204200 206204 22U 550 x 600 4 Supporting Feet, 40-piece Screw Set
204217 206211 18U 550 x 600 4 Supporting Feet, 40-piece Screw Set

For more information on INTELLINET NETWORK SOLUTIONS products,

consult your local dealer or visit www.intellinet-network.com.
