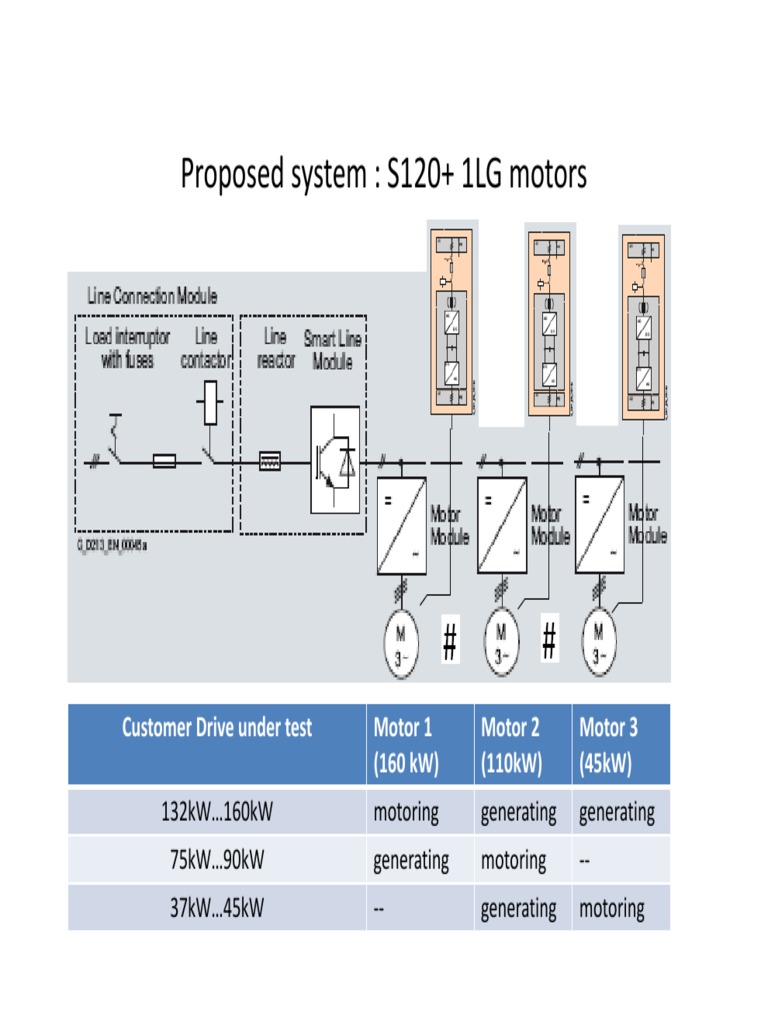

    Proposed system : S120+ 1LG motors

    160kW            110kW           45kW

    Customer Drive under test Motor 1  Motor 2  Motor 3


    (160 kW) (110kW) (45kW)
    132kW…160kW motoring generating generating
    75kW…90kW generating motoring ‐‐
    37kW…45kW ‐‐ generating motoring
    Motor coupling
    Motors between 37kw upto 160kW can be tested upto full load*
    160kw             110kw            45kw

    Frame size 315L FS
    Frame size 315S Frame size 225M

    * Three Shaft heights : 315L, 315S, 225M (For shaft heights
    Bill of Material
    Sr. No MLFB Options Quantity Description Unit price Total Price
    1 1LG6223‐4PM90‐Z A11+L1B+L27 1 45kW motor
    2 1LG6310‐4PM90‐Z A23+A72+L1B+L27+L05 1 110kW motor
    3 1LG6316‐4PM90‐Z A23+A72+H57+L1B 1 160kw motor
    4 3NE3230‐0B 2 DC fuses for 110kw
    5 3NE3333 2 DC fuses for 160kw
    6 3NP4370‐0CA01 1 Fuse‐switch disconnector
    7 3NP4470‐0CA01 1 Fuse‐switch disconnector
    8 6EP1334‐3BA00 1 10A SITOP
    9 6FX2002‐1DC00‐1AD0 1 Drive‐CLiQ cable
    10 6FX2002‐1DC00‐1AF0 2 Drive‐CLiQ cable
    11 6FX2002‐1DC00‐1AG0 1 Drive‐CLiQ cable
    12 6FX2002‐1DC20‐1AH0 1 Drive‐CLiQ cable
    13 6SL3055‐0AA00‐2TA0 1 TB30
    14 6SL3055‐0AA00‐3AA1 1 TM31
    15 6SL3700‐0LE36‐3AA3‐Z M06+L45+M70+L44+M80+Y11 1 Line connection module
    16 6SL3720‐1TE28‐5AB0‐Z L37 1 Single motor module
    17 6SL3720‐1TE32‐1AA3‐Z L37+M06+L55+M80+Y11 1 Single motor module
    18 6SL3720‐1TE33‐1AA3‐Z L37+K50+M26+M06+L55+M80+Y11 1 Single motor module
    19 6SL3720‐1TX38‐0AA0‐Z M06+M80+Y11+M27 1 Booksize base cabinet
    20 6SL3730‐6TE35‐5AA3‐Z M06+L55+K90+M80+Y11 1 smart line module
    21 6SL3780‐0AC00‐0AA0 1 Job specific integration engineering
    22 6SX7002‐0AL00‐1BA0 1 Encoder cable
