Man B&W: Fuel Oil High-Pressure Pipe
Man B&W: Fuel Oil High-Pressure Pipe
2.

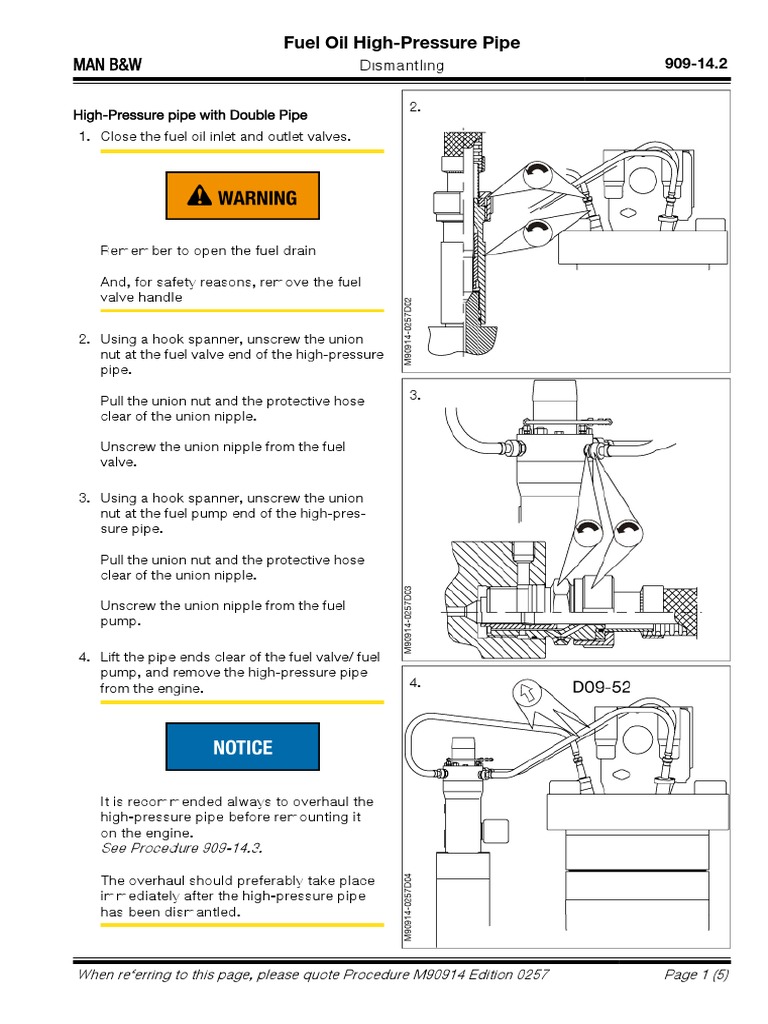

High-Pressure pipe with Double Pipe
1. Close the fuel oil inlet and outlet valves.
When referring to this page, please quote Procedure M90914 Edition 0257 Page 1 (5)
Fuel Oil High-Pressure Pipe
909-14.3 Overhaul MAN B&W
1.
1. Whenever the fuel oil high-pressure system
has been dismantled, it is necessary, before
remounting the high-pressure pipes, to
carefully inspect the tapered contact surfa-
ces of the pipe ends, together with their
seats in fuel valves and fuel pump top cover.
3.
Page 2 (5) When referring to this page, please quote Procedure M90914 Edition 0257
Fuel Oil High-Pressure Pipe
MAN B&W Overhaul 909-14.3
4.
4. Mount the guide on the pipe end, place the
miller in the guide and lightly screw on the
union nut.
When referring to this page, please quote Procedure M90914 Edition 0257 Page 3 (5)
Fuel Oil High-Pressure Pipe
909-14.4 Mounting MAN B&W
4.
1. Check that the distance between the thrust
bushing and the pipe end is correct at both
ends of the pipe.
See Procedure 909-14.3.
Page 4 (5) When referring to this page, please quote Procedure M90914 Edition 0257
Fuel Oil High-Pressure Pipe
MAN B&W Mounting 909-14.4
6.
6. Use a crowfoot wrench and a torque wrench
to tighten the union nipple at the fuel pump
to the torque stated in Data.
When referring to this page, please quote Procedure M90914 Edition 0257 Page 5 (5)
