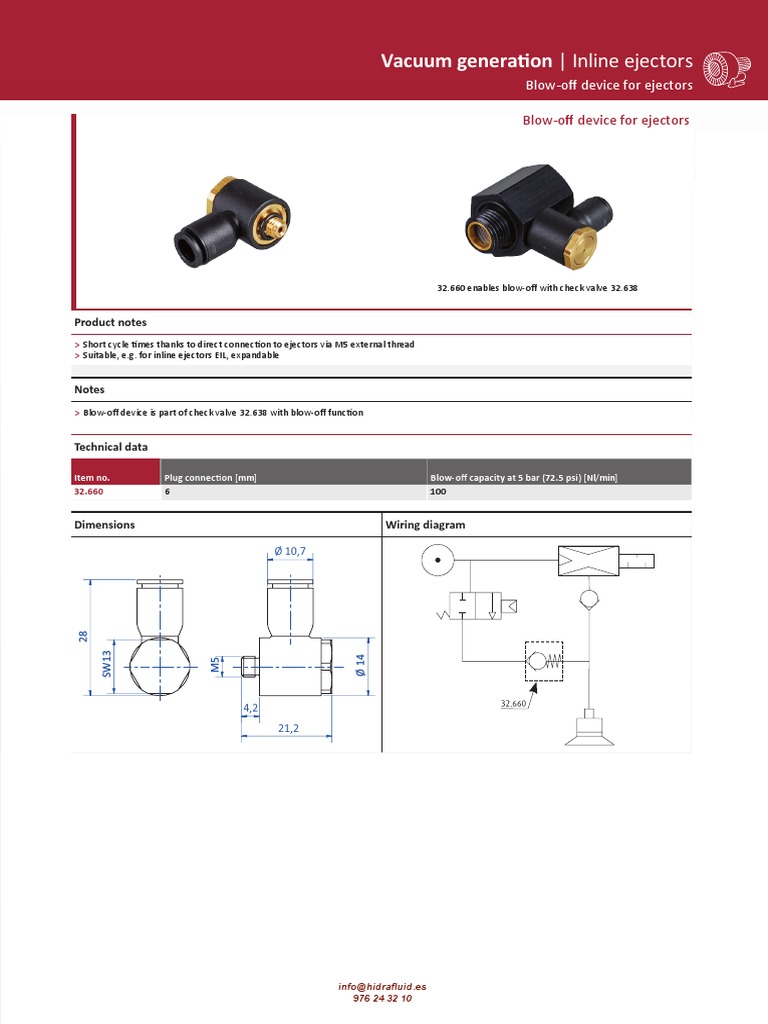

    Vacuum generation | Inline ejectors

    Blow-off device for ejectors

    Blow-off device for ejectors

    32.660 enables blow-off with check valve 32.638

    Product notes
    > Short cycle times thanks to direct connection to ejectors via M5 external thread
    > Suitable, e.g. for inline ejectors EIL, expandable

    Notes
    > Blow-off device is part of check valve 32.638 with blow-off function

    Technical data

    Item no. Plug connection [mm] Blow-off capacity at 5 bar (72.5 psi) [Nl/min]
    32.660 6 100

    Dimensions Wiring diagram

    Ø 10,7
    28

    SW13

    Ø 14
    M5

    32.660
    4,2
    21,2

    info@hidrafluid.es
    976 24 32 10
