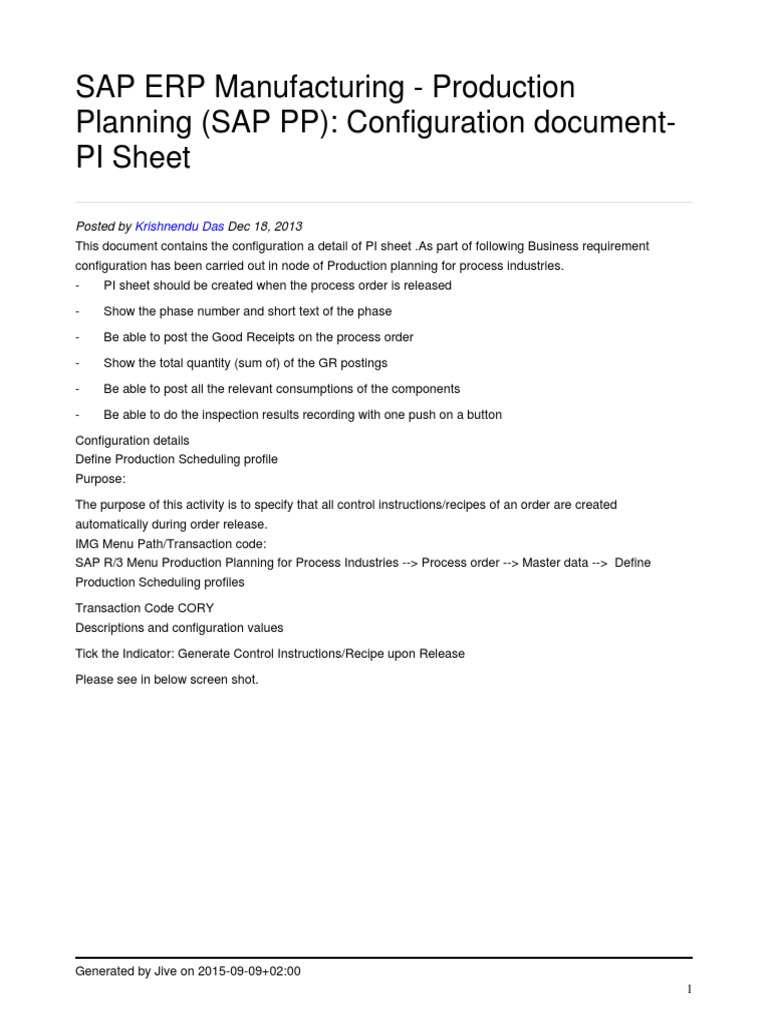

SAP ERP Manufacturing - Production
Planning (SAP PP): Configuration document-

PI Sheet
Posted by Krishnendu Das Dec 18, 2013

This document contains the configuration a detail of PI sheet .As part of following Business requirement
configuration has been carried out in node of Production planning for process industries.
- PI sheet should be created when the process order is released
- Show the phase number and short text of the phase

- Be able to post the Good Receipts on the process order
- Show the total quantity (sum of) of the GR postings
- Be able to post all the relevant consumptions of the components
- Be able to do the inspection results recording with one push on a button
Configuration details
Define Production Scheduling profile
Purpose:
The purpose of this activity is to specify that all control instructions/recipes of an order are created
automatically during order release.
IMG Menu Path/Transaction code:
SAP R/3 Menu Production Planning for Process Industries --> Process order --> Master data --> Define
Production Scheduling profiles
Transaction Code CORY

Descriptions and configuration values
Tick the Indicator: Generate Control Instructions/Recipe upon Release

Please see in below screen shot.
Generated by Jive on 2015-09-09+02:00

1
SAP ERP Manufacturing - Production Planning (SAP PP): Configuration document-PI Sheet
Note- Material 2612, plant 4300 is having production scheduling profile ZI07.
Copy Standard settings for Process Messages

Purpose: The purpose of this activity is to copy standard settings for process messages.
SAP R/3 Menu Production Planning for Process Industries --> Process Management --> Standard Settings --
> Transport Predefined Message Categories/Characteristics
Transaction Code O22C
Descriptions and configuration values:
In this step, transport the process instruction characteristics and process message characteristics predefined
by SAP from the SAP reference client to logon client.
The names of the characteristics predefined by SAP all start with PP-PI

2

3
Define and set up Message destinations

Purpose: The purpose of this activity is to define and Set up Message Destinations Following setting for the
message destinations to which you can send process messages:
Define the message destinations with their addresses.
Depending on the destination type, specify the fields or interface parameters of the message destination that
want to use as target fields for message characteristics
Destination type:
01 R/3 Function Module
02 External Function
03 SAP office User
04 ABAP/4 Table
05 SAP Alert Management
Transaction Code SPRO

4
IMG Menu Production Planning for Process Industries --> Process Management --> Process Messages -->
Process Message Destinations --> Define and Set up Message Destinations
On the Create/change Message Destinations: Overview screen, enter the following data:
Dest. Description Type Dest. Address Individual
PI03 Goods receipt posting 1 COCI_CONFIRM_MATERIAL_PROD set flag
Enter & Select entry (PI03)
On the screen field Dialog Structure select target fields/message destinations, enter the following data:
On the Create/change Message Destinations: Overview screen, enter the following data:
Dest. Description Type dest. Address Individual
PI04 Goods Issue posting 1 COCI_CONFIRM_MATERIAL_CONS set flag
Enter & Select entry (PI04)
On the screen field Dialog Structure select target fields/message destinations, enter the following data:

5
Assigning Process message categories, characteristics and Target fileds

Purpose: The purpose of this activity is to assign Process Message Categories, Characteristics and Target
Fields.
Transaction Code SPRO
IMG Menu Production Planning for Process Industries --> Process Management --> Process Messages -->
Define and Set up Process Message Categories
Process Message Category Description send

YI_CONS Material consumption message Set flag
YI_PROD Material receipt message Set flag
Select YI_CONS
On the screen field Dialog Structure select Characteristics/Message categories, enter the following data.

6
Select Destinations/Message Categories and, enter the following data:
Destination Description Type Destination Address
PI04 Goods issue posting 01 COCI_CONFIRM_MATERIAL_CONS

Mark row PI04
Select Characteristics/destination-specific target fields and, enter the following data:

7
Select YI_PROD
On the screen field Dialog Structure select Characteristics/Message categories, enter the following data.

8
Select Destinations/Message
Categories and, enter the following data:
Destination Description Type Destination
Address
PI03 Goods 01 COCI_CONFIRM_MATERIAL_PROD
receipt posting
Mark row PI03
Select Characteristics/destination-specific target fields and, enter the following data:

9
Define and set up control recipe destinations.
Purpose: In this IMG activity,you define a control recipe destination that you want to use in your plant.
i.e. The Destination Type
1) Transfer to ABAP list-based PI sheet
2) Download to ext. system, initiated by SAP process management
3) Download to ext. system, initiated by ext. process control
4) Transfer to browser-based PI sheet
SAP R/3 Production

Menu Planning for Process Industries --> Process
Management --> Control
recipe-> Control recipe destinations --> Define and
set up

10
control recipe destinations
Transaction SPRO
Code
Here, Control recipe 01 whose destination Type is 1 Transfer to ABAP list-based PI sheet.
Creating PP-PI Characteristics
Purpose: The purpose of this activity is to create PP-PI characteristics In this IMG activity, you define the that
you want to use in process instructions.

11
SAP R/3 Production

Management
--> Process Instructions --> Process Instruction
Characteristics --> Define Characteristics for
Process Instructions.
Transaction O27C
Code
Descriptions and configuration values:1
Key Description Value Note

field
Characteristic Quantity YPPI_MATERIAL_PRODUCED

of material produced
On the Characteristics screen in the tab Basic Data, enter the following data:
Key field Description Value Note
Description Quantity of material

produced
Chars Group Process Message

Characteristics
Data Type NUM
Number of Chars 11 This and the following

fields will not be visible
before the Data Type
has been selected.
Decimal Place 4
Single-value Mark this field is in the group

Value Assignment

12
Select Proc. mgmt On the Additional Data for Process Instructions and Messages screen in the tab Basic Data,
enter the following data:
Keyfield Description Value Note
1. Val.assignmnt funct. COAV_MATERIAL_QUANTITY

this field is in the
group Automatic Value
Assignment
Save
Descriptions and configuration values: 2
Characteristic Quantity YPPI_MATERIAL_CONSUMED

of material consumed

13
On the Characteristics screen in the tab Basic Data, enter the following data:
Description Quantity of material

Consumed
Chars Group Process Message

Characteristics
Data Type NUM
Number of Chars 11 This and the following

fields will not be visible
before the Data Type
has been selected.
Decimal Place 4
Single-value Mark this field is in the group

Value Assignment
Select Proc. mgmt
On the Additional Data for Process Instructions and Messages screen in the tab Basic Data, enter the following
data:
1. Val.assignmnt funct. COAV_MATERIAL_QUANTITY

this field is in the group
Automatic Value
Assignment

14
Define Process Instruction Categories

Purpose: define the you want to use in plant. For each instruction category, you specifyThe to which it
pertains
1 Process parameter-
2 Process data request- process data request contains the process message category to use for the process
message
3 Process message subscription- Process message subscriptions contain the following:
Message category to use
• • • • Contents of the message
4 Process data calculation formula-
Type of process instruction that specifies that a value must be calculated in the PI sheet. This value is then
sent to a destination using a process message.The process data specifies:

15
Value to calculate
Formula to use for calculation
Message category of the requested process message
5 Inspection results request-Process instruction that specifies the operations and phases for which inspection
results must be recorded. For these operations and phases, the function for
recording inspection results can be accessed directly from the PI sheet.
6 Dynamic function call-A process instruction that enables the process operator to call a user-defined
function module from the PI sheet.
SAP R/3 Production

Management
Characteristics --> Define Process Instructions
Categories
Transaction O12C
Code
On the Change View Process Instruction categories: Overview screen, enter the following data:
Instruction category Description Process Instruction Type
YGIPLAN Goods issue 2

Planned material
YGRCALPL Calculate GR quantity planned 4

material
YGRPLAN Goods Receipt Planned material 2

16
YQMREC Enter results and usage decision 6
Y_MES Process order data send to MES 1

Assigning Characteristics to process instruction categories
Purpose: The purpose of this activity is to assign Characteristics to Process Instruction Categories.
SAP R/3 Production

Management
Characteristics --> Define Process Instructions
Categories
Transaction O12C
Code
Assign and characteristic values to process instruction categories. You specify the sequence of the
characteristic in a process instruction category using sort numbers.When you create a process instruction, the
characteristics assignments of the instruction category are copied to the process instruction.
Select YGIPLAN
On the screen field Dialog Structure select Characteristics/Process Instruction categories, enter the following
data:

17
Select YGRCALPL

18
data:
Select YGRPLAN
data:

19
Select YQMREC

20
data:

21
Select Y_MES
data:

22
