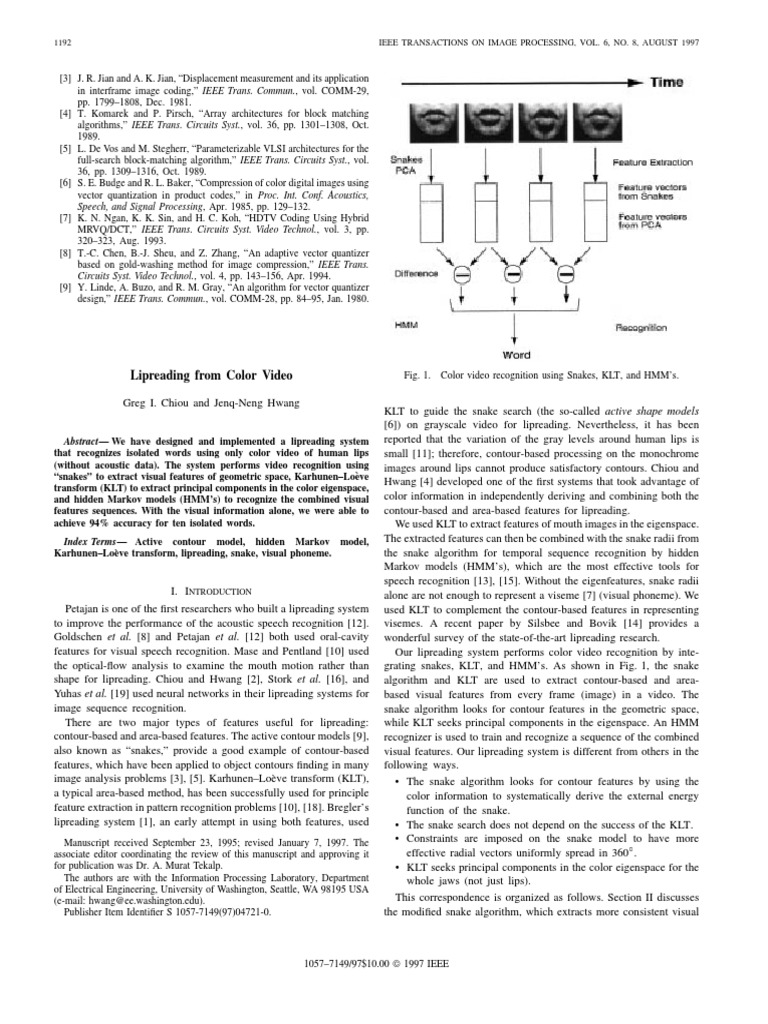

Lipreading from Color Video Fig. 1. Color video recognition using Snakes, KLT, and HMM’s.

Greg I. Chiou and Jenq-Neng Hwang

Abstract— We have designed and implemented a lipreading system
that recognizes isolated words using only color video of human lips
(without acoustic data). The system performs video recognition using
“snakes” to extract visual features of geometric space, Karhunen–Loève
transform (KLT) to extract principal components in the color eigenspace,
and hidden Markov models (HMM’s) to recognize the combined visual
features sequences. With the visual information alone, we were able to
achieve 94% accuracy for ten isolated words.
Index Terms— Active contour model, hidden Markov model,
Karhunen–Loève transform, lipreading, snake, visual phoneme.
I. INTRODUCTION
Petajan is one of the first researchers who built a lipreading system
to improve the performance of the acoustic speech recognition [12].
Goldschen et al. [8] and Petajan et al. [12] both used oral-cavity
features for visual speech recognition. Mase and Pentland [10] used
the optical-flow analysis to examine the mouth motion rather than
shape for lipreading. Chiou and Hwang [2], Stork et al. [16], and
Yuhas et al. [19] used neural networks in their lipreading systems for
image sequence recognition.
There are two major types of features useful for lipreading:
contour-based and area-based features. The active contour models [9],
also known as “snakes,” provide a good example of contour-based
features, which have been applied to object contours finding in many
image analysis problems [3], [5]. Karhunen–Loève transform (KLT),
a typical area-based method, has been successfully used for principle
feature extraction in pattern recognition problems [10], [18]. Bregler’s
lipreading system [1], an early attempt in using both features, used
Manuscript received September 23, 1995; revised January 7, 1997. The
associate editor coordinating the review of this manuscript and approving it
for publication was Dr. A. Murat Tekalp.
The authors are with the Information Processing Laboratory, Department
of Electrical Engineering, University of Washington, Seattle, WA 98195 USA
(e-mail: hwang@ee.washington.edu).
Publisher Item Identifier S 1057-7149(97)04721-0.
KLT to guide the snake search (the so-called active shape models
[6]) on grayscale video for lipreading. Nevertheless, it has been
reported that the variation of the gray levels around human lips is
small [11]; therefore, contour-based processing on the monochrome
images around lips cannot produce satisfactory contours. Chiou and
Hwang [4] developed one of the first systems that took advantage of
color information in independently deriving and combining both the
contour-based and area-based features for lipreading.
We used KLT to extract features of mouth images in the eigenspace.
The extracted features can then be combined with the snake radii from
the snake algorithm for temporal sequence recognition by hidden
Markov models (HMM’s), which are the most effective tools for
speech recognition [13], [15]. Without the eigenfeatures, snake radii
alone are not enough to represent a viseme [7] (visual phoneme). We
used KLT to complement the contour-based features in representing
visemes. A recent paper by Silsbee and Bovik [14] provides a
wonderful survey of the state-of-the-art lipreading research.
Our lipreading system performs color video recognition by inte-
grating snakes, KLT, and HMM’s. As shown in Fig. 1, the snake
algorithm and KLT are used to extract contour-based and area-
based visual features from every frame (image) in a video. The
snake algorithm looks for contour features in the geometric space,
while KLT seeks principal components in the eigenspace. An HMM
recognizer is used to train and recognize a sequence of the combined
visual features. Our lipreading system is different from others in the
following ways.
• The snake algorithm looks for contour features by using the
color information to systematically derive the external energy
function of the snake.
• The snake search does not depend on the success of the KLT.
• Constraints are imposed on the snake model to have more
effective radial vectors uniformly spread in 360 .
• KLT seeks principal components in the color eigenspace for the
whole jaws (not just lips).
This correspondence is organized as follows. Section II discusses
the modified snake algorithm, which extracts more consistent visual

1057–7149/97$10.00  1997 IEEE

IEEE TRANSACTIONS ON IMAGE PROCESSING, VOL. 6, NO. 8, AUGUST 1997
Fig. 2. Snake contour described with eight radial vectors.
features from video frames. Section III describes our complete
lipreading environment, which integrates snakes, KLT, and HMM’s
for video recognition. Section IV describes simulation results from
applying the lipreading system on the vocabulary used for a voiced
activated car audio system. Section V gives concluding remarks.
II. SNAKES—ACTIVE CONTOUR MODELS
A snake is an open or closed elastic curve represented by a set of
control points [9]. Finding the contour of distinct features (specified
by the users a priori in an energy formulation) is done by deforming
and moving the elastic curve gradually from an initial shape residing
on the image toward the distinct features. This deformation process
is guided by iteratively searching for a nearby local minimum of an
energy function, which consists of the internal energy that imposes
smoothness constraints on the snake curve and the external energy
that indicates the degree of matching for the target features.
A. Our Snake Model
We have modified the original snake algorithm by adding new
forces to push and bend “outward” the closed snake curve like an
inflating balloon [3], [5]. The modified snake algorithm is used to
extract the lip contour on every video frame. Because the contour
feature should be consistent and comparable among all video frames,
we select the feature to be a snake contour, which is described using
m radial vectors (in our implementation, m = 8). The radial vectors
are uniformly spread in 360 , and each of them originates from the
centroid of the snake contour and points to a snake point (see Fig. 2).
The shape of the contour is deformed by varying the lengths of radial
vectors and the centroid of the contour moves during the deformation.
Now, not only the initial snake points no longer have to be near
the solution, but also the new snake model is less likely to be trapped
by spurious local minima because the effect of all forces can help the
snake curve get out of the weak local minimum. The balloon forces
push the snake point outward until the point resides on the potential
target contour (i.e., when the external energy stops the pushing
forces) and try to keep snake points (i.e., heads of radial vectors)
uniformly spread in 360 . Although the forces help keeping snake
points uniformly spread, further constraints are needed to guarantee
that every two radial vectors are 45 apart.
B. External Energy—R/G Threshold
The formulation of the external energy for attracting a snake
contour is crucial for a successful deployment of the snake algorithms.
The idea of using color images instead monochrome ones was
motivated by Okada’s method [11] for lip extraction. (The method has
1193
(a) (b)
(c) (d) (e)
Fig. 3. (a) Sample video frame. (b) Corresponding external energy profile.
(c) Initial snake contour for the video frame. (d) Intermediate snake contour
for the video frame. (e) Converged snake contour for the video frame.
TABLE I
SIMULATION RESULTS WITH DIFFERENT SIZES OF FEATURE VECTORS
been tested on many oriental faces [11].) For every pixel in a color
image, we simply divide the red pixel value by the green pixel value
(if not zero). The goal is to generate a binary image by thresholding
the lip pixels having large enough red component (>1 ) and proper
red-to-green ratio (between 2 and 3 ): This thresholding process
avoids mislabeling dark pixels not on the lips to be lip pixels. After
the thresholded binary image, fI (x; y )g; is generated, each point at
(x; y ) uses a block of neighboring binary pixels to define the external
energy for that point, as follows:
Eext (x; y ) =
01 n n
I (x + k1 ; y + k2 ) (1)
(2n + 1)2
k =0n k =0n
where n = 3 in our simulations.
Therefore, all snake points work together to “absorb” as much
negative external energy [defined in (1)] as possible. At the same
time, each snake point is constrained by the internal energy so it
does not “abandon” others. After the snake algorithm finishes, the
converged snake (i.e., heads of eight radial vectors) should lie right
on top of the lips for every color image and eight snake radii define
the contour feature of the lips. Fig. 3 shows the process of deforming
and moving the elastic snake contour in an external energy profile
associated with human lips.
III. OUR LIPREADING SYSTEM
As a preliminary study, our lipreading system is speaker dependent
and recognizes isolated words. Each isolated word is represented by
1194
TABLE II
CONFUSION MATRIX FOR CASE 3 OFTABLE I WITH 17 SAMPLES
a color video (a sequence of mouth images sampled at 20 frames/s).
Our snake model was applied on every frame to extract snake radii
as contour features, and KLT was applied on every frame to extract
projection weights of principal components in the eigenspace. A
sequence of combined feature vectors is then classified by the HMM’s
to perform the isolated word recognition. To emphasize the temporal
change of moving lips, we actually used the difference between two
original feature vectors on consecutive frames.
A. Motion Tracking of Lips
As lips move, the snake contour can shrink or expand with lips by
tracking the local minimum of the energy function. Because of this
tracking capability, the initial contour for each frame is determined
using the converged snake from the previous frame. Due to the
outward pushing forces used in our snake model, the initial contour
of each new frame is determined by shrinking the converged snake
obtained from the previous frame. Only outward pushing forces are
used because, for every frame, the algorithm assumes the initial
contour (after shrinking) to be inside the target contour. But, for the
first frame, the initial contour is determined by placing a small circle
at the centroid of the binary thresholded image, which is generated
by applying R/G threshold (see Section II-B) on a color image.
B. Recognition
After both KLT and HMM’s are trained, the lipreading system
is ready for visual speech recognition. When the speaker “talks” in
front of the camera, a silent color movie is captured. Then the snake
algorithm and KLT extract two sets of independent feature vectors
for every frame of the video (see Fig. 1). These feature vectors are
combined and concatenated to form a sequence. Finally, the HMM
recognizer identifies the word by searching the best HMM model
with the highest likelihood for the sequence.
C. Capabilities and Limitations
The current system is speaker-dependent and recognizes isolated
words. When recording a video for a word, the speaker “talks”
normally in front of the camera at a normal rate and without
any exaggeration on lip motions. The speaker hits keys to start
and stop recording for a word (i.e., word segmentation by hand).
IEEE TRANSACTIONS ON IMAGE PROCESSING, VOL. 6, NO. 8, AUGUST 1997
FOR EACH WORD
Each utterance contains only one word. Due to the use of HMM’s
classifiers, there is no need of human removal of silent video portion
of the entire utterance since the silence states are automatically
absorbed in HMM’s. During recording, the speaker roughly positions
his mouth in front of the camera [so the frame would look like
Fig. 3(a)], and keeps the head motion to the minimum. For each
video recording session, small variations of speaker’s position and
orientation are allowed. The current system requires fixed lighting
and does not perform any preprocessing to center and scale the mouth
image. (The KLT is performed on the whole frame.)
The system was not optimized for real-time processing. It took
about 4–6 s to recognize a word on an UltraSparc 2 running
Solaris 2.5. Neither was the system trained for a speaker-independent
purpose, which requires a much more complete data base and is
beyond our scope of study.
IV. SIMULATION RESULTS
One of applications can benefit from the lipreading technology
is the command-and-control application under highly noisy environ-
ments, for example, a voiced activated car audio system [17]. The
following noise sources make the task of acoustic speech recognition
difficult for a voiced activated car audio system: road noise, engine
noise, jittering noise from outside of the car, audio sound (music or
human speech) from the car audio system, conversation between the
driver and the passengers. We chose ten words that can be used for
such systems and collected the following data from a single speaker:
• ten isolated words—on, off, yes, no, up, down, forward, rewind,
radio, tape;
• each word has 17 examples (video sequences);
• each video sequence has about 30 to 70 color video frames;
• each image frame contains R, G, B components of size 80 2
60 (i.e., an 80 2 60 2 3 array).
The following steps show how we performed the leave-one-set-
out cross validation to train and test 170 video sequences on the
lipreading system.
1) Train KLT with 1350 color images (randomly chosen three
training sets with 30 video sequences).
2) Use the snake algorithm and KLT to extract feature vectors for
all 170 sequences.
IEEE TRANSACTIONS ON IMAGE PROCESSING, VOL. 6, NO. 8, AUGUST 1997
3) Construct 170 sequences of feature vectors.
4) Pick one test set that has ten video sequences representing all
ten words in the vocabulary.
5) Train the HMM recognizer, using the temporal difference of
feature vectors, with the remaining 16 sets (160 sequences).
6) Perform recognition task on the test set.
7) Fill in the confusion matrix (see Table II).
8) Repeat from Step 4) to Step 7) for all 17 sets.
9) Calculate the overall recognition rate using the confusion
matrix.
We were able to achieve 94% recognition accuracy based on
the temporal difference vectors with eight snake radii and 32 KLT
weights. Table I shows our simulation results with different sizes of
featurevectors. Table II shows the confusion matrix corresponding to
the best performance. We also noted that if the word, “radio,” which
has the lowest recognition accuracy, is discarded from the vocabulary,
the overall recognition rate is increased to 97.4% for nine isolated
words. Due to the hardware limitation, the video was sampled at 20
frames/s. We believe that if the sampling rate was increased to 30
frames/s, our lipreading system could achieve even higher recognition
rate. Since the main focus of this system is for single speaker system,
there is a significant performance degradation when the system is
tested on different speakers (for a very inconclusive experiment, the
recognition rate dropped to about 70% to 80%).
V. CONCLUSION
In this work, we showed that visual speech recognition is feasible
with color video (without any acoustic data) for certain vocabulary.
Unlike other lipreading systems, ours does not require the speaker
to put on any special marker or lipstick. Although the system
was designed for lipreading, we believe the framework, with minor
modification, can be applied to other applications such as eyelid
motion recognition (for detecting a sleepy driver), heart movement
classification, etc.
REFERENCES
[1] C. Bregler and Y. Konig. “’Eigenlips’ for robust speech recognition,” in
Proc. Int. Conf. Acoustics, Speech and Signal Processing (ICASSP’94),
Adelaide, Australia, 1994, pp. II- 669–II-672.
[2] G. I. Chiou and J. N. Hwang, “Image sequence classification using
a neural network based active contour model and a hidden Markov
model,” in Proc. IEEE Int. Conf. Image Processing, Austin, TX, Nov.
1994, pp. III-926–II-930.
[3] , “A neural network based stochastic active contour model (NNS-
SNAKE) for contour finding of distinct features,” IEEE Trans. Image
Processing, vol. 4, pp. 1407–1416, Oct. 1995.
[4] , “Lipreading from color motion video,” in Proc. Int. Conf. on
Acoustics, Speech, and Signal Processing, Atlanta GA, May 1996, pp.
IV-2156–IV-2159.
[5] L. D. Cohen and I. Cohen, “Finite-element methods for active contour
models and balloons for 2-D and 3-D images,” in IEEE Trans. Pattern
Anal. Machine Intell., vol. 15, pp. 1131–1141, Nov. 1993.
[6] T. F. Cootes and C. J. Taylor, “Active shape models—‘smart snakes’,”
in Proc. Brit. Machine Vision Conf., 1992, pp. 266–275.
[7] C. G. Fisher, “Confusions among visually perceived consonants,” J.
Speech Hearing Res., vol. 11, pp. 796–803, 1968.
[8] A. J. Goldschen, O. N. Garcia, and E. Petajan, “Continuous optical
automatic speech recognition by lipreading,” in 28th Asilomar Conf.
Signals, Systems, and Computers, Pacific Grove, CA, 1994, pp. 572–577.
[9] M. Kass, A. Witkin, and D. Terzopoulos, “Snakes: active contour
models,” Int. J. Comput. Vis., vol. 1, pp. 321–331, Jan. 1988.
[10] K. Mase and A. Pentland, “Automatic lipreading by optical-flow anal-
ysis,” Syst. Comput. Jpn., vol. 22, pp. 67–76, 1991.
1057–7149/97$10.00  1997 IEEE
1195
[11] K. Okada, C. Ohira, and H. Nakamura, “A method for lip shape
extraction,” Trans. Inst. Electron., Inform., Commun. Eng. D-II, vol.
J72-D-II, pp. 1582–1583, Sept. 1989.
[12] E. Petajan, B. Bischoff, D. Bodoff, and N. Brooke, “An improved
automatic lipreading system to enhance speech recognition,” ACM
SIGCHI, pp. 19–25, 1988.
[13] L. R. Rabiner and B. H. Juang, Fundamentals of Speech Recognition.
Englewood Cliffs, NJ: Prentice-Hall, 1993.
[14] P. L. Silsbee and A C. Bovik, “Computer lipreading for improved
accuracy in automatic speech recognition,” IEEE Trans. Speech Audio
Processing, vol. 4, pp. 337–351, Sept. 1996.
[15] T. Starner and A. Pentland, “Visual recognition of American sign lan-
guage using hidden Markov models,” in Proc. Int. Workshop Automatic
Face and Gesture Recognition, June 26–28, 1995.
[16] D. G. Stork, G. Wolff, and E. Levine, “Neural network lipreading system
for improved speech recognition,” Int. Joint Conf. Neural Networks, pp.
285–295, 1992.
[17] S. Tsurufuji, H. Ohnishi, M. Iida, R. Suzuki, and Y. Sumi, “A voice
activated car audio system,” IEEE Trans. Consum. Electron., vol. 37,
pp. 592–597, Aug., 1991.
[18] M. Turk and A. Pentland, “Eigenfaces for recognition,” J. Cognit.
Neurosci., vol 3, pp. 71–86, 1991.
[19] B. P. Yuhas, M. H. Goldstein, Jr., and T. J. Sejnowski, “Integration
of acoustic and visual speech signals using neural networks,” IEEE
Commun. Mag., pp. 65–71, Nov. 1989.
Segmentation of Handwritten Interference Marks
Using Multiple Directional Stroke Planes
and Reformalized Morphological Approach
Su Liang, M. Ahmadi, and M. Shridhar
Abstract—A new algorithm for the extraction of words from printed
documents that have interference marks and other strokes, cutting across
text, is presented. Morphological operations based on multiple direction
projection planes and skeleton images are adopted here to prevent the
“flooding water” effect of conventional morphological operations. Test
results indicate the feasibility of the proposed approach.
I. INTRODUCTION
Document images that are frequently degraded due to human
induced interference strokes that cut across words are challenging
problems for machine recognition (see Fig. 1). The extraction of
text from various kinds of images in which it touches and inter-
sects linework, scratch, noisy background, or geometric background
patterns have become subjects of extensive research [1]–[4].
To segregate lines and curves from a binary image, thinning
and direction contribution of segments are of importance in pattern
analysis. However, after thinning, noise and the shape of characters
can seriously affect the shape of the thinning skeleton (see Fig. 2).
Therefore, using the thinning technique alone will fail to accomplish
successful segmentation of interference strokes. Extraction of direc-
tion segments [5] can be based on the original images without the
Manuscript received January 27, 1995; revised May 22, 1996. The associate
editor coordinating the review of this manuscript and approving it for
publication was Dr. Jun Zhang.
S. Liang and M. Ahmadi are with the Department of Electrical Engineering,
University of Windsor, Windsor, Ont. Canada N9B 3P4.
M. Shridhar is with the Department of Electrical and Computer Engineering,
University of Michigan, Dearborn, MI 48128 USA (e-mail: mals@umich.edu).
Publisher Item Identifier S 1057-7149(97)05481-X.
