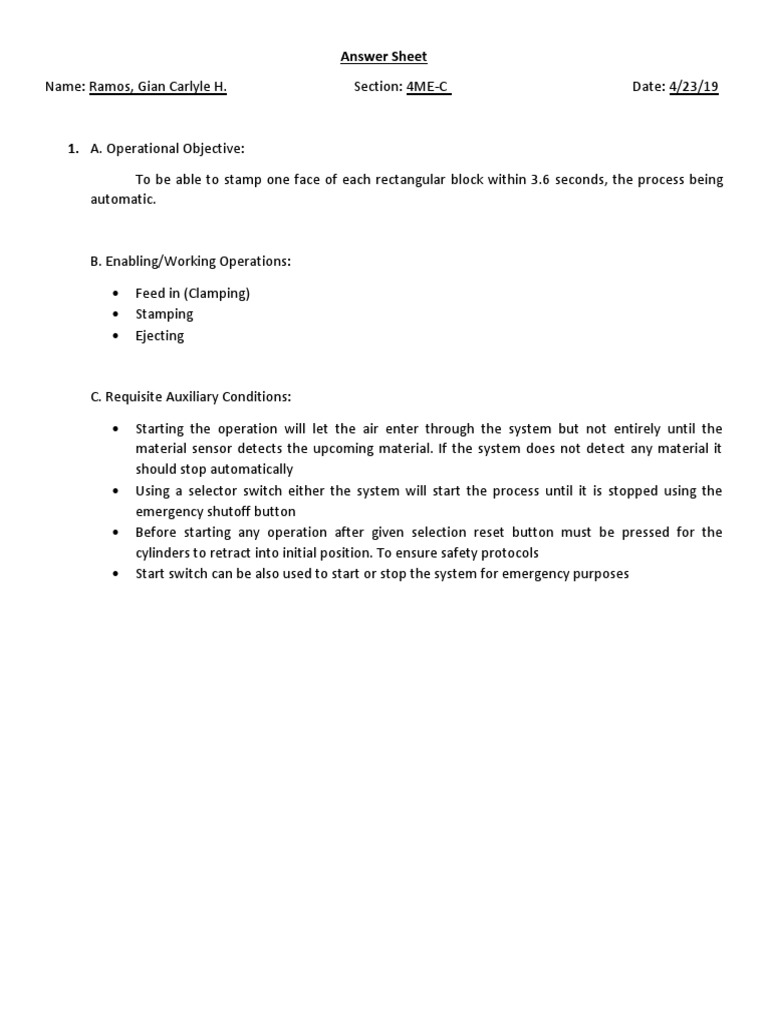

Answer Sheet

Name: Ramos, Gian Carlyle H. Section: 4ME-C Date: 4/23/19

1. A. Operational Objective:
To be able to stamp one face of each rectangular block within 3.6 seconds, the process being
automatic.

B. Enabling/Working Operations:

 Feed in (Clamping)
 Stamping
 Ejecting

C. Requisite Auxiliary Conditions:

 Starting the operation will let the air enter through the system but not entirely until the
material sensor detects the upcoming material. If the system does not detect any material it
should stop automatically
 Using a selector switch either the system will start the process until it is stopped using the
emergency shutoff button
 Before starting any operation after given selection reset button must be pressed for the
cylinders to retract into initial position. To ensure safety protocols
 Start switch can be also used to start or stop the system for emergency purposes
2. Positional Sketch
3. Function Diagram
Motion-Step Diagram:

Control Diagram:
 4A. Component List

Qty. Component Description Role ISO Symbol

3 Double-acting cylinder Actuating Device

Signal Processing
3 5/2-way impulse valve, pneumatically operated
Element

Signal Processing
6 3/2-way idle return roller valve
Element

4 Shuttle Valve Flow Control

4 3/2-way valve with push button, normally closed Signal Element

2 5/2-way valve with selection switch Signal Element

1 Air Service Unit Air filter

1 Compressed air supply Air Supply

3 Distance Rule Signal Element

5A. Pneumatic Circuit
 4B. Component List

Qty. Component Description Role ISO Symbol

Signal Processing
2 Configurable 5/n-way valve
Element

Signal Processing
2 Configurable 3/n-way valve
Element

2 Double-acting Cylinder Actuating Device

1 Single-acting Cylinder Actuating Device

Electrical signal
11 Relay
Processing Element
Signal Processing
6 Valve Solenoid
Element

3 Push Button (make) Signal Element

Signal Processing
15 Make Switch
Element
Signal Processing
6 Break Switch
Element

1 Compressed air supply Air Supply

1 Air Service Unit Air Filter

3 Distance Rule Signal Element

6 Magnetic Proximity Switch Sensor

5B. Electro-pneumatic Circuit
