Desarmado y Armado
C6.6 Industrial Engine
Número de medio -RENR9722-03 Fecha de publicación -01/03/2014 Fecha de actualización -03/10/2017

i05735221

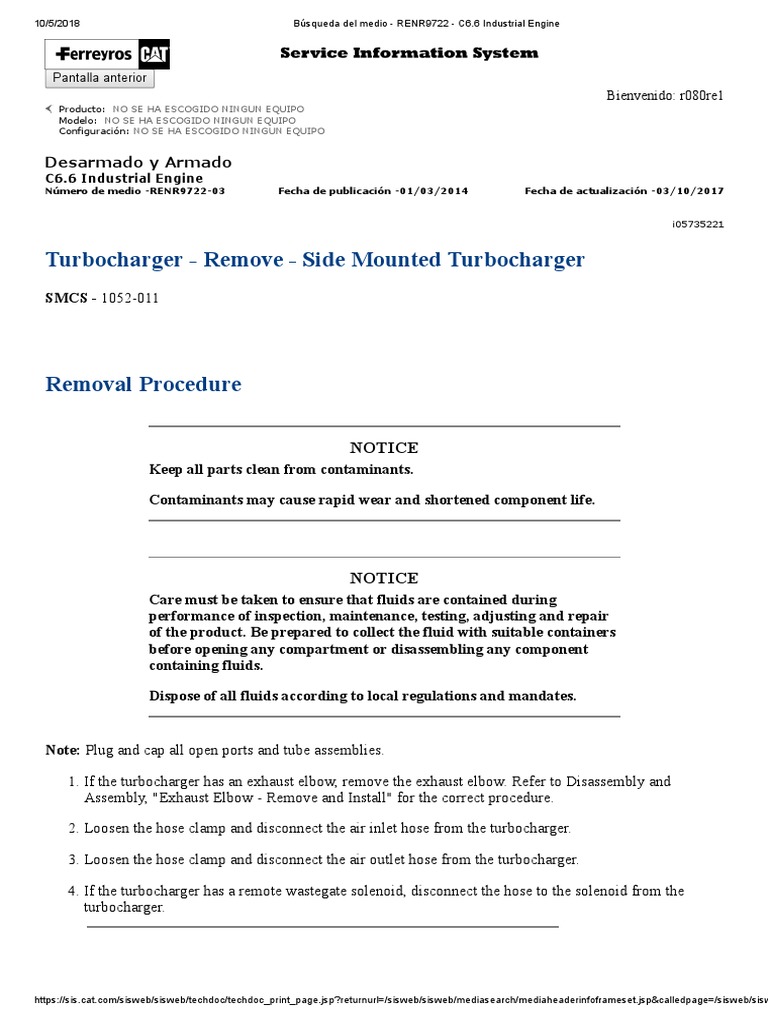

Turbocharger - Remove - Side Mounted Turbocharger

SMCS - 1052-011

Removal Procedure

NOTICE
Keep all parts clean from contaminants.

Contaminants may cause rapid wear and shortened component life.

NOTICE
Care must be taken to ensure that fluids are contained during
performance of inspection, maintenance, testing, adjusting and repair
of the product. Be prepared to collect the fluid with suitable containers
before opening any compartment or disassembling any component
containing fluids.

Dispose of all fluids according to local regulations and mandates.

Note: Plug and cap all open ports and tube assemblies.

1. If the turbocharger has an exhaust elbow, remove the exhaust elbow. Refer to Disassembly and
Assembly, "Exhaust Elbow - Remove and Install" for the correct procedure.

2. Loosen the hose clamp and disconnect the air inlet hose from the turbocharger.

3. Loosen the hose clamp and disconnect the air outlet hose from the turbocharger.

4. If the turbocharger has a remote wastegate solenoid, disconnect the hose to the solenoid from the
turbocharger.

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/mediasearch/mediaheaderinfoframeset.jsp&calledpage=/sisweb/sisw
10/5/2018 Búsqueda del medio - RENR9722 - C6.6 Industrial Engine

Illustration 1 g01335455

5. Follow Step 5.a through Step 5.c in order to remove tube assembly (3) for the oil feed.

a. Remove bolt (5).

b. Remove banjo bolt (1) and remove sealing washers (2).

c. Remove tube assembly (3) from the cylinder block. Remove O-ring seal (4) from the tube
assembly.

Note: Plug the port for the oil feed to the turbocharger with a suitable plug.

6. Follow Step 6 through Step 6.c in order to remove tube assembly (10) for the oil drain.

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/mediasearch/mediaheaderinfoframeset.jsp&calledpage=/sisweb/sisw
10/5/2018 Búsqueda del medio - RENR9722 - C6.6 Industrial Engine

a. Remove bolts (11).

b. Remove bolts (8) and remove tube assembly (10) from turbocharger (6).

c. Remove gasket (7) and remove gasket (9).

Illustration 2 g01335456

7. Remove nuts (15) from turbocharger (6) and remove turbocharger (6) from exhaust manifold (12).

Note: Ensure that the weight of the turbocharger is supported as the nuts are loosened.

8. Remove gasket (14).

9. If necessary, remove studs (13) from exhaust manifold (12).
