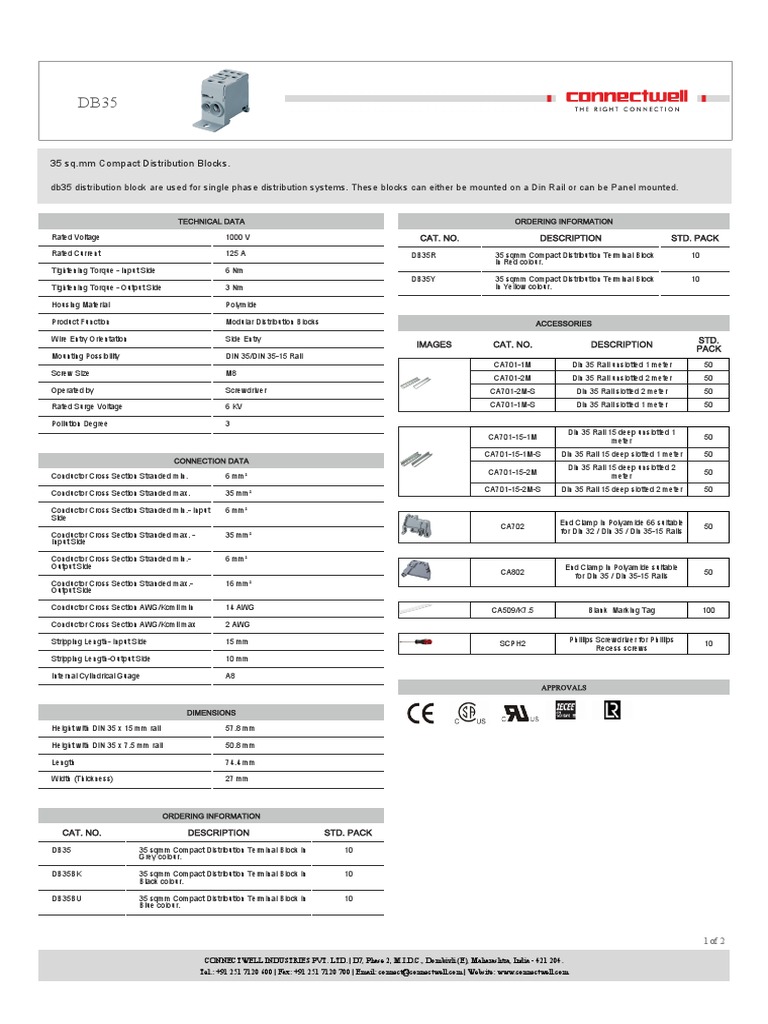

DB35

35 sq.mm Compact Distribution Blocks.

db35 distribution block are used for single phase distribution systems. These blocks can either be mounted on a Din Rail or can be Panel mounted.

TECHNICAL DATA ORDERING INFORMATION

Rated Voltage 1000 V CAT. NO. DESCRIPTION STD. PACK

Rated Current 125 A DB35R 35 sqmm Compact Distribution Terminal Block 10
in Red colour.
Tightening Torque - Input Side 6 Nm
DB35Y 35 sqmm Compact Distribution Terminal Block 10
Tightening Torque - Output Side 3 Nm in Yellow colour.

Housing Material Polymide

Product Function Modular Distribution Blocks ACCESSORIES

Wire Entry Orientation Side Entry STD.

IMAGES CAT. NO. DESCRIPTION PACK
Mounting Possibility DIN 35/DIN 35-15 Rail
CA701-1M Din 35 Rail unslotted 1 meter 50
Screw Size M8
CA701-2M Din 35 Rail unslotted 2 meter 50
Operated by Screwdriver CA701-2M-S Din 35 Rail slotted 2 meter 50

Rated Surge Voltage 6 KV CA701-1M-S Din 35 Rail slotted 1 meter 50

Pollution Degree 3
Din 35 Rail 15 deep unslotted 1
CA701-15-1M 50
meter
CA701-15-1M-S Din 35 Rail 15 deep slotted 1 meter 50
CONNECTION DATA
Din 35 Rail 15 deep unslotted 2
CA701-15-2M 50
Conductor Cross Section Stranded min. 6 mm² meter
CA701-15-2M-S Din 35 Rail 15 deep slotted 2 meter 50
Conductor Cross Section Stranded max. 35 mm²

Conductor Cross Section Stranded min.- Input 6 mm²

Side
End Clamp in Polyamide 66 suitable
CA702 50
Conductor Cross Section Stranded max. - 35 mm² for Din 32 / Din 35 / Din 35-15 Rails
Input Side

Conductor Cross Section Stranded min.- 6 mm²

Output Side End Clamp in Polyamide suitable
CA802 50
for Din 35 / Din 35-15 Rails
Conductor Cross Section Stranded max.- 16 mm²
Output Side

Conductor Cross Section AWG/Kcmil min 14 AWG CA509/K7.5 Blank Marking Tag 100

Conductor Cross Section AWG/Kcmil max 2 AWG

Stripping Length- Input Side 15 mm Phillips Screwdriver for Phillips

SCPH2 10
Recess screws
Stripping Length-Output Side 10 mm

Internal Cylindrical Guage A8

APPROVALS

DIMENSIONS

Height with DIN 35 x 15 mm rail 57.8 mm

Height with DIN 35 x 7.5 mm rail 50.8 mm

Length 74.4 mm

Width (Thickness) 27 mm

ORDERING INFORMATION

CAT. NO. DESCRIPTION STD. PACK

DB35 35 sqmm Compact Distribution Terminal Block in 10

Grey colour.

DB35BK 35 sqmm Compact Distribution Terminal Block in 10

Black colour.

DB35BU 35 sqmm Compact Distribution Terminal Block in 10

Blue colour.

1 of 2

CONNECTWELL INDUSTRIES PVT. LTD. | D7, Phase 2, M.I.D.C., Dombivli (E), Maharashtra, India - 421 204.
Tel.: +91 251 7120 600 | Fax: +91 251 7120 700 | Email: connect@connectwell.com | Website: www.connectwell.com
 DB35

RATINGS AS PER STANDARDS

STANDARDS UL 1059 IEC/EN60947-7-1 CSA C.22.2 No:158

Approvals UL CE CSA

Conductor Cross Section Stranded min.- Input Side 8 AWG 6 mm² 8 AWG

Conductor Cross Section Stranded max. - Input Side 2 AWG 35 mm² 2 AWG

Conductor Cross Section Stranded min.- Output Side 14 AWG 2.5 mm² 14 AWG

Conductor Cross Section Stranded max.- Output Side 6 AWG 10 mm² 6 AWG

Rated Voltage 600 V 1000 V 600 V

Rated Current 115 A 125 A 115 A

Tightening Torque - Input Side 40 lb-in 6 Nm 40 lb-in

Tightening Torque - Output Side 17.5 lb-in 2 Nm 17.5 lb-in
