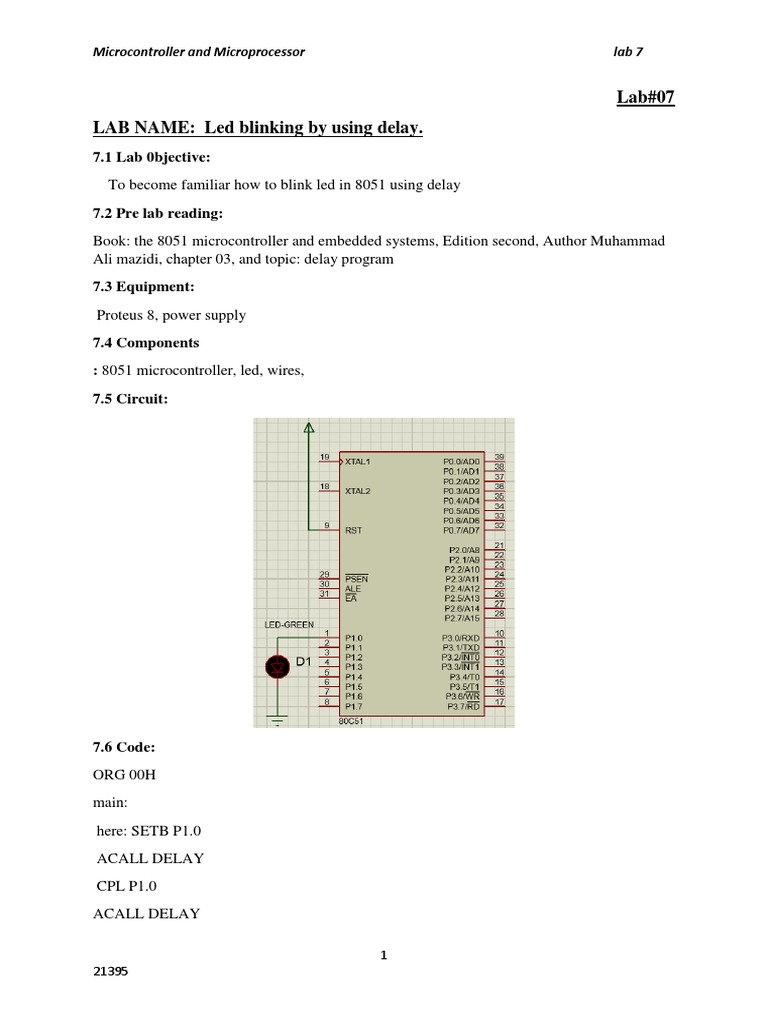

    Microcontroller and Microprocessor lab 7

    Lab#07
    LAB NAME: Led blinking by using delay.
    7.1 Lab 0bjective:
    To become familiar how to blink led in 8051 using delay
    7.2 Pre lab reading:
    Book: the 8051 microcontroller and embedded systems, Edition second, Author Muhammad
    Ali mazidi, chapter 03, and topic: delay program
    7.3 Equipment:
    Proteus 8, power supply
    7.4 Components
    : 8051 microcontroller, led, wires,
    7.5 Circuit:

    7.6 Code:
    ORG 00H
    main:
    here: SETB P1.0
    ACALL DELAY
    CPL P1.0
    ACALL DELAY

    1
    21395
    Microcontroller and Microprocessor lab 7

    SJMP here

    ORG 300H
    DELAY: MOV R0, 0FFH
    DJNZ R0, $
    RET
    End
    7.7 Output:

    7.8 Exercise/procedure:
    Open proteus 8 select the new project and select default schematic. Select the controller and
    write a program by using a call delay in assembly. Now check the errors if any then remove it
    and compile it. Select the component from library and connect all the components and run the
    simulation see the result led will continuously blink with some delay

    7.9 Notes:
    Led will blink with some time delay

    2
    21395
    Microcontroller and Microprocessor lab 7

    7.10 Assessment sheet:


    CMS ID: 21395
    DATE: 15-05-2015

    1-led blinking using delay


    Problem Number
    2-8051

    Working
    Lab Performance
    Viva

    Total Score in Lab#7

    Instructor's Verification

    3
    21395
