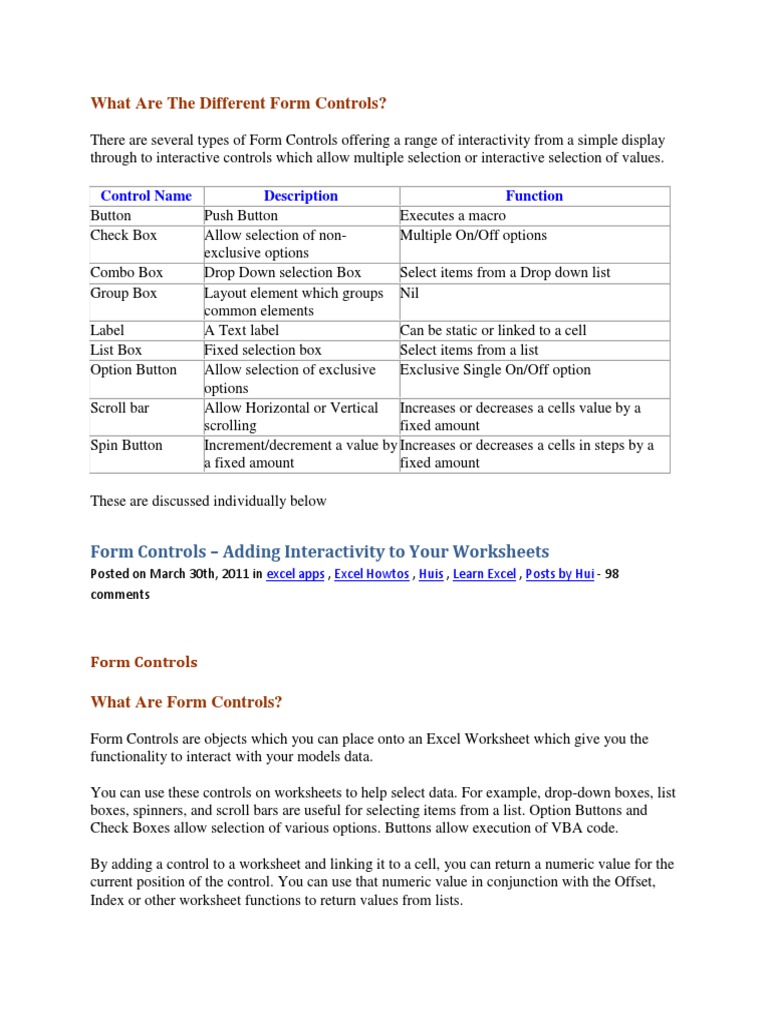

What Are The Different Form Controls?

There are several types of Form Controls offering a range of interactivity from a simple display
through to interactive controls which allow multiple selection or interactive selection of values.

Control Name Description Function

Button Push Button Executes a macro
Check Box Allow selection of non- Multiple On/Off options
exclusive options
Combo Box Drop Down selection Box Select items from a Drop down list
Group Box Layout element which groups Nil
common elements
Label A Text label Can be static or linked to a cell
List Box Fixed selection box Select items from a list
Option Button Allow selection of exclusive Exclusive Single On/Off option
options
Scroll bar Allow Horizontal or Vertical Increases or decreases a cells value by a
scrolling fixed amount
Spin Button Increment/decrement a value by Increases or decreases a cells in steps by a
a fixed amount fixed amount

These are discussed individually below

Form Controls – Adding Interactivity to Your Worksheets

Posted on March 30th, 2011 in excel apps , Excel Howtos , Huis , Learn Excel , Posts by Hui - 98
comments

Form Controls

What Are Form Controls?

Form Controls are objects which you can place onto an Excel Worksheet which give you the
functionality to interact with your models data.

You can use these controls on worksheets to help select data. For example, drop-down boxes, list
boxes, spinners, and scroll bars are useful for selecting items from a list. Option Buttons and
Check Boxes allow selection of various options. Buttons allow execution of VBA code.

By adding a control to a worksheet and linking it to a cell, you can return a numeric value for the
current position of the control. You can use that numeric value in conjunction with the Offset,
Index or other worksheet functions to return values from lists.
Use below links to quickly learn about Form Controls:

 What are form controls & introduction

 Button Control
 Label Control
 Check box Control
 Option Button Control
 List box Control
 Combo box Control
 Spin Button Control
 Scroll bar Control
 Group box Controlg
 Using Form Controls – techniques & examples
 Other Controls in Excel

Where Are Form Controls?

Form Controls are located on the Developer Tab under Insert Form Control.

PS: If you do not have developer tab, learn how to enable it.

You will notice 2 types of Form Controls, being Form Controls and Active X controls.

This post will only be dealing with Form Controls. The Active X controls, similarities and
differences will be discussed towards the end of the post.

How Do I Insert a Form Control

To Insert a Form Control goto the Form Control Menu and click on the Form Control you want
to insert.
Now click on the worksheet in the location you want your form control.

Don’t worry about the location or size you can change those later.

What Are The Different Form Controls?

There are several types of Form Controls offering a range of interactivity from a simple display
through to interactive controls which allow multiple selection or interactive selection of values.

Control Name Description Function

Button Push Button Executes a macro

Check Box Allow selection of non-exclusive Multiple On/Off options

options

Combo Box Drop Down selection Box Select items from a Drop down list

Group Box Layout element which groups Nil

common elements

Label A Text label Can be static or linked to a cell

List Box Fixed selection box Select items from a list

Option Button Allow selection of exclusive Exclusive Single On/Off option

options

Scroll bar Allow Horizontal or Vertical Increases or decreases a cells value by a fixed
scrolling amount

Spin Button Increment/decrement a value by Increases or decreases a cells in steps by a fixed

a fixed amount amount

These are discussed individually below

Form Control Types

Button (Form Control)

The Button Form Control is as its name suggests simply a Button.

Pressing the Button allows execution of a macro.

The Button has no other controls.

Button Text

You can right click on the button and change the buttons Text (Edit Text) and enter the text you
want displayed on the button.

The Button’s text can be linked to a cell, select the Button, In the formula Bar enter a link to a
cell. eg: =$C$3 and accept. The Button’s text will now change as the contents of the cell C3
change.

You can change the Text Style including Font, Color and Text Direction using the Format
Control (Ctrl 1) option.

Assign Macro

Right click on the Button and select Assign Macro

The Assign Macro dialog will pop up.

Select the macro you want to assign to the button.

Label (Form Control)

The Label Form Control is also as its name suggests simply a Label.

The Label will display text either fixed or from a linked cell

You can right click on the button and change the buttons text (Edit Text).

The Button’s text can be linked to a cell, select the Button, In the formula Bar enter a link to a
cell

eg: =$C$3 and accept. The Button’s text will now change as the contents of the cell C3 change.
Unlike the Button you cannot change the Text Style, Font, Color or Text Direction.

Typically a label is put in front of another Control to explain or add a title to the control.

Labels would rarely be used on a Worksheet as a label as they have limited text format
properties.

Users would be better served using either cell text or a Text Box where full text formatting is
allowed.

Labels come into use when setting up custom Dialog Forms which are used by VBA applications
for custom data entry or other uses.

Check Box (Form Control)

The Check Box form Control allows selection of a number of non-exclusive options.

That is any number of Check Box controls may be implemented and they independently be on or
off and have no relationship to each other.

The Check Box Form Control returns the value indicating its status, either True (selected) or
False (not selected), to a linked cell.

To link a Format Control to a cell, Right Click the Format Control and select Format Control…
Option Button (Form Control)

The Option Button form Control allows the selection of an exclusive option from a number of
alternatives.

That is only one Option Button Form Control may be selected at a time, the remainder are
automatically turned off.

The Option Button Form Control returns the value of the Option Button indicating its status to a
linked cell.

In the Example above the Option Buttons are linked to cell E2.
You only need link one Option Button to cell E2, Excel automatically links the remaining option
buttons to teh same cell.

Selecting a Different Option Button automatically deselelects the other Option Buttons and
changes the linked cells value

List Box (Form Control)

The List box allows the selection of one or more items from a list.

The list is sourced from a Range of cells in the above case it was F2:F17.

The List Form Control returns an Index Number or position of the selected item to the Cell Link,
5 in the example above.

The Input Range and Cell Link are setup by Right Clicking the control and select Format
Control…
The Number of items visible in the list box is determined by the size of the list box

If there are more items than will fit in the list box then a scroll bar is automatically added to the
list box to enable there selection.

Combo Box (Form Control)

The Combo Box allows the selection of one or more items from a drop down list.

The Combo Box use is similar to the list box except that it has a drop down selection list instead
of a fixed length selection list.

The list is sourced from a Range of cells in the example below it was F2:F17.

The List Form Control returns an Index Number or position of the selected item to the Cell Link
B10, 9 in the example below.
The Input Range, Cell Link and size of the Drtop Down Box are setup by Right Clicking the
control and select Format Control…

Spin Button (Form Control)

The Spin Button is a simple toggle button that allows the increase or decrease of a linked cells
value by a certain pre-defined amount.
The Cell Link and Lower, Upper Limits and Step Size parameters are setup by Right Clicking
the control and select Format Control…

The Lower, Upper Limits and Step Size must be Integers. If you want to increase a cell by
fractional amounts you will need to for example set the range from 0 to 1000 in steps of 1 and
then devide the linked cell by 10 which will give a Range of 0 to 100 in steps of 0.1

Scroll Bar (Form Control)

The Scroll Bar Form Control often referred to as a Slider is a simple linear slider that allows the
increase or decrease of a linked cells value by sliding a bar either left/right or up/down.
Scroll Bars can be placed either Horizontally or Vertically by dragging the corner.

Scroll bars are incremented by the Step Size by clicking the ends of the bars or dragging the
slider or by a Page Jump Size by using Page up[/down or clicking either side of the slider bar.

The Cell Link, Lower, Upper Limits, Incremental Change and Page Change parameters are setup
by Right Clicking the control and select Format Control…

The Lower, Upper Limits, Incremental Change and Page Change must be Integers. If you want
to increase a cell by fractional amounts you will need to for example set the range from 0 to 1000
in steps of 1 and then devide the linked cell by 10 which will give a Range of 0 to 100 in steps of
0.1

Group Box (Form Control)

The Group Box Form Control isn’t really a Form Control at all, as it allows no interactivity.

What it is used for is grouping similar controls so that functional groups of controls can be
maintained and the users flow is directed around a form.

Using the Form Controls

General Use

The use of the information from a form control is limited by your imagination.

Typical uses are

 Selecting items for a chart

 Selecting data sets
 Moving data sets
 Adjusting values in a model

As described in each of the above Form Controls is that the Form Controls do not return a value
directly from a list, they all return either a number or an index number relative to the position of
the item in a list.

Examples of all the Form Controls and examples of their use can be found in the attached file:

Excel 2003 Examples or Excel 2007+ Examples

or
Have a browse through the dashboards presented during Dashboard Week

or

For some Extreme Examples of Spreadsheet Interactivity using Form Controls and a little bit of
VBA code:

ExcelHero.com

Running Macros

Apart from the Button Form Control whose only purpose is to Run Macro’s, all Form Controls
can be linked to a Macro.

This is done by Right Clicking on the Form Control and selecting Assign Macro.

It is worth noting that the macro is only executed after the control is released.

EG: If you have a macro linked to a Spin Button, If the Spin Button is held down and hence
repeatedly increments its value, the macro will only be executed after the control is released.

Moving and Resizing Form Controls

You can move and resize form controls as with all other worksheet Objects.

Select the form control by right clicking on it

Use the handles to resize or drag the edges to move the controls

Hint: You can use Alt while dragging or resizing to snap the control to cell boundaries.

3D, Printing & Locking Form Controls

You can lock Form Controls as well as enable them to be printed or not

Right Clicking the control and select Format Control…

Use the Size, Protection and Properties Tabs as required.

The 3D option enables a 3D version of the Control instead of a flat control, which can add a bit
of sparkle in some instances.

Limitations of Form Controls

Form controls offer a limited set of functions but do those functions very well.

Limitations are Form Controls:

 Form Controls can only increase or decrease by integer numbers

 Form Controls only return the index of an item in a list
 Form Controls have limited format properties (Font, Color etc)

What are the Active X Controls

Active X controls are like Form Controls on Steroids in that they have a much wider range of
properties than Form Controls.

They also have much better ties to VBA in terms of programmability and have a number of
events that can be accessed programmatically.

The main limitation of Active X controls are that they use a Microsft Active X component. This
means that if you are sharing your workbook with an Apple Mac user using Excel for Mac these
functions wont be available as Active X isn’t avilable on that Platform.

Workbooks with Form Controls will happily work on a an Apple Mac.

Other Controls Available in Excel

A number of other Excel objects can be used to add interactivity to your worksheets.

Shapes

These include:

 Shapes
 Charts
 Text Boxes
 Word Art

All these can have macro’s linked to them which effectively act the same as a Button Form
Control without the moving button effect.

A stunning example of using Text Boxes was recently posted at: The Grammy Bump Chart

Where the Artists Stats Box (Top Left of Chart) is using several Text Boxes linked to cells to
show the Selected Artsists Statistics.

HyperLinks
Inserting Hyperlinks at stratgic locations throughout worksheets provides a great way to simplify
navigation around pages and between pages
