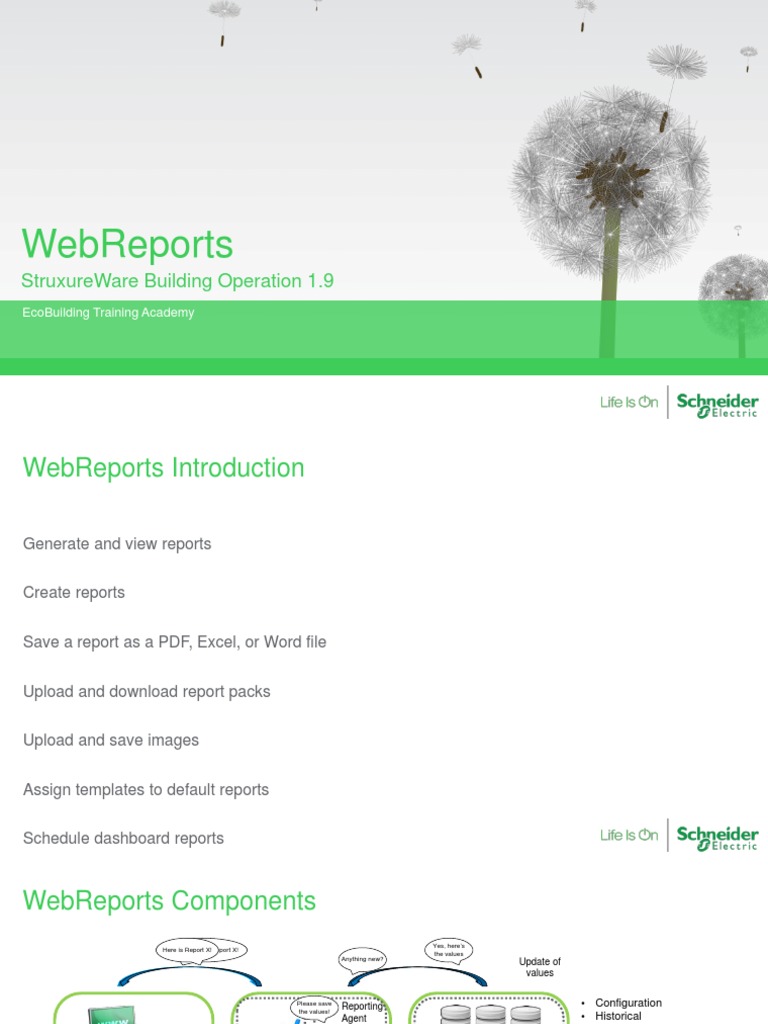

WebReports

StruxureWare Building Operation 1.9

EcoBuilding Training Academy
WebReports Introduction

Generate and view reports

Create reports

Save a report as a PDF, Excel, or Word file

Upload and download report packs

Upload and save images

Assign templates to default reports

Schedule dashboard reports

WebReports Components
Yes, here’s
Here
Please
is Report
show meX! report X!
the values
Anything new?
Update of
values

Please save
Reporting • Configuration
the values!
Agent • Historical
• Runtime
SBO DB’s
WEB
WebReports Application Here is
Get Report
Report X X
Giveare
Here methe
thevalues
values
for report
for ReportXX

Report
Manager Reports Reporting
DB (SQL) Services
DB

b3850

WorkStation
b3920

User interface Reports Server Enterprise Server

SBO Reports Server Overview – MS Windows OS

Operating systems
• Microsoft Windows 7 (32-bit) (Professional)

• Microsoft Windows 7 (64-bit) (Professional)

• Microsoft Windows 8.1 (32-bit) (Professional and Enterprise)

• Microsoft Windows 8.1 (64-bit) (Professional and Enterprise)

• Microsoft Windows 10 (64-bit) (Professional and Enterprise)
• Microsoft Windows Server 2008 R2 (64-bit) (Standard, Web, Enterprise, Datacenter, and Itanium)
• Microsoft Windows Server 2012 (64-bit) (Standard)

• Microsoft Windows Server 2012 R2 (64-bit) (Datacenter, Standard)

SBO Reports Server Overview - SQL versions

• Microsoft SQL Server Express & Standard 2008 R2 (64-bit) (Standard and Express with Advanced Services)
• Microsoft SQL Server Express & Standard 2012 (64-bit) with Advanced Services
(Standard and Express with Advanced Services - SP1, SP2 or SP3)

• Predefined, factory supplied reports and a sample Energy Report Pack

• Access through both WorkStation and WebReports
• SBO authentication and permissions
• Windows scheduler support
Report Data is Based Upon

• Extended trend log data from SBO ES

• Alarms

• Events Report
Server

• Users and Groups

• Object configuration data

SBO Reporting Agent Service

• Handles Authentication requests from WebReports

• Creates Windows Scheduler tasks for scheduled reports

• Creates Report object in SBO

• Retrieves data from the Enterprise Server at a set interval (5 minutes)

• Retrieves data from the Automation Server at a set interval (10 minutes)
SBO Reports

• Dashboard (Custom Reports)

• Report Packs

• Factory Supplied (Production Reports)

SBO Report Templates

Factory Supplied Report Templates • Top Alarms

• Activity per by Server • Top System Alarms

• Activity per User • Top System Alarms per Server

• Alarm Amount by Category • Trend Log Comparison

• Alarm Amount by Type • Users Groups

• Alarms per Server • User Logons

• Current Alarms Default Report Templates

• Database Schema • Alarms

• Most Active Alarms • Users

• Reporting Agent Activity • Generic object

• Schedule Report Activity • Server

• Top Activities • Trends

Energy Report Pack

Separate xml Report Pack file (preinstalled)

• Calendar Consumption
• Consumption
• Consumption Breakdown

Report Data is based on Extended Trend log data

Data is considered Energy data if the base Unit type is set in Report Manager
• Defaults: J,Wh,Btu,cal,thermal,ton·h,UKgal,USgal,ft³,in³,litre,m³
Extended Trend Log data is interpolated into 15 minute intervals
• i.e. 2:00, 2:15, 2:30, 2:45, 3:00
Reports in Workstation

All reports in WebReports reside on the Reports Server

Make the reports available using the Create Report Wizard.
Reporting Capabilities
Action WorkStation WebReports via
Browser
View reports X X
Run prompted reports X X
Run dashboard reports X X
Create reports (Objects link to existing X
WebReports Only)
Customize reports* X X
Save report output X X
Manage Report Packs X
Manage Images X
Schedule Reports X
Assign Default Reports X
Microsoft Report Builder
