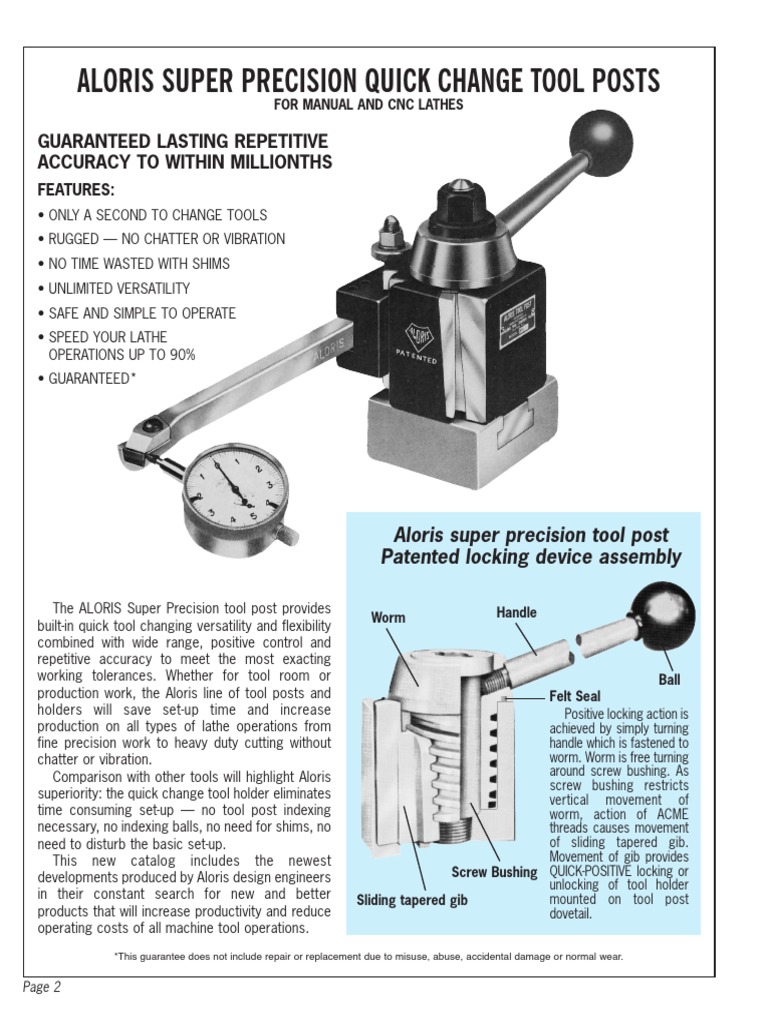

ALORIS SUPER PRECISION QUICK CHANGE TOOL POSTS

FOR MANUAL AND CNC LATHES

GUARANTEED LASTING REPETITIVE

ACCURACY TO WITHIN MILLIONTHS
FEATURES:
• ONLY A SECOND TO CHANGE TOOLS
• RUGGED — NO CHATTER OR VIBRATION
• NO TIME WASTED WITH SHIMS
• UNLIMITED VERSATILITY
• SAFE AND SIMPLE TO OPERATE
• SPEED YOUR LATHE
OPERATIONS UP TO 90%
• GUARANTEED*

Aloris super precision tool post

Patented locking device assembly

The ALORIS Super Precision tool post provides Handle

Worm
built-in quick tool changing versatility and flexibility
combined with wide range, positive control and
repetitive accuracy to meet the most exacting
working tolerances. Whether for tool room or Ball
production work, the Aloris line of tool posts and Felt Seal
holders will save set-up time and increase Positive locking action is
production on all types of lathe operations from achieved by simply turning
fine precision work to heavy duty cutting without handle which is fastened to
chatter or vibration. worm. Worm is free turning
Comparison with other tools will highlight Aloris around screw bushing. As
screw bushing restricts
superiority: the quick change tool holder eliminates vertical movement of
time consuming set-up — no tool post indexing worm, action of ACME
necessary, no indexing balls, no need for shims, no threads causes movement
need to disturb the basic set-up. of sliding tapered gib.
This new catalog includes the newest Movement of gib provides
developments produced by Aloris design engineers Screw Bushing QUICK-POSITIVE locking or
unlocking of tool holder
in their constant search for new and better Sliding tapered gib mounted on tool post
products that will increase productivity and reduce dovetail.
operating costs of all machine tool operations.
*This guarantee does not include repair or replacement due to misuse, abuse, accidental damage or normal wear.

Page 2
 ALORIS QUICK CHANGE TOOL POSTS
Aloris Miniature (MA) Tool Post Super precision single dovetail tool
post designed for jewelers and miniature
lathes. Three holders can hold six tools
for various operations. Height adjustment
is provided for each tool.
Tool holder capacity: 1/8" – 3/8".
Tool post dimensions: 11/2" x 11/2" x 11/4".
See page 26 for toolholders and pricing.

ORDER #: MA $179.00

Aloris AXA–BXA–CXA–CA–DA–EA

Super-Precision
Tool Post
Precision engineered to assure repetitive
accuracy. Advanced design provides built-in quick
tool changing versatility with positive rigidity to
meet the most exacting working tolerances.
Quickly and easily installed on any engine lathe,
bench or CNC lathe, for a wide range of
operations — from fine precision work to heavy
duty cutting.

ORDERING INFORMATION
AXA SERIES BXA SERIES CXA SERIES CA SERIES DA SERIES EA SERIES
ORDER #: AXA $324.00 ORDER #: BXA $395.00 ORDER #: CXA $538.00 ORDER #: CA $677.00 ORDER #: DA $956.00 ORDER #: EA $1,511.00
DIMENSIONS DIMENSIONS DIMENSIONS DIMENSIONS DIMENSIONS DIMENSIONS SWING
25" HVY
A B C D E H R SWING
UP TO A B C D E H R SWING UP TO A B C D E H R SWING UP TO A B C D E H R SWING UP TO A B C D E H R SWING UP TO A B C D E H R DUTY &
LARGER
2 1/2 3 7/8 2 1/4 9/16 13/8 411/16 5 3/4 12" 3 45/8 2 3/4 5/8 15/8 59/16 75/16 10–15" 31/2 51/8 3 3/4 17/8 6 1/8 7 7/8 13–18" 4 61/4 35/8 7/8 2 1/8 7 9 14–20" 5 7 5/8 45/8 1" 211/16 8 3/4 107/8 17–48" 6 81/2 5 11/4 31/8 10 13 3/4 LATHES

MAKE OF LATHE SWING A B C D E

*To order tool holders see page 4 thru 25. *To order sets see pages 26 and 27.
*All Aloris Super Precision Quick Change Tool Posts are furnished with a completely machined “T”-bolt to fit your machine at
no charge. Please fill out chart and fax.
POSTS: REPLACEMENT PARTS
Not Interchangeable with Indexable Tool Post Parts.
“T” BOLTS BALLS
ORDER # AXA-TB* BXA-TB* CXA-TB* CA-TB* DA-TB* EA-TB* ORDER # AXA-BALL* BXA-BALL* CXA-BALL* CA-BALL* DA-BALL* EA-BALL*
PRICE EA. $41.00 $44.00 $57.00 $68.00 $85.00 $94.00 PRICE EA. $3.30 $3.60 $3.85 $4.10 $4.10 $5.50

HANDLES FLANGE NUTS

ORDER # AXA-HDL* BXA-HDL* CXA-HDL* CA-HDL* DA-HDL* EA-HDL* ORDER # AXA-FN* BXA-FN* CXA-FN* CA-FN* DA-FN* EA-FN*
PRICE EA. $30.00 $33.00 $36.00 $41.00 $46.00 $56.00 PRICE EA. $11.00 $12.00 $13.00 $14.00 $18.00 $24.00

Page 3
