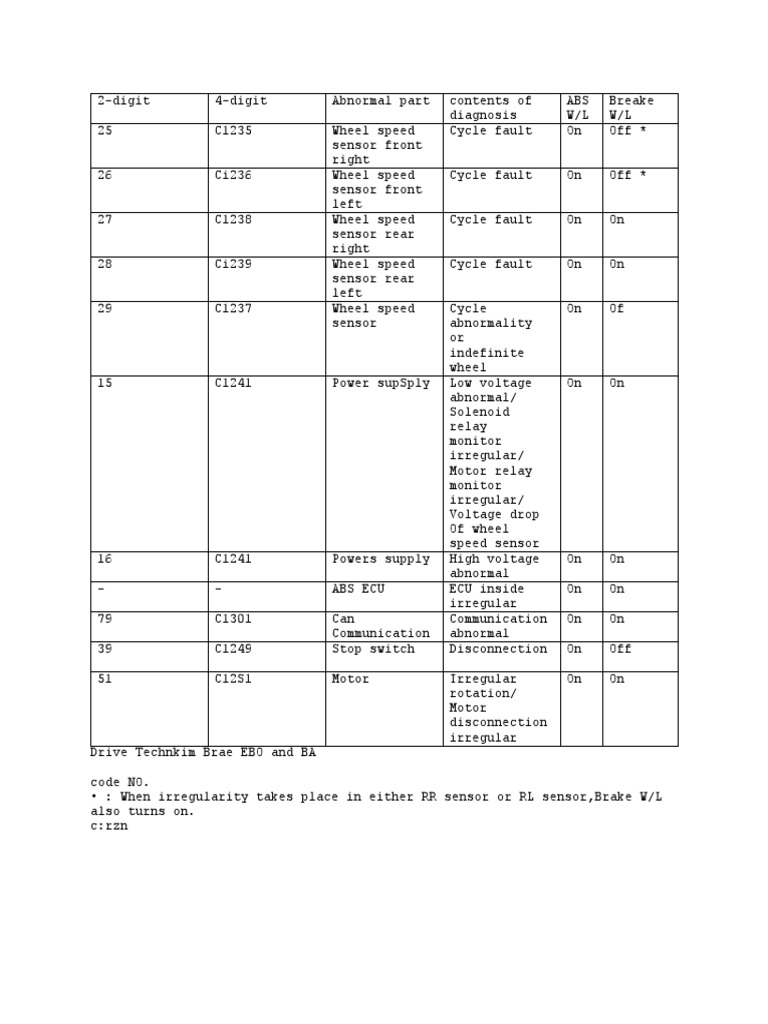

    2-digit 4-digit Abnormal part contents of ABS Breake

    diagnosis W/L W/L


    25 C1235 Wheel speed Cycle fault On Off *
    sensor front
    right
    26 Ci236 Wheel speed Cycle fault On Off *
    sensor front
    left
    27 C1238 Wheel speed Cycle fault On On
    sensor rear
    right
    28 Ci239 Wheel speed Cycle fault On On
    sensor rear
    left
    29 C1237 Wheel speed Cycle On Of
    sensor abnormality
    or
    indefinite
    wheel
    15 C1241 Power supSply Low voltage On On
    abnormal/
    Solenoid
    relay
    monitor
    irregular/
    Motor relay
    monitor
    irregular/
    Voltage drop
    Of wheel
    speed sensor
    16 C1241 Powers supply High voltage On On
    abnormal
    - - ABS ECU ECU inside On On
    irregular
    79 C1301 Can Communication On On
    Communication abnormal
    39 C1249 Stop switch Disconnection On Off

    51 C12S1 Motor Irregular On On


    rotation/
    Motor
    disconnection
    irregular
    Drive Technkim Brae EBO and BA

    code NO.
    • : When irregularity takes place in either RR sensor or RL sensor,Brake W/L
    also turns on.
    c:rzn
