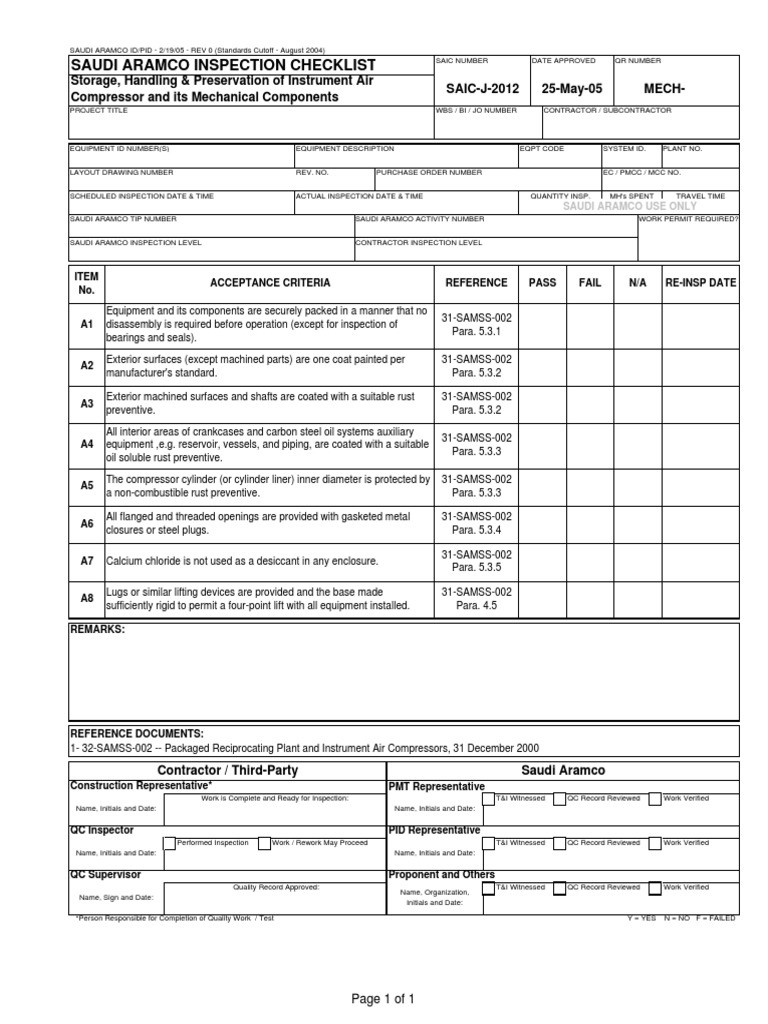

SAUDI ARAMCO ID/PID - 2/19/05 - REV 0 (Standards Cutoff - August 2004)

SAIC NUMBER DATE APPROVED QR NUMBER

SAUDI ARAMCO INSPECTION CHECKLIST
Storage, Handling & Preservation of Instrument Air
SAIC-J-2012 25-May-05 MECH-
Compressor and its Mechanical Components
PROJECT TITLE WBS / BI / JO NUMBER CONTRACTOR / SUBCONTRACTOR

EQUIPMENT ID NUMBER(S) EQUIPMENT DESCRIPTION EQPT CODE SYSTEM ID. PLANT NO.

LAYOUT DRAWING NUMBER REV. NO. PURCHASE ORDER NUMBER EC / PMCC / MCC NO.

SCHEDULED INSPECTION DATE & TIME ACTUAL INSPECTION DATE & TIME QUANTITY INSP. MH's SPENT TRAVEL TIME
SAUDI ARAMCO USE ONLY
SAUDI ARAMCO TIP NUMBER SAUDI ARAMCO ACTIVITY NUMBER WORK PERMIT REQUIRED?

SAUDI ARAMCO INSPECTION LEVEL CONTRACTOR INSPECTION LEVEL

ITEM
ACCEPTANCE CRITERIA REFERENCE PASS FAIL N/A RE-INSP DATE
No.

Equipment and its components are securely packed in a manner that no

31-SAMSS-002
A1 disassembly is required before operation (except for inspection of
Para. 5.3.1
bearings and seals).

Exterior surfaces (except machined parts) are one coat painted per 31-SAMSS-002
A2
manufacturer's standard. Para. 5.3.2

Exterior machined surfaces and shafts are coated with a suitable rust 31-SAMSS-002
A3
preventive. Para. 5.3.2

All interior areas of crankcases and carbon steel oil systems auxiliary
31-SAMSS-002
A4 equipment ,e.g. reservoir, vessels, and piping, are coated with a suitable
Para. 5.3.3
oil soluble rust preventive.

The compressor cylinder (or cylinder liner) inner diameter is protected by 31-SAMSS-002
A5
a non-combustible rust preventive. Para. 5.3.3

All flanged and threaded openings are provided with gasketed metal 31-SAMSS-002
A6
closures or steel plugs. Para. 5.3.4

31-SAMSS-002
A7 Calcium chloride is not used as a desiccant in any enclosure.
Para. 5.3.5

Lugs or similar lifting devices are provided and the base made 31-SAMSS-002
A8
sufficiently rigid to permit a four-point lift with all equipment installed. Para. 4.5

REMARKS:

REFERENCE DOCUMENTS:
1- 32-SAMSS-002 -- Packaged Reciprocating Plant and Instrument Air Compressors, 31 December 2000

Contractor / Third-Party Saudi Aramco

Construction Representative* PMT Representative
Work is Complete and Ready for Inspection: T&I Witnessed QC Record Reviewed Work Verified
Name, Initials and Date: Name, Initials and Date:

QC Inspector PID Representative

Performed Inspection Work / Rework May Proceed T&I Witnessed QC Record Reviewed Work Verified
Name, Initials and Date: Name, Initials and Date:

QC Supervisor Proponent and Others

Quality Record Approved: T&I Witnessed QC Record Reviewed Work Verified
Name, Organization,
Name, Sign and Date:
Initials and Date:

*Person Responsible for Completion of Quality Work / Test Y = YES N = NO F = FAILED

Page 1 of 1
