Current Transformer Measurement principle:
- An AC current that is proportional to the turns ratio flows in the secondary winding to cancel out the magnetic flux produced in the core by the primary current. This produces a secondary voltage proportional to the primary current.
- The secondary current flows through a shunt resistor, producing a voltage used as the measurement output.
Hall element current sensors use the Hall effect to convert the magnetic field around a current into a proportional voltage.
Measurement principle:
- The magnetic flux through the Hall element in the core gap produces a Hall voltage proportional to the flux. This small voltage is amplified to produce the output. The output is proportional to the measured current.
Current Transformer Measurement principle:
- An AC current that is proportional to the turns ratio flows in the secondary winding to cancel out the magnetic flux produced in the core by the primary current. This produces a secondary voltage proportional to the primary current.
- The secondary current flows through a shunt resistor, producing a voltage used as the measurement output.
Hall element current sensors use the Hall effect to convert the magnetic field around a current into a proportional voltage.
Measurement principle:
- The magnetic flux through the Hall element in the core gap produces a Hall voltage proportional to the flux. This small voltage is amplified to produce the output. The output is proportional to the measured current.
Current Transformer Measurement principle:
- An AC current that is proportional to the turns ratio flows in the secondary winding to cancel out the magnetic flux produced in the core by the primary current. This produces a secondary voltage proportional to the primary current.
- The secondary current flows through a shunt resistor, producing a voltage used as the measurement output.
Hall element current sensors use the Hall effect to convert the magnetic field around a current into a proportional voltage.
Measurement principle:
- The magnetic flux through the Hall element in the core gap produces a Hall voltage proportional to the flux. This small voltage is amplified to produce the output. The output is proportional to the measured current.

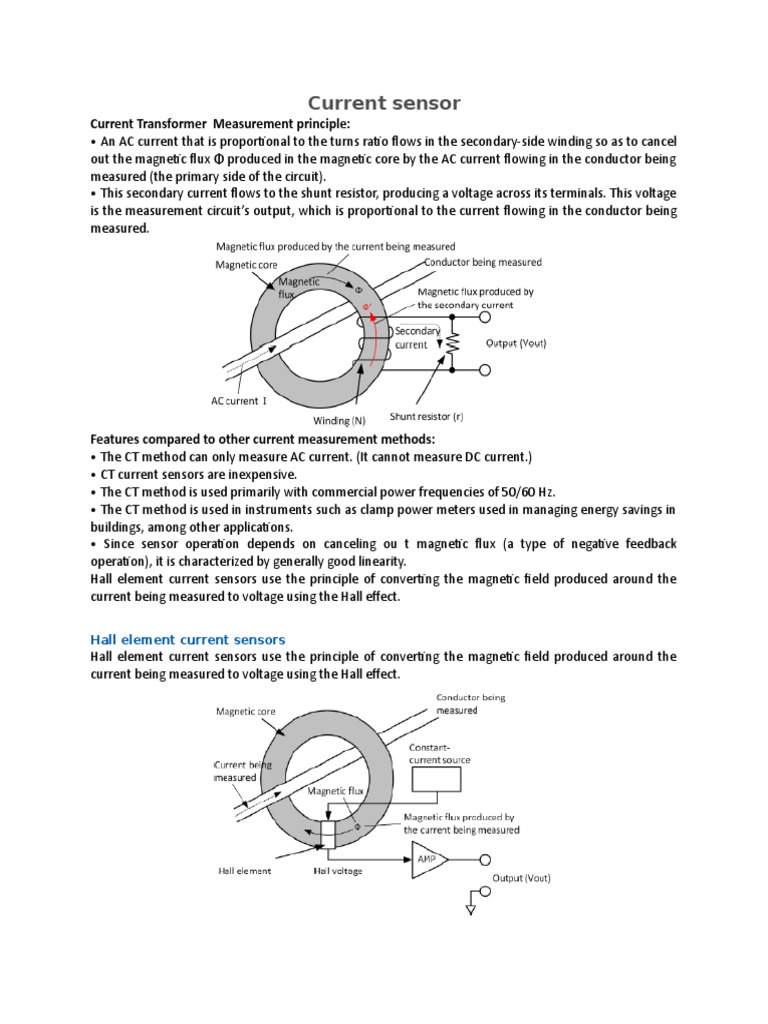

• An AC current that is proportional to the turns ratio flows in the secondary-side winding so as to cancel out the magnetic flux Φ produced in the magnetic core by the AC current flowing in the conductor being measured (the primary side of the circuit). • This secondary current flows to the shunt resistor, producing a voltage across its terminals. This voltage is the measurement circuit’s output, which is proportional to the current flowing in the conductor being measured.
Features compared to other current measurement methods:
• The CT method can only measure AC current. (It cannot measure DC current.) • CT current sensors are inexpensive. • The CT method is used primarily with commercial power frequencies of 50/60 Hz. • The CT method is used in instruments such as clamp power meters used in managing energy savings in buildings, among other applications. • Since sensor operation depends on canceling ou t magnetic flux (a type of negative feedback operation), it is characterized by generally good linearity. Hall element current sensors use the principle of converting the magnetic field produced around the current being measured to voltage using the Hall effect.
Hall element current sensors
Hall element current sensors use the principle of converting the magnetic field produced around the current being measured to voltage using the Hall effect. Measurement principle: • When the magnetic flux Φ produced inside the magnetic core by the current flowing in the conductor being measured (the primary side of the circuit) passes through the Hall element that has been inserted into the gap in the magnetic core, the Hall effect results in a Hall voltage that varies in proportion to the magnetic flux. • Since this Hall voltage is small, it must be amplified by an amp to produce the output signal. • This output signal is proportional to the current flowing in the conductor being measured. Features compared to other current measurement methods: • The Hall element method can measure DC as well as AC current (up to several kilohertz). • Hall element current sensors are inexpensive. • Due to the effects of the Hall element’s linearity and the magnetic core’s B-H characteristics, Hall element sensors do not generally have good precision. • Due to the characteristics of the Hall element, sensor operation is subject to drift caused by factors including temperature and variations over time, making the devices poorly suited to long-term measurement. • Because the magnetic core acts as a load, Hall element sensors cannot be used in the high-frequency band.
