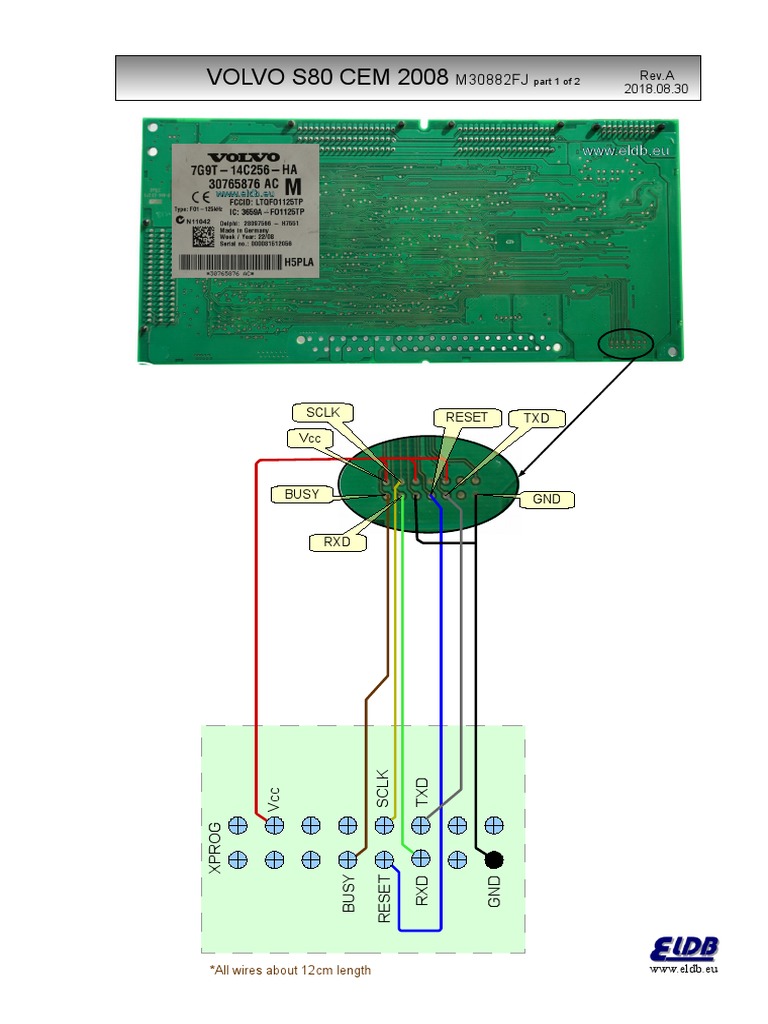

    VOLVO S80 CEM 2008 M30882FJ part 1 of 2 Rev.

    A
    2018.08.30

    www.eldb.eu

    www.eldb.eu

    SCLK RESET TXD


    Vcc

    BUSY GND

    RXD
    SCLK

    TXD
    Vcc
    XPROG

    BUSY

    RESET

    GND
    RXD

    *All wires about 12cm length www.eldb.eu
