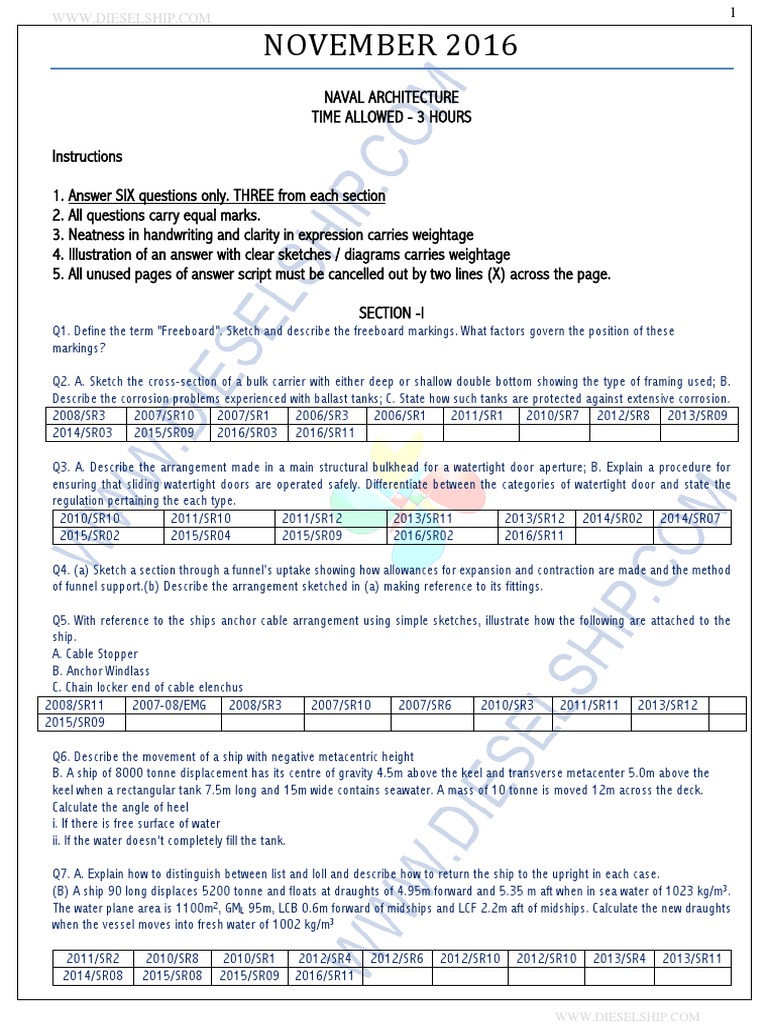

NOVEMBER 2016
NAVAL ARCHITECTURE
TIME ALLOWED - 3 HOURS

Instructions

1. Answer SIX questions only. THREE from each section

2. All questions carry equal marks.
3. Neatness in handwriting and clarity in expression carries weightage
4. Illustration of an answer with clear sketches / diagrams carries weightage
5. All unused pages of answer script must be cancelled out by two lines (X) across the page.

SECTION -I
Q1. Define the term "Freeboard". Sketch and describe the freeboard markings. What factors govern the position of these
markings?

Q2. A. Sketch the cross-section of a bulk carrier with either deep or shallow double bottom showing the type of framing used; B.
Describe the corrosion problems experienced with ballast tanks; C. State how such tanks are protected against extensive corrosion.
2008/SR3 2007/SR10 2007/SR1 2006/SR3 2006/SR1 2011/SR1 2010/SR7 2012/SR8 2013/SR09
2014/SR03 2015/SR09 2016/SR03 2016/SR11

Q3. A. Describe the arrangement made in a main structural bulkhead for a watertight door aperture; B. Explain a procedure for
ensuring that sliding watertight doors are operated safely. Differentiate between the categories of watertight door and state the
regulation pertaining the each type.
2010/SR10 2011/SR10 2011/SR12 2013/SR11 2013/SR12 2014/SR02 2014/SR07
2015/SR02 2015/SR04 2015/SR09 2016/SR02 2016/SR11

Q4. (a) Sketch a section through a funnel's uptake showing how allowances for expansion and contraction are made and the method
of funnel support.(b) Describe the arrangement sketched in (a) making reference to its fittings.

Q5. With reference to the ships anchor cable arrangement using simple sketches, illustrate how the following are attached to the
ship.
A. Cable Stopper
B. Anchor Windlass
C. Chain locker end of cable elenchus
2008/SR11 2007-08/EMG 2008/SR3 2007/SR10 2007/SR6 2010/SR3 2011/SR11 2013/SR12
2015/SR09

Q6. Describe the movement of a ship with negative metacentric height

B. A ship of 8000 tonne displacement has its centre of gravity 4.5m above the keel and transverse metacenter 5.0m above the
keel when a rectangular tank 7.5m long and 15m wide contains seawater. A mass of 10 tonne is moved 12m across the deck.
Calculate the angle of heel
i. If there is free surface of water
ii. If the water doesn’t completely fill the tank.

Q7. A. Explain how to distinguish between list and loll and describe how to return the ship to the upright in each case.
(B) A ship 90 long displaces 5200 tonne and floats at draughts of 4.95m forward and 5.35 m aft when in sea water of 1023 kg/m3.
The water plane area is 1100m2, GML 95m, LCB 0.6m forward of midships and LCF 2.2m aft of midships. Calculate the new draughts
when the vessel moves into fresh water of 1002 kg/m3

2011/SR2 2010/SR8 2010/SR1 2012/SR4 2012/SR6 2012/SR10 2012/SR10 2013/SR4 2013/SR11

2014/SR08 2015/SR08 2015/SR09 2016/SR11

WWW.DIESELSHIP.COM
 WWW.DIESELSHIP.COM 2
Q8. (a) Explain what is meant by left and right handed propellers, and also explain the rotation of propellers in a twin screw ship.
(b) A propeller 6m diameter has a pitch ratio of 0.9, BAR 0.48 and, when turning at 110 rev/min, has a real slip of 25% and wake
faction 10.30. If the propeller delivers a thrust of 300 KN and the propeller efficiency is 0.65. Calculate - i Blade area; ii Ship speed;
iii. Thrust power; iv Shaft power v. Torque. NUMERICAL ALREADY DONE IN 2016/SR10

2010/SR7 2010/SR6 2012/SR4 2012/SR8 2015/SR08

2015/SR09 2016/SR11

Q9. (a) List the components of residuary resistance.

(b) A ship model 6m long has a total resistance of 40N when towed at 3.6 knots in fresh water. the ship itself is 180m long and
displaces 20400 tonne. the wetted surface area may be calculated from the formula S= 2.57, Calculate ePn for the ship at its
corresponding speed in sea water. f (model)fw =0.492; f (ship)sw =0.421; n=1.825.

Q10. (a) Describe the effects on centre of gravity of slack tanks.

(b) A box-shaped vessel 100 meter long x 20 meters wide X 12 meters deep is floating in salt water on an even keel at 6 meters
draft. A forward compartment is 10 meters long, 12 meters wide and extends from the outer bottom to a watertight flat, 4 meters
long 12 meters wide and extends from the outer bottom to a watertight flat, 4 meters above the keel. the compartment contains
cargo of permeability 25%. find the new draft if this compartment is bilged.
