SYSTEM WIRING DIAGRAMS

1995 Volvo 850

1995 System Wiring Diagrams

Volvo - 850

AIR CONDITIONING

2.3L

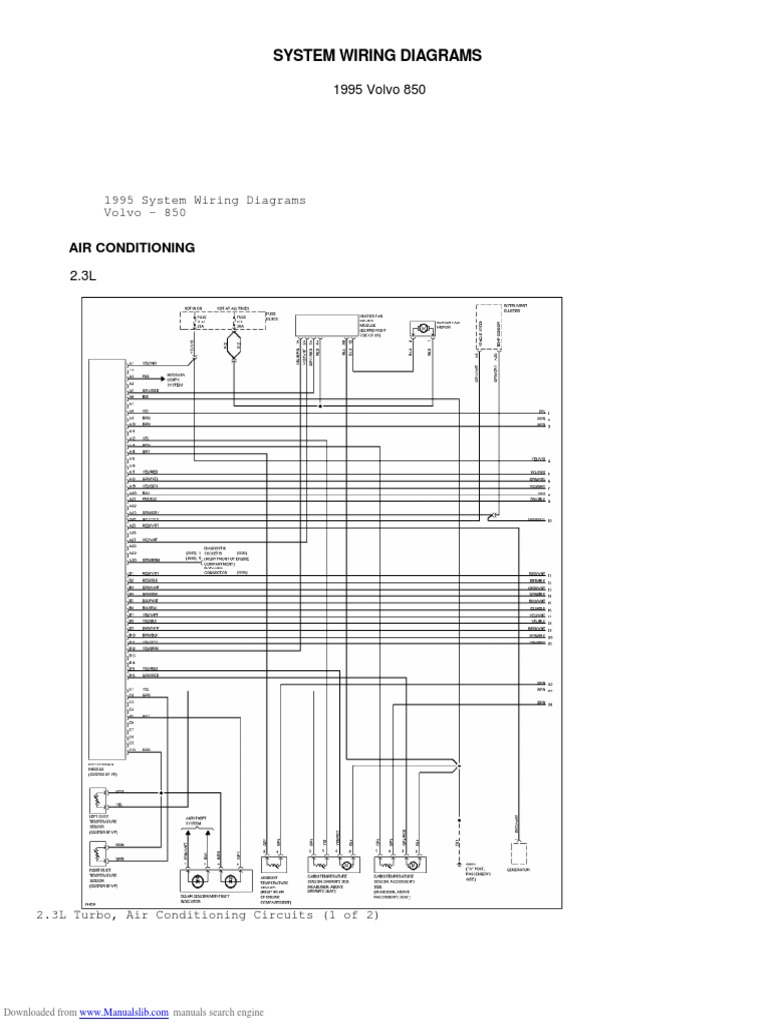

2.3L Turbo, Air Conditioning Circuits (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 2.3L Turbo, Air Conditioning Circuits (2 of 2)

2.4L

Downloaded from www.Manualslib.com manuals search engine

 2.4L, Air Conditioning Circuits, Auto A/C (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 2.4L, Air Conditioning Circuits, Auto A/C (2 of 2)

Downloaded from www.Manualslib.com manuals search engine

 2.4L, Air Conditioning Circuits, Manual A/C

ANTI-LOCK BRAKES

Downloaded from www.Manualslib.com manuals search engine

 Anti-lock Brake Circuits

ANTI-THEFT

Downloaded from www.Manualslib.com manuals search engine

 Base Anti-theft Circuit

COMPUTER DATA LINES

Downloaded from www.Manualslib.com manuals search engine

 Computer Data Lines

COOLING FAN

Downloaded from www.Manualslib.com manuals search engine

 Cooling Fan Circuit

CRUISE CONTROL

Downloaded from www.Manualslib.com manuals search engine

 Cruise Control Circuit

DEFOGGERS

Downloaded from www.Manualslib.com manuals search engine

 Defogger Circuit

ENGINE PERFORMANCE

Downloaded from www.Manualslib.com manuals search engine

 2.3L

2.3L Turbo, Engine Performance Circuits (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 2.3L Turbo, Engine Performance Circuits (2 of 2)

2.4L

Downloaded from www.Manualslib.com manuals search engine

 2.4L, Engine Performance Circuits (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 2.4L, Engine Performance Circuits (2 of 2)

EXTERIOR LIGHTS

Downloaded from www.Manualslib.com manuals search engine

 Back-up Lamps Circuit

Downloaded from www.Manualslib.com manuals search engine

 Backup Lamps Circuit, Sedan & Wagon

Downloaded from www.Manualslib.com manuals search engine

 Exterior Lamps Circuit, Sedan (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Exterior Lamps Circuit, Sedan (2 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Exterior Lamps Circuit, Wagon (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Exterior Lamps Circuit, Wagon (2 of 2)

GROUND DISTRIBUTION

Downloaded from www.Manualslib.com manuals search engine

 Ground Distribution Circuit

HEADLIGHTS

Downloaded from www.Manualslib.com manuals search engine

 Headlamps/Fog Lamps Circuit (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Headlamps/Fog Lamps Circuit (2 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Headlight Circuit (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Headlight Circuit (2 of 2)

HORN

Downloaded from www.Manualslib.com manuals search engine

 Horn Circuit

INSTRUMENT CLUSTER

Downloaded from www.Manualslib.com manuals search engine

 Instrument Cluster Circuit, VDO (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Instrument Cluster Circuit, VDO (2 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Instrument Cluster Circuit, Yasaki (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Instrument Cluster Circuit, Yasaki (2 of 2)

INTERIOR LIGHTS

Downloaded from www.Manualslib.com manuals search engine

 Courtesy Lamps Circuit

Downloaded from www.Manualslib.com manuals search engine

 Instrument Illumination Circuit

MEMORY SYSTEMS

Downloaded from www.Manualslib.com manuals search engine

 Memory Seats Circuit

POWER ANTENNA

Downloaded from www.Manualslib.com manuals search engine

 Power Antenna Circuit

POWER DISTRIBUTION

Downloaded from www.Manualslib.com manuals search engine

 Accessories Connector Circuit, Early Production

Downloaded from www.Manualslib.com manuals search engine

 Accessories Connector Circuit, Late Production

Downloaded from www.Manualslib.com manuals search engine

 Power Distribution Circuit (1 of 2)

Downloaded from www.Manualslib.com manuals search engine

 Power Distribution Circuit (2 of 2)

POWER DOOR LOCKS

Downloaded from www.Manualslib.com manuals search engine

 Central Locking Circuit, W/ Deadlock

Downloaded from www.Manualslib.com manuals search engine

 Central Locking Circuit, W/O Deadlock

POWER MIRRORS

Downloaded from www.Manualslib.com manuals search engine

 Power Mirror Circuit

POWER SEATS

Downloaded from www.Manualslib.com manuals search engine

 Front Seat Heater Circuit

Downloaded from www.Manualslib.com manuals search engine

 Rear Seat Heater Circuit

POWER TOP/SUNROOF

Downloaded from www.Manualslib.com manuals search engine

 Power Top/Sunroof Circuits

POWER WINDOWS

Downloaded from www.Manualslib.com manuals search engine

 Power Window Circuit

SHIFT INTERLOCKS

Downloaded from www.Manualslib.com manuals search engine

 Shift Interlock Circuit

STARTING/CHARGING

Downloaded from www.Manualslib.com manuals search engine

 Charging Circuit

Downloaded from www.Manualslib.com manuals search engine

 Starting Circuit

SUPPLEMENTAL RESTRAINTS

Downloaded from www.Manualslib.com manuals search engine

 Supplemental Restraint Circuit

TRANSMISSION

Downloaded from www.Manualslib.com manuals search engine

 Transmission Circuit

WARNING SYSTEMS

Downloaded from www.Manualslib.com manuals search engine

 Warning System Circuits

WIPER/WASHER

Downloaded from www.Manualslib.com manuals search engine

 Front Wiper/Washer Circuit, Early Production

Downloaded from www.Manualslib.com manuals search engine

 Front Wiper/Washer Circuit, Late Production

Downloaded from www.Manualslib.com manuals search engine

 Headlamp Wiper/Washer Circuit, Early Production

Downloaded from www.Manualslib.com manuals search engine

 Headlamp Wiper/Washer Circuit, Late Production

Downloaded from www.Manualslib.com manuals search engine

 Rear Wiper/Washer Circuit, Early Production

Downloaded from www.Manualslib.com manuals search engine

 Rear Wiper/Washer Circuit, Late Production
