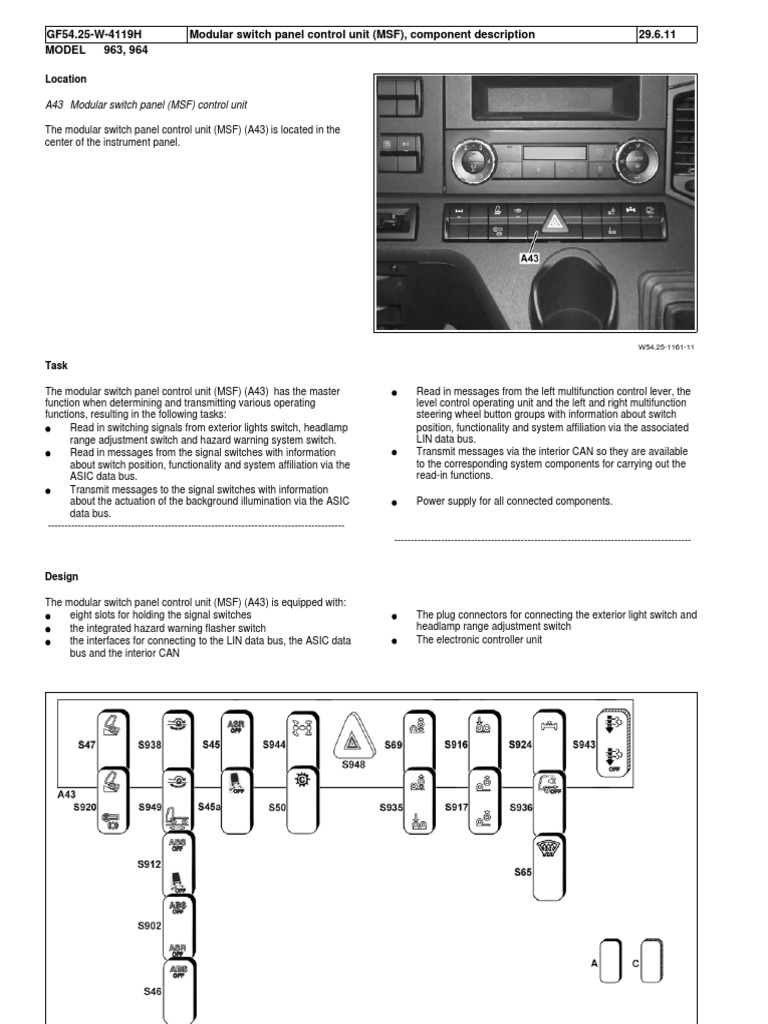

GF54.25-W-4119H Modular switch panel control unit (MSF), component description 29.6.

11
MODEL 963, 964

Location

A43 Modular switch panel (MSF) control unit

The modular switch panel control unit (MSF) (A43) is located in the
center of the instrument panel.

W54.25-1161-11

Task

The modular switch panel control unit (MSF) (A43) has the master
function when determining and transmitting various operating
functions, resulting in the following tasks:
Read in switching signals from exterior lights switch, headlamp
range adjustment switch and hazard warning system switch.
Read in messages from the signal switches with information
about switch position, functionality and system affiliation via the
ASIC data bus.
Transmit messages to the signal switches with information
about the actuation of the background illumination via the ASIC
data bus.
-----------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------
Read in messages from the left multifunction control lever, the
level control operating unit and the left and right multifunction
steering wheel button groups with information about switch
position, functionality and system affiliation via the associated
LIN data bus.
Transmit messages via the interior CAN so they are available
to the corresponding system components for carrying out the
read-in functions.
Power supply for all connected components.

Design

The modular switch panel control unit (MSF) (A43) is equipped with:
eight slots for holding the signal switches The plug connectors for connecting the exterior light switch and
the integrated hazard warning flasher switch headlamp range adjustment switch
the interfaces for connecting to the LIN data bus, the ASIC data The electronic controller unit
bus and the interior CAN
Factory switch assignment
A43 Modular switch panel (MSF) control
unit
Signal switches
S45 Acceleration skid control button
(ASR)
S45a Electronic Stability Program button
(ESP)
S46 Anti-lock braking system button
(ABS)
S47 Hill holder switch
S50 Transfer case switch
S65 Windshield heater button
S69 Additional axle button
S902 Antilock braking system (ABS) /
acceleration skid control (ASR)
button
S912 Anti-lock braking system (ABS)/
Electronic Stability Program (ESP)
button
S916 Starting-off aid button for Europe
S917 Starting-off aid switch for Nordic
countries
S920 Hill holder/frequent-stop brake
switch
S924 Center auxiliary steering button
S935 Raise/lower additional axle
combined with starting-off aid
button
S936 Backup warning system button
S938 Rocking mode button
S943 Regeneration lock/manual
regeneration button
S944 Longitudinal, rear axle and front
axle interwheel differential lock
button
S948 Hazard warning system switch
S949 Rocking mode/maneuvering mode
button
A Signal switch, transferable
C Signal switch, not transferable
