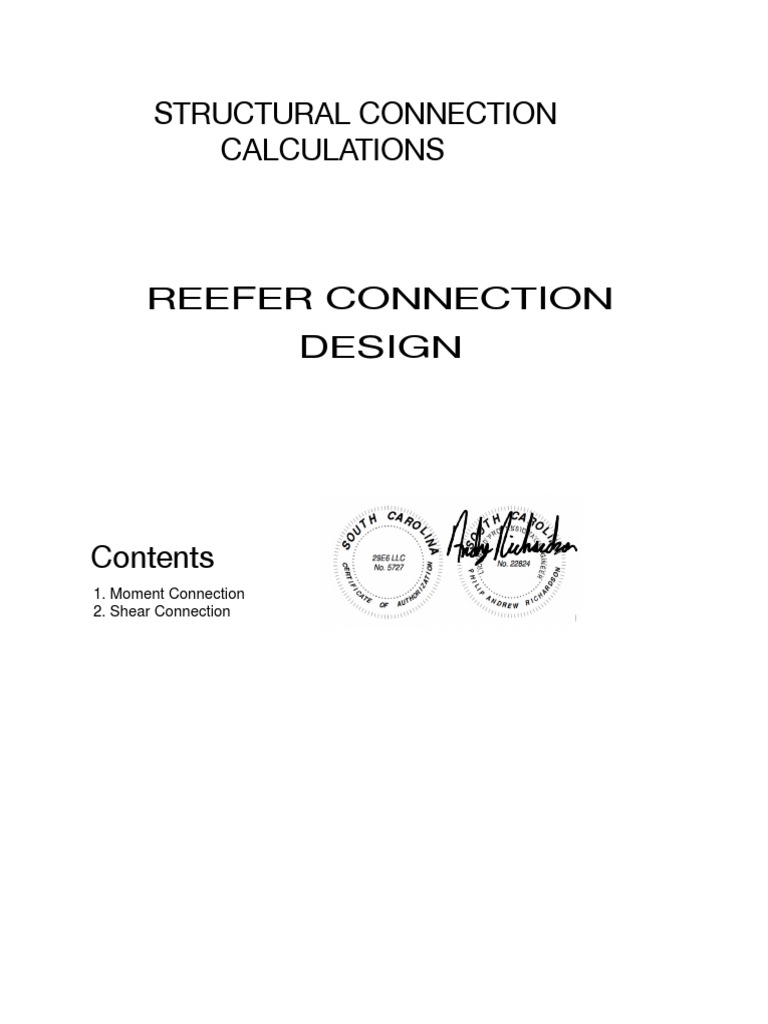

STRUCTURAL CONNECTION

CALCULATIONS

REEFER CONNECTION
DESIGN

Contents 2019.08.23
1. Moment Connection
2. Shear Connection
1. Moment Connection 2. Shear Connection
1. Moment Connection
Side View
Front View
Top View
Current Date: 03-09-2019 11:36
Units system: English
File name: C:\Users\smv11\Desktop\moment connection.rcnx\

Steel connections
Results
_______________________________________________________________________________________________________________________________

_______________________________________________________________________________________________________________________________

Connection name : MEP_BCF_DG4_1 1/4PL_4B1

Connection ID : 1
_______________________________________________________________________________________________________________________________

Family: Beam - Column flange (BCF)

Type: Moment end plate
Description: Moment Connection
Design code: AISC 360-16 LRFD

DEMANDS
Beam Right beam Left beam Column Panel
Description Ru Pu Mu PufTop PufBot PufTop PufBot Pu Vu Load type
[Kip] [Kip] [Kip*ft] [Kip] [Kip] [Kip] [Kip] [Kip] [Kip]
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DL 15.00 5.00 50.00 -74.32 79.32 0.00 0.00 0.00 79.32 Design
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

GEOMETRIC CONSIDERATIONS
Dimensions Unit Value Min. value Max. value Sta. References
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Extended end plate
Vertical edge distance [in] 1.25 0.87 6.00 Sec. J3.5
Horizontal edge distance [in] 1.25 0.87 6.00 Sec. J3.5
Vertical bolt spacing (external flange) [in] 3.09 1.67 -- Sec. J3.3
Vertical bolt spacing (internal flange) [in] 3.09 1.67 -- Sec. J3.3
Horizontal center-to-center spacing (gage) [in] 3.50 2.88 5.25 Sec. J3.3,
DG4 Sec. 2.4,
DG4 Sec. 2.1,
2.4,
DG16 Sec. 2.5
Outer bolt distance (external flange) [in] 1.38 1.13 -- DG4 Sec. 2.1
Inner bolt distance (external flange) [in] 1.38 1.13 -- DG4 Sec. 2.1
Outer bolt distance (internal flange) [in] 1.38 1.13 -- DG4 Sec. 2.1
Inner bolt distance (internal flange) [in] 1.38 1.13 -- DG4 Sec. 2.1
Bolt diameter [in] 0.63 -- 1.50 DG4 Sec. 1.1
Beam
Weld size (external flange) [1/16in] 6 3 -- table J2.4
Weld size (internal flange) [1/16in] 6 3 -- table J2.4
Web [1/16in] 4 2 -- table J2.4
Support
Horizontal edge distance [in] 2.29 0.87 6.00 Sec. J3.5
Support
Web thickness [in] 0.36 0.19 -- p. 9-5
Transverse stiffeners
Length [in] 7.13 3.56 -- Sec. J10.8
Width [in] 3.50 1.82 -- Sec. J10.8
Thickness [in] 0.50 0.31 -- Sec. J10.8
Weld size [1/16in] 4 4 -- DG 13 Eq. 4.3-6
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Page1
PLATE / COLUMN BEHAVIOR
End plate behaviour (external flange)
Thin plate behavior controlled by plate yielding
End plate behaviour (internal flange)
Thin plate behavior controlled by plate yielding
Column flange behavior (external flange)
Thick plate behavior controlled by no prying bolt rupture
Column flange behavior (internal flange)
Thick plate behavior controlled by no prying bolt rupture

Global critical strength ratio 1.01

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

DESIGN CHECK
Verification Unit Capacity Demand Ctrl EQ Ratio References
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Moment end plate (external flange)
Flexural yielding [Kip*ft] 51.18 0.00 DL 0.00 DG4 Eq. 3.10,
Sec. 2.2.3
No prying bolt moment strength [Kip*ft] 53.96 0.00 DL 0.00 DG4 Eq. 3.7,
Eq. 3.8,
DG4 Eq. 3.7
Bolts shear [Kip] 49.73 15.00 DL 0.30 Tables (7-1..14)
Bolt bearing under shear load [Kip] 140.70 15.00 DL 0.11 Eq. J3-6
Shear yielding [Kip] 72.90 37.16 DL 0.51 DG4 Eq. 3.12
Shear rupture [Kip] 73.41 37.16 DL 0.51 DG4 Eq 3.14,
AISC 358-05 Eq. 6.9-12,
DG4 Eq. 3.13
Moment end plate (internal flange)
Flexural yielding [Kip*ft] 51.18 51.63 DL 1.01 DG4 Eq. 3.10, Ok by inspection
Sec. 2.2.3
No prying bolt moment strength [Kip*ft] 53.96 51.63 DL 0.96 DG4 Eq. 3.7,
Eq. 3.8,
DG4 Eq. 3.7
Bolts shear [Kip] 49.73 0.00 DL 0.00 Tables (7-1..14)
Bolt bearing under shear load [Kip] 140.70 15.00 DL 0.11 Eq. J3-6
Shear yielding [Kip] 72.90 39.66 DL 0.54 DG4 Eq. 3.12
Shear rupture [Kip] 73.41 39.66 DL 0.54 DG4 Eq 3.14,
AISC 358-05 Eq. 6.9-12,
DG4 Eq. 3.13
Beam
Web weld shear strength [Kip] 38.31 15.00 DL 0.39 Eq. J2-4
Web weld strength to reach yield stress [Kip/ft] 200.46 124.20 DL 0.62 Eq. J2-4,
Eq. J4-1
Shear yielding [Kip] 56.17 15.00 DL 0.27 Eq. J4-3
Flange weld capacity (internal flange) [Kip] 136.94 79.32 DL 0.58 Eq. J2-4
Support
Flexural yielding (external flange) [Kip*ft] 98.68 0.00 DL 0.00 DG4 Eq. 3.20,
Sec. 2.2.3
Support bolt bearing (external flange) [Kip] 141.28 15.00 DL 0.11 Eq. J3-6
Flexural yielding (internal flange) [Kip*ft] 114.18 51.63 DL 0.45 DG4 Eq. 3.20,
Sec. 2.2.3
Support bolt bearing (internal flange) [Kip] 163.80 15.00 DL 0.09 Eq. J3-6
Panel web shear [Kip] 80.19 79.32 DL 0.99 Sec. J10-6,
Eq. J10-9
Support - right side
Local web yielding [Kip] 163.21 79.32 DL 0.49 DG4 eq. 3.24,
DG13 Eq. 4.3-1,
Sec. J10
Transverse stiffeners - top
Yielding strength due to axial load [Kip] 81.00 0.00 DL 0.00 Eq. J4-1
Compression [Kip] 76.72 4.11 DL 0.05 Sec. J4.4
Flange weld capacity [Kip] 75.17 4.11 DL 0.05 Eq. J2-4
Web weld capacity [Kip] 130.97 4.11 DL 0.03 Eq. J2-4
Transverse stiffeners - bottom
Yielding strength due to axial load [Kip] 81.00 0.00 DL 0.00 Eq. J4-1
Compression [Kip] 76.72 0.00 DL 0.00 Sec. J4.4

Page2
 Flange weld capacity [Kip] 75.17 0.00 DL 0.00 Eq. J2-4
Web weld capacity [Kip] 130.97 0.00 DL 0.00 Eq. J2-4
WARNINGS
- Connection does not comply the "thick plate" behavior Ok by inspection
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Page3
1/2" STFNR PLATE
BOTH SIDE OF
COLUMN WEB W/ 1/
4" FILLET WELD ALL
AROUND
2. Shear Connection
Side View
Front View
Top View
Current Date: 03-09-2019 11:17
Units system: English
File name: C:\Users\smv11\Desktop\shear connection.rcnx\

Steel connections
Results
_______________________________________________________________________________________________________________________________

_______________________________________________________________________________________________________________________________

Connection name : DA_BCW_L 3x3x1/2_2B1

Connection ID : 1V
_______________________________________________________________________________________________________________________________

Family: Beam - Column web (BCW)

Type: Angle(s)
Description: shear connection
Design code: AISC 360-16 LRFD

DEMANDS
Description Ru Pu Load type
[Kip] [Kip]
----------------------------------------------------------------------------------------------------------------------------------------
DL 5.00 16.00 Design
----------------------------------------------------------------------------------------------------------------------------------------

GEOMETRIC CONSIDERATIONS
Dimensions Unit Value Min. value Max. value Sta. References
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Angle
Length [in] 5.50 3.44 6.88 p. 10-8
Angle (Beam side)
Vertical edge distance [in] 1.25 0.87 -- Tables J3.4,
J3.5
Horizontal edge distance [in] 1.25 0.87 -- Tables J3.4,
J3.5
Vertical center-to-center spacing (pitch) [in] 3.00 1.67 5.52 Sec. J3.3,
Sec. J3.5
Thickness [in] 0.31 -- 0.63 p. 10-9
Angle (Support side)
Vertical edge distance [in] 1.25 0.87 -- Tables J3.4,
J3.5
Horizontal edge distance [in] 1.25 0.87 -- Tables J3.4,
J3.5
Vertical center-to-center spacing (pitch) [in] 3.00 1.67 7.50 Sec. J3.3,
Sec. J3.5
Beam
Horizontal edge distance [in] 1.75 0.87 -- Tables J3.4,
J3.5
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

DESIGN CHECK
Verification Unit Capacity Demand Ctrl EQ Ratio References
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Angle (Beam side)
Bolts shear [Kip] 49.73 16.76 DL 0.34 Tables (7-1..14)
Bolt bearing under shear load [Kip] 70.35 5.00 DL 0.07 Eq. J3-6
Shear yielding [Kip] 74.25 5.00 DL 0.07 Eq. J4-3
Shear rupture [Kip] 65.25 5.00 DL 0.08 Eq. J4-4
Block shear [Kip] 66.82 5.00 DL 0.07 Eq. J4-5
Bolt bearing under axial load [Kip] 59.13 16.00 DL 0.27 Eq. J3-6
Tear out under axial load [Kip] 86.48 16.00 DL 0.19 Eq. J4-5

Page1
 Leg tensile yielding [Kip] 111.38 16.00 DL 0.14 Eq. J4-1
Leg tensile rupture [Kip] 108.75 16.00 DL 0.15 Eq. J4-2
Angle (Support side)
Bolts shear [Kip] 49.73 5.00 DL 0.10 Tables (7-1..14)
Bolt bearing under shear load [Kip] 70.35 5.00 DL 0.07 p. 7-18,
Sec. J3.10
Shear yielding [Kip] 74.25 5.00 DL 0.07 Eq. J4-3
Shear rupture [Kip] 65.25 5.00 DL 0.08 Eq. J4-4
Block shear [Kip] 66.82 5.00 DL 0.07 Eq. J4-5
Resulting tension capacity due prying action [Kip] 19.15 16.00 DL 0.84 p. 9-11,
p. 9-13,
p. 9-10
Beam
Bolt bearing under shear load [Kip] 33.64 5.00 DL 0.15 Eq. J3-6
Shear yielding [Kip] 56.17 5.00 DL 0.09 Eq. J4-3
Bolt bearing under axial load [Kip] 33.64 16.00 DL 0.48 Eq. J3-6
Tear out under axial load [Kip] 43.34 16.00 DL 0.37 Eq. J4-5
Support
Bolt bearing under shear load [Kip] 52.65 5.00 DL 0.09 Eq. J3-6
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Global critical strength ratio 0.84
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Page2
