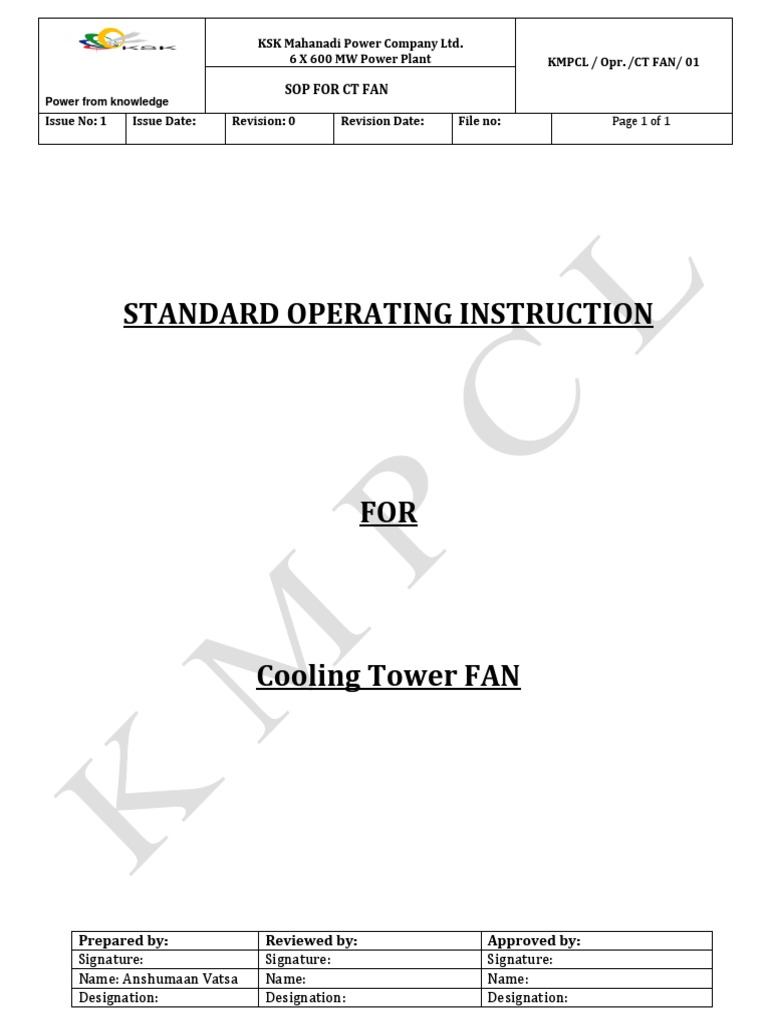

KSK Mahanadi Power Company Ltd.

6 X 600 MW Power Plant KMPCL / Opr. /CT FAN/ 01

SOP FOR CT FAN

Power from knowledge
Issue No: 1 Issue Date: Revision: 0 Revision Date: File no: Page 1 of 1

STANDARD OPERATING INSTRUCTION

FOR

Cooling Tower FAN

Prepared by: Reviewed by: Approved by:

Signature: Signature: Signature:
Name: Anshumaan Vatsa Name: Name:
Designation: Designation: Designation:
 KSK Mahanadi Power Company Ltd.
6 X 600 MW Power Plant KMPCL / Opr. /CT FAN/ 01

SOP FOR CT FAN

Power from knowledge
Issue No: 1 Issue Date: Revision: 0 Revision Date: File no: Page 2 of 1

STANDARD OPERATING PROCEDURE FOR CT FAN

OBJECTIVE: For Smooth Operation of CT Fan.

SCOPE: This SOP is applicable for 16 nos. of CT Fans.
INTRODUCTION: CT fans are needed to carry away the heat of the steam from the water that falls
into the CT basin.
PRE CHECKS:
CT FAN TECHNICAL DATA:-
Make Paharpur cooling tower Quantity 16
ltd
Model 86066-5.OS-16B B.H.P 198 KW

Flow 82454 m3/hr

CT fan’s motor
Type D3L5L Power 175kW
Voltage 415V Current 302A

Rotating speed 1485r/min

RESPONSIBILITY: Unit Control Engineer, Field Engineer and Desk Engineer.

SAFTEY PRECAUTIONS:
1. Ensure no permit to work is pending on regarding this system by checking with EE/MRSE.

SAFTEY PPE’s: Ear Plugs, Safety Goggles, Hand Gloves, etc.

SPECIAL TOOLS/ EQUIPMENTS: NIL

Prepared by: Reviewed by: Approved by:

Signature: Signature: Signature:
Name: Anshumaan Vatsa Name: Name:
Designation: Designation: Designation:
 KSK Mahanadi Power Company Ltd.
6 X 600 MW Power Plant KMPCL / Opr. /CT FAN/ 01

SOP FOR CT FAN

Power from knowledge
Issue No: 1 Issue Date: Revision: 0 Revision Date: File no: Page 3 of 1

PRECHECKS AND ACTION BY FIELD ENGINEER

S No Description Ok Not Ok Remarks

1 All permits and cross permits have been returned.  

2 Area is clear of any other materials.  

3 Check coupling guard is not touching with coupling.  

4 Check the riser MOV open - close operation  

i) Open the riser MOV operate normally  

i i) Check open limit shown on DCS  

iii) Close the riser MOV operate normally  

i v) Check Close limit shown on DCS  

5 Ensure oil level of the throttle box is normal  

6 Emergency push button is in released condition  

7 Check fan is not rotate in reverse direction  

PRECHECKS AND ACTION BY DESK ENGINEER

S No Description Ok Not Ok Remarks

1 Ensure any one of the CIRC water pump is running  

2 Check close limit of I/L &O/L riser MOV comes on DCS  

Ensure Main & Control power supply to CT fan is available in

3 local.  

4 Check fan is permissible to start  

5 Check the vibration and current of fan on DCS are normal  

OPERATING PROCEDURE -
Sr. Description RESPONSIBILITY
Prepared by: Reviewed by: Approved by:
Signature: Signature: Signature:
Name: Anshumaan Vatsa Name: Name:
Designation: Designation: Designation:
 KSK Mahanadi Power Company Ltd.
6 X 600 MW Power Plant KMPCL / Opr. /CT FAN/ 01

SOP FOR CT FAN

Power from knowledge
Issue No: 1 Issue Date: Revision: 0 Revision Date: File no: Page 4 of 1

No. UCE DE FE EE
PRE- START CHECKS:
1 All permits and cross permits have been returned. √ √ √ √
2 Power supply and control power supply available. √ √
3 Ensure oil level of the throttle box is normal √ √
4 At least one CW pump is running √ √
5 The CT fan’s riser MOV is opened. √ √
START PERMISSIVE :

1 CT FAN selector switch should be in remote mode √ √

2 Oil level of throttle box of CT fan is normal. √ √

3 CT fan riser MOV is opened √ √

4 Emergency push button is in release condition. √

FAN START UP SEQUENCE :

1 Give open command to Riser MOV of the corresponding CT fan. Confirm √ √
from local
2 Put in interlock input of the CT fan. √
√
.
3 Check if the CT fan is started and note starting current. √ √
4 Ensure smooth running of CT fan electric motor, and check for vibrations and √
√
abnormal
SHUTDOWN SEQUENCE:

1. PLANNED SHUTDOWN :

1 Release the interlock of CT fan. √

2 Shut down the Fan √

3 Gradually close the riser MOV as per requirement √ √

4 Rack out the breaker. √
5 Rectify the probable problem, if any.
√ √

Prepared by: Reviewed by: Approved by:

Signature: Signature: Signature:
Name: Anshumaan Vatsa Name: Name:
Designation: Designation: Designation:
 KSK Mahanadi Power Company Ltd.
6 X 600 MW Power Plant KMPCL / Opr. /CT FAN/ 01

SOP FOR CT FAN

Power from knowledge
Issue No: 1 Issue Date: Revision: 0 Revision Date: File no: Page 5 of 1

2. TRIPPING OF FAN :If suddenly fan trips

1 CT FAN will stop if CW pump is tripped and interlock input is given. √ √
2 CT FAN will stop if throttle oil box level is low √ √
3. EMERGENCY SHUT DOWN:
1 There is the apparent abnormal noise after starting the fan. √ √
2 The current of CT fan suddenly reduced down.. √
3 When endangering the safety of person and equipment. √ √ √ √

INTERLOCKS : Remarks

1 CT FAN will start if CW pump is running and interlock of CT fan is input..

2 CT FAN will stop if throttle oil box level is low.

3 CT FAN will stop if CW pump is tripped and interlock input is given

ABRIVIATIONS / NOTATIONS:-
o SOP: Standard Operating Procedure
o UCE: Unit Control Engineer
o DE: Desk Engineer
o FE: Field Engineer
o DCS: Distributed Control System
o EE: Electrical Shift Engineer
o MFT: Main Fuel Trip.
o RB : Run Back

Important Note:

Prepared by: Reviewed by: Approved by:

Signature: Signature: Signature:
Name: Anshumaan Vatsa Name: Name:
Designation: Designation: Designation:
