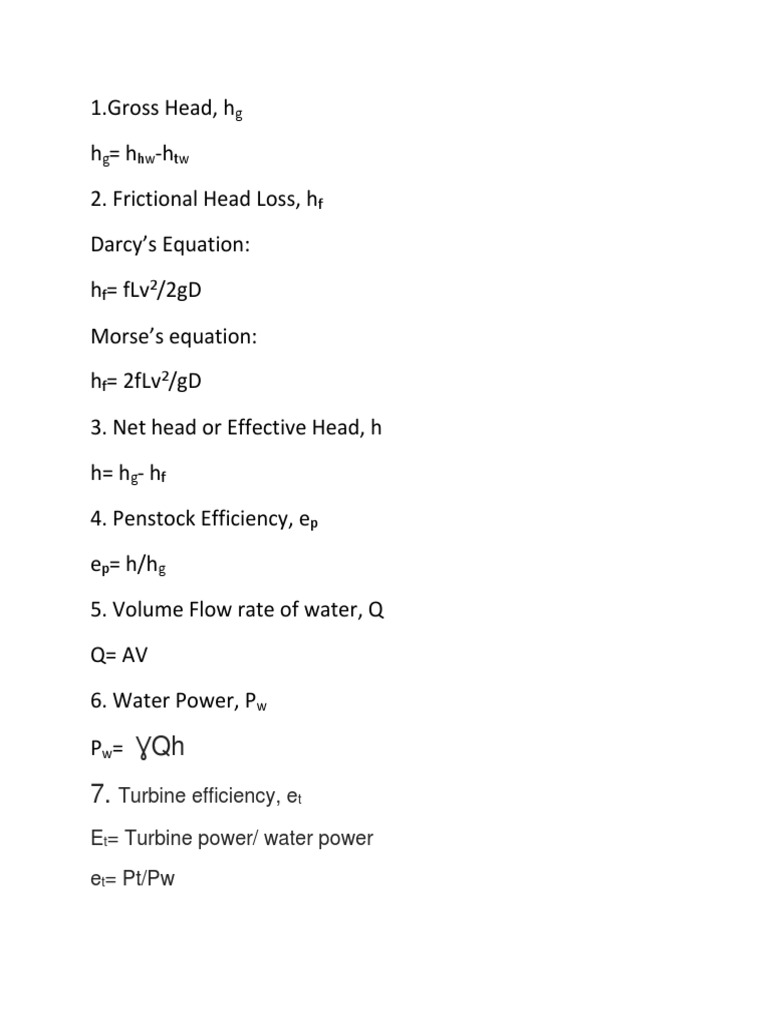

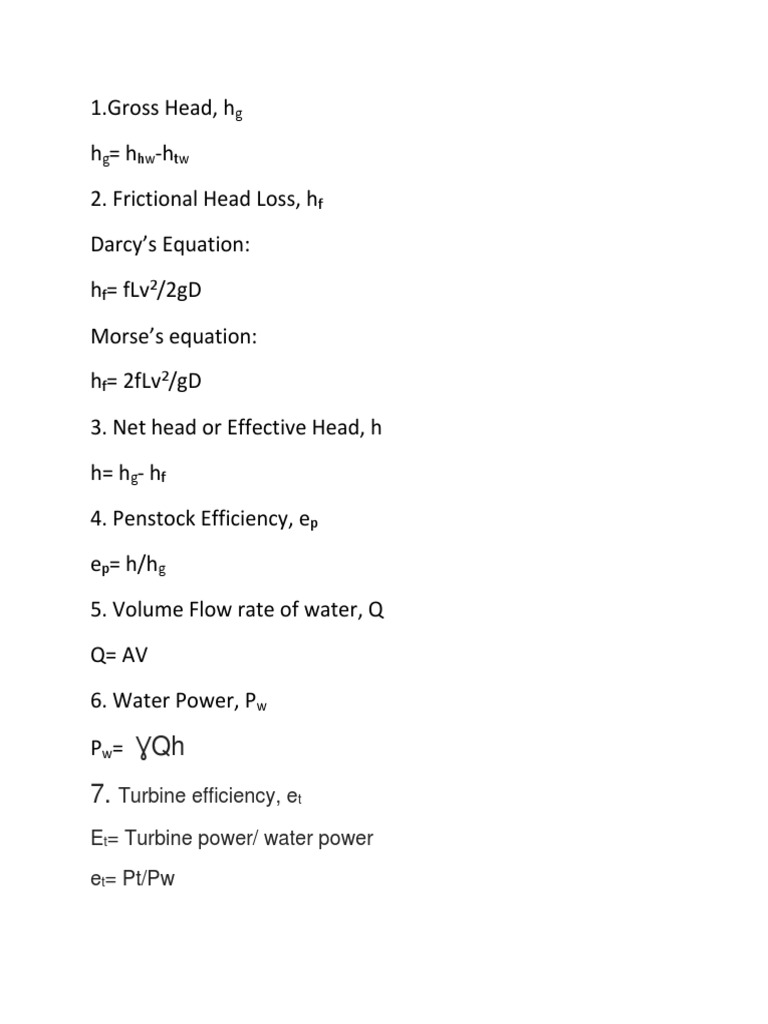

    1.

    Gross Head, hg
    hg= hhw-htw
    2. Frictional Head Loss, hf
    Darcy’s Equation:
    hf= fLv2/2gD
    Morse’s equation:
    hf= 2fLv2/gD
    3. Net head or Effective Head, h
    h= hg- hf
    4. Penstock Efficiency, ep
    ep= h/hg
    5. Volume Flow rate of water, Q
    Q= AV
    6. Water Power, Pw

    Pw= ƔQh

    7. Turbine efficiency, et
    Et= Turbine power/ water power
    et= Pt/Pw
    Pt= ƔQh et
    8. Electrical or Generator Efficiency, egen

    eg= Generator Output/ Turbine Output


    egen= Pgen/ Pt
    Pgen= Pt egen= ƔQh et egen
    9. Generator Speed, N
    N= 120f/ P
    10. Hydraulic Efficiency, eh
    eh= hw/h
    11. Head of Impulse Turbine (Pelton)

    𝑃
    ℎ = + (V2)/2
    Ɣ

    12. Head of Reaction Turbine (Francis and Kaplan)


    𝑃
    ℎ = + 𝑍 + (VA2-VB2)/2
    Ɣ
    13. Peripheral Coefficient, φ

    Φ= Vp/ Vj
    𝜋DN
    Φ=
    √2𝑔ℎ

    14. Specific Speed of Hydraulic Turbine, Ns


    𝑁 √𝐻𝑃
    Ns= (English Units)
    ℎ5/4

    0.2623 𝑁√𝑘𝑊
    𝑁𝑠 =
    ℎ5/4
    15. Total Efficiency, etotal:
    etotal= ehemev
