3.

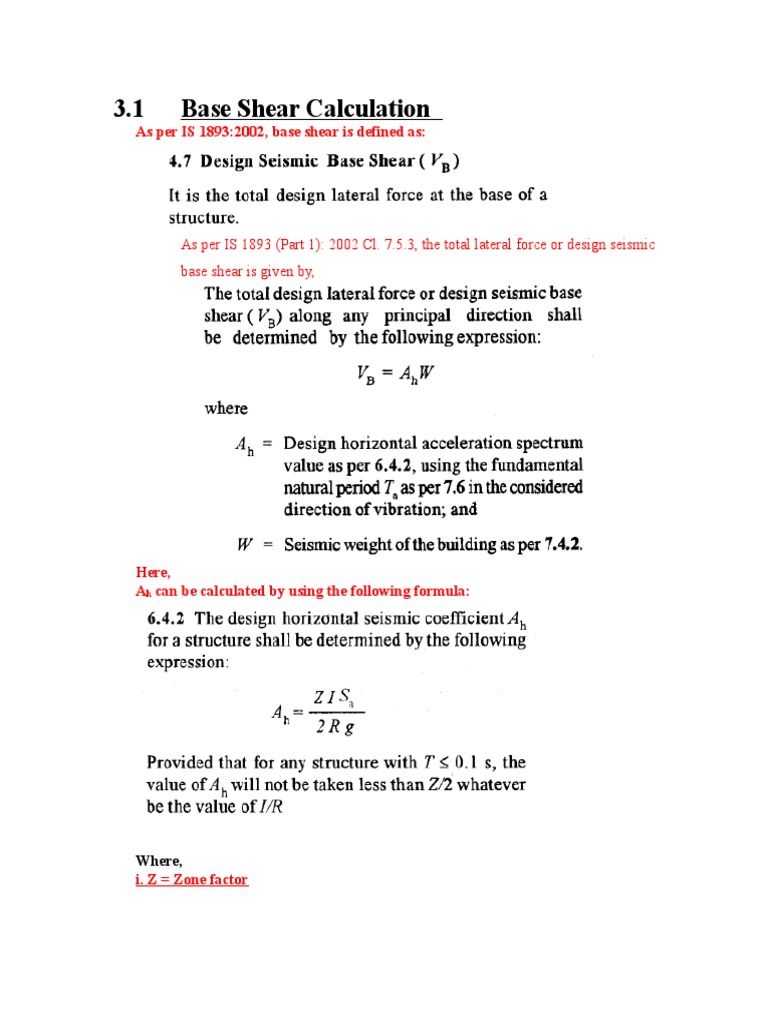

1 Base Shear Calculation

As per IS 1893:2002, base shear is defined as:

As per IS 1893 (Part 1): 2002 Cl. 7.5.3, the total lateral force or design seismic
base shear is given by,

Here,
Ah can be calculated by using the following formula:

Where,
i. Z = Zone factor
ii. I = Importance Factor

iii. R = Response reduction factor

iv. Sa/g = Average response acceleration coefficient

Time period Calculation,

h
3.1.1 Design Horizontal Seismic Coefficient Calculation
i. Time period calculation
We have, from IS 1893 (Part 1): 2002 Cl. 7.6.2,
Ta =
where,
h = Height of the building in m.
d = Base dimension of the building at the plinth level.
Here,
h = 26.519 m
Along X-direction,
d = 25.044 m
Thus,
Tax = √ 25.044 = 0.48 sec
Along Y-direction,
d = 20.269 m
Thus,
Tay = √ 20.269 = 0.53 sec
ii. Average response acceleration coefficient calculation
For medium soil sites, we have, from IS 1893 (Part 1): 2002 Cl. 6.4.5,
Along X-direction,
For Tax = 0.43 sec,
=2.50
Along Y-direction,
 For Tay = 0.48 sec,
=2.50

iii. Zone factor

From IS 1893 (Part 1): 2002 Table 2, for seismic zone V, we have,
Z = 0.36
iv. Importance factor
From IS 1893 (Part 1): 2002 Table 6, we have for important service and
community buildings,
I = 1.5
v. Response reduction factor
From IS 1893 (Part 1): 2002 Table 7, for special RC moment-resisting
frame (SMRF)
R = 5.0
Now,
Design horizontal seismic coefficient, Ah =
Along X-direction,
Putting the respective values, we get,
Ahx = = 0.135
Similarly,
Along Y-direction,
Putting the respective values, we get,
Ahy = = 0.135
3.1.2 Base Shear Calculation
As per IS 1893 (Part 1) : 2002 Cl. 7.5.3, the total lateral force or design seismic
base shear is given by,
VB = Ah*W
Where,
W= Seismic weight of the building = 33991.561 KN
Along X-direction,
VBx = Ahx*W
= 0.135*33991.561
= 4588.860735 KN
Along Y-direction,
VBy = Ahy*W
= 0.135*33991.561
= 4588.860735 KN
3.1.3 Design Storey Shear Calculation
From IS 1893 (Part 1): 2002 Cl. 7.7.1, we have,
Qi = *VB
Where,
Qi = Design lateral force at floor i.
Wi= Seismic weight at floor i.
hi = Height of the floor measured from base,
Storey shear calculation is shown in table III.3.1.
SN Wi hi VBx=VBy Qi
Floor (KN) (m) hi2 Wihi2 (KN) (KN)
1 Semi- 4978.099 3.048 9.290 46248.057 0.007 4588.861 30.175
basement
2 Ground 5410.197 6.401 40.973 221670.918 0.032 4588.861 144.632
Floor
3 First Floor 5072.335 9.754 95.141 482584.610 0.069 4588.861 314.867

4 Second 4783.464 13.107 171.793 821767.730 0.117 4588.861 536.171

Floor
5 Third Floor 5023.953 16.460 270.932 1361147.703 0.194 4588.861 888.095

6 Fourth Floor 4612.346 19.813 392.555 1810599.191 0.257 4588.861 1181.345

7 Top Floor 3613.977 23.166 536.664 1939489.518 0.276 4588.861 1265.441

8 Roof Floor 497.190 26.519 703.257 349652.704 0.050 4588.861 228.135

Total 7033160.431 1 4588.861

Figure III.3.2: Storey Shear Calculation.
