en-GB

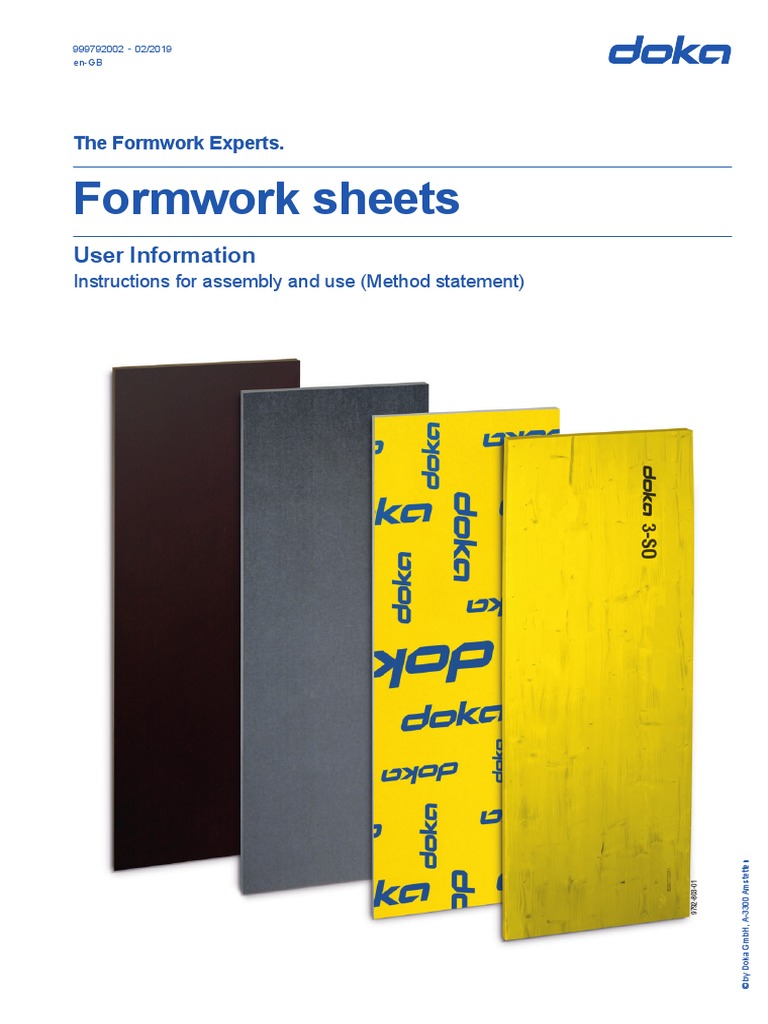

Formwork sheets
User Information
Instructions for assembly and use (Method statement)
© by Doka GmbH, A-3300 Amstetten
2 999792002 - 02/2019
User Information Formwork sheets
Contents
4 Introduction
4 Elementary safety warnings
7 Doka services
9 Formwork sheets
10 3-ply sheets
10 Doka formwork sheet 3-SO
11 Formwork sheet 3S basic
12 Formwork sheet 3S top
13 Formwork sheet 3S cut
14 Doka formwork sheet FF20
15 Three-ply sheet without coating
30 General remarks
31 Deflection diagrams
35 Influences on the formwork sheets and
concrete surfaces
40 Transporting, stacking and storing
42 Component overview
999792002 - 02/2019 3
Introduction User Information Formwork sheets
Introduction
Elementary safety warnings
User target groups Remarks on this booklet
▪ This booklet is aimed at all persons who will be work- ▪ This document can be used as general Instructions
ing with the Doka product or system that it describes. for Assembly and Use (Method Statement) or be
It contains information on the standard design for incorporated into site-specific Instructions for
setting up this system, and on correct, compliant uti- Assembly and Use (Method Statement).
lisation of the system. ▪ The graphics, animations and videos in this doc-
▪ All persons working with the product described ument or app sometimes depict partially assem-
herein must be familiar with the contents of this bled assemblies and may require additional
booklet and with all the safety instructions it contains. safety equipment and/or measures to comply
▪ Persons who are incapable of reading and under- with safety regulations.
standing this booklet, or who can do so only with dif- The customer must ensure all applicable regulations
ficulty, must be instructed and trained by the cus- are complied with, even if they are not shown or
tomer. implied in the graphics, animations and videos pro-
▪ The customer is to ensure that the information mate- vided.
rials provided by Doka (e.g. User Information book- ▪ Individual sections contain further safety
lets, Instructions for Assembly and Use, Operating instructions and/or special warnings as applica-
Instruction manuals, plans etc.) are up to date and ble.
available to all users, and that they have been made
aware of them and have easy access to them at the
usage location. Planning
▪ In the relevant technical documentation and form-
work utilisation plans, Doka shows the workplace ▪ Provide safe workplaces for those using the form-
safety precautions that are necessary in order to use work (e.g. for when it is being erected/dismantled,
the Doka products safely in the usage situations modified or repositioned etc). It must be possible to
shown. get to and from these workplaces via safe access
In all cases, users are obliged to ensure compliance routes!
with national laws, standards and regulations ▪ If you are considering any deviation from the
throughout the entire project and to take appropriate details and instructions given in this booklet, or
additional or alternative workplace safety precau- any application which goes beyond those
tions where necessary. described in the booklet, then revised static cal-
culations must be produced for checking, as well
as supplementary assembly instructions.
Hazard assessment
▪ The customer is responsible for drawing up, docu- Regulations; industrial safety
menting, implementing and continually updating a
hazard assessment at every job-site. ▪ All laws, Standards, industrial safety regulations and
This booklet serves as the basis for the site-specific other safety rules applying to the utilisation of our
hazard assessment, and for the instructions given to products in the country and/or region in which you
users on how to prepare and utilise the system. It are operating must be observed at all times.
does not substitute for these, however.
▪ If a person or object falls against, or into, the side-
guard component and/or any of its accessories, the
component affected may only continue in use after it
has been inspected and passed by an expert.
4 999792002 - 02/2019
User Information Formwork sheets Introduction
999792002 - 02/2019 5
Introduction User Information Formwork sheets
Sight-check
Indicates that you need to do a sight-check
to make sure that necessary actions have
been carried out.
Tip
Points out useful practical tips.
Reference
Cross-references other documents.
6 999792002 - 02/2019
User Information Formwork sheets Introduction
Doka services
Support in every stage of the project Rental and reconditioning service
The formwork material needed for any particular pro-
▪ Project success assured by products and services ject can be rented from Doka’s high-performing rental
from a single source. park. Doka Reconditioning cleans and overhauls both
▪ Competent support from planning through to assem- client-owned equipment and Doka rental equipment.
bly directly on site.
High performance, in all stages of the project
Engineering
▪ Execution planning
▪ Cycle planning
▪ Structure modelling/3D-planning
▪ Assembly drawings
▪ Statical calculation
▪ Concremote
Process optimisation
Just-in-time availability
Formwork availability is a crucial factor in realising
your project on time and on budget. The worldwide
logistics network puts the necessary formwork quanti-
ties on site at the agreed time.
999792002 - 02/2019 7
Introduction User Information Formwork sheets
8 999792002 - 02/2019
User Information Formwork sheets Introduction
Formwork sheets
Doka formwork sheets as concrete-wetted elements
are used with wooden or metal supporting structures
for forming fresh concrete and for the related necessary
activities.
Practical example
9768-200-01
999792002 - 02/2019 9
3-ply sheets User Information Formwork sheets
3-ply sheets
Doka formwork sheet 3-SO
Formats:
Length [cm] Width [cm]
100 - 600 50 - 150
Format tolerances:
Tolerance
Width ±1.0 mm
Length up to 3.0 m ±1.0 mm
Length 3.0 - 6.0 m ±1.5 mm
Perpendicularity ±1.0 mm/m
Straightness of sheet edge ±0.2 mm/m
Mechanical properties
96400-800
(to ÖNORM B 3023):
Nominal Em [N/mm2] fm [N/mm2] EI [kNm2/m]
The Doka formwork sheet 3-SO is a high-grade thickness ll ⊥ ll ⊥ II ⊥
three-ply solid-wood sheet with urea-melamine [mm]
resin coating on both sides to Austrian standard 21 10000 - 22 - 7.82 -
ÖNORM B 3023, for horizontal and vertical form- 27 10000 - 22 - 15.40 -
work applications. Em ... mean flexural modulus of elasticity
fm ... characteristic flexural stiffness
EI ... flexural strength
Sheet structure ll ... parallel to the grain
⊥ ... at right angles to the grain
10 999792002 - 02/2019
User Information Formwork sheets 3-ply sheets
Format tolerances:
Tolerance
Length/Width ±1.0 mm
96402-800
Perpendicularity ±1.0 mm/m
Straightness of sheet edge ±0.2 mm/m
The Formwork sheet 3S basic is a three-ply solid-
wood sheet with urea-melamine resin coating on
both sides to Austrian standard ÖNORM B 3023 in Mechanical properties
the mid-level quality sector for many different (to ÖNORM B 3023):
Nominal Em [N/mm2] fm [N/mm2] EI [kNm2/m]
uses on construction sites. thickness ll ⊥ ll ⊥ II ⊥
[mm]
21 10000 - 22 - 7.82 -
Sheet structure 27 10000 - 22 - 15.40 -
Em ... mean flexural modulus of elasticity
▪ Three-ply solid-wood sheet, spruce. fm ... characteristic flexural stiffness
EI ... Flexural strength
▪ The layers are crosswise glue-bonded. ll ... parallel to the grain
▪ With/without all-round edge strip. ⊥ ... at right angles to the grain
999792002 - 02/2019 11
3-ply sheets User Information Formwork sheets
12 999792002 - 02/2019
User Information Formwork sheets 3-ply sheets
Note:
All values in the tables are based on a sheet moisture
content of 12 ± 3% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
96402-800
The grain of the outside layers of this formwork sheet
runs parallel to the longitudinal direction of the sheet.
The Formwork sheet 3S cut is a cost-effective 3-
ply sheet for infill zones.
Thickness and weight:
Nominal thick-
Layers Weight [kg/m²]
ness [mm]
Sheet structure 21 9.7
3
27 12.1
▪ Three-ply solid-wood sheet, spruce.
Formats:
▪ The layers are crosswise glue-bonded. Length [cm] Width [cm]
200
50
Glue-bonding 250
Format tolerances:
▪ Boil-resistant, alkali-resistant, water-resistant and Tolerance
weather-resistant. Length/Width ±1.0 mm
▪ The glue-bonding is compliant with the requirements Perpendicularity ±1.0 mm/m
of Austrian standard ÖNORM B 3023. Straightness of sheet edge ±0.2 mm/m
999792002 - 02/2019 13
3-ply sheets User Information Formwork sheets
Mechanical properties
(to ÖNORM B 3023):
Nominal Em [N/mm2] fm [N/mm2] EI [kNm2/m]
thickness ll ⊥
[mm] ll ⊥ II ⊥
21 10000 - 22 - 7.82 -
27 10000 - 22 - 15.40 -
96405-800
Em ... mean flexural modulus of elasticity
fm ... characteristic flexural stiffness
The Doka formwork sheet FF20 is a three-ply EI ... Flexural strength
solid-wood sheet with urea-melamine resin coat- ll ... parallel to the grain
ing on both sides to Austrian standard ÖNORM B ⊥ ... at right angles to the grain
3023, for use in wall formwork systems.
▪ Fire behaviour: D - s2, d0
▪ Thermal conductivity: 0.13 W/mK
Sheet structure ▪ Formaldehyde class: E1
Note:
All values in the tables are based on a sheet moisture
content of 12 ± 3% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
The grain of the outside layers of this formwork sheet
runs parallel to the longitudinal direction of the sheet.
Formats:
Length Width
System-dependent
14 999792002 - 02/2019
User Information Formwork sheets 3-ply sheets
Note:
All values in the tables are based on a sheet moisture
content of 12 ± 3% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
The grain of the outside layers of this formwork sheet
runs parallel to the longitudinal direction of the sheet.
96411-800
Thickness and weight:
The three-ply sheet without coating can be used Nominal thick-
Layers Weight [kg/m²]
ness [mm]
for secondary purposes on construction sites.
21 9.7
3
27 12.1
999792002 - 02/2019 15
Multi-ply formwork sheets User Information Formwork sheets
Formats:
Length Width
System-dependent
Format tolerances:
Tolerance
Length/Width ± 0.5 mm
96417-800 Perpendicularity ±0.3 mm/m
Straightness of sheet edge ±0.2 mm/m
The Xlife sheet Framax is a high-grade plas-
tic/wood composite sheet with hard-wearing Mechanical properties:
plastic coating for a significantly longer lifespan Nominal Em [N/mm2] fm [N/mm2] EI [kNm2/m]
thickness ll ⊥
and uniform concrete faces over a long time of [mm] ll ⊥ II ⊥
service. 21 4986 8259 38.5 74.4 3.42 5.67
Em ... mean flexural modulus of elasticity
fm ... characteristic flexural stiffness
Sheet structure EI ... Flexural strength
ll ... parallel to the grain
⊥ ... at right angles to the grain
▪ High-grade plywood sheet made of Scandinavian
birchwood.
▪ The arrangement of the veneers is force-oriented. ▪ Fire behaviour: E
▪ Thermal conductivity: 0.18 W/mK
▪ Formaldehyde class: E1
Glue-bonding
Number of cycles
▪ Boil-resistant, alkali-resistant, water-resistant and
weather-resistant phenolic-resin glue-bonding.
▪ The glue-bonding meets the requirements of Possible frequency of use depends on many factors
EN 314-2 Service Class 3, DIN 68705 BFU 100 or acting on the formwork sheet. Given optimum condi-
BS 6566 WBP. tions of use and correct handling, up to 350 use cycles
(guide value) in frame formwork can be achieved.
16 999792002 - 02/2019
User Information Formwork sheets Multi-ply formwork sheets
Note:
All values in the tables are based on a sheet moisture
content of 10 ± 2% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
The grain of the outside layers of this formwork sheet
runs transverse to the longitudinal direction of the
96418-800 sheet.
Surfaces
▪ Fire behaviour: E
▪ Thermal conductivity: 0.15 W/mK
▪ Both sides polypropylene coating.
▪ Formaldehyde class: E1
▪ Glass-fibre reinforcing on the side facing the con-
crete.
▪ Edge sealing: high-grade 2-component edge protec- Number of cycles
tion varnish.
Possible frequency of use depends on many factors
acting on the formwork sheet. Given optimum condi-
tions of use and correct handling, up to 350 use cycles
(guide value) in frame formwork can be achieved.
999792002 - 02/2019 17
Multi-ply formwork sheets User Information Formwork sheets
Note:
All values in the tables are based on a sheet moisture
content of 10 ± 2% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
The grain of the outside layers of this formwork sheet
runs parallel to the longitudinal direction of the sheet.
96419-800
Thickness and weight:
The Xlife sheet Frami is a high-grade plastic/wood Nominal thick-
Layers Weight [kg/m²]
ness [mm]
composite sheet with hard-wearing plastic coat-
ing for a significantly longer lifespan and uniform 15 9 11.2
concrete faces over a long time of service.
Formats:
Length Width
System-dependent
Sheet structure
Format tolerances:
▪ High-grade plywood sheet made of Scandinavian Tolerance
birchwood. Length/Width ± 0.5 mm
▪ The arrangement of the veneers is force-oriented. Perpendicularity ±0.3 mm/m
Straightness of sheet edge ±0.2 mm/m
Surfaces
▪ Fire behaviour: E
▪ Both sides polypropylene coating. ▪ Thermal conductivity: 0.18 W/mK
▪ Glass-fibre reinforcing on the side facing the con- ▪ Formaldehyde class: E1
crete.
▪ Edge sealing: high-grade 2-component edge protec- Number of cycles
tion varnish.
Possible frequency of use depends on many factors
acting on the formwork sheet. Given optimum condi-
tions of use and correct handling, up to 350 use cycles
(guide value) in frame formwork can be achieved.
18 999792002 - 02/2019
User Information Formwork sheets Multi-ply formwork sheets
Note:
All values in the tables are based on a sheet moisture
content of 10 ± 2% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
The grain of the outside layers of this formwork sheet
runs transverse to the longitudinal direction of the
96420-800
sheet.
The Xlife sheet Dokadek is a high-grade plas-
Thickness and weight:
tic/wood composite sheet with hard-wearing
Nominal thick-
plastic coating for a significantly longer lifespan ness [mm]
Layers Weight [kg/m²]
and uniform concrete faces over a long time of 12 5 7.4
service.
Formats:
Length Width
Sheet structure System-dependent
Number of cycles
Possible frequency of use depends on many factors
acting on the formwork sheet. Given optimum condi-
tions of use and correct handling, up to 150 use cycles
(guide value) in frame formwork can be achieved.
999792002 - 02/2019 19
Multi-ply formwork sheets User Information Formwork sheets
Xface sheet
Formats:
Length [cm] Width [cm]
302
202 402
502
Format tolerances:
Tolerance
Length/Width ±1.5 mm
Perpendicularity ±0.5 mm/m
Straightness of sheet edge ±0.2 mm/m
96410-800
Mechanical properties
The Xface sheet is a large-format birchwood ply- (as per Handbook of Finnish Plywood):
wood sheet with extremely hard-wearing coating Nominal Em [N/mm2] fm [N/mm2] EI [kNm2/m]
for high fair-faced concrete requirements in wall thickness ll ⊥
[mm] ll ⊥ II ⊥
and slab construction or high requirements in
21 9858 7642 39.4 34.3 6.97 5.40
terms of durability for high number of use cycles.
Em ... mean flexural modulus of elasticity
fm ... characteristic flexural stiffness
EI ... Flexural strength
Sheet structure ll ... parallel to the grain
⊥ ... at right angles to the grain
▪ Side facing the concrete: fibre-reinforced synthetic- Type of application and concreting
resin coating
▪ Back: Phenolic-resin film coating with 120 g/m2. results
▪ Edge sealing: high-grade 2-component edge protec-
tion varnish. The sheet has a 'non-absorbent' surface. The extra-
hard-wearing coating of the Xface sheets, and the large
sheet formats, make it possible to achieve a smooth,
Technical data uniform concrete surface with only a small number of
joints.
The sheets permit easy nailing, screwing and drilling,
Note: and have a 2 cm oversize which optimises them for fur-
All values in the tables are based on a sheet moisture ther trimming.
content of 10 ± 2% on delivery. The excellent release properties of the sheet surface
Changes in the wood's moisture content can have mean that for the first few re-use cycles, no concrete
effects on the weight, dimensions and mechanical release agent is needed.
properties of the sheet. The synthetic-resin coating is free of phenolic resin.
Consequently, there is no staining of the concrete.
The grain of the outside layers of this formwork sheet
runs transverse to the longitudinal direction of the
The sheet for high fair-face concrete specifications is
sheet.
used in wall and floor-slab formwork.
Thickness and weight:
Nominal thick-
Layers Weight [kg/m²]
ness [mm]
21 15 15.0
20 999792002 - 02/2019
User Information Formwork sheets Multi-ply formwork sheets
Framax sheet
Formats:
Length Width
System-dependent
Format tolerances:
Tolerance
Length/Width + 0 / - 1,0 mm
Perpendicularity ±0.3 mm/m
Straightness of sheet edge ±0.2 mm/m
Mechanical properties
(as per Handbook of Finnish Plywood):
Nominal Em [N/mm2] fm [N/mm2] EI [kNm2/m]
96412-800 thickness ll ⊥ ll ⊥ II ⊥
[mm]
The Framax sheet is a high-grade birchwood- 21 9858 7642 39.4 34.3 6.97 5.40
veneer plywood sheet with film coating on both Em ... mean flexural modulus of elasticity
sides, for use in wall formwork systems. fm ... characteristic flexural stiffness
EI ... Flexural strength
ll ... parallel to the grain
⊥ ... at right angles to the grain
Sheet structure
▪ Fire behaviour: D - s2, d0
▪ Film-coated plywood sheet made of Scandinavian ▪ Thermal conductivity: 0.17 W/mK
birchwood.
▪ Formaldehyde class: E1
▪ The arrangement of the veneers is crosswise.
▪ Both sides phenolic-resin film coating with 220 g per The sheet has a 'low-absorbency' surface. The surface
m2 and side. consists of a selected face veneer and a high-grade,
wear-resistant film coating. As a result, it delivers a
▪ Edge sealing: high-grade 2-component edge protec- smooth concrete finish even after many repeat uses.
tion varnish.
To meet stringent specifications regarding the concrete
finish, the sheets are screwed on from the rear. Sealing
Technical data any nailing-points, holes, damage etc. can prolong the
lifespan of the formwork sheet.
999792002 - 02/2019 21
Multi-ply formwork sheets User Information Formwork sheets
Frami sheet
Formats:
Length Width
System-dependent
Format tolerances:
Tolerance
Length/Width + 0 / - 1,0 mm
Perpendicularity ±0.3 mm/m
Straightness of sheet edge ±0.2 mm/m
Mechanical properties
(as per Handbook of Finnish Plywood):
Nominal Em [N/mm2] fm [N/mm2] EI [kNm2/m]
96412-800 thickness ll ⊥ ll ⊥ II ⊥
[mm]
The Frami sheet is a high-grade birchwood- 15 10316 7184 41.3 33.8 2.78 1.94
veneer plywood sheet with film coating on both 15
sides, for use in wall formwork systems. (force-ori- 6500 9490 - - 1.90 2.80
ented)
Em ... mean flexural modulus of elasticity
Sheet structure fm ... characteristic flexural stiffness
EI ... Flexural strength
ll ... parallel to the grain
⊥ ... at right angles to the grain
▪ Film-coated plywood sheet made of Scandinavian
birchwood.
▪ The arrangement of the veneers is crosswise (as of ▪ Fire behaviour: E
a panel height of 2.70 m the arrangement is force- ▪ Thermal conductivity: 0.17 W/mK
oriented). ▪ Formaldehyde class: E1
22 999792002 - 02/2019
User Information Formwork sheets Multi-ply formwork sheets
Note:
All values in the tables are based on a sheet moisture Type of application and concreting
content of 10 ± 2% on delivery. results
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet. The sheet has a 'low-absorbency' surface. The surface
consists of a selected face veneer and a high-grade,
The grain of the outside layers of this formwork sheet
wear-resistant film coating. As a result, it delivers a
runs transverse to the longitudinal direction of the
smooth concrete finish even after many repeat uses.
sheet.
To meet stringent specifications regarding the concrete
finish, the sheets are screwed on from the rear. Sealing
any nailing-points, holes, damage etc. can prolong the
lifespan of the formwork sheet.
999792002 - 02/2019 23
Multi-ply formwork sheets User Information Formwork sheets
DokaPly Birch
Technical data
Note:
All values in the tables are based on a sheet moisture
content of 10 ± 2% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
The grain of the outside layers of this formwork sheet
96407-800 runs transverse to the longitudinal direction of the
sheet.
DokaPly Birch is a birchwood-veneer plywood
sheet with film coating on both sides, for horizon- Thicknesses, weights and formats:
tal and vertical formwork applications. Nominal thick-
Layers Weight [kg/m²] Format [cm]
ness [mm]
9 7 6.1 125 x 250
Sheet structure 12 9 8.2 125 x 250
150 x 300
15 11 10.2 125 x 250
▪ Film-coated plywood sheet made of Scandinavian 18 13 12.2 62.5 x 250
birchwood. 125 x 250
122 x 244
▪ The arrangement of the veneers is crosswise. 150 x 300
62.5 x 250
125 x 250
Glue-bonding 21 15 14.3
122 x 244
150 x 300
Mechanical properties
Surfaces (as per Handbook of Finnish Plywood):
Nominal Em [N/mm2] fm [N/mm2] EI [kNm2/m]
▪ Both sides phenolic-resin film coating with 120 g thickness ll ⊥
[mm] ll ⊥ II ⊥
(SC) or 220 g (DC) per m² and side.
9 11395 6105 45.6 32.1 0.73 0.39
▪ Edge sealing: Acrylic-resin varnish. 12 10719 6781 42.9 33.2 1.54 0.98
15 10316 7184 41.3 33.8 2.79 1.94
18 10048 7452 40.2 34.1 4.56 3.38
21 9858 7642 39.4 34.3 6.97 5.40
Em ... mean flexural modulus of elasticity
fm ... characteristic flexural stiffness
EI ... Flexural strength
ll ... parallel to the grain
⊥ ... at right angles to the grain
Number of cycles
Possible frequency of use depends on many factors
acting on the formwork sheet. Given optimum condi-
tions of use and correct handling, with sheets 18 mm
thick up to 30 (SC) or 50 (DC) use cycles (guide value)
can be achieved.
24 999792002 - 02/2019
User Information Formwork sheets Multi-ply formwork sheets
DokaPly Spruce
Technical data
Note:
All values in the tables are based on a sheet moisture
content of 10 ± 2% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
96408-800
The grain of the outside layers of this formwork sheet
runs parallel to the longitudinal direction of the sheet.
DokaPly Spruce is a spruce-veneer plywood
Thickness and weight:
sheet with film coating on both sides for primarily
Nominal thick-
horizontal formwork applications ness [mm]
Layers Weight [kg/m²]
18 9.0
7
21 10.2
Sheet structure
Formats:
▪ Film-coated plywood sheet made of Scandinavian Length [cm] Width [cm]
spruce. 250 125
Number of cycles
Possible frequency of use depends on many factors
acting on the formwork sheet. Given optimum condi-
tions of use and correct handling, up to 10 use cycles
(guide value) can be achieved.
999792002 - 02/2019 25
Multi-ply formwork sheets User Information Formwork sheets
DokaPly eco
Technical data
Note:
All values in the tables are based on a sheet moisture
content of 10 ± 2% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
The grain of the outside layers of this formwork sheet
96409-800 runs parallel to the longitudinal direction of the sheet.
Number of cycles
Possible frequency of use depends on many factors
acting on the formwork sheet. Given optimum condi-
tions of use and correct handling, up to 15 use cycles
(guide value) can be achieved.
26 999792002 - 02/2019
User Information Formwork sheets Multi-ply formwork sheets
DokaPly natural
Technical data
Note:
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
Format tolerances:
Glue-bonding Tolerance
Length/Width ±3.5 mm
Perpendicularity ±1.0 mm/m
The glue-bonding meets the requirements of EN 314-2
Straightness of sheet edge ±1.0 mm/m
Service Class 2.
999792002 - 02/2019 27
Multi-ply formwork sheets User Information Formwork sheets
UniPlex
Technical data
Note:
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
28 999792002 - 02/2019
User Information Formwork sheets Multi-ply formwork sheets
DokaPly cBoard
Technical data
Note:
All values in the tables are based on a sheet moisture
content of 9 ± 3% on delivery.
Changes in the wood's moisture content can have
effects on the weight, dimensions and mechanical
properties of the sheet.
Formats:
DokaPly cBoard is a chipboard sheet with film Length [cm] Width [cm]
coating on both sides for smooth concrete sur- 250 62.5
faces. 250 125
Format tolerances:
Sheet structure Tolerance
Length/Width + 5.0 mm
Film-coated P5 chipboard sheet. Perpendicularity ±2.0 mm/m
Straightness of sheet edge ±1.5 mm/m
Number of cycles
Possible frequency of use depends on many factors
acting on the formwork sheet. Given optimum condi-
tions of use and correct handling, up to 2 use cycles
(guide value) can be achieved.
999792002 - 02/2019 29
General remarks User Information Formwork sheets
General remarks
9792-202-01
and shrinkage of wood associated with moisture
absorption and loss in the corresponding climatic con-
ditions.
➤ Prior to use, always make sure that the wood mois-
ture content of the formwork sheets is matched to
that of the surroundings.
➤ Cover sheets to protect them from extreme climatic
influences such as exposure to sunlight or moisture.
This reduces cracking. Do not use as scaffold flooring.
➤ Seal cut edges, and around holes, with edge varnish.
➤ Use a high-quality release agent (e.g. Doka-Trenn or
Doka-OptiX).
➤ Immediately after stripping the formwork, remove
concrete residues from the surfaces that were in
contact with the concrete.
NOTICE
9792-200-01
Do not use pointed or sharp objects, wire
brushes, abrasive disks or cup brushes.
Do not use high-pressure spray cleaners.
Possible incorrect usages Do not use to floor walkways or to cover holes, etc..
WARNING
➤ The uses illustrated below are prohibited, as
are other, similar uses!
9792-201-01
9792-203-01
30 999792002 - 02/2019
User Information Formwork sheets General remarks
Deflection diagrams
If the moisture content is higher than shown in the dia- Dokaplex formwork sheets
grams below, the modulus of elasticity diminishes sig-
nificantly (i.e. deformation increases), and this is
accompanied by a reduction in strength. This, in conse-
quence, means a reduction in the ability to bear loads. Note:
The grain of the face layer can be arranged in any
direction relative to the supports.
Doka formwork sheets 3-SO,
18 mm
3S basic, 3S top
3.0 25 20 15
9732-103
p [kN/m²]
10
30
NOTICE 2.5
L L L L
Q
M
7.5
The grain of the face layer (A) must run at right
2.0
Deflection [mm]
angles to the supports (B) . 40
50
1.5
5
A
L/500
1.0
60
2.5 kN/m²
B
9792-210-01
0.5
20 30 40 50 60
21 mm Span L [cm]
M ... permitted bending moment
4.0
9732-101 10 Q ... permitted shear force
p [kN/m²] 15
3.5
7.5 18 mm - detailed view
Q
M
L L L L
3.0
20 1.0 9732-119
Deflection [mm]
2.5 50
0.9
25 5 60
p [kN/m²]
2.0
30
0.8
M 40
L/500
1.5 0.7 L L L L
Deflection [mm]
40 Q
50 2.5 kN/m² 0.6 30
1.0 60
100
80 0.5 25
L/500
0.5
0.4 80 20
20 30 40 50 60 70 80 0.3 15
0.2 100
10
Span L [cm] 7.5
0.1 5.0
M
3.0
L L L L 15
21 mm
25
Deflection [mm]
2.5 3.0 30 25 20
30 9732-104
p [kN/m²] 15
Q
10 M
2.0
40
2.5
L L L L
L/500
1.5 50 40
7.5 2.0
Deflection [mm]
60
10
1.0 80 5
100
0.5
2.5 kN/m² 1.5 7.5
50
L/500
20 30 40 50 60 70 80 1.0
60 5
Span L [cm]
M ... permitted bending moment
Q ... permitted shear force
999792002 - 02/2019 31
General remarks User Information Formwork sheets
21 mm - detailed view
1.0 9732-120
0.9
p [kN/m²]
0.8
0.7 L L L L 60
Deflection [mm]
M Q
0.6
50
0.5 80 40
0.4
30
L/500
0.3 25
100 20
0.2 15
10
0.1 7.5
5.0
0 2.5
10 12 14 16 18 20 22 24 26 28 30
Span L [cm]
M ... permitted bending moment
Q ... permitted shear force
9 mm
The Dokaplex formwork sheet 9mm is mainly used for forming
curved surfaces, as inliners on profiled timber formers or on solid-
timber formwork.
In cases where only low loading occurs, the form-facing can be
dimensioned with reference to the diagram below.
2.0 9732-121 Q M 20 10 5
kN/m²
1.8
1.6
30
1.4
Deflection [mm]
1.2
40
1.0
50 L/500
0.8
0.6
60
0.4 p [kN/m²]
80
0.2 L L L L
0
10 15 20 25 30 35 40 45 50
Span L [cm]
M ... permitted bending moment
Q ... permitted shear force
32 999792002 - 02/2019
User Information Formwork sheets General remarks
NOTICE
The deflection characteristics of the Xlife sheet
in the longitudinal are different from those in
the transverse direction. The only way to tell
which is the longitudinal and which is the trans-
verse direction is by the direction of the letter-
ing on the formwork sheets.
For the purpose of the following diagrams,
then, be sure to know which way round the
Xlife sheets are placed in relation to the sup-
ports (e.g. Doka beams).
Large Doka logos of the sheet lettering at right Large Doka logos of the sheet lettering parallel to
angles to the beam axis (Xlife sheet longside hori- the beam axis (Xlife sheet longside vertical)
zontal)
B
B
9732-403-01
A
9732-404-01
A Support
A Support B Sheet lettering (large Doka logos)
B Sheet lettering (large Doka logos)
4.0 15 10 7.5 5
9732-118
4.0 30 25 20 15 10 7.5 p [kN/m²]
9732-117 3.5
p [kN/m²] 20
3.5 L L L L
40 3.0 25
L L L L
3.0
Deflection [mm]
M
M 2.5
5 30
Deflection [mm]
50 2.5 kN/m²
2.5
2.0
60
2.0 40 L/500
80 L/500 1.5 50
1.5 100
60
2.5 kN/m²
1.0 80
100
1.0
0.5
0.5
20 30 40 50 60 70 80
20 30 40 50 60 70 80
Span L [cm]
Span L [cm] M ... permitted bending moment
M ... permitted bending moment
999792002 - 02/2019 33
General remarks User Information Formwork sheets
Note:
The grain of the face layer can be arranged in any
direction relative to the supports.
21 mm
3.0 30 25 20
9732-104
p [kN/m²] 15
Q
M
2.5
L L L L
40
2.0
Deflection [mm]
10
1.5 7.5
50
L/500
1.0
60 5
0.5
80
2.5 kN/m²
20 30 40 50 60
Span L [cm]
M ... permitted bending moment
Q ... permitted shear force
21 mm - detailed view
1.0 9732-120
0.9
p [kN/m²]
0.8
0.7 L L L L 60
Deflection [mm]
M Q
0.6
50
0.5 80 40
0.4
30
L/500
0.3 25
100 20
0.2 15
10
0.1 7.5
5.0
0 2.5
10 12 14 16 18 20 22 24 26 28 30
Span L [cm]
M ... permitted bending moment
Q ... permitted shear force
34 999792002 - 02/2019
User Information Formwork sheets General remarks
Thickness* Width/length*
3-ply formwork sheets, 3-S approx. 6 % approx. 0.1 %
Plywood sheets approx. 9 % approx. 0.2 %
*) swelling stated as percentage
Remedies
➤ Do not mix new and used formwork sheets.
➤ Use formwork sheets that have all been used
approximately the same number of times.
➤ When assembling formwork, leave nails or screws
sticking out slightly – never recess them into the
sheet.
➤ To meet stringent specifications regarding the con-
crete finish, screw on the formwork sheets from the
rear.
➤ Seal all cut edges with edge-protection varnish
999792002 - 02/2019 35
General remarks User Information Formwork sheets
Appearance Appearance
Curved or oblong roughened depressions on the sur- The concrete exhibits various different shades of grey.
face of the formwork sheet. In the damaged places, the This may occur within individual formwork sheets
surface coating may have been partly or even com- and/or between adjacent formwork sheets.
pletely worn away. The wood has been roughened As a basic rule:
down to a depth of several millimetres. Non-absorbent or low-absorbency sheets tend to pro-
duce light-coloured concrete surfaces, while more
Cause absorbent formwork sheets tend to cause a darker con-
crete surface. This is why e.g. a light grey concrete sur-
▪ Direct and prolonged contact between the vibrator face is the result of using low-absorbency sheet sur-
spud and the formwork sheet. faces such as 3-S plus, Dokaplex, etc.
Factors such as release-agents, forming-waxes,
changes in the absorption behaviour of the sheet
Remedies caused by the degree of saturation etc., can all affect
these results.
➤ Avoid any contact between the vibrator and the
sheet.
Causes
➤ Rubber-capped vibrator spuds can lessen or prevent
damage.
▪ The absorbency of formwork sheets is influenced by
the following factors:
Surface sanding on the concrete - the type of formwork sheet and the quality of its
coating
- the age of the formwork sheets (how often used,
Appearance wear-and-tear during use, etc.)
- the weather
Extensive or localised sanding on or near the surface of ▪ Heavily weathered formwork sheets (e.g. with very
the concrete. Unlike on dusty concrete surfaces, what dried-out, cracked surfaces) often have very differ-
may happen here is that fine fractions of the aggre- ent absorbencies. This can lead to speckled con-
gates are 'abraded'. crete and in extreme cases to surface sanding on the
concrete.
Cause ▪ When formwork sheets are stored in stacks, the top
sheet may have been so dried out by the sun that it
▪ Impaired hydration. has a different absorbency from all the other sheets
further down the stack.
▪ The formwork sheets used were very dry, causing
moisture removal during hydration.
▪ The concrete surface dried out too strongly/rapidly. Remedies
▪ Insufficient curing.
➤ To meet fair-faced concrete specifications, use only
formwork sheets of the same type and the same
Remedies level of wear-and-tear (storage history, how used,
and for how long).
➤ Pre-treat the formwork sheets with cement slurry, ➤ Before sheets are used for the first time, avoid stor-
and pre-wet them. Pre-treating with cement slurry ing them for a long time under adverse climatic con-
neutralises any wood sugar that may be present, and ditions.
pre-wetting prevents the formwork from absorbing ➤ To meet tougher specifications regarding the con-
too strongly. crete finish, protect the formwork sheets from cli-
➤ Use a suitable release-agent. matic influences between the pouring cycles as well,
➤ Use suitable curing methods. Protect the concrete as far as possible.
from extreme temperatures and from being dried out ➤ Covering the stacked sheets prevents exposed
by the wind. sheets from drying-out.
➤ Spray the formwork sheets with the release-agent
recommended by the manufacturers.
36 999792002 - 02/2019
User Information Formwork sheets General remarks
Causes Causes
999792002 - 02/2019 37
General remarks User Information Formwork sheets
Appearance
With softwood 3-ply sheets, the pattern of the timber is
immediately apparent on the concrete surface.
Causes
38 999792002 - 02/2019
User Information Formwork sheets General remarks
999792002 - 02/2019 39
General remarks User Information Formwork sheets
40 999792002 - 02/2019
User Information Formwork sheets General remarks
= =
a
9792-211-01
a
Doka stacking pallet 1.55x0.85m max. 4.5 m
Doka stacking pallet 1.20x0.80m max. 3.0 m
NOTICE
▪ Load the items centrically.
▪ Fasten the load to the stacking pallet so that
it cannot slide or tip out.
999792002 - 02/2019 41
Component overview User Information Formwork sheets
Doka formwork sheet 3-SO 21mm 100/50cm 4.9 186007000 Formwork sheet 3S top 21 200/40cm 7.8 186185000
Doka formwork sheet 3-SO 21mm 150/50cm 7.3 186008000 Formwork sheet 3S top 21 250/40cm 9.7 186186000
Doka formwork sheet 3-SO 21mm 200/50cm 9.7 186009000 Formwork sheet 3S top 21 200/50cm 9.7 186181000
Doka formwork sheet 3-SO 21mm 250/50cm 12.1 186011000 Formwork sheet 3S top 21 250/50cm 12.1 186182000
Doka formwork sheet 3-SO 21mm 300/50cm 14.6 186012000 Schalungsplatte 3S top 21
Doka formwork sheet 3-SO 21mm 350/50cm 17.0 186028000
Doka formwork sheet 3-SO 21mm 400/50cm 19.4 186013000
Doka formwork sheet 3-SO 21mm 450/50cm 21.8 186029000 Formwork sheet 3S top 27 200/40cm 9.7 187185000
Doka formwork sheet 3-SO 21mm 500/50cm 24.3 186014000 Formwork sheet 3S top 27 250/40cm 12.1 187186000
Doka formwork sheet 3-SO 21mm 550/50cm 26.7 186023000 Formwork sheet 3S top 27 150/50cm 9.1 187180000
Doka formwork sheet 3-SO 21mm 600/50cm 29.1 186027000 Formwork sheet 3S top 27 200/50cm 12.1 187181000
Doka formwork sheet 3-SO 21mm 100/100cm 9.7 186015000 Formwork sheet 3S top 27 250/50cm 15.1 187182000
Doka formwork sheet 3-SO 21mm 150/100cm 14.6 186016000 Formwork sheet 3S top 27 300/50cm 18.2 187183000
Doka formwork sheet 3-SO 21mm 200/100cm 19.4 186017000 Formwork sheet 3S top 27 300/100cm 36.3 187184000
Doka formwork sheet 3-SO 21mm 250/100cm 24.3 186018000 Schalungsplatte 3S top 27
Doka formwork sheet 3-SO 21mm 300/100cm 29.1 186019000
Doka formwork sheet 3-SO 21mm 350/100cm 34.0 186030000
Doka formwork sheet 3-SO 21mm 400/100cm 38.8 186020000
Doka formwork sheet 3-SO 21mm 450/100cm 43.7 186031000 Formwork sheet 3S cut 21 200/50cm 9.7 177048000
Doka formwork sheet 3-SO 21mm 500/100cm 48.5 186021000 Formwork sheet 3S cut 21 250/50cm 12.1 177049000
Verschnittplatte 3S cut 21
Doka formwork sheet 3-SO 21mm 550/100cm 53.4 186022000
Doka formwork sheet 3-SO 21mm 600/100cm 58.2 186024000
Doka formwork sheet 3-SO 21mm 250/125cm 30.3 186097000
Doka formwork sheet 3-SO 21mm 300/150cm 43.7 186098000 Formwork sheet 3S cut 27 200/50cm 12.1 177044000
Doka formwork sheet 3-SO 21mm 600/150cm 87.3 186099000 Formwork sheet 3S cut 27 250/50cm 15.1 177045000
Doka formwork sheet 3-SO 21mm 150/50cm BS 7.3 186008100 Verschnittplatte 3S cut 27
Doka formwork sheet 3-SO 21mm 200/50cm BS 9.7 186009100
Doka formwork sheet 3-SO 21mm 250/50cm BS 12.1 186011100
Doka formwork sheet 3-SO 21mm 300/50cm BS 14.6 186012100 Xlife sheet 21mm 265/145cm 63.4 185071000
Doka-Schalungsplatte 3-SO 21mm Xlife sheet 21mm 325/145cm 77.8 185070000
Xlife-Platte 21mm
42 999792002 - 02/2019
User Information Formwork sheets Component overview
DokaPly Birch SC 9mm 125/250cm 19.1 185129000 Bolt-on castor set B 33.6 586168000
DokaPly Birch SC 12mm 125/250cm 25.5 185130000 Anklemm-Radsatz B
DokaPly Birch SC 15mm 125/250cm 31.9 185099000 Painted blue
DokaPly Birch SC 18mm 122/244cm 36.3 185078000
DokaPly Birch SC 18mm 125/250cm 38.3 185131000
DokaPly Birch SC 18mm 150/300cm 54.9 185079000
DokaPly Birch SC 18mm ...../.....cm 12.2 185080000
DokaPly Birch SC 21mm 122/244cm 42.6 185081000
DokaPly Birch SC 21mm 125/250cm 44.7 185082000
DokaPly Birch SC 21mm 150/300cm 64.4 185083000
DokaPly Birch SC 21mm ...../.....cm 14.3 185084000
DokaPly Birch SC
999792002 - 02/2019 43
Near to you, worldwide
Doka is one of the world leaders in developing, manu- technical support are provided swiftly and profession-
facturing and distributing formwork technology for use in ally.
all fields of the construction sector. An enterprise forming part of the Umdasch Group, the
With more than 160 sales and logistics facilities in over Doka Group employs a worldwide workforce of more
70 countries, the Doka Group has a highly efficient dis- than 6000.
tribution network which ensures that equipment and
Doka GmbH | Josef Umdasch Platz 1 | 3300 Amstetten | Austria | T +43 7472 605-0 | F +43 7472 66430 | info@doka.com | www.doka.com 999792002 - 02/2019
