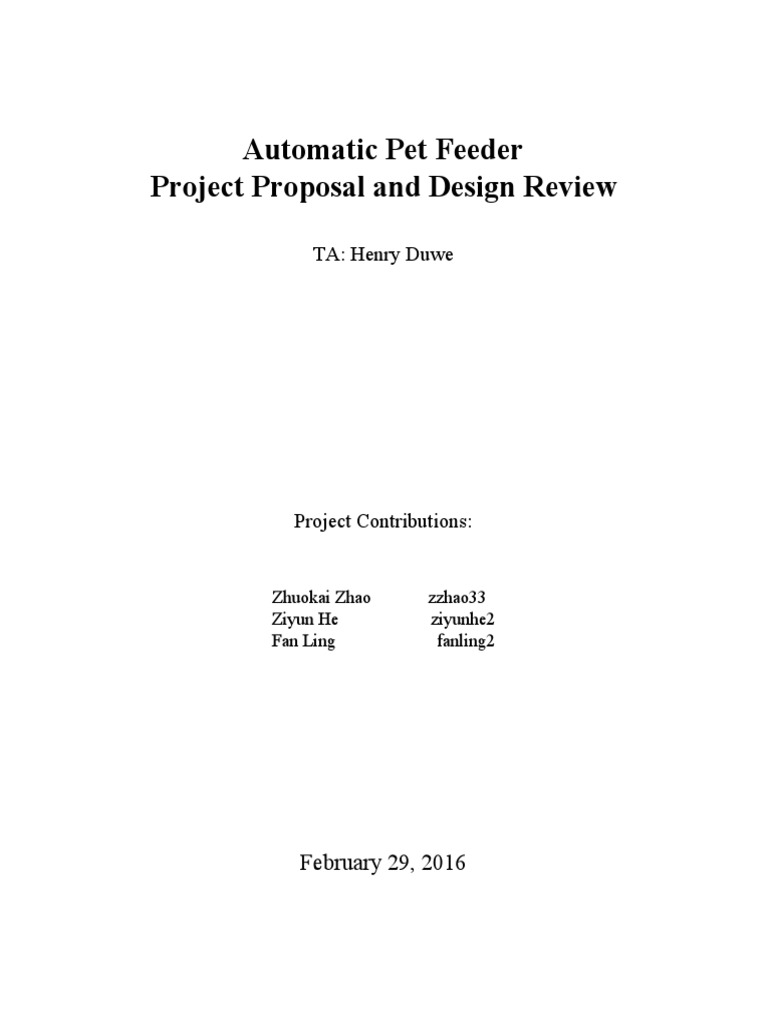

Automatic Pet Feeder
Project Proposal and Design Review
TA: Henry Duwe
Project Contributions:
Zhuokai Zhao zzhao33
Ziyun He ziyunhe2
Fan Ling fanling2
February 29, 2016
Table of Contents
1. Introduction ………………………………..………………….…………………………..2
1.1. Motivation ………………………….………………….……………..…………...2
1.2. Objectives …………………………………………….……....…………..……....2
2. Design …….….……………………………..……………………………...……………..3
2.1. Block Diagrams …………………….……………………………….…………....3
2.2. Block Description ………………….…………………………………….....…….4
2.2.1. Control Module ……………....…………….…………………..………....4
2.2.2. RFID Module ..…………..….…......………………...…………………....5
2.2.3. Sensor Module…………………….. ....…....……………………………..5
2.2.4. Motor Module …....…...………………………………………....…….….6
2.2.5. Bluetooth/Software Module…….………………..………………………..7
2.2.6. Power Supply Module………….....…....……..……….………………….8
3. Calculation and Simulation …………………..…………………………….....………….8
3.1. Block Diagram…………………….…………………….…………….….……….8
3.2. Block Description…………………….…………………….………….……….…9
3.3. Current range of the zener diode rectifier…………………….…………...………9
3.4. Determine Rs and Filter Capacitance…………………….………………....…….9
3.5. Simulation…………………….…………………….………………..…….…….10
4. Requirement and verification Table...………………………………………....................11
5. Tolerance and analysis………………………………………...…………..…....………..13
6. Cost and schedule……………………………………………...………………...……....13
6.1. Cost……………………………………………...…………………………....….13
6.2. Schedule…...…..…………………………………………....…………………....14
7. Safety and Ethics Statement……………………………………………………………...16
7.1. Safety…………………………………………………………………………….16
7.1.1. Electrical concerns…….………..….……..……...………………….…...16
7.1.2. Mechanical concerns……….…………….....……………………….…...16
7.2. Ethics….………….………….………….………….………….………….…...…16
1
1. Introduction
We chose this project because pet keeping is a time consuming responsibility and we
want to provide convenience to owners by helping them feed their pets easily and smartly.
1.1. Motivation
Keeping pets takes many commitments. This includes keeping them company, showing
your concerns and of course, feeding them on time and in the correct way. However, not
everyone is a pet expert, taking care of your pet’s diet can be hard and time consuming. One of
the top health concerns of pets are overeating and obesity. Especially at younger age, they are
usually satisfied with whatever much is given to them. Many adult pets are also fed
unscientifically that later may cause short lifespan. Another problem of feeding pets is that
owners might not always be home regularly. Being occupied by personal plans knowing that
they still have a starving little fellow at home to be taken care of is always a concern that bothers
owners. The third concern that we want to deal with is the fact that there hasn’t been any product
on the market right now that is able to dispense different foods for different kinds of pets.
However, pets themselves might not necessarily recognize the potential health problems of
eating the wrong food. Therefore, we want to take care of owners’ concern of feeding by
building a phonecontrolled automatic pet feeder that can dispense the correct amount of food on
time, based on the type of animal that’s demanding it.
1.2. Objectives
Our project is designed to help all the pet owners to feed their pets remotely and smartly.
Benefits to customer:
● Customers do not have to worry about their pets during business trips or vacations.
● Customers can now know better about their pet’s health condition by monitoring exactly
how much food they eat everyday.
● Customers can now feed different kind of pets with ease. They no longer need to worry
about their dog eating their cat’s food or vice versa.
Product feature:
● The phone app could set the correct amount of food to drop at the correct time.
● The phone app could save a pet profile (name, age, birthday, weights, etc) for owners to
keep track.
● The app could keep track of how much food the pets have consumed in a long run
graphically.
● The machine could be sustained by both power cords.
● RFID will be embedded into pets’ tags to differentiate types of pets for different food
needs.
2
2. Design
2.1. Block Diagram
Figure 1: General block diagram of the hardware design
3
Figure 2: Flowchart of the software design
2.2. Block Descriptions
2.2.1. Control Module
Input:
3.3V power supply, ASCII signal from RFID module through UART, Digital
signal from load cell through GPIO, Data received from Bluetooth Module.
Output: PMW after level shift to Motor, Data transfer to Bluetooth Module.
The purpose of the control module is to receive input signals from sensors and RFID and
send instructions to motor and transfer data with Bluetooth module. The PCB which consists of a
Texas Instrument 16bit microcontroller MSP430F2274, a 256 kB flash storage and 1kB RAM.
It will process the inputs and send different instruction to other module in different situations.
First, when RFID detects the tag at the set feeding time, it will check if the current exposed
region of the food plate belongs to the particular pet. If it is true, microcontroller will send pulse
signal to servo motor and start dispensing food. If it is false, microcontroller will send pulse
signal to servo motor and rotate the food plate to the right position before dispensing. Second,
when the weight module measures insufficient amount of food at feeding time, the
microcontroller will send signals to dispense more food. Until the weight module sends back the
the signal that weight has already reached the set value, microcontroller will stop the servo
4
motor. Third, when there is no sufficient food left in the container (less than the weight of one
meal), microcontroller will send signals to the bluetooth module which will send alert to the
software in order to warn users to refill. In addition, the microcontroller will store pet’s food
consumption data and send it to the software upon Bluetooth request.
2.2.2. RFID Module
Input: 3.3V power supply, 125kHz RF tag
Output: ASCII to Microcontroller through UART
RFID module is used to recognize different kind of pets. It consists of two separate parts:
ID12LA RFID Reader and the passive RFID tags, which will be attached to the pet’s bracelets.
ID12LA is a high frequency RFID reader, it provides around 30 cm range for detection after
antenna. Once the pet steps within the range of detection, the reader will be notified and send a
signal high to the microcontroller.
Figure 3: ID12LA RFID Module
2.2.3. Sensor Module
Input:
3.3V power supply, Analog signal from strain gauge
Output: Digital signal to Microcontroller through GPIO
Sensor module is used to measure the weights of the food containers and the food plates.
It consists of two parts: load cells and load cell module. They are used to measure the food
5
weight in the food containers and on the food plates. The range of each load cell is 05Kg, which
is sufficient for our design since the food in the container will not exceed 5kg. Each load cell is
connected to a SparkFun HX711 Load Cell Module. The 24bit analog to digital converter in the
Module will convert the signal to digital so it can be processed by the microcontroller.
Four load cells are used in four various locations. Two of them are put beneath the two
identical cylindrical containers. The other two load cells are attached to the bottom of each
separate food plate in the shape of a halfcircle. They will keep track the weight of the food the
pet has consumed. All the four load cells will be taking measurements constantly and sending
their data to the microcontroller.
[2] Figure 4: HX711 Load Cell Module
2.2.4. Motor Module
Input:
5V PWM from microcontroller
Output:
Mechanical rotation
Motor Module is used to physically drive the gates for food containers as well as food
plates. Two MG995 High Speed Metal Gear Dual Ball Bearing Servo Motors are used in our
project. Microcontroller will send precoded PWM to control the servomotor. One motor will
control the gate of the food container, and execute the dispensing order by spinning the gate plate
to a desired location. The gate is a circular shape plate attached in the middle of the two
6
containers with a 120° opening on it. There will also be a 120° pie shape opening on the bottom
of each food container, which is the same size corresponding to the 120
° pie shape opening on
the gate plate. This allows the food to be dispensed when the two pie shapes overlap with each
other.
The other servomotor controls the plate by the specified angle and direction to expose the
corresponding half of the plate for the particular pet. The food plate will be a half closed
structure where only one side of the food plate would be exposed at a time.
Level Converter
Since the
MG995 servo motor we chose operates at 5V. A level converter is needed to
bring the 3.3V power supply for Microcontroller to 5V in order to ensure the correct
performance from servo motor.
Figure5: Level Converter Module
2.2.5. Bluetooth/Software Module
Input/Output: Bidirectional Data transfer with microcontroller
The Bluetooth/Software Module is used to send and receive information to/from the
feeder via Bluetooth connection. It is how users communicate with the hardware. Figure 2 is the
flow chart that shows a complete execution cycle of the phone application. After initialization,
software send a request to hardware via bluetooth. If the hardware is ready to establish
communication, Pet’s information will be extracted from memory. Then users can choose to
write new information to hardware, a data validation check will be performed. If the data is not
7
valid software will send back a rejection signal to hardware and tell it to reload information.
Otherwise the information will be displayed on software and the instruction is complete.
Bluetooth will be implemented by RN42 Bluetooth Module. RN42 is a module for a
short range (5060 feet) application. It can be connected directly to the MSP430F2274
Microcontroller.
2.2.6. Power Supply Module
Input: 120V from household voltage supply
Output: 3.3/5V power supply
The power supply module is used to give power supply to all the components in our
project. It converts the 120V AC voltage to the 5V DC voltage. The detailed implementation is
enclosed in the section below.
3. Calculation and Simulation with Power Supply
3.1. Block Diagram
[4] Figure 6: Block Diagram
3.2. Block Description
From the circuit diagram above, it could be easily seen that the voltage was changed from
120V RMS to 6V RMS by a transformer with N2/N1 = 1/20. The diode rectifier is a fullwave
rectifier shown below.
8
Figure 7: Fullwave rectifier schematic
The capacitive filter reduces the ripple peaktopeak voltage since it resists changes in
voltage. The output becomes much smoother after the filter. The last component is the voltage
regulator, which consists of a zener diode in its breakdown region. It acts like a voltage regulator
because at breakdown region, the voltage across the zener diode is always 5V.
3.3. Current range of the zener diode rectifier
Zener Diode 1N4733A was used in the circuit. Imin = 17.5 mA. The maximum value of
diode current was decided by two factors the output current and the maximum allowed power
dissipation of the zener diode. When there is no load connected to the regulator, Imax = Imin +
20 mA. However, there must be a limit that the zener diode can handle. The maximum current
cannot grow unlimitedly as the minimum current increases. It turns that the maximum current
allowed is regulated by the maximum power of the zener diode, which is 500mW. Since the real
power should not exceed the 75% of the maximum allowed power, Pmax = 375 mW, which
makes the Imax = 37.5 mA.
Figure 8: Circuit Schematic
9
3.4. Determine Rs and Filter Capacitance
After determining the maximum and minimum current of the zener diode rectifier, the
value of Rs was found. The diagram below is used to show the circuit for determining ripple
voltage across the capacitor.
Figure 9: Filter schematic
Since the ripple voltage is required to be less than 2%, it should be less than 0.2. After
applying KVL to circuit, following equations were obtained:
Capacitance for fullwave rectifier were obtained separately as shown below:
3.5. Simulation
Simulation was conducted on the circuit design through the PSPICE. Output DC voltage
was measured and plotted as shown in the graph below. It is clear that the power supply has a
fast rising time which is almost instantly and a quick stabilizing time which is around 0.05s.
10
Figure 10: The average output DC voltage of 120sqrt(2) VSIN without load
4. Requirement and Verification
Module Requirement Verification Points
11
2. Monitor the output voltage to see if there is any
discontinuity or unusuality.
12
5. Tolerance Analysis
In terms of our project, the high level goal is to make two pets to be fed by the right food
in the correct amount. More specifically, for every time the food is dispensed, 100g of food
should be released. The maximum tolerance allowed is +/ 10g so we are able to keep track of
pets’ food consumption in a more accurate way. The tolerance was set as 15g because it is the
weight that approximately equals to 10 pieces of dog/cat food. Due to the physical limits of the
gate, it is reasonable to have 5 pieces more/less dog/cat food during the opening/closing of the
gate. Among all components, bluetooth latency will not have significant effect because it should
not happen at the time of dispensing. The accuracy of the servomotor at the gate of the dispense
does not have a huge impact on our high level goal. This is because the amount of food
dispensed is controlled by the weight sensors so that it will still be able to dispense the right
amount, although the off of angle might cause the dispensing process to be not as smooth.
On the other hand, the weight sensors we will be using, which consist of load cells and
AD modules, are the most essential part of our project, because we want to make sure that the
correct amount of food is dispensed so that we can obtain the accurate information of each pet.
The load cells we are going to use will have a range from 05 kg. To test the tolerance of the
sensor, we will be loading different amount of food onto the plate and check its accuracy
compared to the actual one. Though normally the food container will not be big enough to hold 5
kg, it is still important to test its extremes cases. To perform the test, we will put food of exactly
or slightly over than 5 kg on the load cell and see if it’s measuring correctly. The results will be
recorded in the notebook.
6. Cost and Schedule
6.1. Cost
Labor:
Zhuokai Zhao: $40/hour * 2.5 * 150 hours = $15,000
Ziyun He: $40/hour * 2.5 * 150 hours = $15,000
Fan Ling: $40/hour * 2.5 * 150 hours = $15,000
Total: $45,000
Parts List
:
1. Four HX711 Load Cell Weighing Sensor AD Module ($9 each)
2. Four Load Cell Sensor 05 kg ($6 each)
3. Two MG995 High Speed Metal Gear Dual Ball Bearing Servo ($14.36 each)
13
4. Two RFID Module ($8.99 each)
5. Two Buckets for Food Container and Outside Cone Shape ($4+$8)
6. RN42 Wireless Bluetooth Transceiver Module($5.99)
Sum planned parts cost: $118.71
Grand Total: $15,118.71
6.2. Schedule
Week Task Responsibility
Finish Project Proposal Fan Ling
Prepare for Mock Design Interview
Finish Project Proposal Zhuokai Zhao
Prepare for Mock Design Interview
Complete the Eagle Assignment Fan Ling
Consult Experts
Complete the Eagle Assignment Zhuokai Zhao
Select and Acquire Equipment, such as Servo, Weight Sensors, RFID, and
Bluetooth Module
Build and Test the Power Module Fan Ling
Prepare for Design Review Zhuokai Zhao
Design and Acquire PCB
Build and Test the Power Module Fan Ling
Test and Find the Right Spin Speed for Both Servomotors
Design and Acquire PCB Zhuokai Zhao
Test and Find the Right Spin Speed for Both Servomotors Fan Ling
Test the Weight Sensors and Obtain Their Limits
14
Design and Acquire PCB Zhuokai Zhao
Build and Test RFID Module
Test the Weight Sensors and Obtain Their Limits Fan Ling
Build the Outside Supporting Structure, Gates, Food Plates, Dividers and
Containers
Build and Test RFID Module Zhuokai Zhao
Finalize Design for PCB
Build and Test Bluetooth Module Fan Ling
Test Sensor and Servo with PCB
Build and Test Bluetooth Module Zhuokai Zhao
Test Sensor and Servo with PCB Fan Ling
Test Bluetooth and RFID Modules with PCB Zhuokai Zhao
Prepare for Mock Demo Fan Ling
Finalize PCB
Finalize R&V Table Zhuokai Zhao
Prepare for Mock Demo
Testing and Debugging Sensor and Servomotors Fan Ling
Prepare for Demo
Testing and Debugging RFID and Bluetooth Module Zhuokai Zhao
Prepare for Demo
Corner cases and Optimization with Sensors and Servomotors Fan Ling
Prepare for Mock Presentation
Corner cases and Optimization with RFID and Bluetooth Module Zhuokai Zhao
15
Prepare for Demo
Final Paper Fan Ling
Prepare for Presentation
Final Paper Zhuokai Zhao
Prepare for Presentation
Finalize Final Paper Fan Ling
Finalize Final Paper Zhuokai Zhao
7. Safety and Ethics Statement
7.1. Safety
7.1.1. Electrical Concerns:
The product is powered by standard power outlet of 120V through a power cord and
protected by plastic wrapping around the metal wire. If the power line is exposed to air, users
should not contact the power cord directly. Instead they should turn the power off immediately
and rewrap and protect the wires before any harm coming to them or their pets.
Do not place the machine in extreme heat conditions. Temperature over 70 °C is
extremely dangerous for microcontrollers and power system.
7.1.2. Mechanical concerns:
Two servomotors are used in our product. If the exterior of the product is compromised in
anyway, please replace the product immediately to prevent any injury may come to you and your
pets. In particular, when the food plate is spinning to the right section of the pet food, although
we have polished the structure to prevent people/pet from accidentally getting stuck in between
the spinning process, please still pay attention to the machine when it spins.
7.2. Ethics
The IEEE Code of Ethics [2] was used to guide the ethical considerations of this project
1. The Automated Pet Feeder is a pet friendly product that provide customers’ pets a
safe and healthy environment to feed. Pet’s safety is always the top concern during
the production.
16
2. The Automated Pet Feeder will always dispense the correct amount of food within
the tolerance. This will be ensured by rigorous experiment and test before our
product is being used.
3. Shortcuts in implementation will not be used at the expense of the eventual users of
the product.
4. Performance of the Automated Pet Feeder will be based off the available data with
honesty and relisticicty.
5. All motivation behind this project is from sheer interest of producing a novel
useable product. Any other forms of motivation, including bribery, will not be used
to alter our desired end goal.
17
References
[1] "Atmel AVR 8bit and 32bit Microcontrollers." Atmel AVR 8bit and 32bit
Microcontrollers . N.p., n.d. Web. 18 Feb. 2016.
http://www.atmel.com/products/microcontrollers/avr/
[2]24Bit AnalogtoDigital Converter (ADC) for Weigh ScalesHX711 Retrieved March 01,
2016, from https://cdn.sparkfun.com/datasheets/Sensors/ForceFlex/hx711_english.pdf
[3] MG995 High Speed Metal Gear Dual Ball Bearing Servo Retrieved March 01, 2016, from
http://www.electronicoscaldas.com/datasheet/MG995_TowerPro.pdf
[4] Sedra, Adel S., and Kenneth C. Smith. Microelectronic Circuits
. N.p.: n.p., n.d. Print.
IEEE IEEE Code of Ethics.
[5] (n.d.). Retrieved February 29, 2016, from
http://www.ieee.org/about/corporate/governance/p78.html
[6] MSP430F2274 (ACTIVE). (n.d.). Retrieved March 01, 2016, from
http://www.ti.com/product/MSP430F2274
[7]
RN42 Wireless Bluetooth Transceiver Retrieved March 01, 2016, from
https://www.sparkfun.com/datasheets/Wireless/Bluetooth/rn42ds.pdf
18
Appendix A:
Control RFID Load Cell Motor Bluetooth
19
