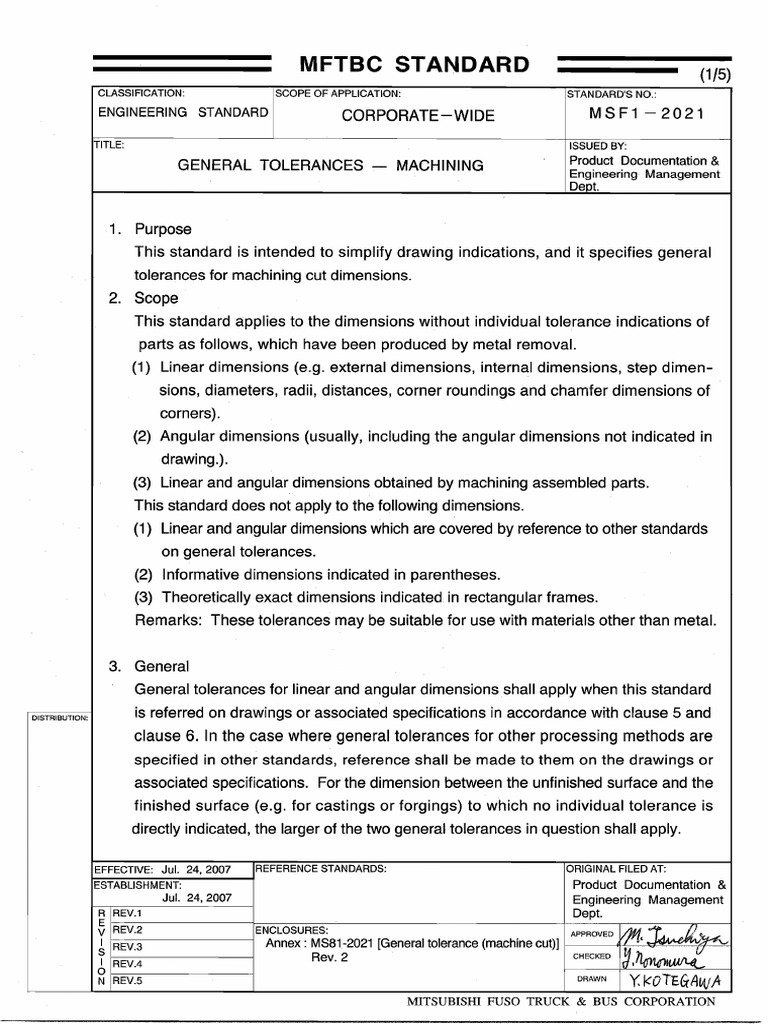

MFTBC STANDARD = (1/5) CLASSIFICATION SCOPE OF APPLICATION [STANDARDS NO, ENGINEERING STANDARD CORPORATE—WIDE MSF1-—2021 TITLE: ~~ |ISSUED BY: GENERAL TOLERANCES — MACHINING Eros | Docume e ingineering Management Dept. 1. Purpose This standard is intended to simplify drawing indications, and it specifies general tolerances for machining cut dimensions Scope This standard applies to the dimensions without individual tolerance indications of parts as follows, which have been produced by metal removal (1) Linear dimensions (e.g. external dimensions, internal dimensions, step dimen- sions, diameters, radii, distances, comer roundings and chamfer dimensions of corners) (2) Angular dimensions (usually, including the angular dimensions not indicated in drawing.). (8) Linear and angular dimensions obtained by machining assembled parts. This standard does not apply to the following dimensions. (1) Linear and angular dimensions which are covered by reference to other standards ‘on general tolerances. (2) Informative dimensions indicated in parentheses. (3) Theoretically exact dimensions indicated in rectangular frames. Remarks: These tolerances may be suitable for use with materials other than metal. General General tolerances for linear and angular dimensions shall apply when this standard is referred on drawings or associated specifications in accordance with clause 5 and clause 6. In the case where general tolerances for other processing methods are specified in other standards, reference shall be made to them on the drawings or associated specifications. For the dimension between the unfinished surface and the finished surface (e.g. for castings or forgings) to which no individual tolerance is directly indicated, the larger of the two general tolerances in question shall apply. JEFFECTIVE: Jul. 24, 2007 [REFERENCE STANDARDS: [ORIGINAL FILED AT: [ESTABLISHMENT: Product Documentation & [eRe Dept. yy REV2 [ENCLOSURES: {neva Amex: MS81-2021 [General tolerance (machine cu] wo Il Londhigs. neva — Rev. 2 ower Ty Ni REVS [_onwn TY.KOTEGAWA Jul. 24, 2007 Engineering Management MITSUBISHI FUSO TRUCK & BUS CORPORATION[STANOARDS Wo. MSFi-2021 25 4. Definition of Terms 4.1 Limits of size Big and small dimensions which indicate the limit of size (maximum permissible dimensional deviation / minimum permissible dimensional deviation). 4.2 Basic dimension The dimension, which is basic to a permissible limits of dimension. 4.3 Permissible dimensional deviation The value of difference, which is subtracting basic dimension from limits of size. 4.4 Dimensional tolerance The value of difference between maximum permissible dimensional deviation and minimum permissible dimensional deviation. 5. General tolerances 5.1 Linear dimensions The general tolerances for linear dimensions shall be in accordance with the permissible deviations given in Table 1 and Table 2. However, in general, m class shall be used. Table 1 Permissible deviations for linear dimensions except chamfered parts (external radii and chamfer heights, refer to Table 2) Unit : mm. Tolerance class Division of basic dimension Oso ] Overs | Over6 | Over'30 | Over 120 | Over 400 [Over 1000] Over 2000] Designation] Description | ett? [UP and up te and | upto and | upto and | up to and /upio and up oan and inel. 3|_ incl. 6 | incl. 90 | incl. 120 | incl. 400 | incl. 1000) incl. 2000) inci. 4000 Permissible deviations t fine £0.05 | #005] +01 | #015 | +02 | +03 | 205 = m medum | £01 | #01 | +02 | +03 | 205 | 08 | #12 2 ce coarse | +02 | +03 | 205 4 _ #08 [| 212 | 22 +3 Note(1) For basic dimensions below 0.5 mm, the deviations shall be indicated adjacent to the relevant basic dimension(s). Table 2 Permissible deviations for linear dimensions of chamfered parts (rounding of corner and chamfered dimension) Unit : mm Tolerance class: Division of basic dimension OSA oroverto] Over3upto | Overéupto Designation| Description | _andincl.3 | andincl.6 | _andincl. 30 Permissible deviations o fine £02 £05 #1 [erm ‘medium | c coarse 204 21 #2 Note(2) For basic dimensions below 0.5 mm, the deviations shall be indicated adjacent to. the relevant basic dimension(s). MITSUBISHI FUSO TRUCK & BUS CORPORATION‘STANDARDS NO= Re MSF1-—2021 3/5 5.2 Angular dimensions General tolerances specified in angular units control only the general orientation of lines or line elements constituting surfaces, but not their form deviations. The general orientation of the line derived from the actual surface is determined by the orientation of the contacting line of ideal geometrical form (Refer to Fig. 1). In this case, the maximum distance between the contacting line and the actual line shall be the least possible value. Contacting line Fig. 1 Angular dimensions tolerance The general tolerances for angular dimensions shall be in accordance with the permissible deviations given in Table 3. However, in general, m class shall be used. Table 3_ Permissible deviations for angular deviations Tolerance class Division of length(unit : mm) of shorter side of the angle concemed Wand under | Over 10 upto | Over 50upto | Over 120 upto) Over 400 Designation | Description and ing. 50 | and incl. 120 _| and incl, 400 Permissible deviations f fine af £30" 220° £10 +5) ‘medium ce coarse £ 1°30" 2” £30" 215 £10 6. Indication on Drawings General tolerances shall be indicated in the prescribed location of the title block specified in MSF1-1001 (Drawing format) as shown below. Example TOLERANCES UNLESS SPECIFIED MACHINE CUT MSF1-2021 : m CLASS MITSUBISHI FUSO TRUCK & BUS CORPORATION|STANDARDSNO. REV. MSF1~2021 45 7. Operation The new drawings and revised drawings, which are made after the date of enforce- ment of this standard shall be, followed a new tolerance class (f class, m class, c class). On the other hands, old drawings which were followed an old tolerance class (1st class, 2nd class) shall be followed the Annex MS81-2021[ General tolerance (ma- chine cut)] Rev. 2. MITSUBISHI FUSO TRUCK & BUS CORPORATION[STANDARDS NO. MSF1—2021 (Annex) 1. 2. 3, Annex MS81-2021 [ General tolerances (machine cut)] Rev. 2 Scope This standard spec numeral or symbols. Tolerance Tolerance shall conform to the following Annex Table 1. However, in general, class 1 tolerances shall be used. Annex Table 1 Permissible deviations for linear dimensions fies general tolerances on machining dimensions of less than 2000 mm of individual machining work. When their tolerance are not indicated Unit | mm Division of nominal dimensions Tolerance jstclass | 2nd class 6 and under £01 £02 Over 6 up to and incl. 30 £02 £05 Over 30 up to and incl. 120 £03 £08 (Over 120 up to and incl. 315 £05 £12 Over 315 up to and incl. 1000 | 0.8 £20 [Over 1000 up to and incl. 2000 | + 1.2 230 Indication on Drawings General tolerances shall be indicated in the prescribed location of the title block specified in MSF1-1001 (Drawing format) as shown below. Example TOLERANCES UNLESS SPECIFIED MACHINE CUT MS81-2021 : 1ST CLASS MITSUBISHI FUSO TRUCK & BUS CORPORATION
