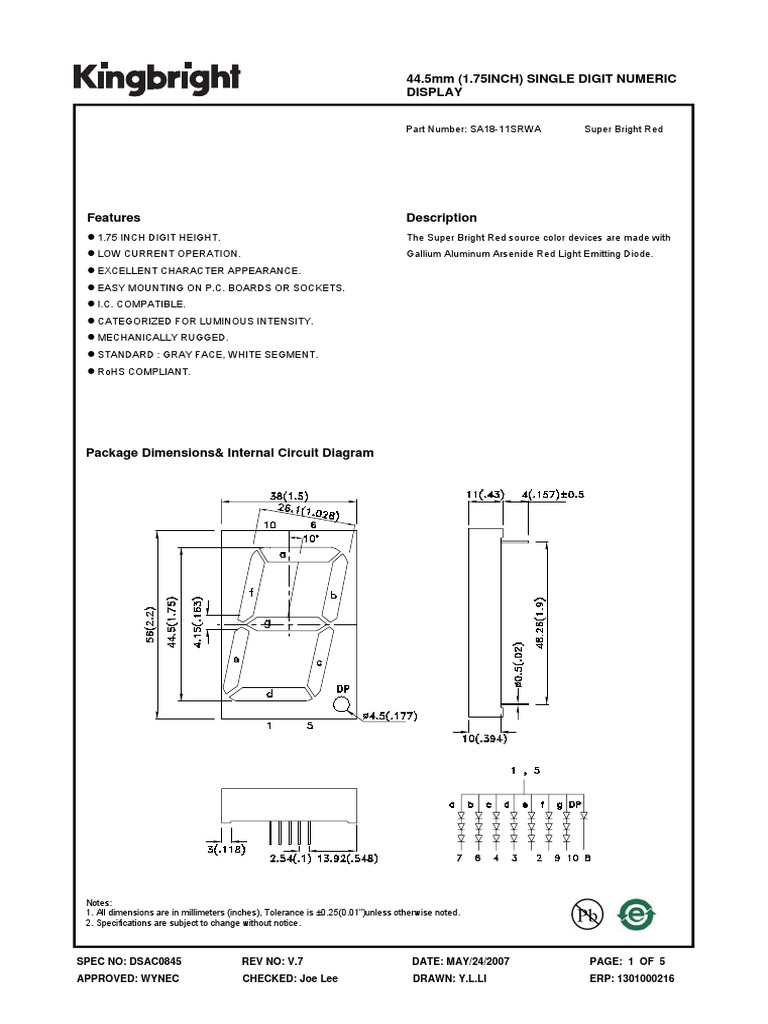

44.5mm (1.

75INCH) SINGLE DIGIT NUMERIC

DISPLAY

Part Number: SA18-11SRWA Super Bright Red

Features Description
z 1.75 INCH DIGIT HEIGHT. The Super Bright Red source color devices are made with
z LOW CURRENT OPERATION. Gallium Aluminum Arsenide Red Light Emitting Diode.
z EXCELLENT CHARACTER APPEARANCE.
z EASY MOUNTING ON P.C. BOARDS OR SOCKETS.
z I.C. COMPATIBLE.
z CATEGORIZED FOR LUMINOUS INTENSITY.
z MECHANICALLY RUGGED.
z STANDARD : GRAY FACE, WHITE SEGMENT.
z RoHS COMPLIANT.

Package Dimensions& Internal Circuit Diagram

Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. Specifications are subject to change without notice.

SPEC NO: DSAC0845 REV NO: V.7 DATE: MAY/24/2007 PAGE: 1 OF 5

APPROVED: WYNEC CHECKED: Joe Lee DRAWN: Y.L.LI ERP: 1301000216
 Selection Guide
Iv (ucd) [1]
Part No. Dice Lens Type @ 10mA Description
Min. Typ.
Common Anode ,Rt.
SA18-11SRWA Super Bright Red (GaAlAs) WHITE DIFFUSED 18000 75000
Hand Decimal.

Note:
1. Luminous intensity/ luminous Flux: +/-15%.

Electrical / Optical Characteristics at TA=25°C

Symbol Parameter Device Typ. Max. Units Test Conditions

λpeak Peak Wavelength Super Bright Red 660 nm IF=20mA

λD [1] Dominant Wavelength Super Bright Red 640 nm IF=20mA

Δλ1/2 Spectral Line Half-width Super Bright Red 20 nm IF=20mA

C Capacitance Super Bright Red 45 pF VF=0V;f=1MHz

Forward Voltage 5.55 7.5

VF [2] Super Bright Red V IF=20mA
Per Segment Or (DP) (1.85) (2.5)
Reverse Current 10 VR=15V
IR Super Bright Red uA
Per Segment Or (DP) (10) (VR=5V)

Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.

Absolute Maximum Ratings at TA=25°C

Parameter Super Bright Red Units
Power dissipation 225
mW
Per Segment Or (DP) (75)
DC Forward Current 30
mA
Per Segment Or (DP) (30)
Peak Forward Current [1] 155
mA
Per Segment Or (DP) (155)
Reverse Voltage 15
V
Per Segment Or (DP) (5)
Operating / Storage Temperature -40°C To +85°C

Lead Solder Temperature[2] 260°C For 3-5 Seconds

Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.

SPEC NO: DSAC0845 REV NO: V.7 DATE: MAY/24/2007 PAGE: 2 OF 5

APPROVED: WYNEC CHECKED: Joe Lee DRAWN: Y.L.LI ERP: 1301000216
 Super Bright Red SA18-11SRWA

SPEC NO: DSAC0845 REV NO: V.7 DATE: MAY/24/2007 PAGE: 3 OF 5

APPROVED: WYNEC CHECKED: Joe Lee DRAWN: Y.L.LI ERP: 1301000216
SPEC NO: DSAC0845 REV NO: V.7 DATE: MAY/24/2007 PAGE: 4 OF 5
APPROVED: WYNEC CHECKED: Joe Lee DRAWN: Y.L.LI ERP: 1301000216
 PACKING & LABEL SPECIFICATIONS SA18-11SRWA

SPEC NO: DSAC0845 REV NO: V.7 DATE: MAY/24/2007 PAGE: 5 OF 5

APPROVED: WYNEC CHECKED: Joe Lee DRAWN: Y.L.LI ERP: 1301000216
