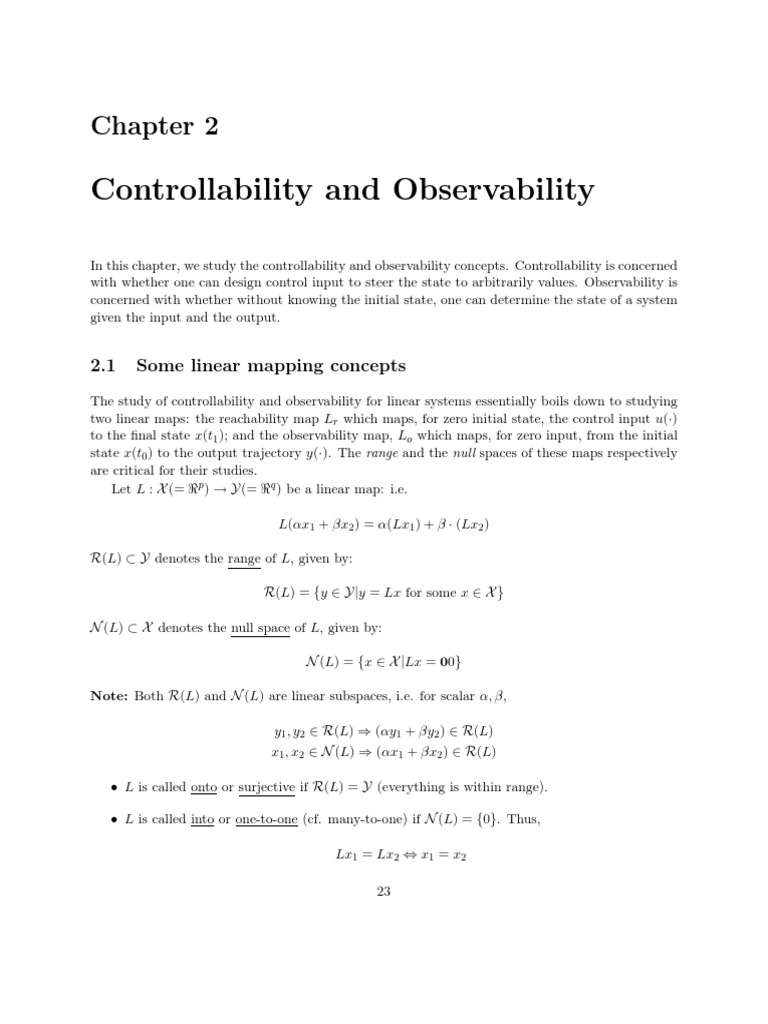

Chapter 2

Controllability and Observability

In this chapter, we study the controllability and observability concepts. Controllability is concerned
with whether one can design control input to steer the state to arbitrarily values. Observability is
concerned with whether without knowing the initial state, one can determine the state of a system
given the input and the output.

2.1 Some linear mapping concepts

The study of controllability and observability for linear systems essentially boils down to studying
two linear maps: the reachability map Lr which maps, for zero initial state, the control input u(·)
to the final state x(t1 ); and the observability map, Lo which maps, for zero input, from the initial
state x(t0 ) to the output trajectory y(·). The range and the null spaces of these maps respectively
are critical for their studies.
Let L : X (= ℜp ) → Y(= ℜq ) be a linear map: i.e.

L(αx1 + βx2 ) = α(Lx1 ) + β · (Lx2 )

R(L) ⊂ Y denotes the range of L, given by:

R(L) = {y ∈ Y|y = Lx for some x ∈ X }

N (L) ⊂ X denotes the null space of L, given by:

N (L) = {x ∈ X |Lx = 00}

Note: Both R(L) and N (L) are linear subspaces, i.e. for scalar α, β,

y1 , y2 ∈ R(L) ⇒ (αy1 + βy2 ) ∈ R(L)

x1 , x2 ∈ N (L) ⇒ (αx1 + βx2 ) ∈ R(L)

• L is called onto or surjective if R(L) = Y (everything is within range).

• L is called into or one-to-one (cf. many-to-one) if N (L) = {0}. Thus,

Lx1 = Lx2 ⇔ x1 = x2

23
2.1.1 The Finite Rank Theorem
Proposition 2.1.1 : Let L ∈ ℜn×m , so that L : u ∈ ℜm 7→ y ∈ ℜn .

1.
R(L) = R(LLT )

2.
N (L) = N (LT L)

3. Any point u ∈ ℜn can be written as

u = LT y1 + un ∈ ℜn ; where y1 ∈ ℜn , Lun = 0.

In other words, u can always be written as a sum of u1 ∈ R(LT ) and un ∈ N (L).

4. Similarly, any point u ∈ ℜn can be written as

y = Lu1 + yn ∈ ℜn ; where u1 ∈ ℜm , LT yn = 0.

In other words, u can always be written as a sum of y1 ∈ R(L) and yn ∈ N (LT ).

Note:

• If L ∈ ℜn×m and m > n (short and fat), then LLT ∈ ℜn×n is both short and thin.

• To check whether the system is controllable we need to check if LLT is full rank - e.g. check
its determinant.

• If m < n (tall and thin), then LT L ∈ ℜn×n is also both short and thin.

• Checking N (LT L) will be useful when we talk about observerability.

2.2 Controllability
Consider a state determined dynamical system with a transition map s(t1 , t0 , x0 , u(·)) such that

x(t1 ) = s(t1 , t0 , x(t0 ), u(·)).

This can be continuous time or discrete time.

Definition 2.2.1 (Controllability) : The dynamical system is controllable on [t0 , t1 ] if ∀ initial

and final states x0 , x1 , ∃u(·) so that s(t1 , t0 , x0 , u) = x1 .
It is said to controllable at t0 if ∀x0 , x1 , ∃t1 ≥ t0 and u(·) ∈ U so that s(t1 , t0 , x0 , u) = x1
A system that is not controllable probably means the followings:

• If state space system is realized from input-output data, then the realization is redundant.
i.e. some states have no relationship to either the input or the output.

• If states are meaningful (physical) variables that need to be controlled, then the design of the
actuators are deficient.

• The effect of control is limited. There is also a possibililty of instability

Remarks:

• The followings are equivalent:

1. A system is controllable at t = t0 .
2. The system can be transferred from any state at t = t0 to any other state in finite time.
3. For each x0 ∈ Σ,

s(·, t0 , x0 , ·) : [t0 , ∞) × u(·) 7→ s(t1 , t0 , x0 , u(·))

is surjective (onto).

• Controllability does not say that x(t) remains at x1 . e.g. for

ẋ = Ax + Bu

to make x(t) = x1 ∀t ≥ t0 , it is necessary that Ax1 ∈ Range(B). This is generally not true.

Example - An Uncontrollable System

• An linear actuator pushing 2 masses on each end of the actuator in space.

m1 ẍ1 = u; m2 ẍ2 = −u

• State: X = [x1 , ẋ1 , x2 , ẋ2 ]T .

• Action and reaction are equal and opposite, and act on different bodies.

• Momentum is conserved:

m1 ẋ1 + m2 ẋ2 = constant = m1 ẋ1 (t0 ) + m2 ẋ2 (t0 )

• E.g. if both masses are initially at rest: it is not possible to choose u(·) to make ẋ1 = 0,
ẋ2 = 1.

2.2.1 Effects of feedback on controllability

Consider a system
ẋ = f (t, x(t), u(t)).

Suppose that the system is under memoryless (static) state feedback:

u(t) = v(t) − g(t, x(t))

with v(t) being the new input.

• A system is controllable if and only if the system under memoryless feedback with v(t) as the
input is controllable.
Proof: Suppose that the original system is controllable. Given a pair of initial and final states,
x0 and x1 , suppose that the control u(·) transfers the state from x0 at t0 to x1 at t1 . For the new
system, which has also x(t) as the state variables, we can use the control v(t) = u(t) + g(t, x(t)) to
transfer the state from x0 at t0 to x1 at t1 . Therefore, the new system is also controllable.
Suppose that the feedback system is controllable, and v(·) is the control that can achieve the
desired state transfer. Then for the original system, we can use the control u(t) = v(t) − g(t, x(t))
to achieve the same state transfer. Thus, the original system is also controllable. ⋄

Consider now the system under dynamic state feedback:

ż(t) = α(t, x(t), z(t))

u(t) = v(t) − g(t, x(t), z(t))

where v(t) is the new input and z(t) is the state of the controller.
• If a system under dynamic feedback is controllable then the original system is.

• The converse is not true, i.e. the original system is controllable does not necessarily imply
that the system under dynamic state feedback is.
Proof: The same proof for the memoryless state feedback works for the first statement. For the
second statement, we give an example of the controller:

ż = z; u(t) = v(t) − g(t, x(t), z(t)).

The state of the new system is (x, z) but no control can affect z(t). Thus, the new system is not
controllable. ⋄
These results show that feedback control cannot make a uncontrollable system become controllable,
but can even make a controllable system, uncontrollable. To make a system controllable, one must
redesign the actuators.

2.3 Controllability of Linear Systems

Continuous time system:

ẋ(t) = A(t)x(t) + B(t)u(t) x ∈ ℜn

Z t1
x(t1 ) = Φ(t1 , t0 )x0 + Φ(t1 , t)B(t)u(t)dt.
t0

The reachability map on [t0 , t1 ] is defined to be:

Z t1
Lr,[t0 ,t1 ] (u(·)) = Φ(t1 , t)B(t)u(t)dt
t0

Thus, it is controllable on [t0 , t1 ] if and only if Lr,[t0 ,t1 ] (u(·)) is surjective (onto).
Notice that Lr,[t0 ,t1 ] determines the set of states that can be reached from the origin at t = t1 .
The study of the range space of the linear map:

Lr,[t0 ,t1 ] : {u(·)} → ℜn

is central to the study of controllability.

Proposition 2.3.1 If a continuous time, possibly time varying, linear system is controllable on
[t0 , t1 ] then it is controllable on [t0 , t2 ] where t2 ≥ t1 .
Proof: To transfer from x(t0 ) = x0 to x(t2 ) = x2 , define
x1 = Φ(t1 , t2 )x2
Suppose that u∗[t0 ,t1 ] transfers x(t0 ) = x0 to x(t1 ) = x1 . Choose
(
u∗ (t) t ∈ [t0 , t1 ]
u(t) =
0 t ∈ (t1 , t2 ]
⋄. ⋄

This result does not hold for t0 < t2 < t1 . e.g. The system
(
0 t ∈ [t0 , t2 ]
ẋ(t) = B(t)u(t) B(t) = .
In t ∈ (t2 , t1 ]
is controllable on [t0 , t1 ] but x(t2 ) = x(t0 ) for any control u(·).

2.3.1 Discrete time system

x(k + 1) = A(k)x(k) + B(k)u(k), x ∈ ℜn , u ∈ ℜm

kX
1 −1

x(k1 ) = Φ(k1 , k0 )x(k0 ) + Φ(k1 , k + 1)B(k)u(k)

k=k0

The transition function of the discrete time system is given by:

kX
1 −1

x(k1 ) = s(k0 , k1 , x(k0 ), u(·)) = Φ(k1 , k0 )x(k0 ) + Φ(k1 , k + 1)B(k)u(k) (2.1)

k=k0
kf −1
Φ(kf , ki ) = Πk=ki A(k) (2.2)
The reachability map of the discrete time system can be written as:
kX
1 −1

Lr,[k0 ,k1 ] (u(k0 ), . . . , u(k1 − 1)) = Φ(k1 , k + 1)B(k)u(k) = Lr (k0 , k1 )U

k=k0
 
u(k0 )
where Lr (k0 , k1 ) ∈ ℜn×(k1 −k0 )m , U = 
 .. 
. .
u(k1 − 1)
Thus, the system is controllable on [k0 , k1 ] if and only if Lr,[k0 ,k1 ] is surjective, which is true if
and only if Lr (k0 , k1 ) has rank n

Proposition 2.3.2 Suppose that A(k) is nonsingular for each k1 ≤ k < k2 , then the discrete time
linear system is controllable on [k0 , k1 ] implies that it is controllable on [k0 , k2 ] where k2 ≥ k1 .
Proof: : The proof is similar to the continuous case. However for a discrete time system, we need
A(k) nonsingular for k1 ≤ k < k2 to ensure that Φ(k2 , k1 ) is invertible. Q.E.D. ⋄
Example
Consider a unit point mass under control of a force:

d x 0 1 x 0
= + u
dt ẋ 0 0 ẋ 1

This is the same as ẍ = u.

Suppose that x(0) = ẋ(0) = 0, we would like to translate the mass to x(T ) = 1, ẋ(T ) = 0.
The reachability map L : u(·) → x(T ) is
Z T
x(T ) = Φ(T, t)B(t)u(t)dt
0

Let use try to solve this problem using piecewise constant control:


 u0 0 ≤ t < T /10


u1 T /10 ≤ t < 2T /10
u(t) = .

 ..



u10 9T /10 ≤ t ≤ T

and find U = [u1 , u2 , . . . , u10 ]T .

The reachability map becomes:
 
u1

 u2 

x(T ) = L1 L2 . . . L10  . 
| {z }  .. 
Lr
u10

where
"Z #

T /10
T T
L1 = Φ(T, t)B(t)dt = ,
0 10 1
"Z #
2T /10
T 0.9T
L2 = Φ(T, t)B(t)dt = ,
T /10 10 1
..
.

T 0.1T
L10 =
10 1

Whether the matrix denoted by Lr ∈ ℜ2×10 is surjective (onto) (i.e. R(Lr ) = ℜ2 determines
whether we can achieve our task using piecewise constant control.
In our case, let T = 10 for convenience,

10 9 ... 1
Lr =
1 1 ... 1

and
385 55
Lr LTr =
55 10
which is non-singular (full rank). Thus, from the finite rank theorem R(Lr ) = R(Lr LTr ), the
particle transfer problem is solvable using piecewise constant control.
If we make the number of pieces in the piecewise constant control larger and larger, then the
multiplication of Lr by LTr becomes an integral:
Z t1
Lr LTr → Φ(t1 , t)B(t)B(t)T Φ(t1 , t)T dt.
t0

Therefore for the continuous time linear system is controllable over the interval [t0 , t1 ] if and
only if the matrix,
Z t1
Φ(t1 , t)B(t)B(t)T Φ(t1 , t)T dt (2.3)
t0

is full rank.

2.4 Reachability Grammian

The matrix Wr = Lr LTr ∈ ℜn×n is called the Reachability Grammian for the interval that Lr is
defined. For the continuous time system

ẋ = A(t)x + B(t)u

the Reachability Grammian on the time interval [t0 , t1 ] is defined to be:

Z t1
Wr,[t0 ,t1 ] = Φ(t1 , t)B(t)B(t)T Φ(t1 , t)T dt
t0

For time invariant systems,

Z t1
T (t −t)
Wr ([t1 , t0 ]) = Lr L∗r = eA(t1 −t) BB T eA 1
dt
t0
Z 0
Tτ
= eAτ BB T eA dτ.
t1 −t0

For the discrete time system,

x(k + 1) = A(k)x(k) + B(k)u(k),

the Reachability Grammian on the interval [k0 , k1 ] is

kX
1 −1

Φ(k1 , k + 1)B(k)B(k)T Φ(k1 , k + 1)T .

k=k0

From the finite rank theorem, we know that the controllability of a system on [t0 , t1 ] (or on
[k0 , k1 ]) is equivalent to Reachability Grammian on the same time interval being full rank.
2.4.1 Reduction theorem: Controllability in terms of Controllability to Zero
Thus far, we have been deciding controllability by considering the reachability map Lr which
concerns what states we are able to steer to from x(t0 ) = 0. The reduction theorem allows us
to formulate the question in terms of whether a state can be steered to x(tf ) = 0 in finite time.

Theorem 2.4.1 The followings are equivalent for a linear time varying differential system:

ẋ = A(t)x + B(t)u

1. It is controllable on [t0 , t1 ].

2. It is controllable to 0 on [t0 , t1 ], i.e. ∀x(t0 ) = x0 , there exists u(τ ), τ ∈ [t0 , t1 ) such that final
state is x(t1 ) = 0.

3. It is reachable from x(t0 ) = 0, i.e. ∀ x(t1 ) = xf , there exists u(τ ), τ ∈ [t0 , t1 ) such that for
x(t0 ) = 0, the final state is x(t1 ) = xf .

Proof:

• Clearly, (1) ⇒ (2) and (3).

• To prove (2) ⇒ (1) and (3) ⇒ (1), use

Z t1
x(t1 ) = Φ(t1 , t0 )x(t0 ) + Φ(t1 , τ )B(τ )u(τ )dτ.
t0

and Φ(t1 , t0 ) is invertible, to construct the appropriate x(t0 ) and x(tf ).

Controllability map: Lc,[t0 ,t1 ]

The controllability (to zero) map on [t0 , t1 ] is the map between u(·) to the initial state x0 such that
x(t1 ) = 0.
Z t1
Lc,[t0 ,t1 ] (u(·)) = − Φ(t0 , t)B(t)u(t)dt
t0

Proof:
Z t1
0 = x(t1 ) = Φ(t1 , t0 )x0 + Φ(t1 , τ )B(τ )u(τ )dτ
t0
Z t1
−1
x0 = −Φ(t1 , t0 ) Φ(t1 , τ )B(τ )u(τ )dτ
t0
Z t1
x0 = − Φ(t0 , t1 )Φ(t1 , τ )B(τ )u(τ )dτ
t0
Z t1
x0 = − Φ(t0 , τ )B(τ )u(τ )dτ
t0

Notice that
R(Lc,[t0 ,t1 ] ) = Φ(t1 , t0 )R(Lr,[t0 ,t1 ] )
These two ranges are typically not the same for time varying systems. However, one is full rank if
and only if the other is, since Φ(t1 , t0 ) is invertible.
 For time invariant continuous time systems, R(Lc,[t0 ,t1 ] ) = R(Lr,[t0 ,t1 ] ).
The above two statements are not true for time invariant discrete time systems. Can you find
counter-examples?
Because of the reduction theorem, the linear continuous time system is controllable on the inter-
val [t0 , tf ] if R(Lc,[t0 ,t1 ] ) = ℜn . From the finite rank theorem, R(Lc,[t0 ,t1 ] ) = R(Lc,[t0 ,t1 ] L∗c,[t0 ,t1 ] ) =
ℜn . The controllability-to-zero grammian on the time interval [t0 , t1 ] is defined to be:
Z t1
Wc = Lc L∗c = Φ(t0 , t)B(t)B(t)T Φ(t0 , t)T dt
t0
For time invariant system,
Z t1
T (t −t)
Wc = Lc L∗c = eA(t0 −t) BB T eA 0
dt
t0
Z 0
Tτ
=− e−Aτ BB T e−A dτ.
t1 −t0
Since controllability of a system on [t0 , t1 ] is equivalent to controllability to 0 which is determined
by the controllability map being surjective, it is also equivalent to controllability grammian on the
same time interval [t0 , t1 ] being full rank.

2.5 Minimum norm control

2.5.1 Formulation
The Controllability Grammian is related to the cost of control.
Given x(t0 ) = x0 , find a control function or sequence u(·) so that x(t1 ) = x1 . Let xd =
x1 − Φ(t1 , t0 )x0 . Then we must have
xd = Lr,[t0 ,t1 ] (u)
where Lr,[t0 ,t1 ] : {u(·)} → ℜ is the reachability map which, for continuous time system is:
Z t1
Lr,[t0 ,t1 ] (u) = Φ(t1 , t)B(t)u(t)dt.
t0
and for discrete time system:
kX
1 −1

Lr,[k0 ,k1 ] (u(·)) = Φ(k1 , k + 1)B(k)u(k) = C(k0 , k1 )U

k=k0
 
u(k0 )
where C ∈ ℜn×(k1 −k0 )m , U = 
 .. 
. .
u(k1 − 1)
Let us focus on the discrete time system.
Since xd ∈ Range(Lr,[k0 ,k1 ] ) for solutions to exist, we assume Range(Lr,[k0 ,k1 ] ) = ℜn . This implies
that Wr,[k0 ,k1 ] is invertible.
Generally there are multiple solutions. To resolve the non-uniqueness, we find the solution so
that
k1 −1
1 X
J(U ) = u(k)T u(k) = U T U
2
k=k0
is minimized. Here U = [u(k0 ); u(k0 + 1); . . . ; u(k1 − 1)].
2.5.2 Least norm control solution
This is a constrained optimization problem (with J(U ) as the cost to be minimized, and Lr U −xd =
0 as the constraint). It can be solved using the Lagrange Multiplier method of converting a
constrained optimization problem into an unconstrained optimization.
Define an augmented cost function, with the Lagrange multipliers λ ∈ ℜn
J ′ (U, λ) = J(U ) + λT (Lr U − xd )
The optimal given by (U ∗ , λ∗ ) must satisfy:
∂J ′ ∗ ∗ ∂J ′ ∗ ∗
(U , λ ) = 0; (U , λ ) = 0
∂U ∂λ
The second condition is just the constraint: Lr U = xd .
This means that
LTr λ∗ + U ∗ = 0; Lr U ∗ = xd
Solving, we get:
λ∗ = −(Lr LTr )−1 xd = −Wr−1 xd
U ∗ = −LTr λ∗ = LTr Wr−1 xd .
The optimal cost of control is:
J(U ∗ ) = xTd Wr−1 Lr LTr Wr−1 xd = xTd Wr−1 xd
Thus, the inverse of the Reachability Grammian tells us how difficult it is to perform a state transfer
from x = 0 to xd . In particular, if Wr is not invertible, for some xd , the cost is infinite.

2.5.3 Geometric interpretation of least norm solution

Geometrically, we can think of the cost as J = U T U , i.e. the inner product of U with itself. In
notation of inner product,
J =< U, U >R
The advantage of the notation is that we can change the definition of inner product, e.g. <
U, V >R = U T RV where R is a positive definite matrix. The usual inner (dot) product has R = I.
We say that U and V are normal to each other if < U, V >R = 0.
Any solution that satisfies the constraint must be of the form
(U − U p ) ∈ N ull(Lr )
where Lr U p = xf is any particular solution.

Claim: Let U ∗ be the optimal solution, and U is any solution that satisfies the constraint. Then,
(U − U ∗ ) ⊥ U ∗ , i.e.
< (U − U ∗ ), U ∗ >R = 0
which is the normal equation for the least norm solution problem.
Proof: Direct substitution.
−1 T −1 −1 T −1



−1 T
(U − U ∗ )T RU RU Lpc Lr RU Lr xf = (Lr (U − U ∗ ))T Lr RU Lr xf = 0.
⋄
2.5.4 Open-loop least norm control
Applying the above result to linear continuous time system using standard norms, i.e.
Z t1
J= uT (τ )u(τ )dτ.
t0

(Lr,[t0 ,t1 ] )∗ (t) = B T (t)Φ(t, t1 )T

Z t1
∗ T T
Wr,[t0 ,t1 ] = Lr Lr = Φ(t1 , τ )B(τ )B (τ )Φ(t1 , τ ) dτ
t0

−1
uopt (t) = B(t)T Φ(t, t1 )T Wr,[t 0 ,t1 ]
(x1 − Φ(t1 , t0 )x0 ) (2.4)

Eq, (2.4) solves uopt (·) in a batch form given x0 , i.e. it is openloop.

2.5.5 Recursive formulation

• Openloop control does not make use of feedback. It is not robust to disturbances or model
unceratinty. Suppose now that x(t) is measured. Conceptually, we can solve (2.4) for uopt (t)
and let t0 = t.

• Computing Wr,[t,t1 ] is expensive. Try recursion:

−1
uopt (t) = B(t)T Φ(t, t1 )T Wr,[t,t1]
(x1 − Φ(t1 , t)x(t))

−1 −1
= B(t)T Φ(t, t1 )T Wr,[t,t 1]
x1 − B(t) T
Φ(t, t 1 )T
W r,[t,t1 ] Φ(t 1 , t) x(t)

For any invertible matrix Q(t) ∈ ℜn×n , Q(t)Q−1 (t) = I, therefore

d −1
Q (t) = −Q−1 (t)Q̇(t)Q−1 (t)
dt

Since
Z t1
Wr,[t,t1 ] = Φ(t1 , τ )B(τ )B(τ )∗ Φ(t1 , τ )∗ dτ
t
d
W = −Φ(t1 , t)B(t)B(t)∗ Φ(t1 , t)∗
dt r,[t,t1 ]

−1
• Thus we can solve for Wr,[t,t1]
dynamically by integrating on-line

d −1 −1 −1
W = −Wr,[t,t Φ(t1 , t)B(t)B(t)∗ Φ(t1 , t)∗ Wr,[t,t
dt r,[t,t1 ] 1] 1]

• Issue: Does not work well when t → t1 because Wr,[t,t1 ] can be close to singular.
2.5.6 Optimal cost
Optimal cost as a function of initial time t0
Since Z tf
Wr,[t0 ,tf ] = Φ(tf , τ )B(τ )B(τ )∗ Φ(tf , τ )∗ dτ
t0
−1
and the integrand is a positive semi-definite term, for each v ∈ ℜn , v T Wr,[t 0 ,tf ]
v decreases as t0
decreases, i.e. given more time, the cost of control decreases.
To see this, fix the final time tf , and consider the minimum cost function,
−1
Emin (xf , t0 ) = xTf Wr,[t 0 ,tf ]
xf

and consider
d d
Emin (xf , tf ) = v T W −1 xf
dt0 dtf r,[t0 ,tf ]
Since
d d
W −1 −1
= −Wr,[t −1
Wr,[t0 ,tf ] Wr,[t
dtf r,[t0 ,tf ] 0 ,tf ] dt
f
0 ,tf ]
n o
−1 ∗ ∗ −1
= − Wr,[t 0 ,tf ]
Φ(t ,
f 0t )B(t 0 )B(t 0 ) Φ(t ,
f 0t ) W r,[t0 ,tf ]

is negative semi-definite, dtd0 Emin (v, tf ) ≤ 0. Hence, the optimal control increases as the initial
time decreases, increasing the allowable time interval.
In other words, the set of states reachable with a cost less than a given value grows as t0
decreases.
If the system is unstable, in that, Φ(tf , t0 ) becomes unbounded as t0 → −∞, then one can
see that Wr,[t0 ,tf ] also becomes unbounded. This means that for some xf , Emin (xf , t0 ) → 0 and
tf → ∞. This means that some directions do not require any cost of control. Which direction do
these correspond to?
For time invariant system, decreasing t0 is equivalent to increasing tf . Thus for time-invariant
system, increasing the time interval increases Wr , thus decreasing cost.

Optimal cost as a function final state xf

Since Wr,[t0 ,tf ] is symmetric and positive semi-definite, has n orthogonal eigenvectors, V = [v1 , . . . , vn ],
and associated eigenvalues Λ = diag(λ1 , . . . , λn ), such that V V T = I. Then
−1
Wr,[t0 ,tf ] = V ΛV T ⇒ Wr,[t 0 ,tf ]
= V diag(λ−1 −1
1 , . . . , λn )V
T

This shows that most expensive direction to transfer to is the eigenvector associated with the
minimum λi , and the least expensive direction is the eigenvector associated with the maximum λi

2.6 Linear Time Invariant (LTI) Continuous Time Systems

Consider first the LTI continuous time system:

ẋ = Ax + Bu
y = Cx (2.5)
 Note: Because of time invariance, the system is controllable (observable) at t0 means that it
is controllable (observable) at any time.
We will develop tests for controllability and observability by using directly the matrices A and
B.
The three tests for controllability of system (2.5) is given by the following theorem.
Theorem For the continuous time system (2.5), the followings are equivalent:

1. The system is controllable over the interval [0, T ], for some T > 0.

2. The system is controllable over any interval [t0 , t1 ] with t1 > t0 .

3. The reachability grammian,

Z T
Wr,T := Φ(T, t)B(t)B(t)T Φ(T, t)T dt
0
Z T
eAt BB ∗ eA t dt
∗
=
0

is full rank n. (This test works for time varying systems also)

4. The controllability matrix

C := B AB A2 B · · · An−1 B

has rank n. Notice that the controllability matrix has dimension n × nm where m is the
dimension of the control vector u.

5. (Belovich-Popov-Hautus test) For each s ∈ C, the matrix,

sI − A B

has rank n.
Note that rank of (sI − A, B) is less than n only if s is an eigenvalue of A.

We need the Cayley-Hamilton Theorm to prove this result:

Theorem 2.6.1 (Cayley Hamilton) Let A ∈ ℜn×n . Consider the polynomial

∆(s) = det(sI − A)

Then ∆(A) = 0.
Notice that if λi is an eigenvalue of A, then ∆(λi ) = 0.

Proof: This is true for any A, but is easy to see using the eigen decomposition of A when A is
semi-simple.
A = T ΛT −1
where Λ is diagonal with eigenvalues on its diagonal. Since ψ(λi ) = 0 by definition,

∆(A) = T ψ(Λ)T −1 = 0.
Proof: Controllability test
(1) ⇐⇒ (3): We have already seen before that controllability over the interval [0, T ] means that
the range space of the reachability map,
Z T
Lr (u) = eA(T −τ ) Bu(τ )dτ
0

must be the whole state space, ℜn . Notice that

Z T
eAt BB ∗ eA t dt = Lr L∗r
∗
Wr,T :=
0

where L∗r is the adjoint (think transpose) of Lr .

From the finite rank linear map theorem, R(Lr ) = R(Lr L∗r ) but, Lr L∗r is nothing but Wr,T .
(3) ⇒ (4): We will show this by showing “not (4) ⇒ not (3)”. Suppose that (4) is not true.
Then, there exists a 1 × n vector v T so that,

v T B = v T AB = v T A2 B · · · = v T An−1 B = 0.

Consider now,
Z T
T
v Wr,T v = kv T eAt Bk22 dt.
0
Since
A2 t2 An−1 tn−1
eAt = I + At + + + ···
2 n − 1!
and by the Cayley Hamilton Theorem, Ak is a linear combination of I, A, ... An−1 , therefore,

v T eAt B = 0

for all t. Hence, v T Wr,T v = 0 or Wr,T is not full rank.

(3) ⇒ (2): We will show this by showing “not (2) ⇒ not (3)”. If (2) is not true, then there
exists 1 × n vector v T so that
Z T
T
v Wr,T v = kv T eAt Bk22 dt = 0.
0

Because eAt is continuous in t, this implies that v T eAt B = 0 for all t ∈ [0, T ] .
Hence, the all time derivatives of v T eAt B = 0 for all t ∈ [0, T ]. In particular, at t = 0,

v T eAt B |t=0 = v T B = 0
d
v T eAt B |t=0 = v T AB = 0
dt
d 2
v T 2 eAt B |t=0 = v T A2 B = 0
dt
..
.
dn−1 At
vT e B |t=0 = v T An−1 B = 0
dtn−1
Hence,



v T B AB A2 B · · · An−1 B = 0 0 · · · 0
i.e. the controllability matrix of (A, B) is not full rank.

(4) ⇒ (5): We will show “ not (5) implies not (4)”. Suppose (5) is not true so that there exists a
1 × n vector v, and λ ∈ C,
v T (λI − A) = 0, v T B = 0.
for some λ. Then v T A = λv T , v T A2 = λ2 v T etc. Because v T B = 0 by assumption, we have
v T AB = λv T B = 0, v T A2 B = λ2 v T B = 0 etc. Hence,

v T B = v T AB = v T A2 B = · · · v T An−1 B = 0.

Therefore the controllability is not full rank.

The proof of (4) ⇒ (3) requires the 2nd representation theorem, and we shall leave it afterward.
Note that (2) ⇒ (1) is obvious. To see that (1) ⇒ (2), notice that the controllability matrix C
does not depend on T , so controllability does not depend on duration of time interval. Since the
system is time invariant, it does not depend on the initial time (t0 ). ⋄

Proof of (4) ⇒ (3) - Optional

To prove (4) ⇒ (3), we need the so called 2nd Representation Theorem. It is included here for
completeness. We will not go through this part.
Definition Let A : ℜn → ℜn and W ⊂ ℜn a subspace with the property that for each w ∈ W ,
Aw ∈ W . We say that W is A−invariant.
Theorem (2nd Representation theorem) Let

• A : ℜn → ℜn is a linear map (i.e. a matrix)

• W ⊂ ℜn be an A−invariant k− dimensional subspace of ℜn .

There exists a nonsingular T = e1 e2 · · · en s.t.

• e1 , · · · , ek form a basis of W ,

• in the basis of e1 , e2 , · · · , en , A is represented by:


Ã11 Ã12
T −1 AT =
0 Ã22

Ã11 ∈ ℜk×k where k = dim W .

• For any vector B ∈ W , the representation of B is given by


B̃
B=T .
0
 The point of the theorem is that A can be put in a form with 0 in strategic locations (Ã21 are
zeros), similarly for any vector B ∈ W (B̃2 are zeros).
Proof: Take e1 , · · · , ek to be a basis of W , and choose ek+1 , · · · en to complete the basis of ℜn .
Because Aei ∈ W for each i = 1, · · · k,
k
X
Aei = αli el .
l=1

Therefore, αli are the coefficients of Ã11 and the coefficients of Ã21 are all zero.
Let B ∈ W , then
X k
B= βl el
l=1

so that βl are simply the coefficients in B̃1 and the coefficients of B̃2 are zeros. ⋄

Proof of (4) ⇒ (3) in controllability test: Notice that

A B AB A2 B · · · An−1 B


= AB A2 B · · · An−1 B An B

therefore, by the Cayley Hamilton Theorem, the range space of the controllability matrix is A−
invariant.
Suppose that (3) is not true, so that the rank of


B AB A2 B · · · An−1 B

is less than n. Since the controllability matrix is A-invariant, by the 2nd representation theorem,
there is an invertible matrix T so that in the new coordinates, z = T −1 x,

Ã11 Ã12 B̃
ż = z+ u (2.6)
0 Ã22 0

B̃
where B = T , and
0

Ã11 Ã12
A=T T −1 .
0 Ã22
and the dim of Ã22 is non-zero (it is n - rank(C) ).
Let v2T be a left eigenvector of Ã22 so that

v2T (λI − Ã22 ) = 0

for some λ ∈ C. Define v T := 0 v2T T −1 . Evaluating v T B, v T (λI − A) gives

T T

−1 B̃
v B = 0 v2 T T =0
0


v T (λI − A) = λ 0 v2T T −1 (λT T −1 − T ÃT −1 )


= 0 v2T (λI − Ã)T −1 = 0.

This shows that [λI − A, B] has rank less than n.

Remarks:
 1. Notice that the controllability matrix is not a function of the time interval. Hence, if a LTI
system is controllable over some interval, it is controllable over any (non-zero) interval. c.f.
with result of linear time varying system.

2. Because of the above fact, we often say that the pair (A, B) is controllable.

3. Controllability test can be done by just examining A and B without computing the grammian.
The test in (4) is attractive in that it enumerates the vectors in the controllability subspace.
However, numerically, since it involves power of A, numerical stability needs to be considered.

4. The PBH Test in (5), or the Hautus test for short, involves simply checking the condition at
the eigenvalues. It is because for (sI −A, B) to have rank less than n, s must be an eigenvalue.

5. The range space of the controllability matrix is of special interests. It is called the control-
lable subspace and is the set of all states that can be reached from zero-initial condition.
This is A− invariant.

6. Using the basis for the controllable subspace as part of the basis for ℜn , the controllability
property can be easily seen in (2.6).

2.7 Time invariant discrete time system

x(k + 1) = Ax(k) + Bu(k)

y(k) = Cx(k) (2.7)

where x ∈ ℜn , u ∈ ℜm .
For discrete time system (2.7), the conditions for controllability is fairly similar except that we
need to consider controllability over period of length greater than n.
Theorem For the discrete time system (2.7), the followings are equivalent:
1. The system is controllable over the interval [0, T ], with T ≥ n (i.e. it can transfer from any
arbitrary state at k = 0 to any other arbitrary state at k = T ).

2. The system is controllable over the interval [k0 , k1 ], with k1 − k0 ≥ n

3. The controllability grammian,

T
X −1
Wr,T := Al BB ∗ A∗l
l=0
is full rank n.

4. The controllability matrix

B AB A2 B · · · An−1 B
has rank n. Notice that the controllability matrix has dimension n × nm where m is the
dimension of the control vector u.

5. For each z ∈ C, the matrix,

zI − A B
has rank n.
Proof: The proof of this theorem is exactly analogous to the continuous time case. However, in
the case of the equivalence of (2) and (3), we can notice that
 
u(k − 1)
u(k − 2)
x(k) = Ak x(0) + [B, AB, A2 B, · · · An−1 B]
 
.. 
 . 
u(0)

so clearly one can transfer to arbitrary states at k = n iff the controllability matrix is full rank.
Controllability does not improve for T > n is again the consequence of Cayley Hamilton Theorem. ⋄

2.8 Observability
The observability question deals with the question not knowing the initial state, whether one can
determine the state from the input and output. This is equivalent to the question of whether one
can determine the initial state x(0) is given the input u(t), t ∈ [0, T ] and the output y(t), t ∈ [0, T ].

Definition 2.8.1 A state determined dynamical system is called observable on [t0 , t1 ] if for all
inputs, u(τ ), and outputs y(τ ), τ ∈ [t0 , t1 ], the state x(t0 ) = x0 can be uniquely determined.
For observability, the null space of the observability map on the interval [t0 , t1 ], given by:

Lo : x0 7→ y(·) = C(·)Φ(·, t0 )x0 , y(τ ) = C(τ )Φ(τ, t0 )x0 Φ(τ, 0)x, ∀τ ∈ [t0 , t1 ]

must be trivial (i.e. only contains 0). Otherwise, if Lo (xn )(t) = y(t) = 0, for all t ∈ [0, T ], then for
any α ∈ ℜ,
y(t) = C(t)Φ(t, 0)x = Φ(t, 0)(x + αxn ).
Recall from the finite rank theorem that if the observability map Lo is a matrix, then the null
space of Lo , N (Lo ) = N (LTo Lo ). For continuous time system, Lo can be thought of as an infinitely
long matrix, then the matrix product operation in LTo Lo becomes an integral, and is written as
L∗o Lo where L∗ denotes the adjoint of the L.
The observability Grammian is given by:
Z t1
∗
Wo,[t0 ,t1 ] = Lo Lo = Φ(t, t0 )T C T (t)C(t)Φ(t, t0 ) ∈ ℜn×n
t0

where L∗o is the adjoint (think transpose) of the observability map.

2.9 Least square estimation

2.9.1 Formulation and solution
Continuous time varying system:

ẋ(t) = A(t)x(t) y(t) = C(t)x(t)

Observability map on [0, t1 ]: ∀τ ∈ [0, t1 ]

Lo : x(0) 7→ y(τ ) = C(τ )Φ(τ, 0)x(0)

Least squares estimate of x(0) given y(τ ), τ ∈ [0, t1 ].
Z t1
x̂(0|t1 ) = arg minx0 eT (τ )e(τ )dτ.
0

Solution for matrix case is:

Y = Lo x0 + E;
x∗o = argminx0 E T E = (LTo Lo )−1 LTo Y

The resulting E satisfies E T Lo = 0, i.e. E is normal to Range(Lo ).

Z t1
x̂(0|t1 ) = Wo−1 (t1 ) ΦT (τ, 0)C T (τ )y(τ )dτ
0
Z t1
Wo (t1 ) = L∗o Lo = ΦT (τ, 0)C T (τ )C(τ )Φ(τ, 0)dτ.
0

One can also find estimates for:

x̂(t2 |t1 ) = Φ(t2 , 0)x̂(0|t1 )

• t2 < t1 : Filtering problem

• t2 > t1 : Prediction problem

• t2 = t1 : Observer problem

Estimate x̂(t|t) allows us to effective do state feedback control.

2.9.2 Recursive Least Squares Observer

Z t
x̂(t|t) = Φ(t, 0)Wo−1 (t) ΦT (τ, 0)C T (τ )y(τ )dτ
0
Z t
Wo (t) = L∗o Lo = ΦT (τ, 0)C T (τ )C(τ )Φ(τ, 0)dτ.
0

Find x̂(t|t) recursively via a differential equation.

Z t
d −1
x̂(t|t) = A(t) Φ(t, 0)Wo (t) ΦT (τ, 0)C T (τ )y(τ )dτ
dt 0
| {z }
x̂(t|t)
Z t
d −1
+ Φ(t, 0) W (t) ΦT (τ, 0)C T (τ )y(τ )dτ
dt o 0
+ Φ(t, 0)Wo−1 (t)ΦT (t, 0)C T (t)y(t)

Now by differentiating Wo (t)Wo−1 (t) = I, we have:

d −1 dWo
W (t) = −Wo−1 (t) (t)Wo−1 (t)
dt o dt
where
d
Wo (t) = ΦT (t, 0)C T (t)C(t)Φ(t, 0)
dt

d
x̂(t|t) = A(t)x̂(t|t)
dt
− Φ(t, 0)Wo−1 (t)ΦT (t, 0)C T (t)C(t)x̂(t|t)
+ Φ(t, 0)Wo−1 (t)ΦT (t, 0)C T (t)y(t)
=A(t)x̂(t|t)
− Φ(t, 0)Wo−1 (t)ΦT (t, 0) C T (t)[C(t)x̂(t|t) −y(t)]
| {z } | {z }
P (t) ŷ(t|t)

P (t) satisfies:
Ṗ (t) = A(t)P (t) + P (t)AT (t) − P (t)C T (t)C(t)P (t)

Initialize P (0) to be a large non-singular matrix, e.g. P (0) = α · I, where α is large.

The observer feedback gain is:
L(t) = P (t)C T (t)

2.9.3 Covariance Windup

Z t −1
T T
P (t) = Φ(t, 0) Φ (τ, 0)C (τ )C(τ )Φ(τ, 0)dτ ΦT (t, 0)
0
Z t −1
T T
= Φ (τ, t)C (τ )C(τ )Φ(τ, t)dτ =: K −1 (t)
0

The matrix K(t) := P −1 (t) is known as the Information Matrix and satisfies:

K̇ = C T (t)C(t) − AT (t)K(t) − K(t)A(t)

Notice that K(t) = P (t) is a non-decreasing matrix function, i.e. for any x ∈ ℜn ,

d T
x K(t)x ≥ 0.
dt

Specifically, the minimum singular value of the K(t) will be non-decreasing, or the maximum
singular value of P (t) will be non-increasing. In most cases, for some x, y ∈ ℜn ,

xT K(t)x → ∞; y T P (t)y → 0.

This means that the observer gain L(t) will decrease. The observer will asypmtotically rely more
and more on open loop estimation:

d
x̂(t|t) = A(t)x̂(t|t)
dt
2.9.4 Forgetting factor
Forget old information (τ far away from current time): Choose λ > 0:
Z t
K(t) = ΦT (τ, t)C T (τ )C(τ )Φ(τ, t)e−λ(t−τ ) dτ ;
0

K̇ = C T (t)C(t) − AT (t)K(t) − K(t)A(t) − λK

2.9.5 Covariance reset

If K(t) becomes large, reset it to small number.

• Check maximum singular value of K(t), σ̄K(t).

• If σ̄K(t) ≥ λmax , K(t) = ǫI, i.e. P (t) = I/ǫ.

2.10 Observability Tests

The observability question deals with the question of whether one can determine what the initial
state x(0) is, given the input u(t), t ∈ [0, T ] and the output y(t), t ∈ [0, T ].
For observability, the null space of the observability map,

Lo : x 7→ y(·) = Φ(·, 0)x, τ ∈ [0, T ],

must be trivial (i.e. only contains 0). Otherwise, if Lo (xn )(t) = y(t) = 0, for all t ∈ [0, T ], then for
any α ∈ ℜ,
y(t) = Φ(t, 0)x = Φ(t, 0)(x + αxn ).

Just like for controllability, it is inconvenient to check the rank (and the null space) of the
Lo which is tall and thin. We can instead check the rank and the null space of the observability
grammian given by:
Wo,T = L∗o Lo

where L∗o is the adjoint (think transpose) of the observability map.

Proposition 2.10.1 Null(Lo ) = Null(L∗o Lo ).

Proof:

• Let x ∈ Nul(Lo ) so, Lo x = 0. Then, clearly, LTo Lo x = LT 0. Therefore, Null(Lo ) ⊂

Null(L∗o Lo ).

• Let x ∈ Nul(L∗o Lo ). Then, xT L∗o Lo x = 0. Or, (Lo x)T (Lo x) = 0. This can only be true if
Lo x = 0. Therefore, Null(L∗o Lo ) ⊂ Null(Lo ).

⋄
2.11 Observability Tests for LTI systems
Theorem For the LTI continuous time system (2.5), the followings are equivalent:

1. The system is observable over the interval [0, T ]

2. The observability grammian,

Z T
eA t C ∗ CeAt dt
∗
Wo,T :=
0

is full rank n.
 
C

 CA 


3. The observability matrix  CA2
 has rank n. Notice that the observability matrix has
 ..
 .
CA n−1

dimension np × n where p is the dimension of the output vector y.

4. For each s ∈ C, the matrix,

sI − A
C
has rank n.

Proof: The proof is similar to the ones as in the controllable case and will not be repeated here.
Some differences are that instead of considering 1 × n vector v T multiplying on the left hand sides
of the controllability matrix and the grammians, we consider n × 1 vector multiplying on the RHS
of the observability matrix and the grammian etc.
Also instead of considering the range space of the controllability matrix, we consider the NULL
space of the observability matrix. Its null space is also A-invariant. Hence if the observability
matrix is not full rank, then using basis for its null space as the last k basis vectors of ℜn , the
system can be represented as:

Ã11 0 B̃1
ż = z+ u
Ã21 Ã22 B̃2


y = C̃ 0 z


where C = C̃ 0 T −1 , and

Ã11 Ã12
A=T T −1 .
0 Ã22

and the dim of Ã22 is non-zero (and is the dim of the null space of the observability matrix). ⋄

Remark

1. Again, observability of a LTI system does not depend on the time interval. So, theoretically
speaking, if observing the output and input for an arbitrary amount of time will be sufficient
to figure out x(0). In reality, when more data is available, one can do more averaging to
eliminate effects of noise (e.g. using the Least square ie. Kalman Filter approach).
 2. The subspace of particular interest is the null space of the controllability matrix. An initial
state lying in this set will generate identically 0 zero-input response. This subspace is called
the UNOBSERVABLE SUBSPACE.

3. Using the basis of the unobservable subspace as part of the basis of ℜn , the observability
property can be easily seen.

The tests for observability of the discrete time system (2.7) is given similarly by the following
theorem.

Theorem 2.11.1 For the discrete time system (2.7), the followings are equivalent:

1. The system is observable over the interval [0, T ], for some T ≥ n.

2. The observability grammian,

T
X −1
Wo,T := A∗k C ∗ CAk
k=0

is full rank n.
 
C

 CA


3. The observability matrix  CA2

 has rank n. Notice that the observability matrix has
 ..

 .

CA n−1

dimension np × n where p is the dimension of the output vector y.

4. For each z ∈ C, the matrix,


zI − A
C
has rank n.

The controllability matrix can have the following interpretation: zero-input response is given
by:
   
y(0) C

 y(1)  
  CA 


 y(2)  
= CA2 
x(0).
 ..   .. 
 .   . 
y(n − 1) CAn−1

Thus, clearly if the observability matrix is full rank, one can reconstruct x(0) from measurements
of y(0), · · · , y(n − 1).

2.12 PHB test and Jordan Form

Consider
ẋ = Ax + Bu, y = Cx
 Suppose that A = T −1 JT and J is in Jordan form,
 
λ1 1 0 0
 0 λ1 0 0 
J = 
 0 0 λ1 0 
0 0 0 λ2

This Jordan form has 3 generalized eigenvector chains.

Controllability

• From homework, we saw that if the entries of B ∈ ℜ4 at the beginning of some chain is 0,
i.e..      
b1 b1 b1
 b2 

b2 , T −1 B =  0 
   
T −1 B = 
b3 , T −1
B = 0 b3
0 b4 b4
then the system is uncontrollable.

• Thus, T −1 B being nonzero at the beginning of each chain is a necessary condition for con-
trollability.

• PBH test shows that it is in fact a sufficient condition.

Observability

• Similarly, if C · T ∈ ℜ1×n is a zero entry at the end of any chain (these correspond to the
coordinates for the eigenvector), i.e.



CT = 0 c2 c3 c4 , CT = c1 c2 0 c4 ,


or, CT = c1 c2 c3 0

then we saw from the homework that the system is not observable.

• Hence, CT having non-zero entries at the end of each chain is necessary for observability.

• PHB test shows that it is also sufficient.

Note If the system is either uncontrollable or unobservable, then the order of the transfer
function will be less than the order of A.
However, for a multi-input-multi-output system, the fact that the order of each transfer function
in the transfer function matrix has order less than the order of A, does NOT imply that the system
is uncontrollable or unobservable. e.g.

−1 0 1 0
A= B=C=
0 −2 0 1

gives,
 1
s+1 0
Y (s) = 1 U (s).
0 s+2
2.13 Kalman Decomposition
2.13.1 Controllable / uncontrollable decomposition
Suppose that the controllability matrix C ∈ ℜn×n of a system has rank n1 < n. Then there exists
an invertible transformation, T ∈ ℜn×n such that:

z = T −1 x,

Ã11 Ã12 B̃
ż = z+ u (2.8)
0 Ã22 0

B̃
where B = T , and
0

Ã11 Ã12
A=T T −1 .
0 Ã22
and the dim of Ã22 is n − n1 .

2.13.2 Observable / unobservable decomposition

Hence if the observability matrix is not full rank, then using basis for its null space as the last k
basis vectors of ℜn , the system can be represented as:

Ã11 0 B̃1
ż = z+ u
Ã21 Ã22 B̃2


y = C̃ 0 z


where C = C̃ 0 T −1 , and

Ã11 Ã12
A=T T −1 .
0 Ã22
and the dim of Ã22 is non-zero (and is the dim of the null space of the observability matrix).

2.13.3 Kalman decomposition

The Kalamn decomposition is just the combination of the observable/unobservable, and the con-
trollable/uncontrollable decomposition.

Theorem 2.13.1 There exists a coordinate transformation z = T −1 x ∈ ℜn such that

   
Ã11 0 Ã13 0 B̃1
Ã21 Ã22 A23 A24  B̃2 
ż = 
 0
z +  u
0 Ã33 0  0
0 0 Ã43 Ã44 0


y = C̃1 0 C̃2 0 z


Let T = T1 T2 T3 T4 (with compatible block sizes), then
• T2 → (C − Ō): T2 = basis for Range(C) ∩ Null(O).

• T1 → (C − O): T1 ∪ T2 = basis for Range(C)

 • T4 → (C̄ − Ō): T2 ∪ T4 = basis for Null(O).

• T3 → (C̄ − O): T1 ∪ T2 ∪ T3 ∪ T4 = basis for ℜn .

Note: Only T2 is uniquely defined.
Proof: This is just combination of the obs/unobs and cont/uncont decomposition. ⋄

2.13.4 Stabilizability and Detectability

If the uncontrollable modes Ā33 , Ā44 are stable (have eigenvalues on the Left Half Plane), then,
system is called stabilizable.
• One can use feedback to make the system stable;

• Uncontrollable modes decay, so not an issue.

If the unobservable modes Ā22 , Ā44 are stable (have eigenvalues on the Left Half Plane), then,
system is called detectable.
• The states z2 , z4 decay to 0

• Eventually, they will have no effect on the output

• State can be reconstructed by ignoring the unobservable states (eventually).

2.14 Realization
2.14.1 Degree of controllability / observability
Formal definitions are black and white.
• Degree of controllability and observability can be evaluated by the sizes of Wr and Wo with
infinite time horizon:
Z T
T
Wr (0, ∞) = lim eA(T −τ ) BB T eA (T −τ ) dτ
T →∞ 0
Z ∞
T
= eAt BB T eA t dt
0
Z T
T
Wo (0, ∞) = lim eA τ C T CeAτ dτ
T →∞ 0

• Wr satisfies differential equation:

d
Wr (0, t) = AWr (0, t) + Wr (0, t)AT + BB T
dt

• If all eigenvalues of A have strictly negative real parts (i.e. A is stable), then, as T → ∞,

0 = AWr + Wr AT + BB T

• Similarly, if A is stable, as T → ∞,

0 = AT W o + W o A + C T C
 • Minimum norm control: To reach x(0) = x0 from x(−∞) = 0 in infinite time,

u = LTr Wc−1 x0
Z 0
minu(·) J(u) = minu(·) uT (τ )u(τ )dτ = xT0 Wc−1 x0 .
−∞

• If state x0 is difficult to reach, then xT0 Wc−1 x0 is large ⇒ practically uncontrollable.

• Signal in an initial state, if x(0) = x0 , then, with u(τ ) ≡ 0

Z ∞
y T (τ )y(τ )dτ = xT0 Wo x0 .
0

• If xT0 Wo x0 is small, the signal of x0 in the output y(·) is small, thus, it is hard to observe ⇒
practically unobservable.

• Generally, one can look at the smallest eigenvalues Wc and Wo , the span of the associated
eigenvectors will be difficult to control, or difficult to observe.

2.14.2 Relation to Transfer Function

For the system

ẋ = Ax + Bu
y = Cx + Du

The transfer function from U (s) → Y (s) is given by:

G(s) = C(sI − A)−1 B + D

Cadj(sI − A)B
= + D.
det(sI − A)
Note that transfer function is not affected by similarity transform.
From Kalman decomposition, it is obvious that

G(s) = C̃1 (sI − Ã11 )−1 B̃1 + D

where Ã11 , B̃1 , C̃1 correspond to the controllable and observable component.
Poles
• they are values of s ∈ C s.t. G(s) becomes infinite.

• poles of G(s) are clearly the eigenvalues of Ã11 .

Zeros
• For the SISO case, z ∈ C (complex numbers) is a zero if it makes G(z) = 0.

• Thus, zeros satisfy

Cadj(zI − A)B + Ddet(zI − A) = 0
assuming system is controllable and observable, otherwise, need to apply Kalman decompo-
sition first.
 • In the general MIMO case, a zero implies that there can be non-zero inputs U (s) that produce
output Y (s) that is identically zero. Therefore, there exists X(z), U (z) such that:

zI − A X(z) = B U (z)
0 = C X(z) + D U (z)

This will be true if and only if at s = z


sI − A −B
rank
−C −D

is less than the normal rank of the matrix at other s.

We shall return to the multi-variable zeros when we discuss the effect of state feedback on the zero
of the system.

2.14.3 Pole-zero cancellation

Cascade system with input/output (u1 , y2 ):
• System 1 with input/output (u1 , y1 ) has a zero at α and a pole at β.

ẋ1 = A1 x1 + B1 u1
y1 = C1 x1

• System 2 with input/output (u2 , y2 )has a pole at α and a zero at β.

ẋ2 = A2 x2 + B2 u2
y2 = C2 x2

• Cascade interconnection: u2 = y2 .
Then
1. The system pole at β is not observable from y2

2. The system pole at α is not controllable from u1 .

Combined system:

A1 0 B1

A= ; B= ; C= 0 C2
B2 C1 A2 0

x1
Consider x = .
x2
• Use PBH test with λ = β.
 
βI − A1 0
 −B2 C1 βI − A2  x1 = 0???
x2
0 C2

• Let x1 be eigenvector associated with β for A1 .

 • Let x2 = (βI − A2 )−1 B2 C2 x1 (i.e. solve second row in PBH test).

• Then since
Cx = C2 x2 = (C2 (βI − A2 )−1 B2 )C2 x1

and β is a zero of system 2, PHB test shows that the mode β is not observable.

Similar case for α mode in system 2 not controllable by u.

Significance: DO NOT CANCEL OUT UNSTABLE MODES !!!

2.15 Balanced Realization

• Reduce the number of states while minimizing effect on I/O response (transfer function)

• State equations from distributed parameters system, P.D.E. via finite elements methods, etc.
generate many states.

• If unobservable and uncontrollable ⇒ remove.

• What about lightly controllable, lightly observable states?

Issues:

• States can be lightly controllable, but heavily observable.

• States can be lightly observable, but heavily controllable.

• Both contribute to significant component to input/output (transfer function) response.

Idea: Exhibit states so that they are simultaneously lightly (heavily) controllable and observ-
able.
Consider a stable system:

ẋ = Ax + Bu
y = Cx + Du

If A is stable, reachability and observability grammians can be computed by solving the Lya-
punov equations:

0 = AWr + Wr AT + BB T
0 = AT Wo + Wo A + C T C

• If state x0 is difficult to reach, then xT0 Wr−1 x0 is large ⇒ practically uncontrollable.

• If xT0 Wo x0 is small, the signal of x0 in the output y(·) is small, thus, it is hard to observe ⇒
practically unobservable.

• Generally, one can look at the smallest eigenvalues Wr and Wo , the span of the associated
eigenvectors will be difficult to control, or difficult to observe.
 Transformation of grammians: (beware of which side T goes !):

z = Tx

Minimum norm control should be invariant to coordinate transformation:

xT0 Wr−1 x0 = z T Wr,z

−1
z = xT T T Wr,z
−1
Tx

Therefore
Wr−1 = T T Wr,z
−1
T ⇒ Wr,z = T · Wr T T .
Similarly, the energy in a state transmitted to output should be invariant:

xT Wo x = zWo,z z ⇒ Wo,z = T −T Wo T −1 .

Theorem 2.15.1 (Balanced realization) If the linear time invariant system is controllable and
observerable, then, there exists an invertible transformation T ∈ ℜn×n s.t. Wo,z = Wr,z .

The balanced realization algorithm:

1. Compute controllability and observability grammians:

>> Wr = gram(sys, ’c’);

>> Wo = gram(sys, ’o’)

2. Write Wo = RT R [One can use SVD]

>> [U,S,V]=svd(Wo );
>> R = sqrtm(S)*V’;

3. Diagonalize RWr RT [via SVD again]:

RWr RT = U Σ2 U T ,

where U U T = I and Σ is diagonal.

>> [U1 ,S1 ,V1 ]=svd(R*Wr *R’);

>> Σ = sqrtm(S1 ’;
1
4. Take T = Σ− 2 U T R
>> T = inv(sqrtm(Σ))*U1 ’*R;

5. This gives Wr,z = Wo,z = Σ.

>> Wr,z = T ∗ Wr ∗ T ′ ,
>> Wo,z = inv(T )′ ∗ Wo ∗ inv(T )

Proof: Direct substitution!

• Once Wr,z and Wo,z are diagonal, and equal, one can decide to eliminate states that correspond
to the smallest few entries.
 • Do not remove unstsable states from the realization since these states need to be controlled
(stabilized)

• It is also possible to maintain some D.C. performance.

Consider the system in the balanced realization form:


d z1 A11 A12 z1 B1
= + u
dt 2z A 21 A 22 z 2 B2
y = C1 z2 + C2 z2 + Du

where z1 ∈ ℜn1 and z2 ∈ ℜn2 , and n1 + n2 = n. Suppose that the z1 are associated with the
simultaneously lightly controllable and light observable mode.
Naive trunction - Remove z2 :

ż1 = A11 z1 + B1 u
y = C1 z1 + Du

However, this does not retain the D.C. (steady state) gain from u to y (which is important from
a regulation application point of view).
To maintain the steady state response, instead of eliminating z2 completely, replace z2 by its
steady state value:
In steady state:

ż2 = 0 = A21 z1 + A22 z2∗ + B2 u

⇒z2∗ = −A−1
22 (A21 z1 + B2 u)

This is feasible if A22 is invertible (0 is not an eigenvalue).

Truncation that maintains steady state gain:

ż1 = A11 z1 + A12 z2∗ + B1 u

y = C1 z1 + C2 z2∗ + Du


ż1 = A11 − A12 A−1 −1
22 A21 + B1 − A12 A22 B2 u
| {z } | {z }
Ar Br

y = C1 − C2 A−1 −1
22 A21 z1 + D − C2 A22 B2 u
| {z } | {z }
Cr Dr

So that the truncated system z1 ∈ ℜn1 ,

ż1 = Ar z1 + Br u
y = Cr z1 + Dr u

with have the same steady state response as the original system.
