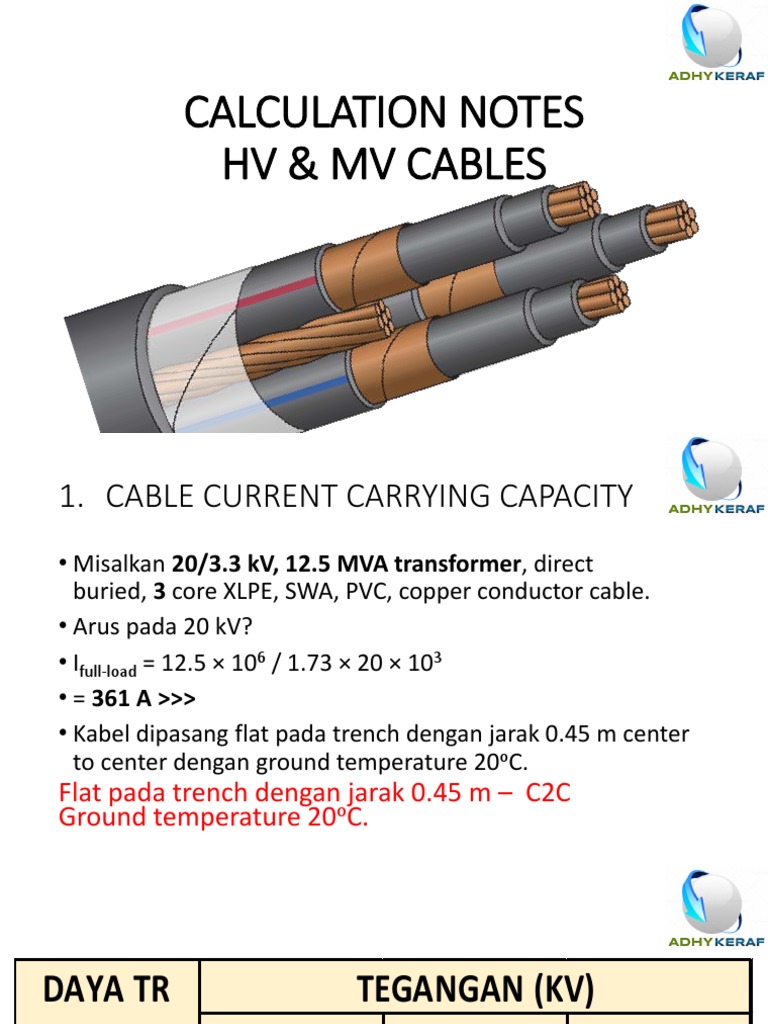

HV & MV CABLES
1. CABLE CURRENT CARRYING CAPACITY
• Misalkan 20/3.3 kV, 12.5 MVA transformer, direct
buried, 3 core XLPE, SWA, PVC, copper conductor cable.
• Arus pada 20 kV?
• Ifull-load = 12.5 × 106 / 1.73 × 20 × 103
• = 361 A >>>
• Kabel dipasang flat pada trench dengan jarak 0.45 m center
to center dengan ground temperature 20oC.
Flat pada trench dengan jarak 0.45 m – C2C
Ground temperature 20oC.
DAYA TR TEGANGAN (KV)
(MVA) 20 150 500
30 866.03 115.47
40 1154.70 153.96
60 230.94
500 1924.50 577.35
600
KABEL NOMENKLATUR
CODE DESCRIPTION
N MV cable according to DIN VDE 0276
A Aluminium (Al) conductor
[blank] Copper (Cu) conductor
2X Cross-linked polyethylene (XLPE) insulation
S Screen of copper wires and copper tape, helically wound
Screen of copper wires and copper tape over each individual core,
SE
helically wound
Y Polyvinyl Chloride (PVC) sheath
2Y Polyethylene (PE) sheath
(F)2Y Longitudinal water tightness with PE sheath
(FL)2Y Longitudinal and transversal water tightness with Al/PE sheath
0.97
DERATING FACTORS BASED ON IEC 60287
