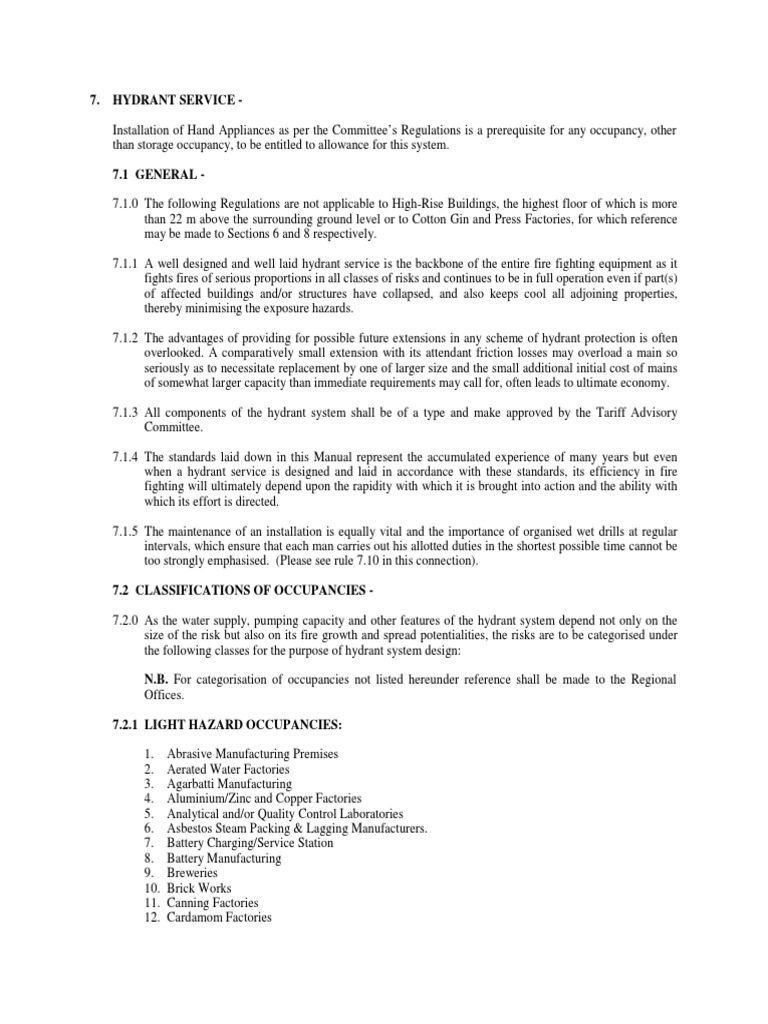

HYDRANT SERVICE -
Installation of Hand Appliances as per the Committee’s Regulations is a prerequisite for any occupancy, other
than storage occupancy, to be entitled to allowance for this system.
7.1 GENERAL -
7.1.0 The following Regulations are not applicable to High-Rise Buildings, the highest floor of which is more
than 22 m above the surrounding ground level or to Cotton Gin and Press Factories, for which reference
may be made to Sections 6 and 8 respectively.
7.1.1 A well designed and well laid hydrant service is the backbone of the entire fire fighting equipment as it
fights fires of serious proportions in all classes of risks and continues to be in full operation even if part(s)
of affected buildings and/or structures have collapsed, and also keeps cool all adjoining properties,
thereby minimising the exposure hazards.
7.1.2 The advantages of providing for possible future extensions in any scheme of hydrant protection is often
overlooked. A comparatively small extension with its attendant friction losses may overload a main so
seriously as to necessitate replacement by one of larger size and the small additional initial cost of mains
of somewhat larger capacity than immediate requirements may call for, often leads to ultimate economy.
7.1.3 All components of the hydrant system shall be of a type and make approved by the Tariff Advisory
Committee.
7.1.4 The standards laid down in this Manual represent the accumulated experience of many years but even
when a hydrant service is designed and laid in accordance with these standards, its efficiency in fire
fighting will ultimately depend upon the rapidity with which it is brought into action and the ability with
which its effort is directed.
7.1.5 The maintenance of an installation is equally vital and the importance of organised wet drills at regular
intervals, which ensure that each man carries out his allotted duties in the shortest possible time cannot be
too strongly emphasised. (Please see rule 7.10 in this connection).
7.2.0 As the water supply, pumping capacity and other features of the hydrant system depend not only on the
size of the risk but also on its fire growth and spread potentialities, the risks are to be categorised under
the following classes for the purpose of hydrant system design:
N.B. For categorisation of occupancies not listed hereunder reference shall be made to the Regional
Offices.
SUB-CATEGORY (A)
1. Aircraft Hangers
2. Aluminium/Magnesium Powder Plants
3. Bituminised Paper and/or Hessian Cloth Manufacturing including Tar Felt Manufacturing.
4. Cotton Waste Factories
5. Coal and/or Coke and/or Charcoal Ball Briquettes Manufacturing.
6. Celluloid Goods Manufacturing.
7. Cigarette Filter Manufacturing.
8. Cinema Films & T.V. Production Studios
9. Collieries.
10. Cotton Seed Cleaning or De-linting Factories.
11. Distilleries.
12. Duplicating and Stencil Paper Manufacturing.
13. Fire-works Manufacturing.
14. Foamed Plastics Manufacturing and/or Converting Plants.
15. Grass, Hay, Fodder & Bhoosa (chaff)
16. Pressing Factories.
17. Jute mills & jute presses
18. LPG Bottling Plants (Mini)*
* Bottling plants having total inventory not exceeding 100 MT of LPG and also bottling a total
quantity of not exceeding 20 MT of LPG per shift of 8 hrs.
SUB-CATEGORY (B)
7.3.1 Water for the hydrant services shall be stored in an easily accessible surface/underground lined reservoir
or above ground tanks of steel concrete or masonry. The effective capacity of the reservoir above the low
water level (defined hereunder), or above the top of the pump casing (in case of flooded suction) if the
same is higher than the low water level, for the various classes of occupancies and size of hydrant
installations shall be as indicated in the table 1.
NOTES –
1. The low water level is a point atleast three times the diameter of the suction pipe above the draw-off
point. (See figs.4, 5 and 6)
2. Large natural reservoirs with water capacity exceeding 10 times the aggregate water requirements of
all Fire Pumps therefrorm may be left un-lined.
7.3.2 Reservoirs of and over 2,25,000 litres capacity shall be in two interconnected equal compartments to
facilitates cleaning and repairs.
7.3.3 The size of the firewater sump shall be such that the smaller side is at least equivalent to six times the
diameter of the largest suction pipe. The suction pipe (s) shall be located along the central longitudinal
axis of the sump and the positioning of the pipes shall be such that no pipe is within a distance of twice
its own diameter from another suction pipe or from the wall of the sump.
7.3.4 Where the Fire pump(s) draw water from the reservoir under suction lift conditions the two compartments
shall be connected to a common sump through sluice or gate valves. The suction arrangement of the Fire
pump (s) shall be as indicated in rule 7.4.1.8, 7.4.1.9, 7.4.1.10 and 7.4.1.12 hereunder.
7.3.5 In case of dual purpose reservoirs catering to fire water and general water requirements the general water
pumps shall draw their supply from a separate sump which shall be connected only to the fire water
sump, the interconnection being so located that the effective quantity (as defined above) of water
available in the reservoir for fire water requirements below the level of the interconnection is atleast
equivalent to the quantities indicated in Table 1. Incoming mains shall be connected to Fire water
Compartments and only overflow of fire water compartments should go to process.
7.3.6 Where the reservoir provides positive suction for the fire pump(s) in terms of the note under rules
7.4.1.11, tapping shall be taken from both the compartments and shall be connected through sluice valves
to a common suction header. The pumps, in turn, shall draw their suction from the common header
through sluice valves. In case of dual purpose reservoirs catering to fire water and general water
requirements, the tapping for the general water pumps shall be taken at a higher level such that the
capacity of the reservoir between the low water level as defined heretofore (or the top of the fire pump
casing in case it is higher than the low water level) and the general water tapping is at least equivalent to
the requirements indicated in Table 1.
TABLE - 1
NOTES –
1. The capacity of the reservoir for ordinary and high hazard class occupancies may be reduced by the
quantum of inflow [of one hour in case of ordinary hazard, 90 minutes in case of high hazard (A) and two
hours in case of high hazard (B) occupancies), from a reliable sources (other than town's main) having prior
approval of the committee, but in no case shall the reservoir capacity be less than 70 % of that mentioned
above.
2. In case of light hazard class occupancies the minimum capacity of the reservoir shall be increased to
2,25,000 litres if the highest floor of the building is more than 15 m above the surrounding ground level.
3. A higher capacity of reservoir than that required as per Table 1 may be stipulated by the Committee where
considered necessary.
