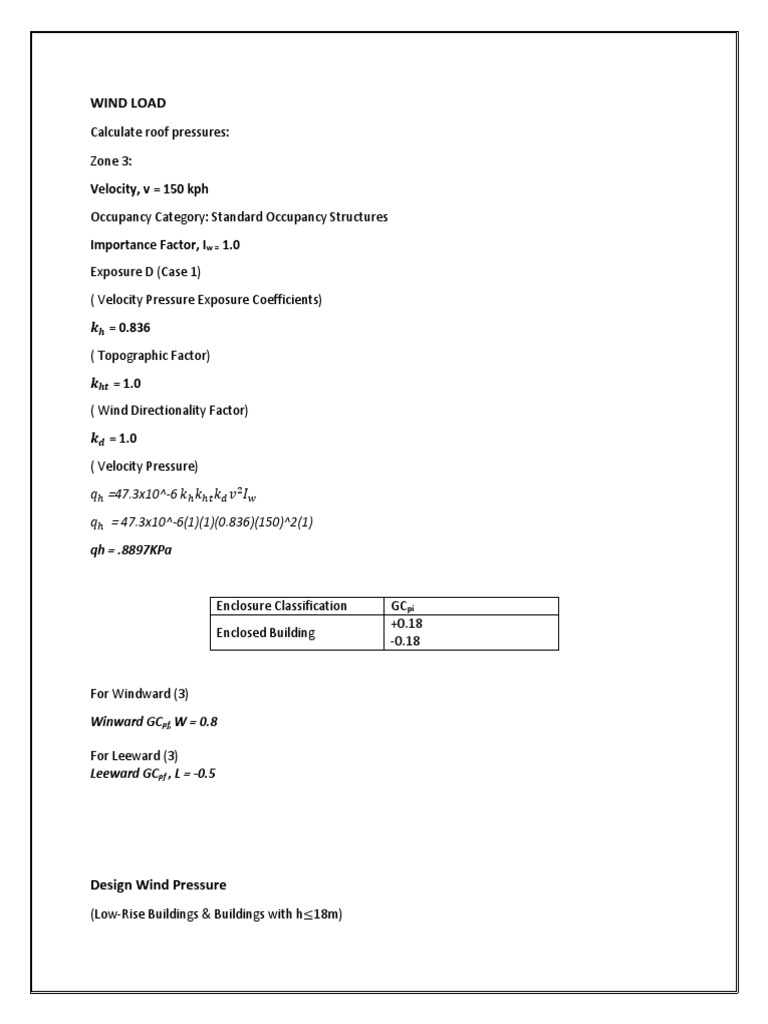

    WIND LOAD

    Calculate roof pressures:

    Zone 3:
    Velocity, v = 150 kph
    Occupancy Category: Standard Occupancy Structures
    Importance Factor, Iw = 1.0
    Exposure D (Case 1)
    ( Velocity Pressure Exposure Coefficients)
    𝒌𝒉 = 0.836
    ( Topographic Factor)
    𝒌𝒉𝒕 = 1.0
    ( Wind Directionality Factor)
    𝒌𝒅 = 1.0
    ( Velocity Pressure)
    𝑞ℎ =47.3x10^-6 𝑘ℎ 𝑘ℎ𝑡 𝑘𝑑 𝑣 2 𝐼𝑤
    𝑞ℎ = 47.3x10^-6(1)(1)(0.836)(150)^2(1)
    qh = .8897KPa

    Enclosure Classification GCpi


    +0.18
    Enclosed Building
    -0.18

    For Windward (3)


    Winward GCpf, W = 0.8

    For Leeward (3)


    Leeward GCpf , L = -0.5

    Design Wind Pressure


    (Low-Rise Buildings & Buildings with h≤18m)
    Calculate wall pressures:
    p = qz [(GCpf) – (GCpi)]

    For Windward For Leeward

    (GCpf) – (GCpi) (GCpf) – (GCpi)


    a.) 0.8 – 0.18 = 0.62 a.) -0.5 – 0.18 = -0.68
    b.) 0.8– (-0.18) = 0.98 b.) -0.5 – (-0.18) = -0.32
    Total= 1.6 Total= -1
    p = .8897(1.6) p = 21008.74(-1)
    p = 1.424KPa p = -0.8897

    For buildings with mean roof height h≤18 meters and sited within exposure B, calculated internal
    pressures shall be multiplied by 0.85

    p = 1.424(0.85) p = -0.8897(0.85)
    p = 1.2104 kPa p = -0.7562kPa
    ROOF -1

    WIND LOAD
    Calculate roof pressures:

    Zone 3:
    Velocity, v = 150 kph
    Occupancy Category: Standard Occupancy Structures
    Importance Factor, Iw = 1.0
    Exposure D (Case 1)
    ( Velocity Pressure Exposure Coefficients)
    = 0.836
    ( Topographic Factor)
    = 1.0
    ( Wind Directionality Factor)
    = 1.0
    ( Velocity Pressure)
    =47.3x10^-6
    = 47.3x10^-6(1)(1)(0.836)(150)^2(1)
    qh = .8897KPa
    Enclosure Classification GCpi

    +0.18
    Enclosed Building
    -0.18

    For Windward (3)


    Winward GCpf, W = 0.8

    For Leeward (3)


    Leeward GCpf , L = -0.5
    Design Wind Pressure
    (Low-Rise Buildings & Buildings with h18m)
    Calculate wall pressures:

    p = qz [(GCpf) – (GCpi)]

    For Windward For Leeward

    (GCpf) – (GCpi) (GCpf) – (GCpi)

    a.) 0.8 – 0.18 = 0.62 a.) -0.5 – 0.18 = -0.68

    b.) 0.8– (-0.18) = 0.98 b.) -0.5 – (-0.18) = -0.32

    Total= 1.6 Total= -1


    p = .8897(1.6) p = -1)
    p = 1.424KPa p = -0.8897

    For buildings with mean roof height h18 meters and sited within exposure B, calculated internal
    pressures shall be multiplied by 0.85

    p = 1.424(0.85) p = -0.8897(0.85)
    p = 1.2104 kPa p = -0.7562kPa
    ROOF -2

    WIND LOAD
    Calculate roof pressures:

    Zone 3:
    Velocity, v = 150 kph
    Occupancy Category: Standard Occupancy Structures
    Importance Factor, Iw = 1.0
    Exposure D (Case 1)
    ( Velocity Pressure Exposure Coefficients)
    = 0.836
    ( Topographic Factor)
    = 1.0
    ( Wind Directionality Factor)
    = 1.0
    ( Velocity Pressure)
    =47.3x10^-6
    = 47.3x10^-6(1)(1)(0.836)(150)^2(1)
    qh = .8897KPa
    Enclosure Classification GCpi

    +0.18
    Enclosed Building
    -0.18

    For Windward (3)


    Winward GCpf, W = 0.8

    For Leeward (3)


    Leeward GCpf , L = -0.5
    Design Wind Pressure
    (Low-Rise Buildings & Buildings with h18m)
    Calculate wall pressures:

    p = qz [(GCpf) – (GCpi)]

    For Windward For Leeward

    (GCpf) – (GCpi) (GCpf) – (GCpi)

    a.) 0.8 – 0.18 = 0.62 a.) -0.5 – 0.18 = -0.68

    b.) 0.8– (-0.18) = 0.98 b.) -0.5 – (-0.18) = -0.32

    Total= 1.6 Total= -1


    p = .8897(1.6) p = -1)
    p = 1.424KPa p = -0.8897

    For buildings with mean roof height h18 meters and sited within exposure B, calculated internal
    pressures shall be multiplied by 0.85

    p = 1.424(0.85) p = -0.8897(0.85)
    p = 1.2104 kPa p = -0.7562kPa
