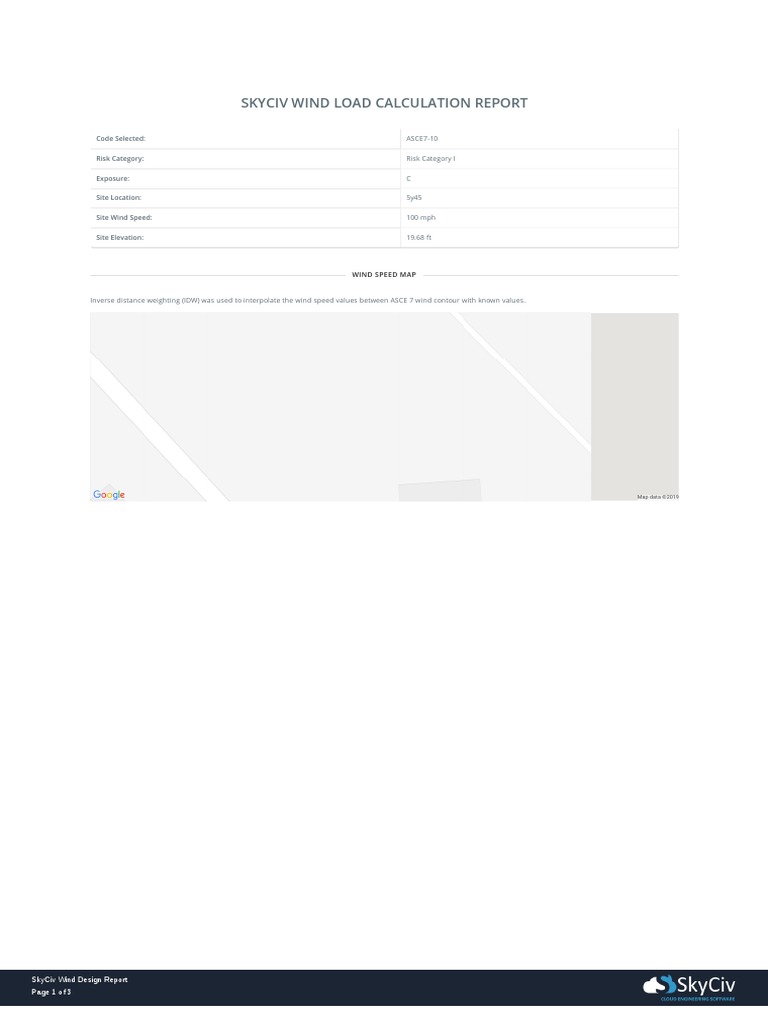

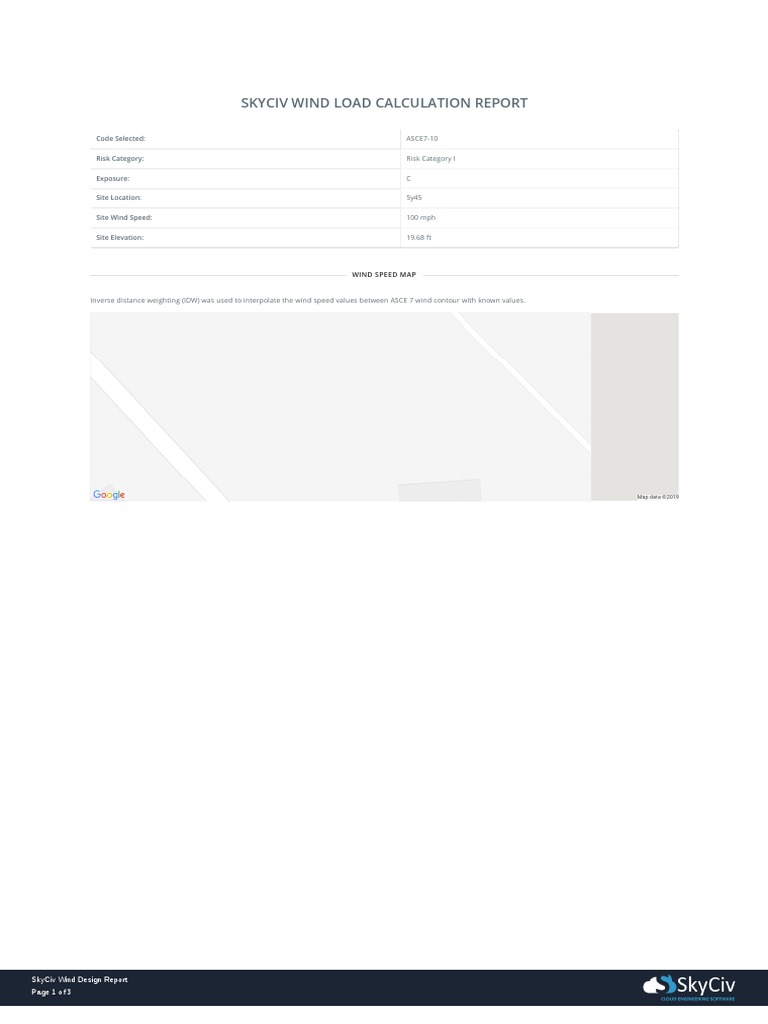

SKYCIV WIND LOAD CALCULATION REPORT

Code Selected: ASCE7-10

Risk Category: Risk Category I

Exposure: C

Site Location: 5y45

Site Wind Speed: 100 mph

Site Elevation: 19.68 ft

WIND SPEED MAP

Inverse distance weighting (IDW) was used to interpolate the wind speed values between ASCE 7 wind contour with known values.

Map data ©2019

SkyCiv Wind Design Report

Page 1 of 3
 STRUCTURE DATA

Parameter Value

Structure Type ASCE 7-10 - Buildings - Main Wind Force Resisting System

Enclosure Classi cation Enclosed Buildings

Roof Pro le Gable/Duopitch

Building Length 102.992 ft

Building Width 53.136 ft

Mean Roof Height 24.6 ft

Roof Pitch Angle 20.2 °

Floor Level Floor Elevation ft

1 29.52

Figure of Structure

Gable Roof

SkyCiv Wind Design Report

Page 2 of 3
 WIND PRESSURE RESULTS

Wind Pressure Along L

Design Pressure psf

Surface Level Elevation ft
pmin = qG(+Cp) - qi(+GC pi) pmax = qG(-Cp) - qi(-GC pi)

Windward Wall 1 29.52 10.82 18.18

Leeward Wall All -9.11 -1.75

Side Wall All -15.85 -8.49

Windward Worst Case -8.83 7.23

Roof
Leeward Worst Case -14.11 -6.75

Wind Pressure Along B

Design Pressure psf

Surface Level Elevation ft
pmin = qG(+Cp) - qi(+GC pi) pmax = qG(-Cp) - qi(-GC pi)

Windward Wall 1 29.52 10.82 18.18

Leeward Wall All -12.37 -5.01

Side Wall All -15.85 -8.49

0 to h/2 -19.33 0.55

h/2 to h -11.97 0.55

Roof Worst Case
h to 2h -5.01 0.55

> 2h -1.53 0.55

Minimum design wind pressure for walls = 16 psf

Minimum design wind pressure for roof = 8 psf

Elevation - Wind along B

Elevation - Wind along L
