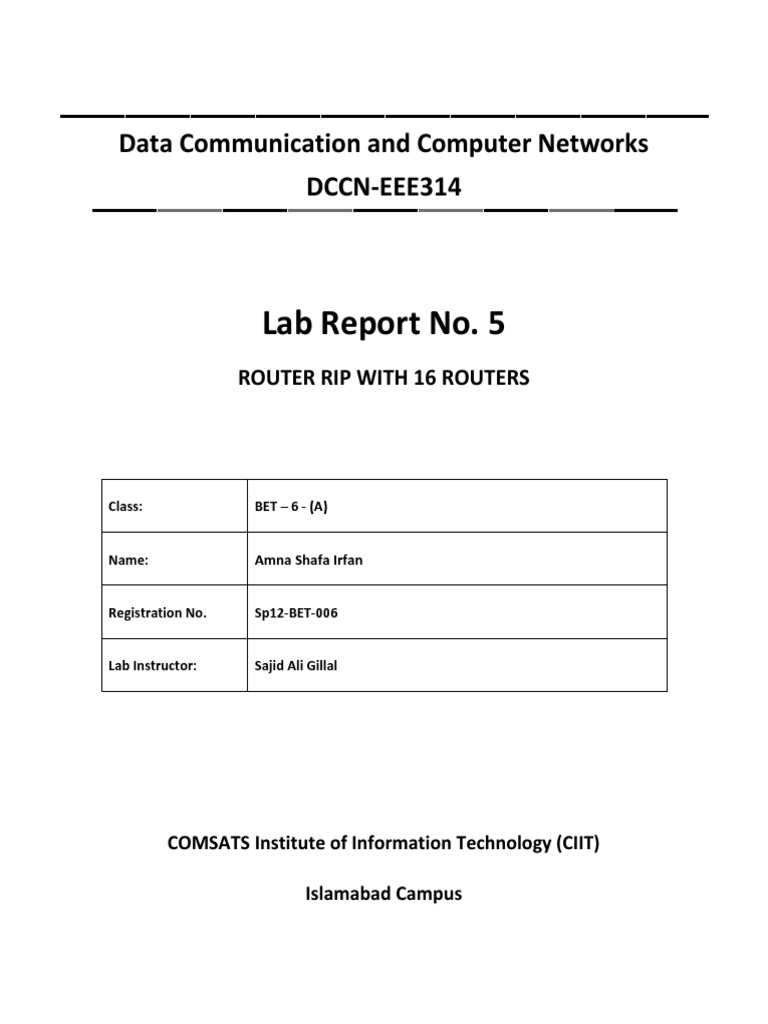

    Data Communication and Computer Networks

    DCCN-EEE314

    Lab Report No. 5


    ROUTER RIP WITH 16 ROUTERS

    Class: BET – 6 - (A)

    Name: Amna Shafa Irfan

    Registration No. Sp12-BET-006

    Lab Instructor: Sajid Ali Gillal

    COMSATS Institute of Information Technology (CIIT)

    Islamabad Campus
    CISCO PACKET TRACER
    PC/LAPTOP CONFIGURATION
    ROUTER CONFIGURATION

    R0
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.1 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.9 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip
    Router(config-router)#network 192.6.6.0

    Router(config-router)#network 192.6.6.8

    Router(config-router)#version 2

    Router(config-router)#exit

    R1
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.11 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to up

    Router(config-if)#exit

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/0, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.17 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.25 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t
    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.8

    Router(config-router)#network 192.6.6.16

    Router(config-router)#network 192.6.6.24

    Router(config-router)#version 2

    Router(config-router)#exit

    R2
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.27 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to up

    Router(config-if)#exit

    Router(config)#interface fastEthernet

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/1, changed state to up

    Router(config-if)#interface fastethernet 0/0

    Router(config-if)#ip address 192.6.6.33 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.41 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to down

    Router(config-if)#exit
    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.24

    Router(config-router)#network 192.6.6.32

    Router(config-router)#network 192.6.6.40

    Router(config-router)#version 2

    Router(config-router)#exit

    R3
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.43 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to up

    Router(config-if)#exit

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/0, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.49 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.57 255.255.255.248

    Router(config-if)#no shut
    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.40

    Router(config-router)#network 192.6.6.48

    Router(config-router)#network 192.6.6.56

    Router(config-router)#version 2

    Router(config-router)#exit

    R4
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.59 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to up

    Router(config-if)#exit

    Router(config)#interface fastEthernet

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/1, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.65 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up


    Router(config-if)#exit

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.73 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.56

    Router(config-router)#network 192.6.6.64

    Router(config-router)#network 192.6.6.72

    Router(config-router)#version 2

    Router(config-router)#exit

    R5
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.75 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to up

    Router(config-if)#exit

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/0, changed state to up

    Router(config-if)#interface fastethernet 0/0

    Router(config-if)#ip address 192.6.6.81 255.255.255.248


    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.89 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.72

    Router(config-router)#network 192.6.6.80

    Router(config-router)#network 192.6.6.88

    Router(config-router)#version 2

    Router(config-router)#exit

    R6
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.91 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to up

    Router(config-if)#exit
    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/1, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.97 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.105 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.88

    Router(config-router)#network 192.6.6.96

    Router(config-router)#network 192.6.6.104

    Router(config-router)#version 2

    Router(config-router)#exit

    R7
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.107 255.255.255.248


    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to up

    Router(config-if)#exit

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/0, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.113 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.121 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.104

    Router(config-router)#network 192.6.6.112

    Router(config-router)#network 192.6.6.120

    Router(config-router)#version 2

    Router(config-router)#exit

    R8
    Router>en

    Router#config t
    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.123 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/1, changed state to up

    Router(config)#exit

    %SYS-5-CONFIG_I: Configured from console by console

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.129 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.137 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.120

    Router(config-router)#network 192.6.6.128

    Router(config-router)#network 192.6.6.136
    Router(config-router)#version 2

    Router(config-router)#exit

    R9

    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.139 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.145 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.153 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip
    Router(config-router)#network 192.6.6.136

    Router(config-router)#network 192.6.6.144

    Router(config-router)#network 192.6.6.152

    Router(config-router)#version 2

    Router(config-router)#exit

    R10
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip ad

    Router(config-if)#ip address 192.6.6.155 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to up

    Router(config-if)#exit

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/1, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.161 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.169 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to down

    Router(config-if)#exit
    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.152

    Router(config-router)#network 192.6.6.160

    Router(config-router)#network 192.6.6.168

    Router(config-router)#version 2

    Router(config-router)#exit

    R11
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.171 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to up

    Router(config-if)#exit

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/0, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.177 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.185 255.255.255.248

    Router(config-if)#no shut
    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.168

    Router(config-router)#network 192.6.6.176

    Router(config-router)#network 192.6.6.184

    Router(config-router)#version 2

    Router(config-router)#exit

    R12
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.187 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to up

    Router(config-if)#exit

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/1, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.193 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit
    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.201 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.184

    Router(config-router)#network 192.6.6.192

    Router(config-router)#network 192.6.6.200

    Router(config-router)#version 2

    Router(config-router)#exit

    R13
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.203 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to up

    Router(config-if)#exit

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/0, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.209 255.255.255.248

    Router(config-if)#no shut
    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.217 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.200

    Router(config-router)#network 192.6.6.208

    Router(config-router)#network 192.6.6.216

    Router(config-router)#version 2

    Router(config-router)#exit

    R14
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/1

    Router(config-if)#ip address 192.6.6.219 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/1, changed state to up

    Router(config-if)#exit
    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/1, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.225 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.233 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to down

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.216

    Router(config-router)#network 192.6.6.224

    Router(config-router)#network 192.6.6.232

    Router(config-router)#version 2

    Router(config-router)#exit

    R15
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface serial 0/0/0

    Router(config-if)#ip address 192.6.6.235 255.255.255.248


    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface Serial0/0/0, changed state to up

    Router(config-if)#exit

    %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0/0, changed state to up

    Router(config)#interface fastEthernet 0/0

    Router(config-if)#ip address 192.6.6.241 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    Router(config-if)#exit

    Router(config)#interface fastEthernet 0/1

    Router(config-if)#ip address 192.6.6.249 255.255.255.248

    Router(config-if)#no shut

    %LINK-5-CHANGED: Interface FastEthernet0/1, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/1, changed state to up

    Router(config-if)#exit

    Router RIP
    Router>en

    Router#config t

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#router rip

    Router(config-router)#network 192.6.6.232

    Router(config-router)#network 192.6.6.240

    Router(config-router)#network 192.6.6.248

    Router(config-router)#version 2

    Router(config-router)#exit

    You might also like
