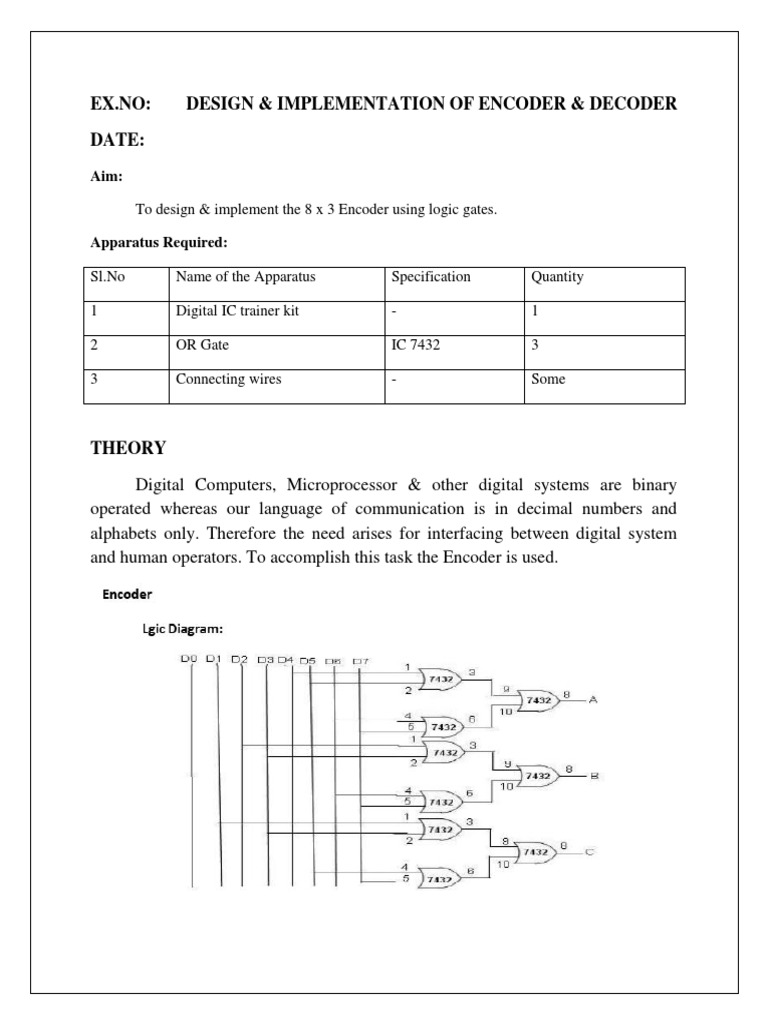

EX.

NO: DESIGN & IMPLEMENTATION OF ENCODER & DECODER

DATE:
Aim:

To design & implement the 8 x 3 Encoder using logic gates.

Apparatus Required:

Sl.No Name of the Apparatus Specification Quantity

1 Digital IC trainer kit - 1

2 OR Gate IC 7432 3

3 Connecting wires - Some

THEORY

Digital Computers, Microprocessor & other digital systems are binary


operated whereas our language of communication is in decimal numbers and
alphabets only. Therefore the need arises for interfacing between digital system
and human operators. To accomplish this task the Encoder is used.
Truth Table

INPUT OUTPUT

D1 D2 D3 D4 D5 D6 D7 A B C

1 0 0 0 0 0 0 0 0 0

0 1 0 0 0 0 0 0 0 1

0 0 1 0 0 0 0 0 1 0

0 0 0 1 0 0 0 0 1 1

0 0 0 0 1 0 0 1 0 0

0 0 0 0 0 1 0 1 0 1

0 0 0 0 0 0 1 1 1 0

0 0 0 0 0 0 0 1 1 1

OUTPUT

A= D4+D5+D6+D7

B= D2+D3+D6+D7

C=D1+D3+D5+D7

PROCEDURE:

RESULT
Thus the 8 x 3 encoder & decoder is constructed and output is verified by using logic
gates.
