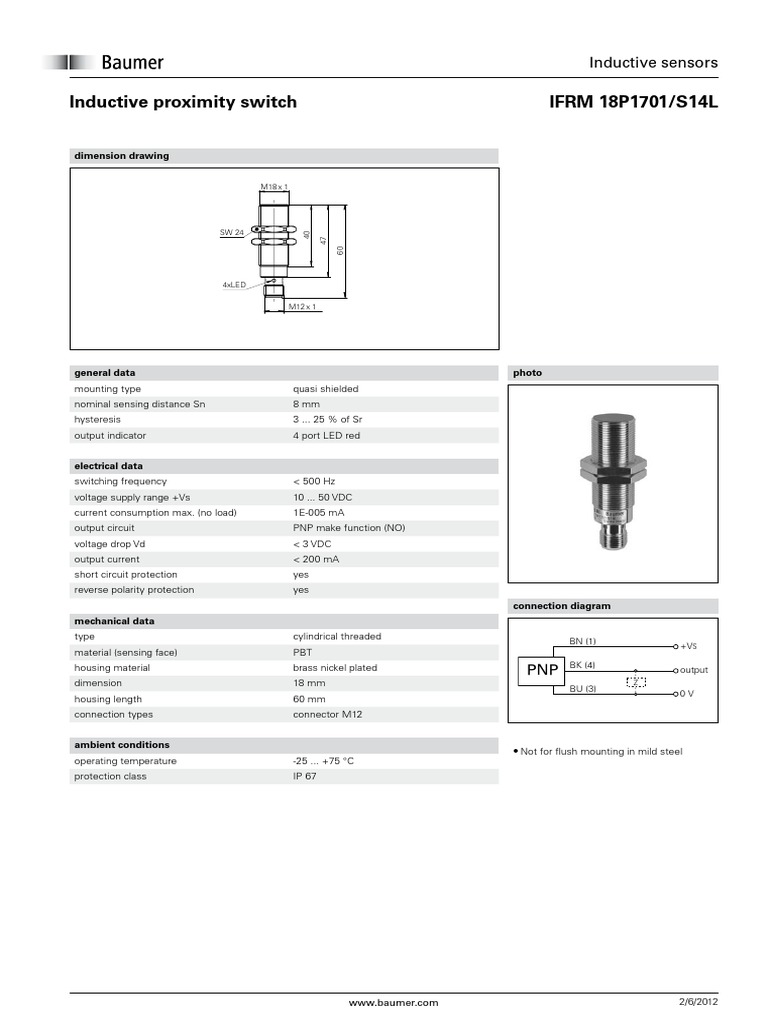

    Inductive sensors

    Inductive proximity switch IFRM 18P1701/S14L

    dimension drawing

    M18 x 1

    SW 24

    40

    47

    60
    4xLED

    M12 x 1

    general data photo


    mounting type quasi shielded
    nominal sensing distance Sn 8 mm
    hysteresis 3 ... 25 % of Sr
    output indicator 4 port LED red

    electrical data
    switching frequency < 500 Hz
    voltage supply range +Vs 10 ... 50 VDC
    current consumption max. (no load) 1E-005 mA
    output circuit PNP make function (NO)
    voltage drop Vd < 3 VDC
    output current < 200 mA
    short circuit protection yes
    reverse polarity protection yes
    connection diagram
    mechanical data
    type cylindrical threaded BN (1) +VS
    material (sensing face) PBT
    BK (4)
    housing material brass nickel plated PNP output
    dimension 18 mm Z
    BU (3)
    0V
    housing length 60 mm
    connection types connector M12

    ambient conditions
    • Not for flush mounting in mild steel
    operating temperature -25 ... +75 °C
    protection class IP 67

    www.baumer.com 2/6/2012
