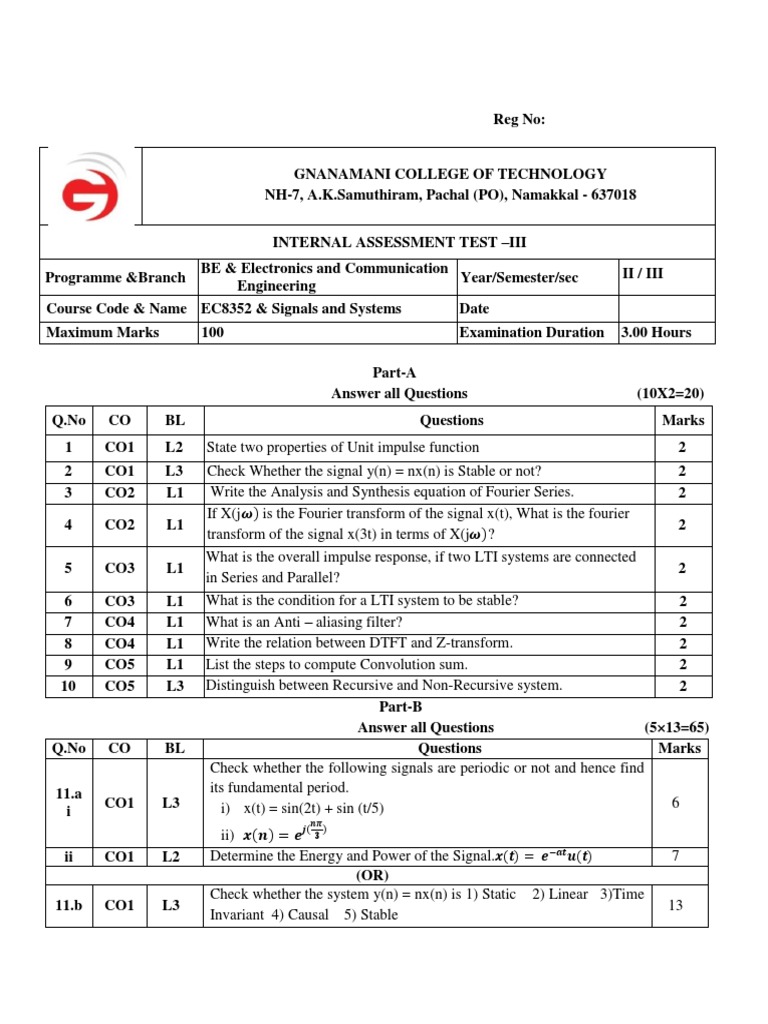

Reg No:

GNANAMANI COLLEGE OF TECHNOLOGY

NH-7, A.K.Samuthiram, Pachal (PO), Namakkal - 637018

INTERNAL ASSESSMENT TEST –III

BE & Electronics and Communication II / III
Programme &Branch Year/Semester/sec
Engineering
Course Code & Name EC8352 & Signals and Systems Date
Maximum Marks 100 Examination Duration 3.00 Hours

Part-A
Answer all Questions (10X2=20)
Q.No CO BL Questions Marks
1 CO1 L2 State two properties of Unit impulse function 2
2 CO1 L3 Check Whether the signal y(n) = nx(n) is Stable or not? 2
3 CO2 L1 Write the Analysis and Synthesis equation of Fourier Series. 2
If X(j𝝎) is the Fourier transform of the signal x(t), What is the fourier
4 CO2 L1 2
transform of the signal x(3t) in terms of X(j𝝎)?
What is the overall impulse response, if two LTI systems are connected
5 CO3 L1 2
in Series and Parallel?
6 CO3 L1 What is the condition for a LTI system to be stable? 2
7 CO4 L1 What is an Anti – aliasing filter? 2
8 CO4 L1 Write the relation between DTFT and Z-transform. 2
9 CO5 L1 List the steps to compute Convolution sum. 2
10 CO5 L3 Distinguish between Recursive and Non-Recursive system. 2
Part-B
Answer all Questions (5×13=65)
Q.No CO BL Questions Marks
Check whether the following signals are periodic or not and hence find
11.a its fundamental period.
CO1 L3 i) x(t) = sin(2t) + sin (t/5) 6
i
𝒏𝝅
ii) 𝒙(𝒏) = 𝒆𝒋( 𝟑 )
ii CO1 L2 Determine the Energy and Power of the Signal.𝒙(𝒕) = 𝒆−𝒂𝒕 𝒖(𝒕) 7
(OR)
Check whether the system y(n) = nx(n) is 1) Static 2) Linear 3)Time
11.b CO1 L3 13
Invariant 4) Causal 5) Stable
 Obtain the Trigonometric fourier series for the half wave rectified sine
wave is given below.
x(t)

12.a CO2 L4 A 13

0 𝝅 2𝝅 3𝝅 t

(OR)
12.b Find the Fourier transform of 𝐱(𝐭) = 𝐞−𝐚𝐭 𝐮(𝐭) and hence plot its
CO2 L1 7
i Spectrum diagrams
ii CO2 L1 State and Prove any two properties of Laplace Transform. 6
The i/p – o/p of a causal LTI system are related by the differential
equation
𝒅𝟐 𝒚 𝒅𝒚
+ 3𝒅𝒕 + 𝟐𝐲(𝐭) = 𝐱(𝐭). Determine
𝒅𝒕𝟐
13.a CO3 L4 i) System Function 13
ii) Impulse Response
iii)Frequency response and hence draw its Magnitude and Phase
spectrum
(OR)
13.b An LTI System defined by 𝐡(𝐭) = 𝐞−𝐛𝐭 𝐮(𝐭). Determine the response of
CO3 L4 7
i the system for the i/p 𝐱(𝐭) = 𝐞−𝐚𝐭 𝐮(𝐭) using Fourier transform.
Find the impulse response & Unit step response of the circuit is given in
fig. Assume all initial conditions are zero.
R
+ +
ii CO3 L1 6
i(t)
x(t) L y(t)

- -
14.a Find the DTFT of 𝐱(𝐧) = 𝐚𝐧 𝐮(𝐧) and hence draw its respective
CO4 L1 8
i Magnitude and Phase spectrum.
ii CO4 L3 Derive the relation between Z- transform and DTFT 5
(OR)
14.b
CO4 L2 State and prove sampling theorem. 7
i
Determine the Inverse Z- transform of the following expression using Partial
fraction expansion method.
ii CO4 L4 𝟏
6
𝑿(𝒁) = 𝟏 𝟏
(𝟏− 𝒛−𝟏 )( 𝟏− 𝒛−𝟏 )
𝟑 𝟔
Analyze and discuss the role of Z – transform in Recursive and Non –
15.a CO5 L2 13
recursive systems
 (OR)
15.b Consider the LTI system with impulse response h(n) =𝜶𝒏 𝒖(𝒏)
CO5 L1 7
i 𝒂𝒏𝒅 𝒙(𝒏) = 𝜷𝒏 𝒖(𝒏). Find the response of the LTI system
Determine the response of the LTI system for the i/p x(n) = {1,2,3,4}
ii CO5 L4 and h(n) = {2,1,3,5,3,1} ↑ 6
↑

Part-C
Answer all Questions (1×15=15)
16.a What is impulse response? Show that the response of an LTI system is
CO3 L1 8
i convolution integral of its impulse response with input signal.
ii CO3 L1 Explain the steps to compute the Convolution integral. 7
(OR)
16.b CO1 L2 List and Explain the different standard signals used in System analysis 15

* BL: L1-Remembering, L2-Understanding, L3-Applying, L4-Analyzing, L5-Evaluating, L6-Creating.

SUBJECT IN- CHARGE COURSE COORDINATOR HOD

 Reg No:

GNANAMANI COLLEGE OF TECHNOLOGY

NH-7, A.K.Samuthiram, Pachal (PO), Namakkal - 637018

INTERNAL ASSESSMENT TEST –III

BE & Electronics and Communication
Programme &Branch Year/Semester/sec II / III - C
Engineering
Course Code & Name EC8352 & Signals and Systems Date
Maximum Marks 100 Examination Duration 3.00 Hours

Part-A
Answer all Questions
(10X2=20)
Q.No CO BL Questions Marks
Draw the following signals:
i) u(n+3)-u(n-3)
1 CO1 L2 2
ii) x(n)= { -3,2,-4,-1,0,4,2,-2}
↑

2 CO1 L3 Distinguish between Deterministic and Random signal. 2

3 CO2 L1 What is the condition for existence of Fourier transform of a signal x(t)? 2
4 CO2 L2 State initial and Final value theorem of Laplace transform. 2
Check the Causality of the system with impulse response
5 CO3 L3 2
𝐡(𝐭) = 𝐞−𝐭 𝐮(𝐭).
Write the relation among Transfer function, Frequency Response and Impulse
6 CO3 L1 Response.
2

7 CO4 L1 What are the methods used to find Inverse Z transform? 2

8 CO4 L2 List the properties of ROC with respect to Z-Transform. 2
Interms of ROC, state the condition for an LTI Discrete time system to be
9 CO5 L2 Causal and Stable.
2

10 CO5 L3 Distinguish between Recursive and Non-Recursive system. 2

Part-B
Answer all Questions (5×13=65)
Q.No CO BL Questions Marks
11.a
CO1 L2 Derive the relation between Unit step & Unit ramp function. 6
i
ii CO1 L3 Check whether the given system is Linear/Non linear , Time 7
 Variant/Invariant, Causal/Non-Causal. y(n) = x(n) - x(n-1)
(OR)
A continuous time signal x(t) is shown in figure below, Sketch and
Label each of the following signals.
𝟑
x(t-2), x(2t+3), x(𝟐 𝒕) and x(-t+1)

11.b CO1 L2 x(t) 13

2

-1 0 1 2 t
Find the exponential fourier series for the given signal.
f(t)

12.a 1
CO2 L5 7
i
0 2𝝅 4𝝅 t

ii CO2 L2 State and prove Parseval’s power theorem. 6

(OR)
Obtain the fourier transform of rectangular pulse of duration T and amplitude
‘A’ as shown in fig.
X(t)

12.b CO2 L5 A 13

𝑻 𝑻
−𝟐 0 𝟐
t

Determine the response of CT- LTI system whose impulse response is given
13.a
CO3 L2 by 𝒉(𝒕) = 𝒆−𝜷𝒕 𝒖(𝒕) for the input 𝒙(𝒕) = 𝒆−𝜶𝒕 𝒖(𝒕) using graphical 8
i convolution.
𝟏
ii CO3 L1 Find the output y(t) of the system H(S) = 𝑺+𝟐 for the input 𝒙(𝒕) = 𝒆−𝟑𝒕 𝒖(𝒕). 5
(OR)
The i/p – o/p of a causal LTI system are related by the differential equation
𝒅𝟐 𝒚 𝒅𝒚
𝒅𝒕𝟐
+ 5𝒅𝒕 + 𝟔𝒚(𝒕) = 𝒙(𝒕). Determine
13.b CO3 L2 i) Impulse response 13
ii) Frequency response
iii) Find the response y(t), if x(t) = u(t)
iv) Magnitude and Phase response.
14.a CO4 L2 State and prove any 4 properties of DTFT 13
 (OR)
14.b Determine the Z- transform of the signal 𝒙(𝒏) = 𝒂𝒏 𝒖(𝒏) − 𝒃𝒏 𝒖(𝒏) if
CO4 L3 7
i b > a and plot its ROC.
ii CO4 L3 Find the Z-transform of 𝒙(𝒏) = 𝒂│𝒏│ and Mention its ROC 6
𝟏
A LTI discrete time system 𝒚(𝒏) − 𝟐 𝒚(𝒏 − 𝟏) = 𝒙(𝒏) is given
i) Find y(n) if x(n) = u(n)
15.a CO5 L1 𝟏 13
ii) Find y(n) if 𝒙(𝒏) = (𝟒)𝒏 𝒖(𝒏)
iii) Frequency response
iv) Phase & Magnitude response.
(OR)
𝟏
Two LTI systems with impulse responses 𝒉𝟏 (𝒏) = (𝟐)𝒏 𝒖(𝒏) and
15.b 𝟏
CO5 L3 𝒉𝟐 (𝒏) = (𝟒)𝒏 𝒖(𝒏) are connected in Cascade. Determine the overall 7
i
impulse response.
A difference equation of the system is given below.

ii CO5 L1 Y(n) = 0.5 y(n-1) + x(n). Determine i) System Function ii) Pole – Zero plot of 6
the system function iii) Unit Sample response of the system.

Part-C
Answer all Questions (1×15=15)
Determine the frequency response of the following systems.
16.a CO3 L2 i) System with delay of ‘T’ seconds. 8
i ii) Differentiator
iii) Integrator
ii CO3 L2 Explain how the Laplace transform is used in Electrical networks 7
(OR)
16.b CO1 L2 Explain the Classification of Different systems. 15

* BL: L1-Remembering, L2-Understanding, L3-Applying, L4-Analyzing, L5-Evaluating, L6-Creating.

SUBJECT IN- CHARGE COURSE COORDINATOR HOD
