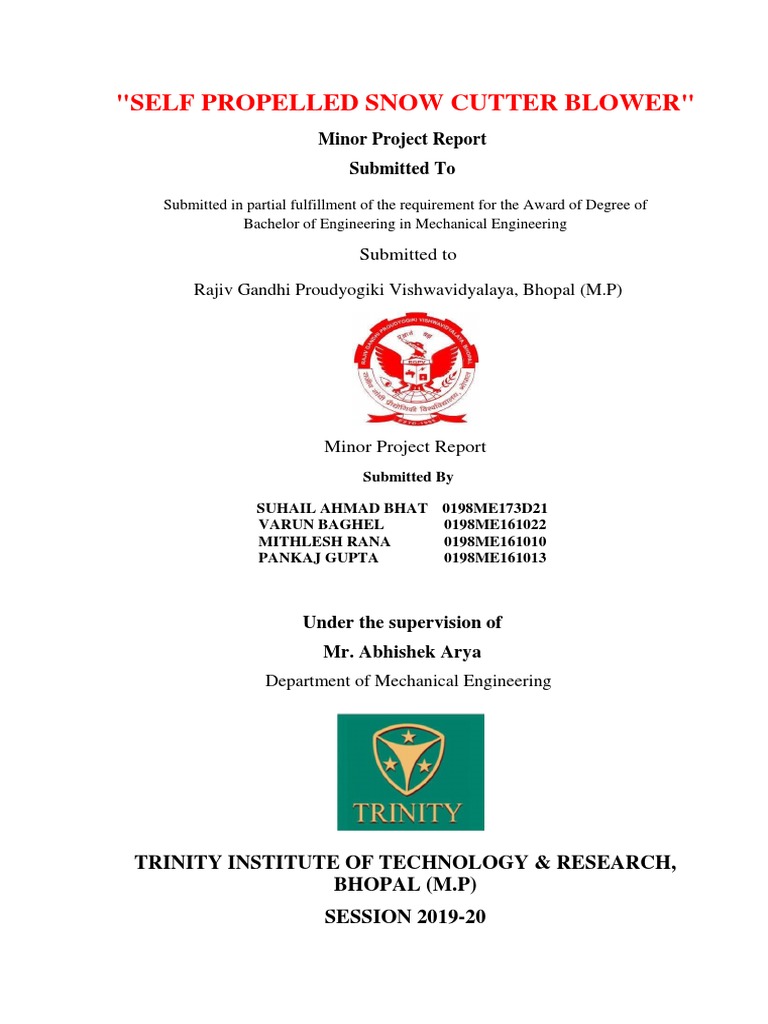

"Self Propelled Snow Cutter Blower": Submitted To Rajiv Gandhi Proudyogiki Vishwavidyalaya, Bhopal (M.P)
"Self Propelled Snow Cutter Blower": Submitted To Rajiv Gandhi Proudyogiki Vishwavidyalaya, Bhopal (M.P)
"Self Propelled Snow Cutter Blower": Submitted To Rajiv Gandhi Proudyogiki Vishwavidyalaya, Bhopal (M.P)
Submitted to
CERTIFICATE
This is to certify that the work embodied in this Minor project report entitled
"SELF PROPELLED SNOW CUTTER BLOWER" has been satisfactorily
completed by SUHAIL AHMAD BHAT 0198ME173D21, VARUN BAGHEL
0198ME161022, MITHLESH RANA 0198ME161010, PANKAJ GUPTA
0198ME161013 and It is a bonafide peace of work, carried out under our
supervision and guidance in the Mechanical Engineering, Trinity Institute of
Technology and Research, Bhopal, for partial fulfilment of the Bachelor of
Engineering in Mechanical Engineering, during the academic year 2019-20.
Under Supervision of
Guided by Approved By
Mr. ABHISHEK ARYA Prof. K.C. BHARIL
Principal Name
Dr. ILYAS KHAN
TRINITY INSTITUTE OF TECHNOLOGY & RESEARCH, BHOPAL
DEPARTMENT OF MECHANICAL ENGINEERING
DECLARATION
Submitted By
Date:
TRINITY INSTITUTE OF TECHNOLOGY & RESEARCH, BHOPAL
DEPARTMENT OF MECHANICAL ENGINEERING
CERTIFICATE OF APPROVAL
Firstly we would wish to acknowledge Mr. Abhishek Arya for providing all guidance and
knowledge for the working of the project, highly valuable technical acumen, constructive
criticism and moral support throughout the project phase. we are also highly grateful to
Prof. K.C. Bharil for helping us during the project and for giving proper guidance and
suggestion to make this report on Minor project. And We also wish to acknowledge
Dr. Ilyas Khan (Principal) Trinity Institute of Technology and Research, Bhopal
We are also thankful for the valuable help We received to gather insight knowledge
which otherwise would not have been there.
CERTIFICATE
DECLARATION
CERTIFICATE OF APPROVAL
ACKNOWLEDGEMENT
INTRODUCTION
COMPONENTS
OPERATIONAL CONVENIENCE
ENVIRONMENT
SERVICES
Supra
Self-Propelled Snow Cutter Blower
INTRODUCTION
2
1
INTRODUCTION
Articulated steering
Articulated steering makes it possible to
continuously transmit the four-wheel drive’s
feeding power precisely in the clearing head’s
direction of travel. This allows the rear vehi-
cle, which accommodates the engine, to ex-
actly follow the front vehicle regardless of the
curve radius, keeping it in the clearing path and
preventing it from getting stuck in high snow
banks.
35°
Supra
• Special-purpose vehicle with articulated
steering for high-performance snow
removal
• Exceptional clearing capacity under any
operating conditions
4 • Comfortable, relaxed and safe handling
Self-Propelled Snow Cutter Blower - Components
6
Reliable traction Great flexibility
thanks to strong tyres thanks to optionally available crawler tracks
The Supra series is equipped with tyres of the Crawler tracks are optionally available for
size 405/70 R 20 MPT. The front and rear axles operations in Alpine regions. The vehicle’s tyres
are fitted with identical tyres featuring a special can be replaced with crawler tracks within half
winter tread for best snow traction. These a day to provide maximum safety and efficiency
wide, high-grip tyres also offer a well-balanced when cutting layers. Crawler tracks serve to
ride. Snow chains are employed to additionally increase the machine’s contact surface on
increase power transmission when clearing the ground, preventing it from sinking in when
layers. cutting layers.
7
Self-Propelled Snow Cutter Blower - Clearing Head Drive Unit
8
Self-Propelled Snow Cutter Blower - Clearing Head Drive Unit
Precise and speedy snow removal Hydrostatic clearing head drive unit (Supra 4002)
The Schmidt Supra 5002 vehicles accurately • Infinitely adjustable ejection distance from 5 to 40 m at full
throw the removed snow up to 40 metres clearing capacity
to the left or right. Thanks to their individually • Hydraulic motor flanged directly to the clearing head drive unit,
adjustable chute and hydraulically operated eliminating the need for a drive shaft
blower housing, the ejection distance can
• High-performance hydraulics optimised for increased
be adjusted in two steps from minimum to
performance
maximum even under full load.
• Fully reversible direction of rotation for removal of any
foreign objects
A hydraulic slewing mechanism (225° slewing
• Split-second automatic hydraulic shut-off of the drive unit in the
range) mounted on the cutter blower front end
can be fitted with either a short ejection chute event of overload due to obstacle contact
or a loading chute including a hydraulic ejection • Mechanical overload protection through shear pin on cutter
flap. drums (mechanical shut-off couplings optional)
• Driver’s seat with mechanical or air suspension and seat heater All control elements are arranged logically
• Passenger’s seat with mechanical or air suspension and seat heater and ergonomically. The control panel with gra-
• Air-conditioning system phics-enabled TFT colour display and keypad
• Rear view monitoring camera within the driver’s field of view is movable and
can thus be adapted to his personal needs.
Plenty of space for more convenience The display shows all vehicle, engine and
The Supra features a 2-seat driver’s cab that clearing head parameters as well as various
absorbs vibration and noise. Owing to the joystick functions in a straightforward manner.
special noise-absorbing materials, the noise There are different menu levels available for
level in the driver’s cab is merely 75 dB(A). The drivers as well as workshop and maintenance
driver’s and passenger’s seats are additionally staff, offering maximum guidance – the
equipped with mechanical or air suspension keyboard layout can be set as needed.
and seat heater. An air-conditioning system is
available as an option.
Self-Propelled Snow Cutter Blower - Operational Convenience
• Good accessibility of all components due to We have also had the machine’s vibration level
liftable cab and engine hoods tested: The hand-arm vibration is below 2.5 m/s2,
• Maintenance opening for easy and quick the whole-body vibration during transport and ope-
access for filling in fuel, AdBlue and cooling ration below 0.5 m/s2 – very low values,
which help to reliably avoid driver fatigue.
water
The noise level for the driver(s) is 75 dB (A) (indoors). The external
noise level has been measured according to EC 2000/14/EC and
EN ISO 3744 and amounts to 114 dB – which is why the machine
is also eminently suitable for application in urban areas.
11
Self-Propelled Snow Cutter Blower - Environment
13
ASH Services
Aebi Schmidt Holding AG Scan and experience the Technical specifications subject to change.
Marketing and Communication ASH Group on YouTube Photographs are not binding.
www.aebi-schmidt.com
