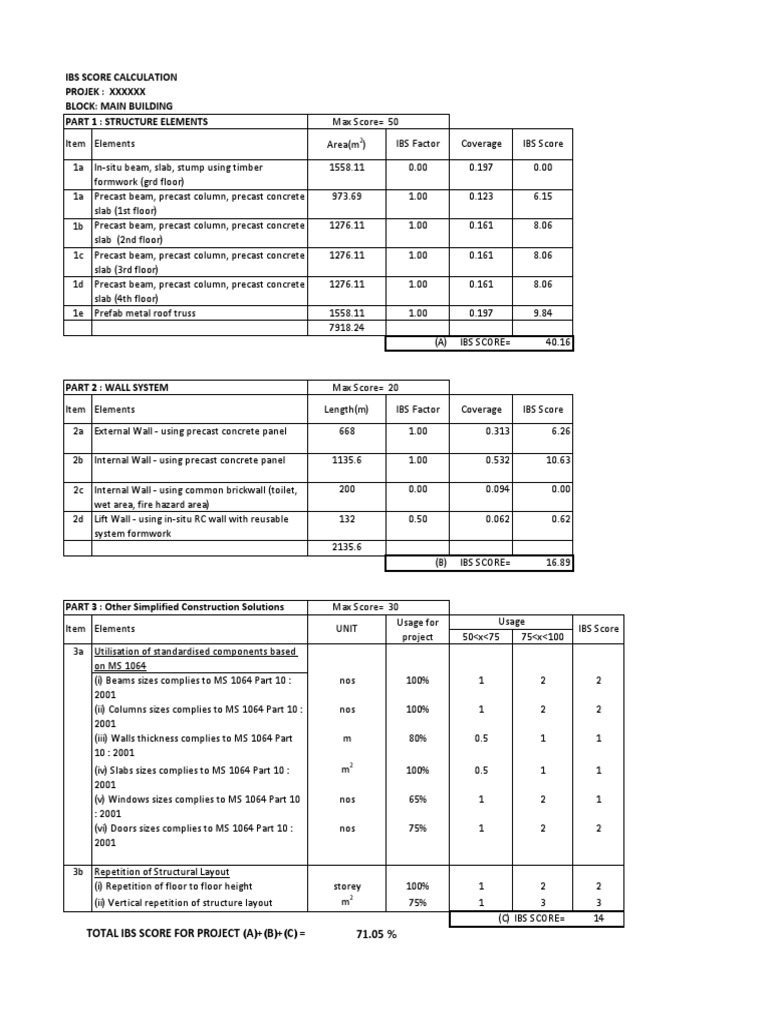

IBS SCORE CALCULATION

PROJEK : XXXXXX
BLOCK: MAIN BUILDING
PART 1 : STRUCTURE ELEMENTS Max Score= 50
2
Item Elements Area(m ) IBS Factor Coverage IBS Score

1a In-situ beam, slab, stump using timber 1558.11 0.00 0.197 0.00
formwork (grd floor)
1a Precast beam, precast column, precast concrete 973.69 1.00 0.123 6.15
slab (1st floor)
1b Precast beam, precast column, precast concrete 1276.11 1.00 0.161 8.06
slab (2nd floor)
1c Precast beam, precast column, precast concrete 1276.11 1.00 0.161 8.06
slab (3rd floor)
1d Precast beam, precast column, precast concrete 1276.11 1.00 0.161 8.06
slab (4th floor)
1e Prefab metal roof truss 1558.11 1.00 0.197 9.84
7918.24
(A) IBS SCORE= 40.16

PART 2 : WALL SYSTEM Max Score= 20

Item Elements Length(m) IBS Factor Coverage IBS Score

2a External Wall - using precast concrete panel 668 1.00 0.313 6.26

2b Internal Wall - using precast concrete panel 1135.6 1.00 0.532 10.63

2c Internal Wall - using common brickwall (toilet, 200 0.00 0.094 0.00
wet area, fire hazard area)
2d Lift Wall - using in-situ RC wall with reusable 132 0.50 0.062 0.62
system formwork
2135.6
(B) IBS SCORE= 16.89

PART 3 : Other Simplified Construction Solutions Max Score= 30

Usage for Usage
Item Elements UNIT IBS Score
project 50<x<75 75<x<100
3a Utilisation of standardised components based
on MS 1064
(i) Beams sizes complies to MS 1064 Part 10 : nos 100% 1 2 2
2001
(ii) Columns sizes complies to MS 1064 Part 10 : nos 100% 1 2 2
2001
(iii) Walls thickness complies to MS 1064 Part m 80% 0.5 1 1
10 : 2001
(iv) Slabs sizes complies to MS 1064 Part 10 : m2 100% 0.5 1 1
2001
(v) Windows sizes complies to MS 1064 Part 10 nos 65% 1 2 1
: 2001
(vi) Doors sizes complies to MS 1064 Part 10 : nos 75% 1 2 2
2001

3b Repetition of Structural Layout

(i) Repetition of floor to floor height storey 100% 1 2 2
2
(ii) Vertical repetition of structure layout m 75% 1 3 3
(C) IBS SCORE= 14
TOTAL IBS SCORE FOR PROJECT (A)+(B)+(C) = 71.05 %
