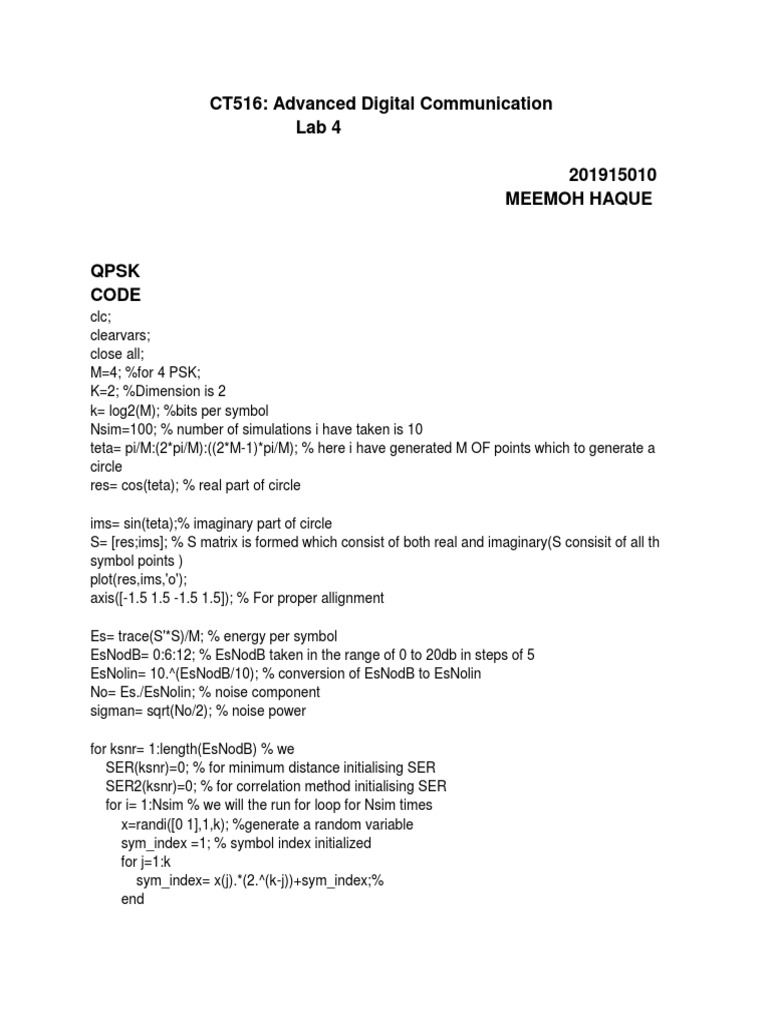

CT516: Advanced Digital Communication

Lab 4

201915010
MEEMOH HAQUE

QPSK
CODE
clc;
clearvars;
close all;
M=4; %for 4 PSK;
K=2; %Dimension is 2
k= log2(M); %bits per symbol
Nsim=100; % number of simulations i have taken is 10
teta= pi/M:(2*pi/M):((2*M-1)*pi/M); % here i have generated M OF points which to generate a
circle
res= cos(teta); % real part of circle

ims= sin(teta);% imaginary part of circle

S= [res;ims]; % S matrix is formed which consist of both real and imaginary(S consisit of all th
symbol points )
plot(res,ims,'o');
axis([-1.5 1.5 -1.5 1.5]); % For proper allignment

Es= trace(S'*S)/M; % energy per symbol

EsNodB= 0:6:12; % EsNodB taken in the range of 0 to 20db in steps of 5
EsNolin= 10.^(EsNodB/10); % conversion of EsNodB to EsNolin
No= Es./EsNolin; % noise component
sigman= sqrt(No/2); % noise power

for ksnr= 1:length(EsNodB) % we

SER(ksnr)=0; % for minimum distance initialising SER
SER2(ksnr)=0; % for correlation method initialising SER
for i= 1:Nsim % we will the run for loop for Nsim times
x=randi([0 1],1,k); %generate a random variable
sym_index =1; % symbol index initialized
for j=1:k
sym_index= x(j).*(2.^(k-j))+sym_index;%
end
 s= S(:,sym_index); % s gives us the coloumn of S matrix which gets decoded
n=sigman(ksnr)*randn(K,1); % for generating random noise(we have generated noise
intentionally)
r=s+n; % at the reciever which consist of signal and noise
figure(ksnr)
plot(S(1,:),S(2,:),'o');
hold on;
plot( r(1),r(2),'r o');
xlim([-3.5,3.5]);
ylim([-3.5,3.5]);
grid on;

title('constellation diagram with noise');

j= EsNodB(ksnr);

title(['SNR = ',num2str(j),' dB'])

%%union bound
a= S-S(:,1); % subtracting S matrix with the first coloumn of S matrix
b= a.^2; % squaring all the elements of new matrix which we got after subtracting
c= b.^0.5; % taking root
d= c(1,:)+c(2,:); %here we are adding first row with second row and hence we got distance
matrix
e= (2*No).^0.5;
t=0;
for j= 2:M % loop is run from 2 to M symbol ponits first element is neeglected as it is zero
already
t=t+qfunc(d(j)./e); % forming the probability of error using union bound

end
%improved union bound
a= S-S(:,1);
b= a.^2;
c= b(1,:)+b(2,:);
d= c.^0.5;

e= (2*No).^0.5;
W=0;
for j= 2:4 % in improved union the only difference instead of subtaracting from all
constellaton points we
%we are subtracting with only nearest points
W=t+qfunc(d(j)./e);

end
 %%method 1 (minimum euclidean distance)
e= r-S; % forming error matrix
norm= diag(e'*e); % finding the euclidean distance
[u,decodedindex ]= min(norm); % u gives us the minimum distance and decoded
index gives us the poisition of the minimum point
if (abs(decodedindex-sym_index)~=0) % if decoded index is not equal to symbol
index it will give us error
SER(ksnr)=SER(ksnr)+1;

end
%%method 2 % correlation method
ip= (2*r'*S)-diag(S'*S)'; %finding the inner product
[q,decodedindex]= max(ip); % after getting the inner product the correlation value which
is the max
% we will assume is transmitted
if (abs(decodedindex-sym_index)~=0)

SER2(ksnr)=SER2(ksnr)+1;
end
end

hold on

plot(r(1),r(2),'r o');

end

SERpract= SER/Nsim;
SERpract2= SER2/Nsim;
Serth=2*qfunc((2*EsNolin).^0.5*sin(pi/M));
figure(2)

semilogy(EsNodB,Serth,'r o');
hold on

semilogy(EsNodB,SERpract,'y');
hold on
semilogy(EsNodB,SERpract2,'o');
hold on

semilogy(EsNodB,t,'b');
hold on
semilogy(EsNodB,W,'g');
hold on
legend('serth','SERpract','SERpract2','t','W');
xlabel('EsNodB');
ylabel('SER');

grid on

OUTPUT
SER VS SNR PLOT
CONSTELLATION DIAGRAM WITHOUT NOISE
CONSTELLATION DIAGRAM WITH NOISE
SCATTER DIAGRAM FOR 0DB
SCATTER DIAGRAM FOR 6 DB
SCATTER DIAGRAM FOR 12 DB
INFERENCE

8PSK
CODE
clc;
clearvars;
close all;
M=8; %for 8 PSK
K=2; %Dimension is 2
k= log2(M); %bits per symbol
Nsim=100; % number of simulations i have taken is 10
teta= pi/M:(2*pi/M):((2*M-1)*pi/M); % here i have generated M OF points which to generate a
circle
res= cos(teta); % real part of circle

ims= sin(teta);% imaginary part of circle

S= [res;ims]; % S matrix is formed which consist of both real and imaginary(S consisit of all th
symbol points )
plot(res,ims,'o');
axis([-1.5 1.5 -1.5 1.5]); % For proper allignment

Es= trace(S'*S)/M; % energy per symbol

EsNodB= 0:6:12; % EsNodB taken in the range of 0 to 20db in steps of 5
EsNolin= 10.^(EsNodB/10); % conversion of EsNodB to EsNolin
No= Es./EsNolin; % noise component
sigman= sqrt(No/2); % noise power

for ksnr= 1:length(EsNodB)

SER(ksnr)=0; % for minimum distance initialising SER
SER2(ksnr)=0; % for correlation method initialising SER
for i= 1:Nsim % we will the run for loop for Nsim times
x=randi([0 1],1,k); %generate a random variable
sym_index =1; % symbol index initialized
for j=1:k
sym_index= x(j).*(2.^(k-j))+sym_index;%
end

s= S(:,sym_index); % s gives us the coloumn of S matrix which gets decoded

n=sigman(ksnr)*randn(K,1); % for generating random noise(we have generated noise
intentionally)
r=s+n; % at the reciever which consist of signal and noise
figure(ksnr)
plot(S(1,:),S(2,:),'o');
hold on;
plot( r(1),r(2),'r o');
xlim([-3.5,3.5]);
ylim([-3.5,3.5]);
grid on;

title('constellation diagram with noise');

j= EsNodB(ksnr);

title(['SNR = ',num2str(j),' dB'])

%%union bound
a= S-S(:,1); % subtracting S matrix with the first coloumn of S matrix
b= a.^2; % squaring all the elements of new matrix which we got after subtracting
c= b.^0.5; % taking root
d= c(1,:)+c(2,:); %here we are adding first row with second row and hence we got distance
matrix
e= (2*No).^0.5;
 t=0;
for j= 2:M % loop is run from 2 to M symbol ponits first element is neeglected as it is zero
already
t=t+qfunc(d(j)./e); % forming the probability of error using union bound

end
%improved union bound
a= S-S(:,1);
b= a.^2;
c= b(1,:)+b(2,:);
d= c.^0.5;

e= (2*No).^0.5;
W=0;
for j= 2:4 % in improved union the only difference instead of subtaracting from all
constellaton points we
%we are subtracting with only nearest points
W=t+qfunc(d(j)./e);

end

%%method 1 (minimum euclidean distance)

e= r-S; % forming error matrix
norm= diag(e'*e); % finding the euclidean distance
[u,decodedindex ]= min(norm); % u gives us the minimum distance and decoded
index gives us the poisition of the minimum point
if (abs(decodedindex-sym_index)~=0) % if decoded index is not equal to symbol
index it will give us error
SER(ksnr)=SER(ksnr)+1;

end
%%method 2 % correlation method
ip= (2*r'*S)-diag(S'*S)'; %finding the inner product
[q,decodedindex]= max(ip); % after getting the inner product the correlation value which
is the max
% we will assume is transmitted
if (abs(decodedindex-sym_index)~=0)

SER2(ksnr)=SER2(ksnr)+1;
end
 end

OUTPUT
SER VS SNR(Db) PLOT

CONSTELLATION DIAGRAM WITHOUT NOISE

CONSTELLATION DIAGRAM WITH NOISE
SCATTER DIAGRAM 0DB
SCATTER DIAGRAM FOR 6 DB
SCATTER DIAGRAM FOR 12 DB
INFERENCE

16 APSK
CODE
clc;
clearvars;
close all;
M=16; %for 16 APSK
M1=M/2;
K=2; %Dimension is 2
k= log2(M); %bits per symbol
Nsim=100; % number of simulations i have taken is 10
teta= pi/M1:(2*pi/M1):((2*M1-1)*pi/M1); % here i have generated M OF points which to generate
a circle
res= cos(teta); % real part of circle

ims= sin(teta);% imaginary part of circle

S1= [res;ims]; % S matrix is formed which consist of both real and imaginary(S consisit of all th
symbol points )
R=2; % here for 16 apsk we need two concentric circles one with a higher radius
S= [ S1 R*S1]; %so we have generated new matrix of higher dimension
%plot(res,ims,'o'); % plot S
%hold on
plot(S(1,:),S(2,:),'o');
%axis([-1.5 1.5 -1.5 1.5]); % For proper allignment

Es= trace(S'*S)/M; % energy per symbol

EsNodB= 0:6:12; % EsNodB taken in the range of 0 to 20db in steps of 5
EsNolin= 10.^(EsNodB/10); % conversion of EsNodB to EsNolin
No= Es./EsNolin; % noise component
sigman= sqrt(No/2); % noise power

for ksnr= 1:length(EsNodB) % we

SER(ksnr)=0; % for minimum distance initialising SER
SER2(ksnr)=0; % for correlation method initialising SER
for i= 1:Nsim % we will the run for loop for Nsim times
x=randi([0 1],1,k); %generate a random variable
sym_index =1; % symbol index initialized
for j=1:k
sym_index= x(j).*(2.^(k-j))+sym_index;%
end

s= S(:,sym_index); % s gives us the coloumn of S matrix which gets decoded

 n=sigman(ksnr)*randn(K,1); % for generating random noise(we have generated noise
intentionally)
r=s+n; % at the reciever which consist of signal and noise
figure(ksnr)
plot(S(1,:),S(2,:),'o');
hold on;
plot( r(1),r(2),'r o');
xlim([-3.5,3.5]);
ylim([-3.5,3.5]);
grid on;

title('constellation diagram with noise');

j= EsNodB(ksnr);

title(['SNR = ',num2str(j),' dB'])

%%union bound
a= S-S(:,1); % subtracting S matrix with the first coloumn of S matrix
b= a.^2; % squaring all the elements of new matrix which we got after subtracting
c= b.^0.5; % taking root
d= c(1,:)+c(2,:); %here we are adding first row with second row and hence we got distance
matrix
e= (2*No).^0.5;
t=0;
for j= 2:M % loop is run from 2 to M symbol ponits first element is neeglected as it is zero
already
t=t+qfunc(d(j)./e); % forming the probability of error using union bound

end
%improved union bound
a= S-S(:,1);
b= a.^2;
c= b(1,:)+b(2,:);
d= c.^0.5;

e= (2*No).^0.5;
W=0;
for j= 2:4 % in improved union the only difference instead of subtaracting from all
constellaton points we
%we are subtracting with only nearest points
W=t+qfunc(d(j)./e);

end
 %%method 1 (minimum euclidean distance)
e= r-S; % forming error matrix
norm= diag(e'*e); % finding the euclidean distance
[u,decodedindex ]= min(norm); % u gives us the minimum distance and decoded
index gives us the poisition of the minimum point
if (abs(decodedindex-sym_index)~=0) % if decoded index is not equal to symbol
index it will give us error
SER(ksnr)=SER(ksnr)+1;

end
%%method 2 % correlation method
ip= (2*r'*S)-diag(S'*S)'; %finding the inner product
[q,decodedindex]= max(ip); % after getting the inner product the correlation value which
is the max
% we will assume is transmitted
if (abs(decodedindex-sym_index)~=0)

SER2(ksnr)=SER2(ksnr)+1;
end
end

hold on

plot(r(1),r(2),'r o');

end

SERpract= SER/Nsim;
SERpract2= SER2/Nsim;

Serth=2*qfunc((2*EsNolin).^0.5*sin(pi/M));
figure(2)

semilogy(EsNodB,Serth,'r ');
hold on

semilogy(EsNodB,SERpract,'y');
hold on
semilogy(EsNodB,SERpract2);
hold on

semilogy(EsNodB,t,'b');
hold on
semilogy(EsNodB,W,'g');
hold on
legend('serth','SERpract','SERpract2','t','W');
xlabel('EsNodB');
ylabel('SER');

grid on

OUTPUT
SER VS SNR PLOT
CONSTELLATION DIAGRAM WITHOUT NOISE
CONSTELLATION DIAGRAM WITH NOISE

SCATTER DIAGRAM 0DB

SCATTER DIAGRAM 6 DB
SCATTER DIAGRAM 12 DB
INFERENCE

16 QAM

CODE
clc;
clear all;
close all;
M=16; % 16 QAM
k=log2(M); % no. of symbols
K=2; % dimension
if(mod(k,4)==0)
c0= 1:2:k-1;
c1= -(k-1:-2:1);
c=[c1 c0];

[a b]=meshgrid(c); %it returns grid cordinates of grid length of a and b

d=reshape(a,[1,M]); % reshape convert a from 2x16 to 1x16

e=reshape(b,[1,M]) ; % reshape convert b from 2x16 to 1x21

S=[d;e]; % S matrix is formed
else
 k1=k+2;
c0= 1:2:k1-1;
c1= -(k1-1:-2:1);
c= [c1 c0];
[a b]=meshgrid(c);
d=reshape(a,[1,M]); % convert a from 2x16 to 1x16

e=reshape(b,[1,M]) ; % convert b from 2x16 to 1x21

S=[d;e];
end
plot(S(1,:),S(2,:),'o'); % plot S entire 1ST coloumn and then entire 2nd coloumn
grid on
axis([-5 5 -5 5])

EsNodB=5:5:20; % SNR IN db
i=1;
j= EsNodB(i);
EsNolin=10.^(0.1*EsNodB); % SNR in lin
Es=trace(S'*S)/M; % energy per symbol
No=Es./EsNolin; %noise component
sigma=sqrt(No/2); % noise power
b1=2.^(k-1:-1:0) ; % for generating binary weights
Nsim=1000; % no. of experiments

%ser=zeros(1,length(EsNodB)); %ser values are generated

for ksnr=1:length(EsNodB)
for i=1:Nsim
SER(ksnr)=0; % initializing SER for minimum distance
SER2(ksnr)=0; % initializing SER for correlation method
x=randi([0 1],1,k); % random variable is generated %
sym_index=sum(x.*b1)+1; %symbol index is generated
s=S(:,sym_index); %decoded index %
n=sigma(ksnr)*randn(K,1); %random noise generated
r=s+n;
figure(ksnr)
plot(S(1,:),S(2,:),'o');
hold on;
plot( r(1),r(2),'r o');
xlim([-3.5,3.5]);
ylim([-3.5,3.5]);
grid on;
 title('constellation diagram with noise');
j= EsNodB(ksnr);

title(['SNR = ',num2str(j),' dB'])

%minimum distance
e= r-S; % forming error matrix
norm= diag(e'*e); % finding the euclidean distance
[u,decodedindex ]= min(norm); % u gives us the minimum distance and decoded
index gives us the poisition of the minimum point
if (abs(decodedindex-sym_index)~=0) % if decoded index is not equal to symbol
index it will give us error
SER(ksnr)=SER(ksnr)+1;

end
% correlation method % in these method we have found the maximum
% correlation between the symbols and the symbol which has the highest
% correlation is assumed to be transmitted. here inner product is done
ip= (2*r'*S)-diag(S'*S)'; %finding the inner product
[q,decodedindex]= max(ip); % after getting the inner product the correlation value which
is the max
% we will assume is transmitted
if (abs(decodedindex-sym_index)~=0)

SER2(ksnr)=SER2(ksnr)+1;
end
%union bound
a= S-S(:,1);
b= a.^2;
c= b(1,:)+b(2,:);
d= c.^0.5;

e= (2*No).^0.5;
t=0;
for u= 2:M
t=t+qfunc(d(u)./e);

end
%improved union bound
a= S-S(:,1);
b= a.^2;
c= b(1,:)+b(2,:);
d= c.^0.5;
 e= (2*No).^0.5;
W=0;
for u= 2:8
W=t+qfunc(d(u)./e);

end
% hold on
%plot(r(1),r(2),'ro') % here r is real only so we take r(1) & r(2) instead of real(r) & img(r)

end
end
serpract= SER/Nsim;
serpract2= SER2/Nsim;
Serth=4*(1-(1/sqrt(M)))*qfunc((sqrt(3*EsNolin/(M-1)))); % theortical formula for 16 qam

figure(2)
semilogy(EsNodB,Serth,'o'); % plotting the theortical value in log scale
hold on
semilogy(EsNodB,t,'r'); % plotting the union bound
hold on
semilogy(EsNodB,W); % plotting the improved union bound
hold on
semilogy(EsNodB,serpract ,'y'); % plotting the minimum distance
hold on
semilogy(EsNodB,serpract2 ,'g'); % plotting the inner product method
legend('serth','t','serpract','serpract2','W');
xlabel('EsNodB');
ylabel('SNR');

grid on

OUTPUT
SER VS SNR(DB) PLOT
CONSTELLATION DIAGRAM WITHOUT NOISE
CONSTELLATION DIAGRAM WITHOUT NOISE

SCATTER DIAGRAM 0 DB
SCATTER DIAGRAM 6db
SCATTER DIAGRAM 12 DB

INFERENCE

64 QAM
CODE
clc;
clear all;
close all;
M=64; % 64 QAM
k=log2(M); % no. of symbols
K=2; % dimension
if(mod(k,4)==0)
c0= 1:2:k-1;
c1= -(k-1:-2:1);
c=[c1 c0];

[a b]=meshgrid(c); %it returns grid cordinates of grid length of a and b

d=reshape(a,[1,M]); % reshape convert a from 2x16 to 1x16

e=reshape(b,[1,M]) ; % reshape convert b from 2x16 to 1x21

S=[d;e]; % S matrix is formed
else
k1=k+2;
c0= 1:2:k1-1;
c1= -(k1-1:-2:1);
c= [c1 c0];
[a b]=meshgrid(c);
d=reshape(a,[1,M]); % convert a from 2x16 to 1x16

e=reshape(b,[1,M]) ; % convert b from 2x16 to 1x21

S=[d;e];
end
plot(S(1,:),S(2,:),'o'); % plot S entire 1ST coloumn and then entire 2nd coloumn
grid on
axis([-5 5 -5 5])

EsNodB=0:6:12; % SNR IN db
i=1;
j= EsNodB(i);
EsNolin=10.^(0.1*EsNodB); % SNR in lin
Es=trace(S'*S)/M; % energy per symbol
No=Es./EsNolin; %noise component
sigma=sqrt(No/2); % noise power
b1=2.^(k-1:-1:0) ; % for generating binary weights
Nsim=100; % no. of experiments

%ser=zeros(1,length(EsNodB)); %ser values are generated

for ksnr=1:length(EsNodB)
for i=1:Nsim
SER(ksnr)=0; % initializing SER for minimum distance
SER2(ksnr)=0; % initializing SER for correlation method
x=randi([0 1],1,k); % random variable is generated %
sym_index=sum(x.*b1)+1; %symbol index is generated
s=S(:,sym_index); %decoded index %
n=sigma(ksnr)*randn(K,1); %random noise generated
r=s+n;
figure(ksnr)
plot(S(1,:),S(2,:),'o');
hold on;
plot( r(1),r(2),'r o');
xlim([-3.5,3.5]);
ylim([-3.5,3.5]);
 grid on;

title('constellation diagram with noise');

j= EsNodB(ksnr);

title(['SNR = ',num2str(j),' dB'])

%minimum distance
e= r-S; % forming error matrix
norm= diag(e'*e); % finding the euclidean distance
[u,decodedindex ]= min(norm); % u gives us the minimum distance and decoded
index gives us the poisition of the minimum point
if (abs(decodedindex-sym_index)~=0) % if decoded index is not equal to symbol
index it will give us error
SER(ksnr)=SER(ksnr)+1;

end
% correlation method % in these method we have found the maximum
% correlation between the symbols and the symbol which has the highest
% correlation is assumed to be transmitted. here inner product is done
ip= (2*r'*S)-diag(S'*S)'; %finding the inner product
[q,decodedindex]= max(ip); % after getting the inner product the correlation value which
is the max
% we will assume is transmitted
if (abs(decodedindex-sym_index)~=0)

SER2(ksnr)=SER2(ksnr)+1;
end
%union bound
a= S-S(:,1);
b= a.^2;
c= b(1,:)+b(2,:);
d= c.^0.5;

e= (2*No).^0.5;
t=0;
for u= 2:M
t=t+qfunc(d(u)./e);

end
%improved union bound
a= S-S(:,1);
b= a.^2;
c= b(1,:)+b(2,:);
 d= c.^0.5;

e= (2*No).^0.5;
W=0;
for u= 2:8
W=t+qfunc(d(u)./e);

end
hold on
plot(r(1),r(2),'ro') % here r is real only so we take r(1) & r(2) instead of real(r) & img(r)

end
end
serpract= SER/Nsim;
serpract2= SER2/Nsim;
Serth=4*(1-(1/sqrt(M)))*qfunc((sqrt(3*EsNolin/(M-1)))); % theortical formula for 16 qam

figure(2)
semilogy(EsNodB,Serth,'o'); % plotting the theortical value in log scale
hold on
semilogy(EsNodB,t,'r'); % plotting the union bound
hold on
semilogy(EsNodB,W); % plotting the improved union bound
hold on
semilogy(EsNodB,serpract ,'y'); % plotting the minimum distance
hold on
semilogy(EsNodB,serpract2 ,'g'); % plotting the inner product method
legend('serth','t','serpract','serpract2','W');
xlabel('EsNodB');
ylabel('SNR');

grid on

OUTPUT

SER VS SNR PLOT

COSTELLATION DIAGRAM WITHOUT NOISE
CONSTELLATION DIAGRAM WITH NOISE
16 ARY ORTHOGONAL MODULATION
CODE

16 ARY ORTHOGONAL MODULATION

CODE

clc;
clear all
close all

q=0.5; % p(X=1)=0.5
M=8;
k=log2(M); % no. of symbols
K=M; % dimension
S= eye(M);%returns an n-by-n identity matrix with ones on the main
diagonal and zeros elsewhere.
Es=trace(S'*S)/M; % per symbol energy

EsNodB=0:20; % in steps of 1 dB for Monte-Carlo simulations,

EsNolin= 10.^(EsNodB/10); % SNR linear
No=Es./EsNolin; %standard noise component
sigma=sqrt(No/2); % noise power

Nsim=1000; % no. of experiments

for ksnr=1:length(EsNodB)
ser(ksnr)=0;
ser2(ksnr)=0;
for i=1:Nsim
x=randi([0 1],1,k); % generating random variable of dimension
k
sym_index =1;
for j=1:k
sym_index= x(j).*(2.^(k-j))+sym_index; % getting different symbol
index for different random variable
end
s=S(:,sym_index); % all rows & a particular element
n=sigma(ksnr)*randn(K,1);% generating noise
r=s+n; %recieved signal
%%minimum distance (in these method will find the distance of all
%%constellation points out of which the minimum distance point will
%%be transmitted
 e=r-S; %error matrix

nom=(e'*e); % finding norm of error matrix

diagnl_nom=diag(nom); % taking the diaognal elements of norm
matrix
[~,g]=min(diagnl_nom);% taking the minimum of diagnaol mtarix

decoded_symbol=g;
if sym_index~=decoded_symbol % find which symbol is in error
ser(ksnr)=ser(ksnr)+1;
end
% correlation (in these method we will find the symbol which has the
% maximum correlation or similarity and then that symbol is assume
% to be transmitted

[~,g1]=max(2*r'*S-diag(S'*S)');
decoded_symbol=g1;
if sym_index~=decoded_symbol % find which symbol is in error
ser2(ksnr)=ser2(ksnr)+1;
end

% hold on
%plot(r(1),r(2),'ro') % here r is real only so we take r(1) & r(2) instead
of real(r) & img(r)

serpract=ser/Nsim;
serpract2= ser2/Nsim;
%union bound
a= S-S(:,1);
b= a.^2;
c=0;
for j=1:K
c= c+b(j,:);
 end
d= c.^0.5;

e= (2*No).^0.5;
t=0;
for j= 2:M
t=t+qfunc(d(j)./e);

end
%improved union bound
a= S-S(:,1);
b= a.^2;
c=0;
for j=1:K
c= c+b(j,:);
end
d= c.^0.5;

e= (2*No).^0.5;
W=0;
for j= 2:4
W=W+qfunc(d(j)./e);

end
end
end

yb= 1.485;
v=(M-1)*(qfunc(sqrt(log2(M)*yb)));
serth=2*qfunc(v);

figure(2)
semilogy(EsNodB,serpract,'o');
hold on
semilogy(EsNodB,t);
hold on
semilogy(EsNodB,serth);
hold on
semilogy(EsNodB,W);
legend('serpract','t','serpract2','W');
grid on

OUTPUT

INFERENCE

16 ARY BIORTHOGONAL MODULATION

CODE
clc;
clear all;
close all;
M=8;
k=log2(M); % no. of symbols
K=M; % dimension
S= eye(M);
s1= eye(M/2);
s2= [s1 -1*s1];
Es=trace(S'*S)/M; % per symbol energy

EsNodB=0:20; % in steps of 1 dB for Monte-Carlo simulations,

EsNolin= 10.^(EsNodB/10); % SNR linear
No=Es./EsNolin; %standard noise component
sigma=sqrt(No/2); % noise power

Nsim=1000; % no. of experiments

for ksnr=1:length(EsNodB)
ser(ksnr)=0;
 ser2(ksnr)=0;
for i=1:Nsim
x=randi([0 1],1,k); % generating random variable of dimension
k
sym_index =1;
for j=1:k
sym_index= x(j).*(2.^(k-j))+sym_index; % getting different symbol
index for different random variable
end
s=S(:,sym_index); % all rows & a particular element
n=sigma(ksnr)*randn(K,1);% generating noise
r=s+n; %recieved signal
%%minimum distance (in these method will find the distance of all
%%constellation points out of which the minimum distance point will
%%be transmitted

e=r-S; %error matrix

nom=(e'*e); % finding norm of error matrix

diagnl_nom=diag(nom); % taking the diaognal elements of norm
matrix
[~,g]=min(diagnl_nom);% taking the minimum of diagnaol mtarix

decoded_symbol=g;
if sym_index~=decoded_symbol % find which symbol is in error
ser(ksnr)=ser(ksnr)+1;
end
% correlation (in these method we will find the symbol which has the
% maximum correlation or similarity and then that symbol is assume
% to be transmitted

[~,g1]=max(2*r'*S-diag(S'*S)');
decoded_symbol=g1;
 if sym_index~=decoded_symbol % find which symbol is in error
ser2(ksnr)=ser2(ksnr)+1;
end

% hold on
%plot(r(1),r(2),'ro') % here r is real only so we take r(1) & r(2) instead
of real(r) & img(r)

serpract=ser/Nsim;
serpract2= ser2/Nsim;
%union bound
a= S-S(:,1);
b= a.^2;
c=0;
for j=1:K
c= c+b(j,:);
end
d= c.^0.5;

e= (2*No).^0.5;
t=0;
for j= 2:M
t=t+qfunc(d(j)./e);

end
%improved union bound
a= S-S(:,1);
b= a.^2;
c=0;
for j=1:K
c= c+b(j,:);
end
d= c.^0.5;

e= (2*No).^0.5;
 W=0;
for j= 2:4
W=W+qfunc(d(j)./e);

end
end
end
yb= 1.485;
v=(M-2)*(qfunc(sqrt(log2(M)*yb)));
serth=2*qfunc(v);

figure(2)
semilogy(EsNodB,serpract,'o');
hold on
semilogy(EsNodB,t);
hold on
semilogy(EsNodB,serth);
hold on
semilogy(EsNodB,W);
legend('serpract','t','serpract2','W');
grid on

OUTPUT
SER VS SNR PLOT
CONSTELLATION DIAGRAM
SCATTER DIAGRAM 0DB
SCATTER DIAGRAM 6db
SCATTER DIAGRAM 12 DB
INFERENCE

16 ARY BIORTHOGONAL MODULATION

CODE
clc;
clear all;
close all;
M=8;
k=log2(M); % no. of symbols
K=M; % dimension
S= eye(M);
s1= eye(M/2); % the idengtity matrix is divided by 2
s2= [s1 -1*s1]; % by these we have generated a identity matrix by which
the other half becomes negative of other
Es=trace(S'*S)/M;

EsNodB=0:6:12; % in steps of 1 dB for Monte-Carlo simulations,

EsNolin= 10.^(EsNodB/10);
No=Es./EsNolin;
sigma=sqrt(No/2);
%b1=(2^(k-1)):-1:1

Nsim=100; % no. of experiments

for ksnr=1:length(EsNodB)
ser(ksnr)=0;
ser2(ksnr)=0;
for i=1:Nsim
x=randi([0 1],1,k); % 1x2 matrix
sym_index =1;
for j=1:k
sym_index= x(j).*(2.^(k-j))+sym_index;
end
s=S(:,sym_index); % all rows & a particular element
n=sigma(ksnr)*randn(K,1);
r=s+n;
figure(ksnr)
plot(S(1,:),S(2,:),'o');
hold on;
% plot( r(1),r(2),'r o');
xlim([-3.5,3.5]);
ylim([-3.5,3.5]);
grid on;

title('constellation diagram with noise');

j= EsNodB(ksnr);

title(['SNR = ',num2str(j),' dB'])

% minimum distance
 e= r-S; % forming error matrix
norm= diag(e'*e); % finding the euclidean distance
[u,decodedindex ]= min(norm); % u gives us the minimum
distance and decoded index gives us the poisition of the minimum point
if (abs(decodedindex-sym_index)~=0) % if decoded index is not
equal to symbol index it will give us error
ser(ksnr)=ser(ksnr)+1;

end
% correlation
ip= (2*r'*S)-diag(S'*S)'; %finding the inner product
[q,decodedindex]= max(ip); % after getting the inner product the
correlation value which is the max
% we will assume is transmitted
if (abs(decodedindex-sym_index)~=0)

ser2(ksnr)=ser2(ksnr)+1;
end
end
hold on
plot(r(1),r(2),ro') % here r is real only so we take r(1) & r(2) instead of
real(r) & img(r)'

serpract=ser/Nsim;
serpract2= ser2/Nsim;
%union bound

a= S-S(:,1);
b= a.^2;
c=0;
for j=1:K
c= c+b(j,:);
end
d= c.^0.5;
 e= (2*No).^0.5;
t=0;
for j= 2:M
t=t+qfunc(d(j)./e);

end
%improved union bound
a= S-S(:,1);
b= a.^2;
c=0;
for j=1:K
c= c+b(j,:);
end
d= c.^0.5;

e= (2*No).^0.5;
W=0;
for j= 2:4
W=W+qfunc(d(j)./e);

end
end

yb= 1.485;
v=(M-2)*(qfunc(sqrt(log2(M)*yb)));
serth=2*qfunc(v);

figure(2)
semilogy(EsNodB,serpract);
hold on
semilogy(EsNodB,t);
hold on
semilogy(EsNodB,serpract2);
hold on
semilogy(EsNodB,serth);
hold on
semilogy(EsNodB,W);
legend('serpract','t','serpract2','serth','W');
grid on

OUTPUT
SER VS SNR PLOT

CONSTELLATION DIAGRAM
SCATTER DIAGRAM 0DB
SCATTER DIAGRAM 6db
SCATTER DIAGRAM 12 DB
