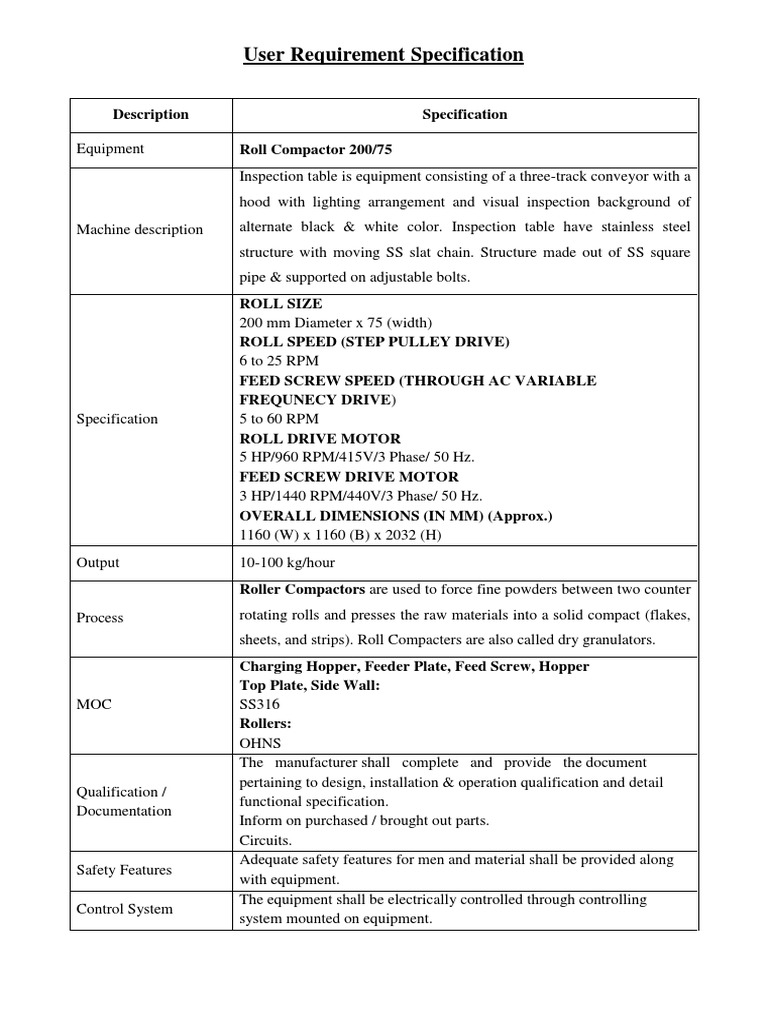

User Requirement Specification

Description Specification

Equipment Roll Compactor 200/75

Inspection table is equipment consisting of a three-track conveyor with a
hood with lighting arrangement and visual inspection background of
Machine description alternate black & white color. Inspection table have stainless steel
structure with moving SS slat chain. Structure made out of SS square
pipe & supported on adjustable bolts.
ROLL SIZE
200 mm Diameter x 75 (width)
ROLL SPEED (STEP PULLEY DRIVE)
6 to 25 RPM
FEED SCREW SPEED (THROUGH AC VARIABLE
FREQUNECY DRIVE)
Specification 5 to 60 RPM
ROLL DRIVE MOTOR
5 HP/960 RPM/415V/3 Phase/ 50 Hz.
FEED SCREW DRIVE MOTOR
3 HP/1440 RPM/440V/3 Phase/ 50 Hz.
OVERALL DIMENSIONS (IN MM) (Approx.)
1160 (W) x 1160 (B) x 2032 (H)
Output 10-100 kg/hour
Roller Compactors are used to force fine powders between two counter
Process rotating rolls and presses the raw materials into a solid compact (flakes,
sheets, and strips). Roll Compacters are also called dry granulators.
Charging Hopper, Feeder Plate, Feed Screw, Hopper
Top Plate, Side Wall:
MOC SS316
Rollers:
OHNS
The manufacturer shall complete and provide the document
pertaining to design, installation & operation qualification and detail
Qualification /
functional specification.
Documentation
Inform on purchased / brought out parts.
Circuits.
Adequate safety features for men and material shall be provided along
Safety Features
with equipment.
The equipment shall be electrically controlled through controlling
Control System
system mounted on equipment.
 User Requirement Specification

The Electrical system of the equipment shall be housed as per the

Electrical System
cGMP, Standard with adequate safety.
