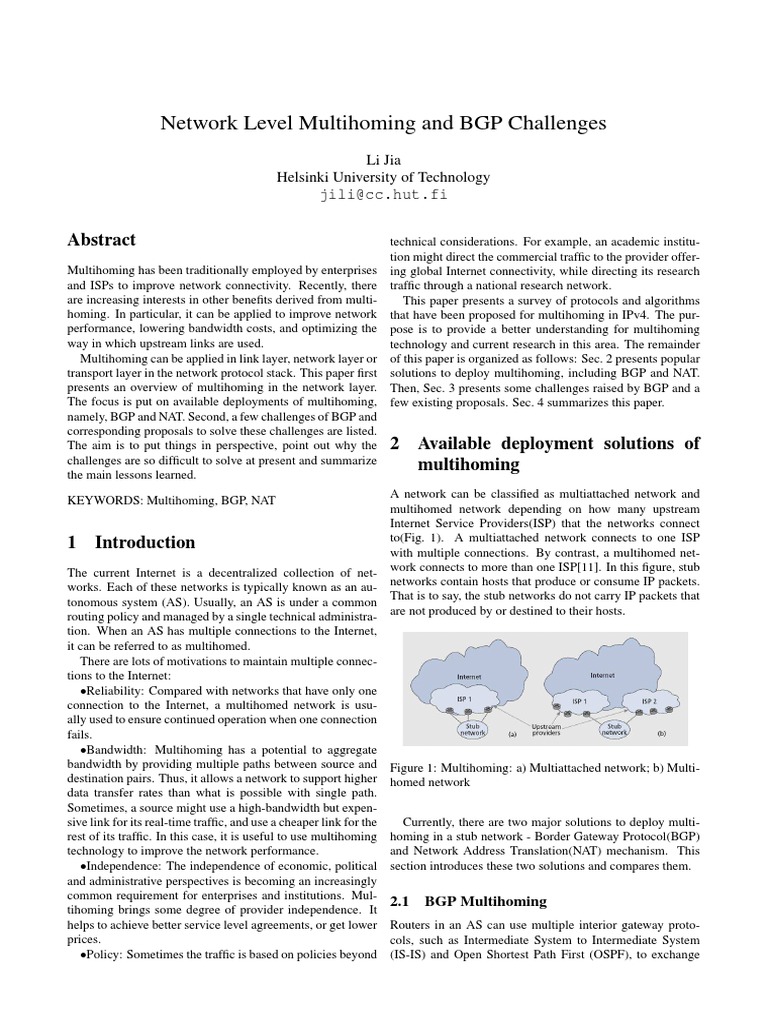

Network Level Multihoming and BGP Challenges
Li Jia
Helsinki University of Technology
jili@cc.hut.fi
Abstract
Multihoming has been traditionally employed by enterprises
and ISPs to improve network connectivity. Recently, there
are increasing interests in other benefits derived from multi-
homing. In particular, it can be applied to improve network
performance, lowering bandwidth costs, and optimizing the
way in which upstream links are used.
Multihoming can be applied in link layer, network layer or
transport layer in the network protocol stack. This paper first
presents an overview of multihoming in the network layer.
The focus is put on available deployments of multihoming,
namely, BGP and NAT. Second, a few challenges of BGP and
corresponding proposals to solve these challenges are listed.
The aim is to put things in perspective, point out why the
challenges are so difficult to solve at present and summarize
the main lessons learned.
KEYWORDS: Multihoming, BGP, NAT
1 Introduction
The current Internet is a decentralized collection of net-
works. Each of these networks is typically known as an au-
tonomous system (AS). Usually, an AS is under a common
routing policy and managed by a single technical administra-
tion. When an AS has multiple connections to the Internet,
it can be referred to as multihomed.
There are lots of motivations to maintain multiple connec-
tions to the Internet:
•Reliability: Compared with networks that have only one
connection to the Internet, a multihomed network is usu-
ally used to ensure continued operation when one connection
fails.
•Bandwidth: Multihoming has a potential to aggregate
bandwidth by providing multiple paths between source and
destination pairs. Thus, it allows a network to support higher
data transfer rates than what is possible with single path.
Sometimes, a source might use a high-bandwidth but expen-
sive link for its real-time traffic, and use a cheaper link for the
rest of its traffic. In this case, it is useful to use multihoming
technology to improve the network performance.
•Independence: The independence of economic, political
and administrative perspectives is becoming an increasingly
common requirement for enterprises and institutions. Mul-
tihoming brings some degree of provider independence. It
helps to achieve better service level agreements, or get lower
prices.
•Policy: Sometimes the traffic is based on policies beyond
technical considerations. For example, an academic institu-
tion might direct the commercial traffic to the provider offer-
ing global Internet connectivity, while directing its research
traffic through a national research network.
This paper presents a survey of protocols and algorithms
that have been proposed for multihoming in IPv4. The pur-
pose is to provide a better understanding for multihoming
technology and current research in this area. The remainder
of this paper is organized as follows: Sec. 2 presents popular
solutions to deploy multihoming, including BGP and NAT.
Then, Sec. 3 presents some challenges raised by BGP and a
few existing proposals. Sec. 4 summarizes this paper.
2 Available deployment solutions of
multihoming
A network can be classified as multiattached network and
multihomed network depending on how many upstream
Internet Service Providers(ISP) that the networks connect
to(Fig. 1). A multiattached network connects to one ISP
with multiple connections. By contrast, a multihomed net-
work connects to more than one ISP[11]. In this figure, stub
networks contain hosts that produce or consume IP packets.
That is to say, the stub networks do not carry IP packets that
are not produced by or destined to their hosts.
Figure 1: Multihoming: a) Multiattached network; b) Multi-
homed network
Currently, there are two major solutions to deploy multi-
homing in a stub network - Border Gateway Protocol(BGP)
and Network Address Translation(NAT) mechanism. This
section introduces these two solutions and compares them.
2.1 BGP Multihoming
Routers in an AS can use multiple interior gateway proto-
cols, such as Intermediate System to Intermediate System
(IS-IS) and Open Shortest Path First (OSPF), to exchange
TKK T-110.5190 Seminar on Internetworking 2008-04-28/29

routing information inside the AS[2]. On the other hand, AS901 can not be aggregated by its upstream ISPs - AS101
routers use an exterior gateway protocol to route packets and AS103 because AS901’s prefix is not included by that of
between ASes. BGP is an inter-Autonomous System rout- AS101 and AS103.
ing protocol [13]. It is used to exchange network reach- In Fig. 3, AS101 assigns a PA address block
ability information with other Autonomous Systems(ASes) "198.18.1.0/19" to AS901. For outgoing traffic, AS901
in TCP/IP networks. Based on the AS hop counts and the sends an announcement "198.18.1.0/19 901". AS101 can
preference level, BGP chooses the shortest route. When the combine the route of "198.18.1.0/19 901" with the one
reachability information is learned by an AS from the exte- announced by AS65500 and then sends an aggregated
rior, it will be distributed within the AS so that every router route announcement "198.18.0.0/16 101:901". By contrast,
in the AS could reach the routes advertised by the exterior. AS103 will send "198.18.1.0/19 103:901" because it cannot
When reachability information is exchanged between two aggregate the route announcement sent by AS901. For
routers located in different ASes, the protocol is referred to incoming traffic, routers forward the packets along the most
as external BGP(eBGP). When reachability information is specific route according to BGP protocol. The most specific
exchanged between routers inside the same AS, the protocol route refers to one that has smaller address range. Here the
is referred to as internal BGP(iBGP). most specific route is "198.18.1.0/19 103:901". Therefore,
Next, details about address management, routing process AS901 will receive all packets via AS103 unless links
and failure handling in multihoming networks and are dis- between AS901 and AS103 is not available. In this case,
cussed. links between AS901 and AS101 will be used to forward
In order to obtain multihoming using the BGP protocol, a traffic.
stub network must have:
1. A minimum address space identified by a 24-bit address
prefix or larger to deploy BGP multihoming.
2. An autonomous system number(ASN). Each AS must
have a unique ASN.
Two schemes exist to allocate address space: provider
independent address(PI address) and provider assigned ad-
dress(PA address). A registry such as ARIN has demon-
strated that a requirement for more than a /21 can request
a minimum of a /20 of IP address space directly form ARIN.
This type of IP address space is known as PI address. IP
subnets (also known as routes, prefixes, net blocks) can be
provided from an upstream ISP if the requirement for IP ad- Figure 2: Routing process of BGP using PI address
dresses is not sufficient. These subnets are commonly part
of a larger block of address space that the upstream ISP has
been assigned by ARIN. This type of IP address prefix is
known as PA space. Different issues arise when BGP multi-
homing is deployed adopting different address schemes.
PI addresses imply independence from a stub network’s
upstream providers. Due to the independence, routes with PI
addresses can not be aggregated by the upstream ISPs. This
leads to routing table overhead.
In a scenario of a network employing PA addresses, one
address management mechanism is to use only one address
block assigned by one of its upstream ISPs, which is called
the default address block. Other upstream ISPs maintain
a specific routing table entry for the route associated with
the default address block. This approach does not automati- Figure 3: Routing process of BGP using PA address: adopt
cally maintain the back-up routes. Another mechanism is to one address block
logically separate the whole stub network into several sub-
networks, each of which inherits a separate address prefix
from the upstream ISP closest to it[11]. The problem here is In Fig. 4, AS901 divides itself into two sub-networks and
the update of the routing table entries. gets the address block 198.18.1.0/19 and 65.3.10.0/19 from
Non-aggregated routes can be advertised across multi- the corresponding upstream ISPs respectively. Accordingly,
homing networks with PI address, and aggregated routes the traffic for these two sub-networks is aggregated by the
can be advertised with PA addresses[11]. For instance, in upstream ISPes - AS101 and AS103 respectively. The two
Fig. 2, AS65500 is a non-multihoming network and AS901 sub-networks are treated by the upstream ASes as separate
is a multihoming network. The route announcement of networks. That is to say, the upstream only accepts the
AS65500 "198.18.32.0/24 65500" is aggregated by its up- outgoing traffic with a prefix that is advertised to this AS
stream ISP - AS101 because 198.18.32.0/24 is a sub-block by the stub network. In this example, AS101 only accept
of 198.18.0.0/16. By contrast, the route announcement of traffic coming from 198.18.1.0/19. The problem is that if
TKK T-110.5190 Seminar on Internetworking 2008-04-28/29

public addresses, which might belong to different ISPs. So,

the network can be multihomed to several network service
providers.
If the NAT multihoming networks do not adopt BGP and
are not involved in the inter-AS routing process, NAT router
can handle the failure with the pre-set traffic mapping mech-
anism. However, traffic loss might happen because the map-
ping mechanism can not be automatically updated after a
failure. A second method is to use DNS server. In this sce-
nario, a host in NAT network is bound with multiple IP ad-
dresses. If one ISP is not available, the IP address from an-
other ISP is returned and traffic still happens. This method
Figure 4: Routing process of BGP using PA address: multi- can reduce the traffic loss but can not avoid it.
ple sub-networks

2.3 Comparison of BGP and NAT

the connection between AS101 and the sub-network fails,
the hosts in the sub-network become unreachable via inter-
domain routing.
RFC2260[1] suggests two methods to handle failures for
BGP multihoming with multiple PA-address prefixes. The
first method is based on eBGP border router’s advertisement
mechanism. The eBGP border router only advertises the
reachability of address prefixes to an upstream ISP, which
assigns the prefixes in steady state. If the connection to this
ISP is down, the eBGP border router advertises the reacha-
bility to other upstream ISPs.
The second method for failure handling is via packet en-
capsulation. The eBGP router of a stub network can also
exchange information with the provider eBGP routers that
are connected to the stub network but do not directly con-
nected to it. For example, assume that eBGP router A and B
are in AS100. An eBGP router C belongs to another AS. B is
directly connected to C but A is not directly connected to C.
When a failure happens between B and C, C will encapsulate
all the packets that should be sent to B with the IP prefix of
A. Then, C sends the encapsulated packets via other connec-
tions of AS100 to A. After that, A decapsulates the received
packets and routes them to the hosts inside AS100 (see[1]
for details).
In addition to the two methods mentioned above, a third
choice is to put routes of both primary connections and
back-up connections to the BGP routing tables. The routes
of back-up connections are made longer via repeatedly
prepending its AS number in the route. When the primary
route is down, back-up routes can be used since they are
available in the BGP routing tables.
2.2 NAT multihoming
The basic function of NAT is to translate between the public
Internet address and the internal local network address. It
can be extended to implement multihoming[9]. Small net-
works that can not be multihomed with BGP can get mul-
tihomed with the help of NAT. In this case, the hosts in a
NAT multihoming stub network share the network addresses.
NAT can map address blocks assigned from each upstream
ISP to the internal address space of network. The mapping
is kept in a NAT router. When IP packet leaves the network,
the NAT router will translate the private IP addresses into
BGP and NAT multihoming are different in at least three as-
pects:
•As a standard Internet inter-domain protocol, BGP pro-
vides the largest support for the upper level applications. By
contrast, NAT does not guarantee the uniqueness of the IP
address and does not support all the upper level applications.
•NAT multihoming avoids non-aggregation problem be-
cause in most cases the address blocks in a NAT network are
assigned by an upstream ISP. This problem may exist in BGP
multihoming.
•BGP is mainly used by large organizations. NAT is usu-
ally recommended for small size organizations which are not
involved in route control.
3 Challenges associated with BGP
The Internet has expanded largely in the past a few years.
First, the number of ASes has increased enormously. Sec-
ond, the number and diversity of applications supported in
the Internet have increased rapidly as well. This tendency
has placed pressure on BGP.
As BGP provides information for controlling the traffic
between ASes, it plays a critical role in Internet efficiency,
reliability and security. However, BGP suffers from several
vulnerabilities. This section analyzes these significant chal-
lenges faced by researchers in the BGP area today.
3.1 Scalability
Each AS is allowed to choose its own administrative policy
to decide the best route. When inter-AS routing takes place,
each AS advertises the routing information included in the
BGP routing table to other ASes. An AS route announce-
ment includes an IP prefix and a series of AS numbers. As
mentioned earlier, the number of ASes has increased dramat-
ically, which contribute to the routing table overhead. An-
other main reason for recent growth is that most stub ASes
have chosen to increase their connectivity to the Internet for
both resilience and load balancing reasons.
To explain how multihoming affects BGP routing tables,
let us consider the example in Fig. 5. Assume that AS 901
aims to achieve load balancing by originating two IP prefixes
from upstream ASes. In order to load balance its inbound
traffic, it chooses to advertise its prefixes so that:
TKK T-110.5190 Seminar on Internetworking
•Traffic targeting 65.3.10.0/19 should primarily be deliv- whole network. But it uses NAT to assign multiple ad-
ered through AS103 and AS101 is used as a backup path. dresses.
•Traffic targeting 198.18.1.0/19 should primarily be deliv-
ered through AS101 and AS103 is used as a backup path.
Figure 5: Growth of BGP routing tables: lack of aggregation
and load balancing
AS901 prepends its own AS number in its BGP adver-
tisements with the aim of identifying the specific prefixes.
As mentioned earlier, the specific prefix implies the best
route when the upstream ASes select routes. In this figure,
AS101 and AS103 are configured differently. AS101 prop-
agates the two BGP advertisements. AS103 sends an aggre-
gate advertisement for 198.18.0.0/16, since which includes
198.18.1.0/19. As shown in Fig. 5, even though AS901 orig-
inates only two prefixes, AS198 receives four routes for three
different prefixes. Thus, the size of the BGP routing table is
increased at AS198, since it receives more than one route for
the same prefix.
Despite the prepending operation, all traffic from AS901
toward AS198 will be routed via AS101, because:
•The shortest path for 65.3.10.0/19 is via AS101. There-
fore, the traffic for 65.3.10.0/19 will be sent via AS101.
•The BGP router always prefer more specific prefix to for-
ward traffic. In this figure, 198.18.1.0/19 is more specific
than 198.18.0.0/16. In this case, AS103 will stop aggregat-
ing AS901’s prefix. This non-aggregation causes AS 103 to
advertise two prefixes to AS198.
To reduce the routing table size, different routes with com-
mon characteristics can be aggregated into a single route.
However, a multihomed network inherits multiple IP pre-
fixes from different upstream ASes and thus its prefixes can-
not be aggregated by all the ASes. In this example, pre-
fix 198.18.1.0/19 belongs to AS 103, so this prefix cannot
be aggregated by another ISP(AS101). Another reason for
non-aggregation is that an AS may have to announce sev-
eral prefixes due to address fragmentation, load balancing
and failure to aggregate[4]. This example illustrates the non-
aggregation caused by load balancing.
Most ISPs filter the advertisements of long prefixes to
cope with the routing table problem. For example, some ISPs
do not allow advertising to the global Internet prefixes longer
than /22. However, this strategy does not tackle the root of
the problem but just works around it.
Some efforts are being made to deal with this prob-
lem in IPv6. For IPv4, the problem is largely unsolved.
SIMPLER[7] forces address prefix aggregation over the
2008-04-28/29
3.2 Lack of Multipath Routing
A BGP router can receive multiple advertisements for the
same route from multiple upstream routers. For instance, in
Fig. 5, the router in AS198 received two advertisements for
the prefix 65.3.0.0/19. Thus, the router needs to run its BGP
decision process to select the best path. BGP protocol selects
only one best path. Accordingly, the BGP router advertises
to its peers the best route to any given destination.
This behavior causes at least two limitations. First, one
best route conflicts with the concept of load balancing. In
respond to this, some venders support multipath extensions
in their BGP implementations. Second, given that a BGP
router only advertises the best route, many alternative paths
that could have been potentially used will be unknown[10].
This introduces problems to the current interdomain routing
paradigm from the end-to-end quality of service(QoS) and
traffic engineering(TE) viewpoints[3].
Efforts have been put to this issue so that a BGP router can
advertise multiple routes for the same destination to its peers.
However, this mechanism will make the existing problem
of BGP multihoming more difficult to tackle. For example,
multipath will increase the size of routing table dramatically,
which in future impacts scalability issue.
3.3 Slow convergence
Two BGP routers have to establish a BGP session to ex-
change reachability information. This session is supported
by a TCP connection through which the routers exchange
different types of messages:
•OPEN: to open a BGP session.
•UPDATE: to transfer reachability information.
•NOTIFICATION: to identify an error detected. The BGP
session is shut down after this message is sent.
•KEEPALIVE: to verify that the peer is reachable.
OPEN message can help to determine if the BGP session
corresponds to an iBGP or eBGP. When a session starts, each
peer will advertise its entire set of routes. Then only incre-
mental updates and KEEPALIVE messages are exchanged.
Convergence time - the time required to reroute packets
when a failure happens, is an important performance metric
for a routing protocol. A study[8] shows that the conver-
gence time of BGP is rather slow. One important reason is
that a single link failure can force BGP routers to exchange
a large number of advertisements to explore for alternative
paths toward the affected destinations. This problem is re-
ferred to as path exploration.
Routers may exchange several advertisements concerning
the same prefix in the process of BGP convergence. To avoid
this problem, most BGP routers use a timer called minimum
route advertisement interval. The default value of this timer
is 30 seconds. This method prevents BGP routers from send-
ing a new advertisement for the same prefix within 30 sec-
onds. In this way, the number of BGP advertisements is re-
duced. However, it introduces another problem - delay. In
TKK T-110.5190 Seminar on Internetworking
some cases, important BGP advertisements are unnecessar-
ily delayed, which has important influence on the network
performance.
Some new proposals have been brought up to solve this
problem. For example, BGP-RCN[12] reduces the number
of BGP messages exchanged in the convergence by adding
an identifier to each BGP message. This identifier indicates
the root-cause of the BGP message. When a failure hap-
pens, distant routers can avoid selecting a path that is af-
fected by the failure. However, this additional information is
not built into BGP advertisements and is against the scalabil-
ity of BGP.
Another solution is the ghost-flushing[6]. This method
improves the convergence by making the messages indi-
cating bad news distributed quickly, while good news dis-
tributed slowly. However, it just tries to speed up the con-
vergence of BGP instead of tackling the root of the problem,
i.e., path exploration.
3.4 Lack of Qos Support
Most of the studies of Qos were based on non-multihoming
networks. BGP doesn’t have built-in Qos capabilities since
it was designed to exchange reachability information. Some
applications, such as VoIP, require strong Qos to across
interdomain[5].
New proposals have been put forward in recent years, but
none has been appealing to be deployed in practice. One
reason is that ISPs prefer over-provisioning their networks
to manage Qos. More issues have to be considered be-
fore ISPs determine to use the Qos management mechanism.
Such considerations include the monetary cost to deploy and
maintain Qos and the possible new businesses that might be
developed to tangible profit for ISPs etc. From the technical
side, all the proposals referring to Qos have strong limita-
tions at the interdomain level.
3.5 Optimizing route selection
Route optimizing refers to distribute the traffic among a stub
network’s multiple connections to the Internet. Two aspects
must be considered in order to select an optimizing route. [9] P. Morrissey.
First, the most qualified upstream provider must be chosen.
Second, the traffic should be leveraged among multiple con-
nections, which refers to load balance problem.
Selection for inbound traffic is difficult. Mechanisms to
implement load balance for outbound traffic are available, [10] Network,IEEE. Open Issues in Interdomain Routing: a
but no mechanism is available to implement load balance for
inbound traffic without NAT. One limitation caused by NAT [11] Network,IEEE. A Survey of Multihoming Technology
is that it does not support non-client/server applications since
it initially was designed in the context of client/server envi-
ronment.
4 Conclusion
Multihoming can help enterprises meet their Internet perfor-
mance, reliability, and redundancy goals. It also helps to [13] Y. Rekhter, T. Li, and S. Hares. A border gateway pro-
reduce dependency on a single provider, giving them dra-
matically greater opportunities for bandwidth cost control
and contract flexibility. Despite its promising role in future
2008-04-28/29
Internet connectivity solutions, multihoming still has many
unsolved challenges.
The purpose of this paper is to review the deployment
solutions available for multihoming and discuss challenges
faced by BGP multihoming.
As an important interdomain routing protocol, BGP has
several limitations. These limitations are becoming more
and more noticeable in the last few years due to the ex-
plosive growth of the network. Current research concen-
trates on scalability, route selection, convergence, Qos etc.
In addition to the technical factors, routing management and
policies performed by different ISPs also contribute to these
problems. Usually, ISPs are reluctant to introduce changes if
there is no promising source of revenue. This increases the
difficulties to tackle the existing problems associated with
BGP.
References
[1] T. Bates and Y. Rekhter. Scalable Support for Multi-
homed Multi-provider Connectivity. Technical Report
2260, 1998.
[2] S. H. cisco Systems. Bgp4 case studies/tutorial. 1995.
[3] B. H. et al. Distance metrics in the internet. 2002.
[4] GLBECOMM. On Characterizing BGP Routing Table
Growth, January 2002.
[5] IEEE. Challenges in Enabling Interprovider Service
Quality in the Internet, June 2005.
[6] IEEE INFOCOM. Improved BGP Convergence via
Ghost Flushing.
[7] IEEE INFOCOM. Practical Routing-Layer Support for
Scalable Multihoming, 2005.
[8] C. Labovitz, A. Ahuja, A. Bose, and F. Jahanian. De-
layed internet routing convergence. 9(3):293–306, June
2001.
Route optimizers: Map-
ping out the best route. December 2003.
http://www.networkcomputing.com/
showitem.jhtml?docid=1425f2.
Survey, November 2005.
in Stub Networks: Current Research and Open Issues,
May 2007.
[12] D. Pei, M. Azuma, N. Nguyen, J. Chen, D. Massey,
and L. Zhang. Bgp-rcn: Improving bgp conver-
gence through root cause notification. Technical report,
UCLA Computer Science Department, 2003.
tocol 4 (bgp-4). Technical report, The Internet Engi-
neering Task Force, January 2006.
