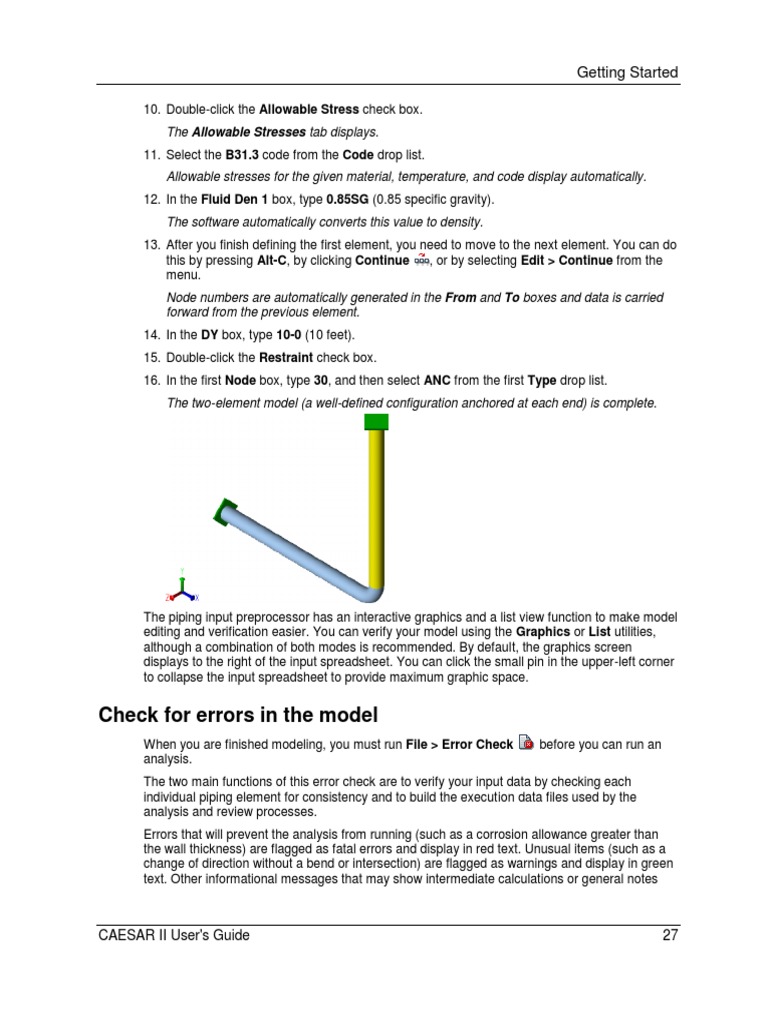

10. Double-click the Allowable Stress check box.

The Allowable Stresses tab displays.
11. Select the B31.3 code from the Code drop list.
Allowable stresses for the given material, temperature, and code display automatically.
12. In the Fluid Den 1 box, type 0.85SG (0.85 specific gravity).
The software automatically converts this value to density.
13. After you finish defining the first element, you need to move to the next element. You can do
this by pressing Alt-C, by clicking Continue , or by selecting Edit > Continue from the
menu.
Node numbers are automatically generated in the From and To boxes and data is carried
forward from the previous element.
14. In the DY box, type 10-0 (10 feet).
15. Double-click the Restraint check box.
16. In the first Node box, type 30, and then select ANC from the first Type drop list.
The two-element model (a well-defined configuration anchored at each end) is complete.

The piping input preprocessor has an interactive graphics and a list view function to make model
editing and verification easier. You can verify your model using the Graphics or List utilities,
although a combination of both modes is recommended. By default, the graphics screen
displays to the right of the input spreadsheet. You can click the small pin in the upper-left corner
to collapse the input spreadsheet to provide maximum graphic space.

Check for errors in the model

When you are finished modeling, you must run File > Error Check before you can run an
analysis.
The two main functions of this error check are to verify your input data by checking each
individual piping element for consistency and to build the execution data files used by the
analysis and review processes.
Errors that will prevent the analysis from running (such as a corrosion allowance greater than
the wall thickness) are flagged as fatal errors and display in red text. Unusual items (such as a
change of direction without a bend or intersection) are flagged as warnings and display in green
text. Other informational messages that may show intermediate calculations or general notes
