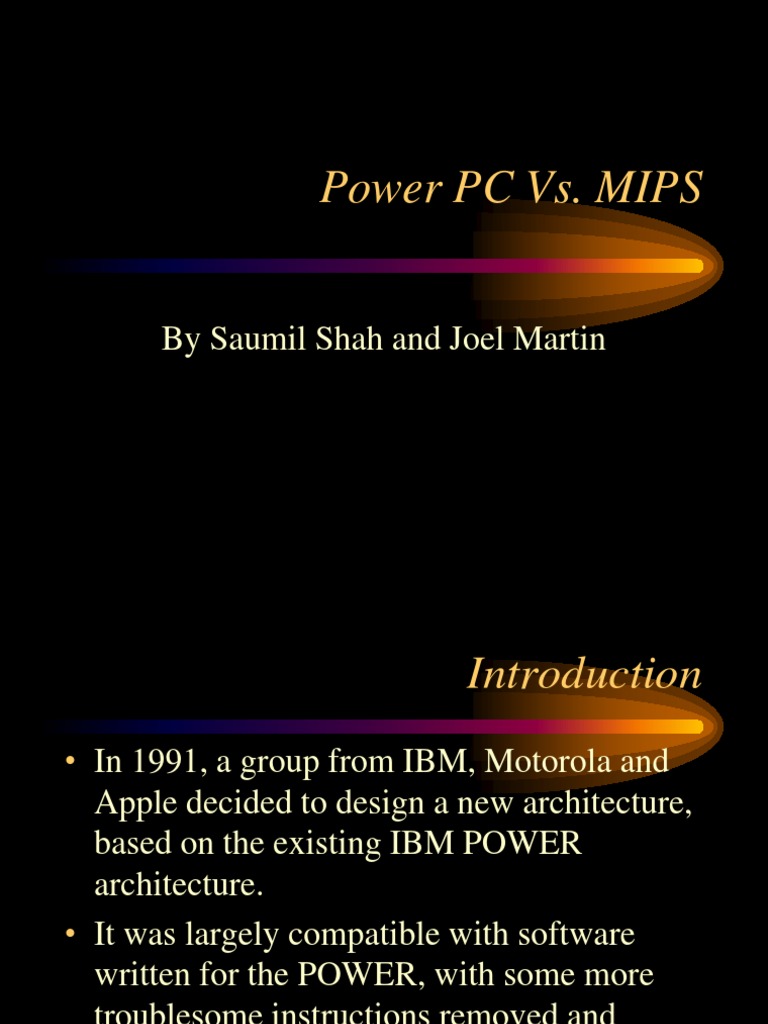

Power PC Vs.

MIPS

By Saumil Shah and Joel Martin

 Introduction
• In 1991, a group from IBM, Motorola and
Apple decided to design a new architecture,
based on the existing IBM POWER
architecture.
• It was largely compatible with software
written for the POWER, with some more
troublesome instructions removed and
emulated by the OS.
 Introduction

• It added new instructions to replace

removed ones, and improved the design of
the memory system, and extended the
design to 64-bit
• The overall design of the PowerPC is very
modular, with each CPU including the
following:
 Overall Design

• One or more Integer Execution Units: These

are used for computations with integers and
memory addresses.
• One or more Floating Point Units: These are
used for all computations with floating
point values. It implements both 32-bit and
64-bit IEEE standard
 Overall Design
• A single Branch Execution Unit: This unit
is responsible for executing all conditional
and unconditional branches, calls, system
calls, and conditional move and logical
operations.
• One or more Storage Control Units: This
unit handles access to main memory. As
such, it contains the caches, virtual memory
translation and the translation lookaside
buffer.
 Power PC Architecture
• PowerPC, being RISC, has all the
advantages of many registers
• 64-bit architecture
• 32 integer and 32 floating point
• and a simple easy to use instruction set
• The multiple flag branching unit can lead to
some complexity, but can also yield better
performance
 Power PC Architecture

• This architecture extends addressing and

fixed point computation to 64 bits and
supports dynamic switching between the
64-bit mode and 32-bit mode.
• In 32-bit mode, a 64-bit Power PC
processor will execute application binaries
compiled for the 32-bit subset architecture.
Basic Instructions Set
 Power PC Architecture
• The designers of the Power architecture choose to
minimize the time to complete a task.
• The total time is the product of three components:
path length, number of cycles needed to complete
an instruction and cycle time.
• Loads and stores account for the 20-30% of the
instructions executed by most of the programs.
• Many application manipulates array, for which the
pattern of memory access is often regular (ex.
Every nth element)
 Power PC Architecture

• Based on these observations the designers

included update forms of most load and
store instruction.
• The use of these instructions avoids the
need of a separate address computation after
each access
 Arithmetic Operations
• While MIPS provide arithmetic operations such as
Add, Subtract, etc… Power PC provides a lot
more of those operations with correct precision.
• The language processors for the PowerPC
automatically use their chosen expression
evaluation methods for the normal inline operators
(+, -, *, /). All the arithmetic operations produce
the best possible result: the mathematically exact
result, coerced to the precision and range of the
evaluation format.
 Power PC Architecture
• Instructions were a fixed length (4 bytes) with
consistent formats, permitting a simple instruction
decoding mechanism
• Load and store instructions provided all of the
accesses to memory.
• The architecture provided a set of general purpose
registers (GPRs) for fixed-point computation,
including the computation of memory addresses
 Power PC Architecture

• It provided a separate set of floating-point

registers (FPRs) for floating-point
computation
• It differed from other architecture like MIPS
in that it was functionally partitioned,
separating the functions of program flow
control, fixed-point computation, and
floating-point computation
 Power PC Architecture
• Apart from the changes to the instruction set, the
most significant changes were in the memory
model and the memory management definition.
• In the Power architecture, the processor did not
maintain data memory consistent with either I/O
accesses or instruction fetches.
• Software had to manage memory consistency for
both these areas.
• Power processor always accessed main memory
through caches.
 The PowerPC Calling
Conventions
• The native run-time environment on PowerPC
processor-based Macintosh computers uses a set
of uniform calling conventions:
• Parameters are processed from left to right and are
placed into general-purpose registers GPR3
through GPR10 and (when necessary) floating-
point registers FPR1 through FPR13.
Power PC Architecture
 The PowerPC Calling
Conventions
• Function results are returned in GPR3, FPR1, or
by passing a pointer to a structure as the implicit
leftmost parameter (as in the 680x0 C
implementation).
• Any parameters that do not fit into the designated
registers are passed on the stack. In addition,
enough space is allocated on the stack to hold all
parameters, whether they are passed in registers or
not.
 The Power PC Stack
• Like the 680x0 run-time environment, the
PowerPC run-time environment uses a grow-down
stack that contains areas for a routine's parameters,
for linkage information, and for local variables.
• However, the organization of the stack in the
PowerPC environment is significantly different
from that in the 680x0 environment.
• The PowerPC run-time environment uses a single
stack pointer and no frame pointer. To achieve this
simplification, the PowerPC stack has a much
more rigidly defined structure.
Power PC Stack
 Comparing Power PC and Mips
– Power PC – Mips
• Has lot more • Has basic instruction
instruction set set
• Has more branching • Has limited branching
capabilities capabilites
• Can do floating point
operation
 Summary

• The Power PC Architecture permits a range

of implementation from low cost controllers
through high performance processors.
• It allows the implementations of processors
targeted for desktop and notebook systems,
yet it contains features to support the
efficient implementation of processors for
use in a range of multiprocessor system.
 Basic similarities

• They both use a pipelined architecture in

their data path.
• MIPS and Power PC both use a stack frame
to store variables that are passed by various
functions in memory starting in high
memory and growing toward low memory.
• They both support floating point operations.
• They both are capable of supporting 32-bit
register size.
 Continued Similarities

• Both the Power PC and MIPS use a branch

prediction unit to determine if a branch
should be taken.
 Differences between Instruction
sets

• MIPS is not as elaborate meaning it does

not support as many instructions as the
Power PC architecture.
• Even though they both support floating
point operations, Power PC is more efficient
in their functionality regarding floating
point operations.
 Continued Differences

• Power PC also uses a pipeline architecture

that consists of seven pipelines as opposed
to the five pipeline architecture we are using
in MIPS.
• Although it may not be as fast it is able to
execute more instructions and can handle
more hazards than the MIPS architecture.
• Therefore, Power PC is a more efficient
architecture.
 Continued Differences between
MIPS and Power PC

• A dynamically scheduled pipeline goes past

stalls to find later instructions to be
executed while waiting for the stall to be
resolved. Therefore, the Power PC is more
efficient in handling instruction hazards that
would cause a stall in the pipeline.
• Also the Power PC assembly language
contains more jump instruction capabilities.
 Summary of the Power PC and
MIPS

• Even though both MIPS and Power PC are

able to support 32-bit registers, the Power
PC is also capable of supporting 64-bit
registers as well.
• Both support FLOPS or floating point
operations, but the Power PC is able to
support these operations faster.
• They both have the basic instruction sets,
but the Power PC is able to do more.
 Final Conclusion

• Overall the Power PC is a better

architecture than the MIPS architecture
because it is capable of handling more
instructions, it is able do more operations as
far as branching and floating point
operations and it is a more efficient
architecture in handling various
complexities in data and memory.
 Final Conclusion Continued

• So if I had to choose between a MIPS

architecture and a Power PC architecture, I
would go with the Power PC because in
overall performance it is better and is
capable of doing more than the MIPS
architecture can.
