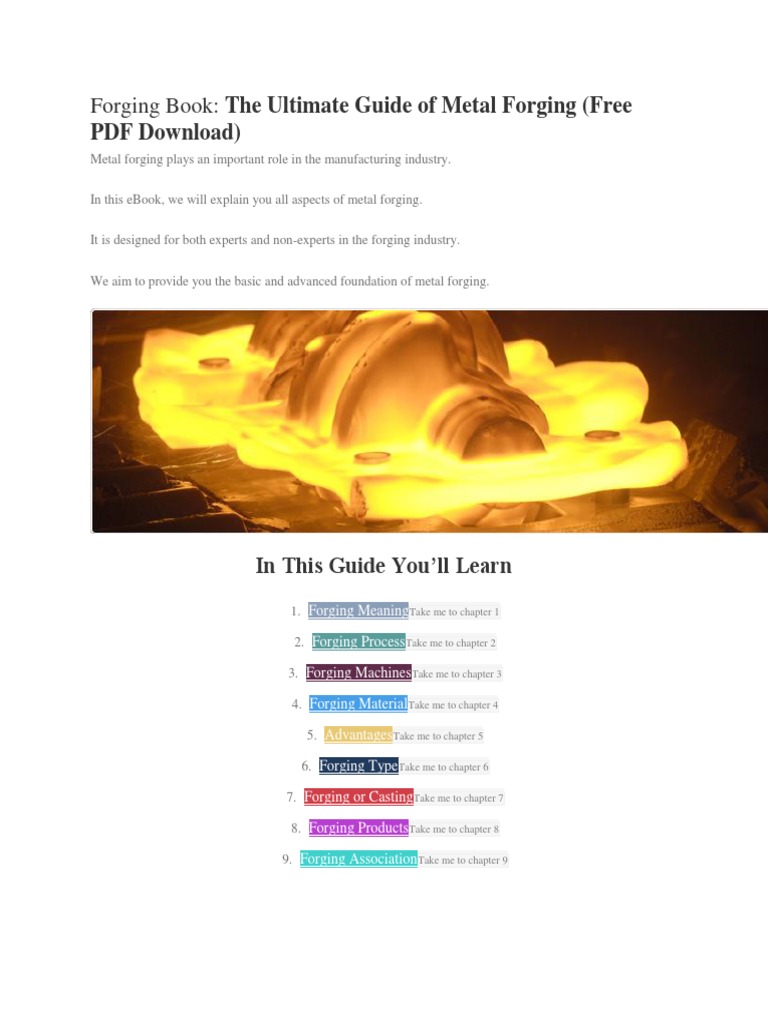

PDF Download)
Metal forging plays an important role in the manufacturing industry.
We aim to provide you the basic and advanced foundation of metal forging.
5. AdvantagesTake me to chapter 5
According to the Collins dictionary, it is the process of producing various parts by hammering.
The force changes the shape of the metal to form the desired shape.
The magnitude of the force will depend on the type of metal and type of machines among other factors.
The process is classified based on an environment the manufacturing process takes place.
Thus, it can be classified broadly as hot or cold forging. This refers to the metal forming temperature. (You
will understand it in next chapter)
In fact, the tools that were used before Homo sapiens existed were produced by metal forging.
In fact, these were very rudimentary tools ever created by the ancient man.
The early man depended on a rudimentary manufacturing process.
That is, they could deform material parts using bare hands.
Why ?
This has been replaced by machines. It was during the industrial revolution that man adopted the use of
machines.
They can forge both small and large equipment. That is, from small bolts to turbine rotors.
Despite being an ancient technology, it has been adopted even in the modern metal part manufacturing.
Machines that are used in modern part processing are efficient, reliable and more sophisticated.
In fact, with these machines, it is possible to obtain very complex shapes.(like below one for brass parts)
By deforming the work piece, one can create a desired geometrical shape.
Normally, it is used to process all metals such as steel, iron, brass, etc.
In most industries, the individual metals must be tested to determine the technique that should be adopted.
Therefore, the technician or the engineer should understand the basic principles that govern the entire process.
It is important that you understand every aspect of the entire process to be able to make informed decisions.
Forging process refers to all the steps that engineers and technicians use to shape the metal into a desired
shape.
In the modern manufacturing process, it is to produce complex shapes with minimal secondary operations.
At times, they may not be manufactured using a single metal forging technique.
Any technique adopted for a manufacturing process should relate to the exact specifications of the final
product.
It is worth considering how a given technique will affect the final grain structure of the metal.
To get components with improved physical properties, it is important that the technique aims at refining grain
structure of the metals.
At times, deep drawing may not be a single process. It may involve a series of process such as: blanking,
drawing, piercing and trimming.
2.Up-setting
This forging technique is mainly used to increase the cross sectional area of metal at the expense of length.
Up-setting force can be applied in the direction that is parallel to the length axis.
In this metal forging technique, the cross-sectional area of metal decreases as the length of the metal is
increased.
A reasonable amount of force is applied to the work piece when the bottom of the fuller is maintained at an
angle hole.
At the same time, the stock heated as the fuller top is kept above the stock.
In this process, the metal is manipulated into the desired shape by striking it between two dies.
It is mainly needed for those parts that should be used near bends.
6.Punching
The process is carried on a forging shop, hence the name forged welding.
8.Cutting
This process is mainly used to separate materials into pieces.
In most cases, a hammer or chisel. It’s done when the metal is in red hot condition.
In most cases, the final product has a reduced cross section that can be used in threading, tapping or threading.
In summary, there is some of the most common metal forging process.
The choice of a particular process depends on the design and the quality of the final product.
Related Resources:
Furthermore, the type of forging machine and equipment forms an integral part when it comes to classifying
different types of forging operations.
In normal industrial setup, there are four basic types of machines.
Broad hammer
This is one of the reasons why they are also referred to as the gravity drop hammers or drop hammers.
They are commonly used for the impression die forging manufacturing process.
These machines depend on the potential energy that is due to the force of gravity.
This implies that, the magnitude of force will depend on the weight of the hammer and the height.
However, this depends on both the capacity and the size of the hammer.
Besides, metal can be subjected to thermal shock. This can affect the quality of final part.
Power Hammer
Unlike Broad hammers, the total force is due to steam/air pressure plus gravitational force.
The pressure is an induced force during downward stroke which results in a higher acceleration.
Again, the stem/air pressure can also be used to raise ram during the upstroke.
Other parameters will still remain the same as in the case of broad hammers.
It is important to note that the energy of hammer generates is not used to deform the work piece 100%.
That is, a greater percentage deforms work piece while others are lost in the form of noise, foundation shock,
noise and heat.
This makes it important to define the fraction of energy generated by hammer that is utilized efficiently.
Normally, the efficiency is defined by the magnitude of deformation that takes place during any stroke.
This can be defined in the range: 0.3≤ Ƞ ≤ 0.9. Where, Ƞ denotes the efficiency of the forging hammer.
The efficiency of the forging hammer is based on the analysis of the amount of energy generated and the
amount utilized.
That is:
The energy necessary (high temperature) to forge the work piece (E strain) = σf ε V. Where σ is the true stress
and ε is the true strain.
The most common types of presses are the mechanical and hydraulic presses.
However, it is important to note that the initial cost of the forging equipment is slightly expensive.
Hydraulic Presses
These machines use hydraulic pressure to move the piston.
This explains the reason why they are referred to as the load restricted machines.
This is because, the machine can attain a full press load at all points during the stroke.
These machines are also associated with longer contact time, especially at the die and metal interface.
Hydraulic presses are more accurate.This is the main reason why they are used in applications that require very
tight tolerances.
Again, it is worth noting that, they are more expensive than hammers and mechanical presses.
Mechanical Press Forging
These machines have crank presses with the ability to translate rotary motion to a reciprocating linear motion.
Depending on specified requirements, this will result in a total energy that can forge a work piece.
That is,
Where W is the total energy required, I is the moment of inertia of the flying wheel, ω is the angular
velocity, ωo is the original value while the ωf is after the deformation of the work piece.
Mechanical presses are distinguished by the fact that, their ram stroke is relatively shorter than either the
hydraulic press or hammer.
In most cases, these presses are always rated based on the magnitude of force they can develop at the end of
each stroke.
Again, the efficiency and quality of the final product will depend on selecting the right die.
Most presses that are available in the market can attain as high as 60,000 tons.
In most cases, establishing the right force should be based on the following key criteria:
That is:
1. Gravity drop hammer operates between 3.6 and 4.8 ms-1.
2. Hydraulic press has a velocity between 0.06 and 0.30 ms-1.
3. Mechanical presses have a velocity of 0.06 to 1.5 ms-1.
4. Power drop hammer has a velocity between 3.0 and 9.0 ms-1.
It is upon the technician to choose one that meets the requirement of a given application.
This should be based on speed, force it can attain, accuracy and efficiency.
Related Sources:
Forging Machinery
This implies, one has to be very specific on chemical and physical properties of the individual metals.
Below are some of the most common metals for forging
Brass forging
This is mainly due to the fact that it can be shaped to the desired shape easily.
Brass is known for its good formability and high thermal properties.
It is a copper alloy that offers a wide range of benefits and has been incorporated in a number of applications.
These are some of the main reasons why brass is commonly used in a number of industrial applications.
The forging brass, identified as C37700 is rated 100%. It is the most forgeable. Others contain 35% to 40% of
zinc are rated at 90%.
Steel forging
There are quite a number of alloy steel forging that are used in different manufacturing industries.
Some of the most popular alloys include the 4140, 4130 and 4340. There are other types of steels with nearly
the same chemical and physical properties. However, there are some variations based on the elements
contained.
Steel forging companies can choose from three main types of steels:
1. Carbon steels
Carbon steels have similar properties of iron. Adding more carbon makes it difficult to weld or deform and
cracks easily.Which will make it difficult to forge.
2. Alloy steels
Alloy steels have greater strength, hardness, wear resistance and enhanced toughness. Often you may need
additional heat treatment to achieve all these.
3. Stainless steels
Stainless steels contain higher amount of chromium. They are corrosion resistant and do not rust.
It is upon the metal fabrication technician to opt for a metal that suits a specific application.
That is, one they can be transformed without exerting extreme forces.
To forge steel, the technicians can adopt cold, warm and hot.
By adopting right technique, metal forging company can produce stronger and durable steel parts than cast or
machined parts.
With right forging technique , steel parts will possess the following key properties:
Good toughness
Fine austenitic grain size
Advanced strength
Superior surface quality.
Forged steel parts are used in a wide range of applications that may include manufacturing cranes, cables,
hydraulic press, shafts and axles for drives.
These parts are used in production, automotive and chemical manufacturing industries.
Aluminum forging
Most common aluminum alloys include 1100, 7079, 7175 and 7475.
Aluminum has become popular across very many industries due to its light weight.Check one list
from slideshare .
Aluminum forging is popular due to the superior physical and chemical properties.
Aluminum forged parts do corrode, even when they’re subjected to most adverse weather conditions.
This is the main reason why they are used in the petrochemical and marine industries. In fact, most fasteners in
these industries are manufactured from aluminum.
4. It is a versatile metal that be manufactured with a wide range of metal forging processes.
5. Its soft compared to other materials such as iron. This reduces the production cost.
Iron forging
Like other metals, iron forging is also popular across very many industries.
With the required equipment, they can be crafted/manipulated to meet the exact requirements of the end user.
In most industries, iron is considered a super alloy. This is due to the fact that, the forged parts are mainly used
in high temperature applications.
Iron forged parts are less expensive as compared to other alloys such as the nickel or cobalt-based alloys.
In addition to these, the iron based alloys can be hot or cold worked. This will depend on the final physical and
chemical properties that one wishes to achieve.
Iron forging is a manufacturing technique used to produce parts that should meet the following key criteria:
In high-temperature applications – this is mainly common in industrial setup such as the automotive
industries, power plant or boiler.
Increased strength, such in the construction of cranes.
They are resistant to corrosion, oxidation, wear or creep.
It is important to note that the wear resistance increases with the quantity of carbon.
For instance, 611, 612 and 613 are mainly used to forge high-temperature aircraft bearings.
That is, those machine components that are subjected to any form of sliding contact.
Choosing a particular type of iron alloy for any forging process should be based on the desired applications.
Copper forging
Forged copper parts are a perfect choice in applications where there’s higher temperatures and at a higher load.
Again, the parts can withstand high stress without unexpected failures.
In most cases, Forged copper parts are highly recommended.
Why ?
Electrical assemblies and transmission lines such as caps, connectors and fittings
Electronic components such as connectors, heat sinks, etc
Plumbing components such as impellers and valve components.
Gaskets and seals, especially those that are used in high temperature and corrosive environment.
Power plants
Fittings for high pressure applications, among other components.
Stainless steel, which is available in 304, 314, 316 and 403,can be open die forged into different shapes.
In normal industrial setup, parts that can be obtained include: copper discs, shafts, rings, plates, etc.
1. The forged stainless steel parts can withstand sanitizing and frequent cleaning; this is one of the main
reasons why it is used in the food processing and medical equipment.
2. Highly resistant to corrosion; this is the main reason why it is used in petrochemical, marine and chemical
industries, especially in pumps. These parts can withstand prolonged exposure to corrosive environment.
3. The forged parts have high resistance to heat. This makes it a perfect choice for furnace, heat sinks and
ovens.
4. They guarantee high wear and high performance. This explains the reason why they are used for landing
gears and motor components.
5. The forged parts have high stability and strength. This makes it a perfect choice for most structural
components.
In short, stainless steel is one of the most popular materials used to manufacture a number of industrial parts.
This is because having some of the best physical and chemical properties.
Related Resources:
Ideally, the main advantages and disadvantages of the process can be discussed based on the type of the
forging process.
That is,
whether it is hot forging or cold forging. May be, we need to clarify these terms first before we look at the
advantages and disadvantages of each process.
The two processes are slightly different, however, they produce the same results.
Hot forging
During this period, the metal is subjected to a number of strain hardening effects.
For example:
Cold forging
The metal is subjected to compressive forces at temperatures below the recrystallization temperature.
Normally, it’s the room temperature. The most common process that is used is the impression-die casting. It is
a perfect choice for soft metals.
Therefore, it is important that one evaluates both the advantages and disadvantages of the two processes.
This is an effective way to adopt a reliable, efficient and cost effective metal forging technique.
Related Resources :
Again, the orientation of the work piece (metal) may also be different.
All these aim to achieve a different constraint on flow and material flow by the die or punch.
Based on these, we may classify die forging die forging processes as:
Dies, which is also referred to as the hammer, deform materials through a series of movements.
Forgings that can be obtained from this process may range from a few pounds to 150 tons.
In fact, more sophisticated machines can forge even larger parts. Normally, the work piece is held between flat
faced dies.
Generally, all forgeable non-ferrous and ferrous alloys can be processed through this manufacturing process.
In most industrial applications, they are mainly used for short run forgings.
Nearly all products forged through open die forging technique require secondary operations.
In most cases, the metal may be heated above the recrystallization temperature.
These may include discs, sleeves, shafts, cylinders or shafts. Since the products is deformed repeatedly, the
final product has an improved grain structure.
Such components are stronger, improved fatigue resistance and reduced voids.
In an advanced metal forging process, the open die forging can be tailored to meet different requirements.
Basically, it aims to ensure optimal performance and maximize on the desirable properties.
Related Resource :
Drop forging
This is a process of shaping a metal part by forcing it into a contours of a die.
In most cases, the drop forging operation can be performed under two main conditions:
1. Metal can be heated to temperature above the recrystallization temperature. This is always referred to as hot
forging. This eliminates the work hardening problems.
2. Temperature is below the recrystallization temperature. This is typically referred to as the cold forging.
Apart from these, adopting a desirable manufacturing process/technique is also important.
Also referred to as the free forging. In this metal forging, metal is subjected to a compressive force without
being confined within dies.
Metal part is confined between two dies: upper and lower die.
A reason why it is also referred to as the impression die forging. It produces near net shapes.
Related Source:
Press forging process can be carried out in cold, warm and hot conditions.
The process varies slightly from the drop-hammer forging in that, the work piece is subjected to a slow but
continuous force.
No need for the heavy and quick blows. In fact, the time tool gets in contact with work piece is longer – about
several seconds.
This process is highly recommended for applications that require very precise parts.
Press forging has become popular across very many industries. It changes both surface and interior of work
piece.
In contrary, drop forging only deforms the surface. This process is more controlled, thus, it becomes easy to
examine crucial aspects of the forging process.
A good example is examining the strain rate. The process is also efficient and reliable. In addition to these, in
press forging, the energy is optimally utilized.
Related Resource
What is the difference between press forging and drop hammer forging?
Upset forging
Major applications include torsion bars, holding rods, eye bolts, etc.
This process plastically deforms the metal under high pressure thus, it’s possible to achieve high strength parts.
In this process, the preheat metal is held between the grooved dies. The pressure is applied to end of the bar in
the direction of the metal’s axis.
Several upsetting operations can be carried out to deform the metal gradually.
Quite a number of forging machines that are used in this process operate in a horizontal plane.
Related Resource :
Roll forging
In roll forging, two curved dies are used to deform the metal.
Normally, these are two opposing rollers that subject work piece to a desired compressive force that is just
enough to deform it.
This process is carried out above the recrystallization temperature ( hot forging process).
As the rolls rotate, they tend to squeeze the work piece thus deforming it.
Again, the final shape of the forged products will be similar to that of the dies.
Related Resources:
Roll Forging
Choice of a particular process will mainly depend on the specific manufacturing objectives one would wish to
achieve.
In most cases, people tend to confuse casting and forging manufacturing processes.
We shall also highlight some of the main reasons why you need to adopt a specific casting or forging for a
given application.
Casting
In metal casting, metal is heated to a molten state, poured into a mold to create a desired shape.
Forging
Forging is the process of manipulating the shape of a metal by subjecting it to compressive forces.
Unlike the metal casting process, in this process, we don’t need to melt the metal. A die is used to transform
the metal into a desired shape and size.
Distinct facts about forging
Above are clear differences between forging and casting. Manufacturers should choose a technique based on
quality of final products.
Relate Source :
Automotive parts
This is one of those industries that has benefited from this industry.
Products include complex shapes that have been manufactured either through cold or hot forging.
Examples of parts include: automatic and manual transmission systems, steering parts, engine parts, etc.
Aerospace industry
Like the automotive industry, there are a number of forged parts that are used in this industry.
Examples include: inner-outer ring, taper roller bearing outer ring, bearing and other engine and transmission
parts.
Others include engine discs, compressor parts, exhaust, spinners and other aircraft structural parts.
Forged parts include turbine components, discs, shafts, seamless pipes and fittings, just to mention a few.
Generally, nearly 43% of the parts that are used in this industry are manufactured through forging.
General production and manufacturing industry
Forged precision parts include: bars, welding products, gaskets, washers, etc. This is mainly due to their
structural integrity.
Medical industry
A number of medical equipment are forged. These include trauma parts, extremities parts, implants and
medical machine parts.
Generally, precision forging has become part of our daily life.
All that matters is the ability to get quality products that can meet the specific requirements of the end users.
The technology is still improving and soon, we’ll have even better engine parts and equipment.
Like other professions, a number of stakeholders and companies have formed associations that oversee how
people go about their business in the forging industry.
Again, their mandate is to set rules that everyone in the industry should follow.
Moreover, they provide educational materials and avenues of connecting all metal forging companies globally.
Apparently, there are over 173 ordinary members and about 45 Associate Members of the Association. The
members include corporations, companies, person or firms.
The Association of Indian Forging Industry (AIFI) aims to promote interest of forging industry.
AIFI enhances skills and promotes professionalism. This is through educational videos and publications.
AIFI also participate in both national and international seminars. Soon, members will also be able to advertise
with AIFI.
FIA provides a wide range of information aiming to increase global competitiveness in the forging industry.
It provides opportunities within the industry: career information, forge shop information and learning material.
There’s membership services too.
China Forging Industry Association (CFIA), is part of the Confederation of Chinese Metalforming Industry
(CCMI).
Like of other metal forging associations, CFIA strives to ensure quality manufacturing process.
CFIA organizes conferences, exhibitions, publishes magazines, oversees research and avails learning
resources.
The association champions for cost effective and sustainable forging processes.
Generally, there are many forging associations in the world today.
It is important that one becomes a member of this a forging association, especially those who are in the forging
industry.
Metal forging is an integral part of any manufacturing process in the modern industrial setup.
It is important that one chooses an effective a reliable technique based on the specific requirements of the end
user.
When you know all aspects of metal forging , you will benefit a lot if your product parts made from the metal
forging process.
Now it’s turn,leave a comment and tell me what you think about metal forging.
