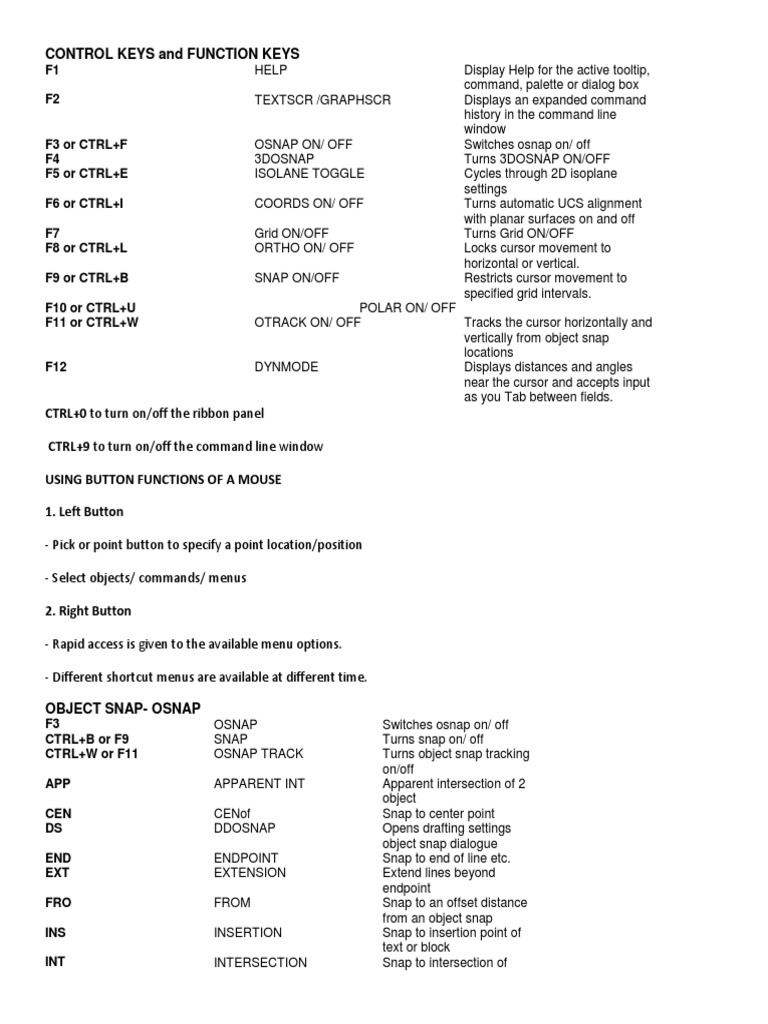

command, palette or dialog box F2 TEXTSCR /GRAPHSCR Displays an expanded command history in the command line window F3 or CTRL+F OSNAP ON/ OFF Switches osnap on/ off F4 3DOSNAP Turns 3DOSNAP ON/OFF F5 or CTRL+E ISOLANE TOGGLE Cycles through 2D isoplane settings F6 or CTRL+I COORDS ON/ OFF Turns automatic UCS alignment with planar surfaces on and off F7 Grid ON/OFF Turns Grid ON/OFF F8 or CTRL+L ORTHO ON/ OFF Locks cursor movement to horizontal or vertical. F9 or CTRL+B SNAP ON/OFF Restricts cursor movement to specified grid intervals. F10 or CTRL+U POLAR ON/ OFF F11 or CTRL+W OTRACK ON/ OFF Tracks the cursor horizontally and vertically from object snap locations F12 DYNMODE Displays distances and angles near the cursor and accepts input as you Tab between fields. CTRL+0 to turn on/off the ribbon panel
CTRL+9 to turn on/off the command line window
USING BUTTON FUNCTIONS OF A MOUSE
1. Left Button
- Pick or point button to specify a point location/position
- Select objects/ commands/ menus
2. Right Button
- Rapid access is given to the available menu options.
- Different shortcut menus are available at different time.
OBJECT SNAP- OSNAP
F3 OSNAP Switches osnap on/ off CTRL+B or F9 SNAP Turns snap on/ off CTRL+W or F11 OSNAP TRACK Turns object snap tracking on/off APP APPARENT INT Apparent intersection of 2 object CEN CENof Snap to center point DS DDOSNAP Opens drafting settings object snap dialogue END ENDPOINT Snap to end of line etc. EXT EXTENSION Extend lines beyond endpoint FRO FROM Snap to an offset distance from an object snap INS INSERTION Snap to insertion point of text or block INT INTERSECTION Snap to intersection of lines, circles , arcs MID MIDPOINT Snap to midpoint of lines, circles , arcs MTP MID BETWEEN 2 PT. Snap midpoint between two points NEA NEAREST Snap near to an object NOD NODE Snap to point node NON NONE Turns off object snap modes PAR PARALLEL Continues a line parallel to existing PER PERPENDICULAR Snap to perpendicular of line etc. QUA QUADRANT Snap to quadrant of circle, arcs, ellipse TAN TANGENT Snap to tangent of circle, arc, ellipse TK TRACK Locate points without drawing TT TT Temporary tracking point
VPORTS VPORTS Opens viewports
dialogue box Create a viewport using command line
ST STYLE Opens text style
dialogue box MODIFYING OBJECTS AL ALIGN Align an object with another AR ARRAY Make multiple copies of an object BR BREAK Break a line by defining two points CO or CP COPY Copy object COPYTOLAYER COPYTOLAYER Copy object from one layer to another CHA CHAMFER Chamfer between two non- parallel lines E ERASE Erase a selection EX EXTEND Extend a line to meet another F FILLET Draw an arc between two intersecting lines G GROUP Opens object grouping dialogue box- use to copy or move LEN LENGTHEN Lengthen or shorten a line M MOVE Move an object MI MIRROR Mirror an object MOCORO MOVE/COPY/ROTATE Copy move and rotate an object with one command O OFFSET Offset an object by distance RO ROTATE Rotate an object S STRETCH Stretch an object SC SCALE Scale an object TR TRIM Trim objects X EXPLODE Explode single entity into component parts LA LAYER Opens layer manager PR PROPERTIES Opens properties dialogue box A ARC Draw an arc with 3 points C CIRCLE Draw a circle DT TEXT Single line text DIV DIVIDE Inserts point node a set division EL ELLLIPSE Draw an ellipse F FILLET Draw an arc between two intersecting lines G GROUP Opens object grouping dialogue box L LINE Draw a line O OFFSET Offset an object distance PL PLINE Draw a polyline- a complex line POL POLYGON Draw a regularpolygon 3 to 1024 sides RAY RAY Construction line in one direction REC RECTANGLE Draw a rectangle UN UNITS Opens drawing units dialogue box V VIEW Opens view dialogue box TR TRIM Trim a selection REN RENAME Opens rename dialogue box to rename blocks, layer,etc RO ROTATE Rotate a selection RE REGEN Regenerate the display OP OPTIONS Launches options dialogue box P PAN Pan in drawing M MOVE Move a selection MA MATCHPROPERTIES Match properties of an object ME MEASURE Insert point node at input distance E ERASE Erase a selection CO/CP COPY Copy an object
CONTROL KEYS and FUNCTION KEYS
CTRL+0 CLEAN SCREEN Turns user interface elements on/ off CTRL+1 MODIFY PROPERTIES Turns properties on/ off CTRL+2 DESIGN CENTER Turns design center on/ off CTRL+3 TOOLPALETTES Turns tool palettes window on/ off CTRL+4 SHEET MANAGER CTRL+6 DBCONNECT MNGR. CTRL+7 MARKUP SET MANAGER CTRL+8 QUICK CALCULATOR Launches calculator window CTRL+9 COMMAND LINE WINDOW CTRL+A SELECT ALL CTRL+B or F9 SNAP ON/OFF Turns snap on/ off CTRL+C COPY TO CLIP BOARD CTRL+D DUCS ON/OFF CTRL+E or F5 ISOLANE TOGGLE CTRL+F or F3 OSNAP ON/ OFF Switches osnap on/ off CTRL+G GRID ON/ OFF Turns grid on/off CTRL+H PICKSTYLE CTRL+I or F6 COORDS ON/ OFF CTRL+J MTEXTEDIT CTRL+K HYPERLINK CTRL+L or F8 ORTHO ON/ OFF Turns ortho on/ off CTRL+M CTRL+N NEW FILE Opens /create a new drawing dialogue box CTRL+O OPEN FILE Opens the select file dialogue box CTRL+P PLOT Opens the plot dialogue box CTRL+Q QUIT CTRL+R CVPORT Switches between view ports CTRL+S QUICK SAVE Opens the save drawing as dialogue box CTRL+T CALIBRATE TABLET CTRL+U or F10 POLAR ON/ OFF CTRL+V PASTE FROM CLIPBOARD CTRL+W or F11 OTRACK ON/ OFF CTRL+X CUT TO CLIPBOARD CTRL+Y REDO CTRL+Z UNDO Undoes the last operation CTRL+SHIFT+S SAVE AS CTRL+TAB Switches between open drawings CTRL+PAGEUP Switch up between layout tabs CTRL+PAGEDOWN Switch down between layout tabs CTRL+ALT PRESSPULL SHIFT+CLICK UNDO SELECTION SHIFT+R-CLICK OSNAP TOOLBAR F1 HELP Opens AutoCAD help F2 TEXTSCR /GRAPHSCR Switches between text screen and graphic area F12 DYNMODE Turns dynamic input on/off ARROW UP/DOWN Recall last command
