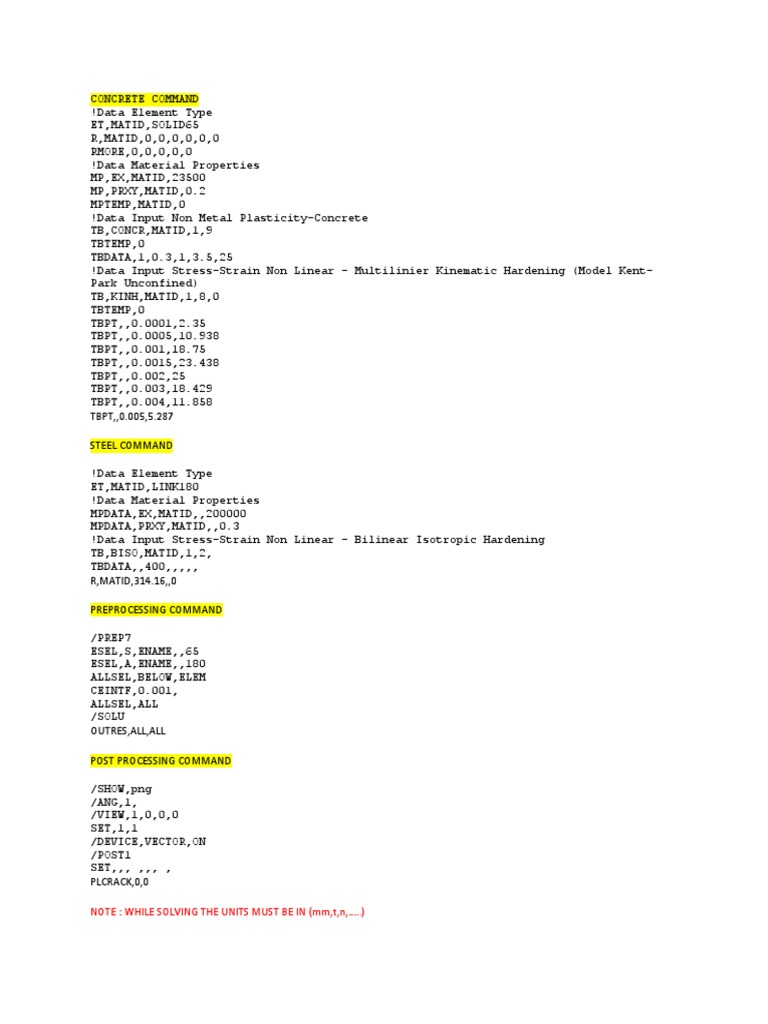

CONCRETE COMMAND

!Data Element Type

ET,MATID,SOLID65
R,MATID,0,0,0,0,0,0
RMORE,0,0,0,0,0
!Data Material Properties
MP,EX,MATID,23500
MP,PRXY,MATID,0.2
MPTEMP,MATID,0
!Data Input Non Metal Plasticity-Concrete
TB,CONCR,MATID,1,9
TBTEMP,0
TBDATA,1,0.3,1,3.5,25
!Data Input Stress-Strain Non Linear - Multilinier Kinematic Hardening (Model Kent-
Park Unconfined)
TB,KINH,MATID,1,8,0
TBTEMP,0
TBPT,,0.0001,2.35
TBPT,,0.0005,10.938
TBPT,,0.001,18.75
TBPT,,0.0015,23.438
TBPT,,0.002,25
TBPT,,0.003,18.429
TBPT,,0.004,11.858
TBPT,,0.005,5.287

STEEL COMMAND

!Data Element Type

ET,MATID,LINK180
!Data Material Properties
MPDATA,EX,MATID,,200000
MPDATA,PRXY,MATID,,0.3
!Data Input Stress-Strain Non Linear - Bilinear Isotropic Hardening
TB,BISO,MATID,1,2,
TBDATA,,400,,,,,
R,MATID,314.16,,0

PREPROCESSING COMMAND

/PREP7
ESEL,S,ENAME,,65
ESEL,A,ENAME,,180
ALLSEL,BELOW,ELEM
CEINTF,0.001,
ALLSEL,ALL
/SOLU
OUTRES,ALL,ALL

POST PROCESSING COMMAND

/SHOW,png
/ANG,1,
/VIEW,1,0,0,0
SET,1,1
/DEVICE,VECTOR,ON
/POST1
SET,,, ,,, ,
PLCRACK,0,0

NOTE : WHILE SOLVING THE UNITS MUST BE IN (mm,t,n,…..)
