This document describes an experiment to measure the refractive index and velocity of light in liquids using a plane mirror and convex lens. [1] Liquids placed between the mirror and lens alter the radius of curvature and allow measurement of refractive index. [2] The refractive index is calculated based on the radii of curvature with and without liquid present. [3] Various liquids were tested and their refractive indices and velocities of light were measured and recorded in a table, with water showing the highest velocity and honey the lowest.
This document describes an experiment to measure the refractive index and velocity of light in liquids using a plane mirror and convex lens. [1] Liquids placed between the mirror and lens alter the radius of curvature and allow measurement of refractive index. [2] The refractive index is calculated based on the radii of curvature with and without liquid present. [3] Various liquids were tested and their refractive indices and velocities of light were measured and recorded in a table, with water showing the highest velocity and honey the lowest.
This document describes an experiment to measure the refractive index and velocity of light in liquids using a plane mirror and convex lens. [1] Liquids placed between the mirror and lens alter the radius of curvature and allow measurement of refractive index. [2] The refractive index is calculated based on the radii of curvature with and without liquid present. [3] Various liquids were tested and their refractive indices and velocities of light were measured and recorded in a table, with water showing the highest velocity and honey the lowest.
This document describes an experiment to measure the refractive index and velocity of light in liquids using a plane mirror and convex lens. [1] Liquids placed between the mirror and lens alter the radius of curvature and allow measurement of refractive index. [2] The refractive index is calculated based on the radii of curvature with and without liquid present. [3] Various liquids were tested and their refractive indices and velocities of light were measured and recorded in a table, with water showing the highest velocity and honey the lowest.

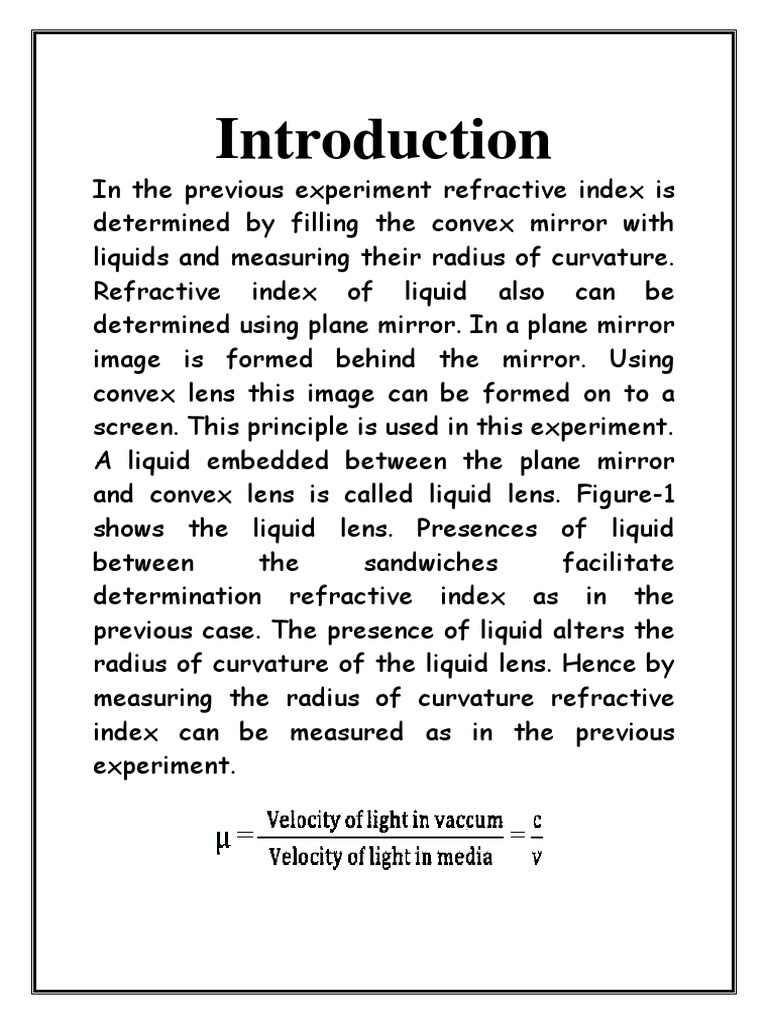

determined by filling the convex mirror with liquids and measuring their radius of curvature. Refractive index of liquid also can be determined using plane mirror. In a plane mirror image is formed behind the mirror. Using convex lens this image can be formed on to a screen. This principle is used in this experiment. A liquid embedded between the plane mirror and convex lens is called liquid lens. Figure-1 shows the liquid lens. Presences of liquid between the sandwiches facilitate determination refractive index as in the previous case. The presence of liquid alters the radius of curvature of the liquid lens. Hence by measuring the radius of curvature refractive index can be measured as in the previous experiment. Where c is velocity of light in vacuum =3x108 m /s v is velocity of light in the medium through which it is travelling
If R1 is the radius curvature of the plane
mirror-convex lens combination in air and R2 is the radius of curvature plane mirror-convex lens combination with liquid in between then the refractive index is given by
The presence of liquid in between the mirror
and convex lens increase the focal point hence image is formed further in compare to air in between the mirror and convex lens. Hence R2 is larger than R1. The liquid between plane mirror and convex lens now forms a plano- concave lens (plain side due to mirror and concave side due to lens) hence the focal point is increased or resulting in larger radius of curvature. Figure-1 shows the liquid embedded with plain mirror and convex lens. Figure-1: Liquid lens; inner circle concave lens formed by the liquid outer circle convex lens boundary, square boundary is the mirror Apparatus used Figure-2 shows the instrument used to determine refractive index and velocity of light in liquids. It consists of illuminated object and semi transparent screen. A LED light is used to illuminate the object printed on semi transparent acrylic sheet. The image of the object reflected from the mirror can be viewed on the image screen by the side of object. By moving whole set on a retort stand, the image can be focused.
Figure-2: Liquid lens apparatus: Illuminated box
fitted to retort stand and convex lens placed on a mirror on the base of the stand Experimental procedure 1. The refractive index illuminated box is fitted to retort stand (12.5mm dia) as shown in Figure-2 and switched on.
2. The plane mirror is placed on the base of the
retort stand and above which the convex lens is placed as shown in Figure-2.
3. The light from refractive index illuminated box
falls on the plain mirror and the reflected light is pass through lens is focused by moving the illuminated box as shown in Figure-3.
4. The distance between the retort stand base and
illuminated box is noted. This is radius of curvature of the mirror-convex lens combination. R1 = 11.3cm 5. The convex lens is removed from the mirror and few drops (about 2ml) water is poured on the center of the plain mirror and the convex lens is placed over it. The liquid under the convex lens takes the concave curvature shape. Along with the plain mirror is behaves like a concave mirror reflected light to the image screen. By adjusting the distance clear image of the object is seen and distance between base of the retort stand and illuminated box gives R2 =15.5cm
Refractive index μ is calculated using Equation-1
6. Trial is repeated 2-3 time focusing and refocusing
and average value is noted in Table-1
7. Experiment is repeated by taking different liquid
between the mirror and the convex lens. The corresponding radius of curvature and refractive index calculated are tabulated in Table-1. 8. Velocity of light in the liquid is calculated using formula
Similar calculations are made for all the liquids and
velocity light in different liquids are calculated and presented in Table-1. Important Note Organic liquids such as acetone, benzene etc are generally available in chemistry lab that al so can be used to determine refractive index. However, while using organic liquid care is take to see that liquid doest spill out the concave mirror and touch the bottom painted portion of the mirror. Organic liquids dissolve paint hence we have used household liquids only. Result The refractive index determined are listed in Table-1 and compared with standard values. Refractive index of water and glycerin are well known and % error in measurement is 0.6% and 8% respectively. These indicate the accuracy of measurement.
Velocities of light in different liquids are different
liquids and velocity of light decease as the refractive in increase. In bee honey the velocity (1.66x108m/s) determined is the minimum in this experiment and in water (2.16x108m/s) is the maximum.
